Node.js integration for Grafana Cloud
Node.js is a JavaScript runtime environment that allows execution of JavaScript code outside a web browser.
This integration includes 1 useful alert and 1 pre-built dashboard to help monitor and visualize Node.js metrics.
Before you begin
This integration monitors a Node.js app that exposes metrics through prom-client.
In order for the integration to work, the prom-client should be installed and the default metrics should be enabled. Afterwards the metrics can be exposed under /metrics endpoint.
import express from 'express';
import { collectDefaultMetrics, register } from 'prom-client';
collectDefaultMetrics();
const app = express();
app.get('/metrics', async (_req, res) => {
try {
res.set('Content-Type', register.contentType);
res.end(await register.metrics());
} catch (err) {
res.status(500).end(err);
}
});
app.listen(4001, '0.0.0.0');Install Node.js integration for Grafana Cloud
- In your Grafana Cloud stack, click Connections in the left-hand menu.
- Find Node.js and click its tile to open the integration.
- Review the prerequisites in the Configuration Details tab and set up Grafana Agent to send Node.js metrics to your Grafana Cloud instance.
- Click Install to add this integration’s pre-built dashboard and alert to your Grafana Cloud instance, and you can start monitoring your Node.js setup.
Post-install configuration for the Node.js integration
After enabling the metrics generation, you must manually add the snippet provided to configure Grafana Agent to scrape your Node.js application.
The prom-client lib exposes a /metrics endpoint. To scrape it, add the provided snippet to your Grafana Agent configuration file.
Make sure to change targets in the snippet according to your environment.
Configuration snippets for Grafana Agent
Below metrics.configs.scrape_configs, insert the following lines and change the URLs according to your environment:
- job_name: integrations/nodejs
static_configs:
- targets: ['localhost:4001']
relabel_configs:
- replacement: '<your-instance-name>'
target_label: instanceFull example configuration for Grafana Agent
Refer to the following Grafana Agent configuration for a complete example that contains all the snippets used for the Node.js integration. This example also includes metrics that are sent to monitor your Grafana Agent instance.
integrations:
prometheus_remote_write:
- basic_auth:
password: <your_prom_pass>
username: <your_prom_user>
url: <your_prom_url>
agent:
enabled: true
relabel_configs:
- action: replace
source_labels:
- agent_hostname
target_label: instance
- action: replace
target_label: job
replacement: "integrations/agent-check"
metric_relabel_configs:
- action: keep
regex: (prometheus_target_.*|prometheus_sd_discovered_targets|agent_build.*|agent_wal_samples_appended_total|process_start_time_seconds)
source_labels:
- __name__
# Add here any snippet that belongs to the `integrations` section.
# For a correct indentation, paste snippets copied from Grafana Cloud at the beginning of the line.
logs:
configs:
- clients:
- basic_auth:
password: <your_loki_pass>
username: <your_loki_user>
url: <your_loki_url>
name: integrations
positions:
filename: /tmp/positions.yaml
scrape_configs:
# Add here any snippet that belongs to the `logs.configs.scrape_configs` section.
# For a correct indentation, paste snippets copied from Grafana Cloud at the beginning of the line.
metrics:
configs:
- name: integrations
remote_write:
- basic_auth:
password: <your_prom_pass>
username: <your_prom_user>
url: <your_prom_url>
scrape_configs:
# Add here any snippet that belongs to the `metrics.configs.scrape_configs` section.
# For a correct indentation, paste snippets copied from Grafana Cloud at the beginning of the line.
- job_name: integrations/nodejs
static_configs:
- targets: ['localhost:4001']
relabel_configs:
- replacement: '<your-instance-name>'
target_label: instance
global:
scrape_interval: 60s
wal_directory: /tmp/grafana-agent-walDashboards
The Node.js integration installs the following dashboards in your Grafana Cloud instance to help monitor your system.
- Node.js

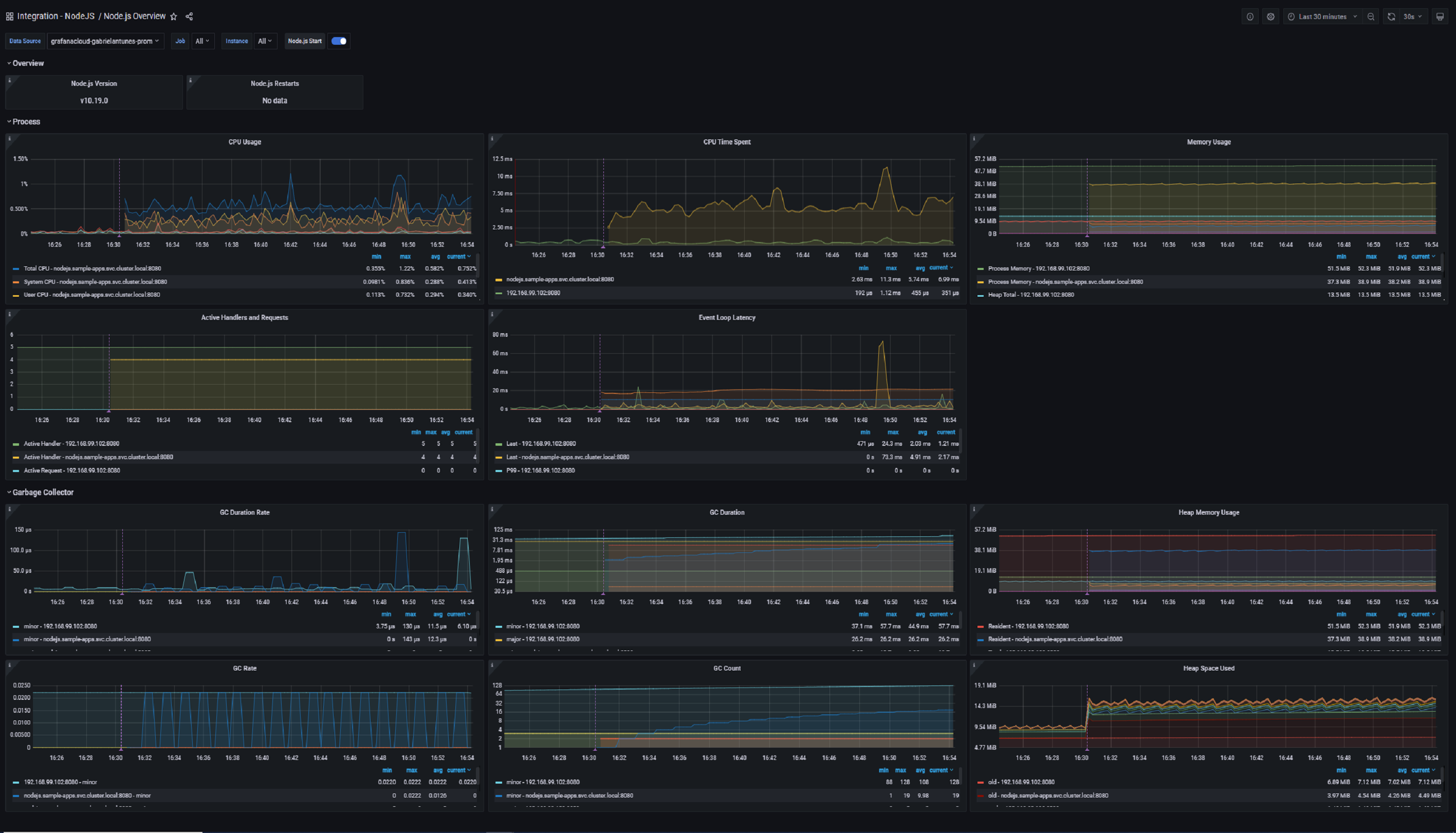

Node.js application overview dashboard
Alerts
The Node.js integration includes the following useful alerts:
| Alert | Description |
|---|---|
| NodejsDown | Critical: Node.js not up. |
Metrics
The most important metrics provided by the Node.js integration, which are used on the pre-built dashboard and Prometheus alert, are as follows:
- nodejs_active_handles_total
- nodejs_active_requests_total
- nodejs_eventloop_lag_p50_seconds
- nodejs_eventloop_lag_p99_seconds
- nodejs_eventloop_lag_seconds
- nodejs_external_memory_bytes
- nodejs_gc_duration_seconds_count
- nodejs_gc_duration_seconds_sum
- nodejs_heap_size_total_bytes
- nodejs_heap_size_used_bytes
- nodejs_heap_space_size_used_bytes
- nodejs_version_info
- process_cpu_seconds_total
- process_cpu_system_seconds_total
- process_cpu_user_seconds_total
- process_resident_memory_bytes
- process_start_time_seconds
Changelog
# 0.0.6 - July 2023
* New Filter Metrics option for configuring the Grafana Agent, which saves on metrics cost by dropping any metric not used by this integration. Beware that anything custom built using metrics that are not on the snippet will stop working.
* New hostname relabel option, which applies the instance name you write on the text box to the Grafana Agent configuration snippets, making it easier and less error prone to configure this mandatory label.
# 0.0.5 - December 2022
* Update mixin to latest
- Add missing job selector to query
# 0.0.4 - October 2022
* Update mixin to latest version:
- fix NodejsDown alert definition
# 0.0.3 - September 2022
* Update dashboard panels descriptions.
# 0.0.2 - October 2021
* Update mixin to latest version:
- Update queries to use $__rate_interval
# 0.0.1 - December 2020
* Initial releaseCost
By connecting your Node.js instance to Grafana Cloud, you might incur charges. To view information on the number of active series that your Grafana Cloud account uses for metrics included in each Cloud tier, see Active series and dpm usage and Cloud tier pricing.
