Linux Server integration for Grafana Cloud

Linux is a family of open-source Unix-like operating systems based on the Linux kernel. Linux is the leading operating system on servers, and is one of the most prominent examples of free and open-source software collaboration.

Linux Server integration for Grafana Cloud enables you to collect metrics related to the operating system running on a node, including aspects like CPU usage, load average, memory usage, and disk and networking I/O using node_exporter integration. It also allows you to use the agent to scrape logs.

This integration includes 23 useful alerts and 7 pre-built dashboards to help monitor and visualize Linux Server metrics and logs.

Before you begin

Each Linux node being observed must have its dedicated Grafana Alloy running.

If you want to monitor more than one Linux Node with this integration, we recommend you to use the Ansible collection for Grafana Cloud to deploy Grafana Alloy to multiple machines, as described in this documentation.

Install Linux Server integration for Grafana Cloud

  1. In your Grafana Cloud stack, click Connections in the left-hand menu.
  2. Find Linux Server and click its tile to open the integration.
  3. Review the prerequisites in the Configuration Details tab and set up Grafana Agent to send Linux Server metrics and logs to your Grafana Cloud instance.
  4. Click Install to add this integration’s pre-built dashboards and alerts to your Grafana Cloud instance, and you can start monitoring your Linux Server setup.

Configuration snippets for Grafana Alloy

Simple mode

These snippets are configured to scrape a single Linux Server instance running locally with default ports.

Manually copy and append the following snippets into your Grafana Alloy configuration file.

Integrations snippets

alloy
discovery.relabel "integrations_node_exporter" {
  targets = prometheus.exporter.unix.integrations_node_exporter.targets

  rule {
    target_label = "instance"
    replacement  = constants.hostname
  }

  rule {
    target_label = "job"
    replacement = "integrations/node_exporter"
  }
}

prometheus.exporter.unix "integrations_node_exporter" {
  disable_collectors = ["ipvs", "btrfs", "infiniband", "xfs", "zfs"]

  filesystem {
    fs_types_exclude     = "^(autofs|binfmt_misc|bpf|cgroup2?|configfs|debugfs|devpts|devtmpfs|tmpfs|fusectl|hugetlbfs|iso9660|mqueue|nsfs|overlay|proc|procfs|pstore|rpc_pipefs|securityfs|selinuxfs|squashfs|sysfs|tracefs)$"
    mount_points_exclude = "^/(dev|proc|run/credentials/.+|sys|var/lib/docker/.+)($|/)"
    mount_timeout        = "5s"
  }

  netclass {
    ignored_devices = "^(veth.*|cali.*|[a-f0-9]{15})$"
  }

  netdev {
    device_exclude = "^(veth.*|cali.*|[a-f0-9]{15})$"
  }
}

prometheus.scrape "integrations_node_exporter" {
  targets    = discovery.relabel.integrations_node_exporter.output
  forward_to = [prometheus.relabel.integrations_node_exporter.receiver]
}

prometheus.relabel "integrations_node_exporter" {
  forward_to = [prometheus.remote_write.metrics_service.receiver]

  rule {
    source_labels = ["__name__"]
    regex         = "node_scrape_collector_.+"
    action        = "drop"
  }
}

Logs snippets

linux

alloy
loki.source.journal "logs_integrations_integrations_node_exporter_journal_scrape" {
  max_age       = "24h0m0s"
  relabel_rules = discovery.relabel.logs_integrations_integrations_node_exporter_journal_scrape.rules
  forward_to    = [loki.write.grafana_cloud_loki.receiver]
}

local.file_match "logs_integrations_integrations_node_exporter_direct_scrape" {
  path_targets = [{
    __address__ = "localhost",
    __path__    = "/var/log/{syslog,messages,*.log}",
    instance    = constants.hostname,
    job         = "integrations/node_exporter",
  }]
}

discovery.relabel "logs_integrations_integrations_node_exporter_journal_scrape" {
  targets = []

  rule {
    source_labels = ["__journal__systemd_unit"]
    target_label  = "unit"
  }

  rule {
    source_labels = ["__journal__boot_id"]
    target_label  = "boot_id"
  }

  rule {
    source_labels = ["__journal__transport"]
    target_label  = "transport"
  }

  rule {
    source_labels = ["__journal_priority_keyword"]
    target_label  = "level"
  }
}

loki.source.file "logs_integrations_integrations_node_exporter_direct_scrape" {
  targets    = local.file_match.logs_integrations_integrations_node_exporter_direct_scrape.targets
  forward_to = [loki.write.grafana_cloud_loki.receiver]
}

Advanced mode

To instruct Grafana Alloy to scrape your Linux Server instance, go though the subsequent instructions.

The snippets provide examples to guide you through the configuration process.

First, Manually copy and append the following snippets into your Grafana Alloy configuration file.

Then follow the instructions below to modify the necessary variables.

Advanced integrations snippets

alloy
discovery.relabel "integrations_node_exporter" {
  targets = prometheus.exporter.unix.integrations_node_exporter.targets

  rule {
    target_label = "instance"
    replacement  = constants.hostname
  }

  rule {
    target_label = "job"
    replacement = "integrations/node_exporter"
  }
}

prometheus.exporter.unix "integrations_node_exporter" {
  disable_collectors = ["ipvs", "btrfs", "infiniband", "xfs", "zfs"]

  filesystem {
    fs_types_exclude     = "^(autofs|binfmt_misc|bpf|cgroup2?|configfs|debugfs|devpts|devtmpfs|tmpfs|fusectl|hugetlbfs|iso9660|mqueue|nsfs|overlay|proc|procfs|pstore|rpc_pipefs|securityfs|selinuxfs|squashfs|sysfs|tracefs)$"
    mount_points_exclude = "^/(dev|proc|run/credentials/.+|sys|var/lib/docker/.+)($|/)"
    mount_timeout        = "5s"
  }

  netclass {
    ignored_devices = "^(veth.*|cali.*|[a-f0-9]{15})$"
  }

  netdev {
    device_exclude = "^(veth.*|cali.*|[a-f0-9]{15})$"
  }
}

prometheus.scrape "integrations_node_exporter" {
  targets    = discovery.relabel.integrations_node_exporter.output
  forward_to = [prometheus.relabel.integrations_node_exporter.receiver]
}

prometheus.relabel "integrations_node_exporter" {
  forward_to = [prometheus.remote_write.metrics_service.receiver]

  rule {
    source_labels = ["__name__"]
    regex         = "node_scrape_collector_.+"
    action        = "drop"
  }
}

This integration uses the prometheus.exporter.unix component to collect system metrics.

The supplied configuration is tuned to exclude any metrics from the exporter which are not used by the integration’s dashboards, alerts, or recording rules. If a broader configuration which includes additional metrics is desired, the prometheus.exporter.unix component can be adjusted accordingly.

Advanced logs snippets

linux

alloy
loki.source.journal "logs_integrations_integrations_node_exporter_journal_scrape" {
  max_age       = "24h0m0s"
  relabel_rules = discovery.relabel.logs_integrations_integrations_node_exporter_journal_scrape.rules
  forward_to    = [loki.write.grafana_cloud_loki.receiver]
}

local.file_match "logs_integrations_integrations_node_exporter_direct_scrape" {
  path_targets = [{
    __address__ = "localhost",
    __path__    = "/var/log/{syslog,messages,*.log}",
    instance    = constants.hostname,
    job         = "integrations/node_exporter",
  }]
}

discovery.relabel "logs_integrations_integrations_node_exporter_journal_scrape" {
  targets = []

  rule {
    source_labels = ["__journal__systemd_unit"]
    target_label  = "unit"
  }

  rule {
    source_labels = ["__journal__boot_id"]
    target_label  = "boot_id"
  }

  rule {
    source_labels = ["__journal__transport"]
    target_label  = "transport"
  }

  rule {
    source_labels = ["__journal_priority_keyword"]
    target_label  = "level"
  }
}

loki.source.file "logs_integrations_integrations_node_exporter_direct_scrape" {
  targets    = local.file_match.logs_integrations_integrations_node_exporter_direct_scrape.targets
  forward_to = [loki.write.grafana_cloud_loki.receiver]
}

This integration uses the loki.source.journal, and local.file_match components to collect system logs.

This includes the systemd journal and the file(s) matching /var/log/{syslog,messages,*.log}.

If you wish to capture other log files, you must add new new maps to the path_targets list parameter of the local.file_match component. If you wish for these additionally captured logs to be labeled so that they can be seen in Linux Node integration logs dashboard, the entry must include the same instance and job labels.

Grafana Agent static configuration (deprecated)

The following section shows configuration for running Grafana Agent in static mode which is deprecated. You should use Grafana Alloy for all new deployments.

Dashboards

The Linux Server integration installs the following dashboards in your Grafana Cloud instance to help monitor your system.

  • Linux node / CPU and system
  • Linux node / filesystem and disks
  • Linux node / fleet overview
  • Linux node / logs
  • Linux node / memory
  • Linux node / network
  • Linux node / overview

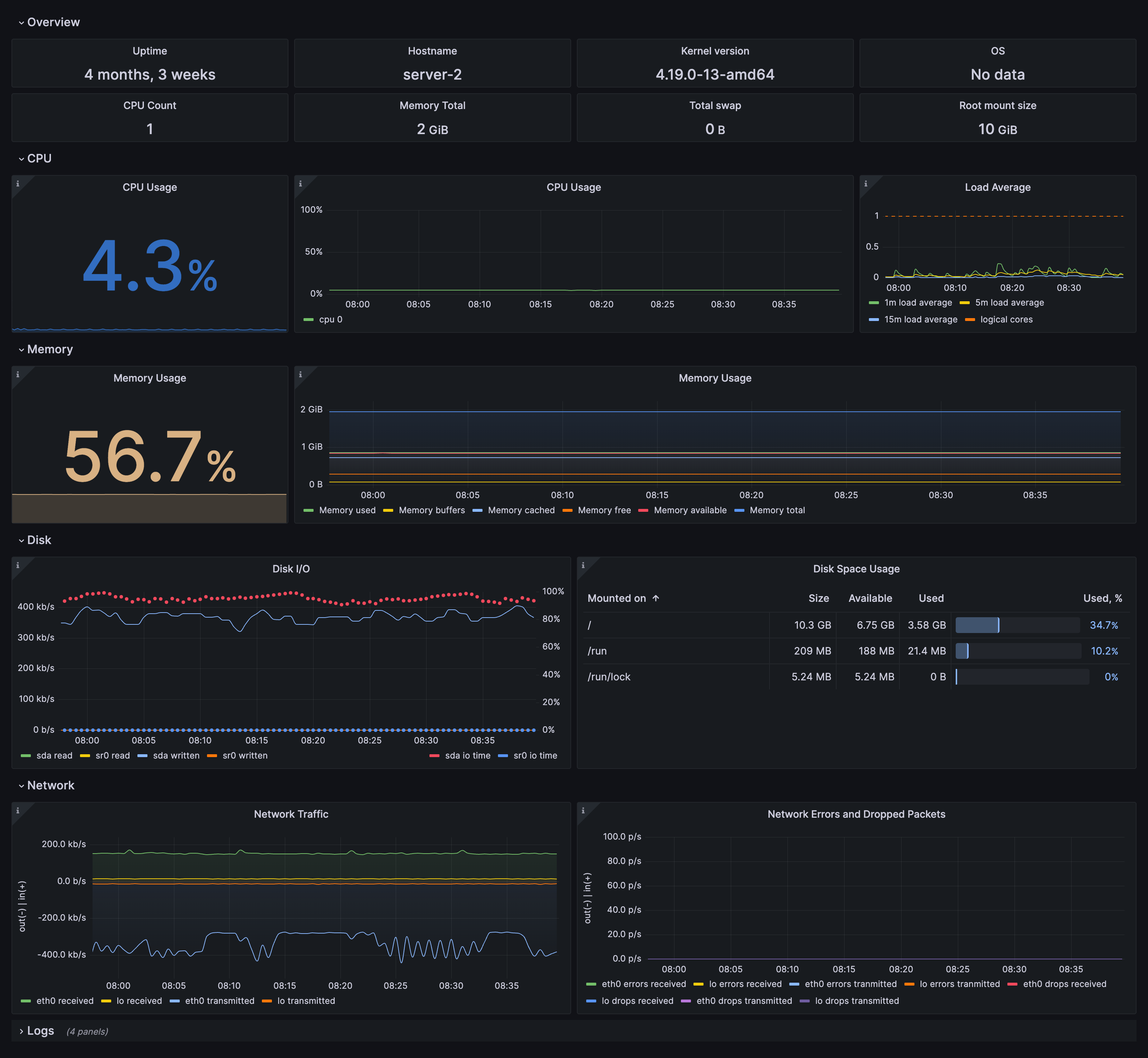

Node overview dashboard

Node overview dashboard

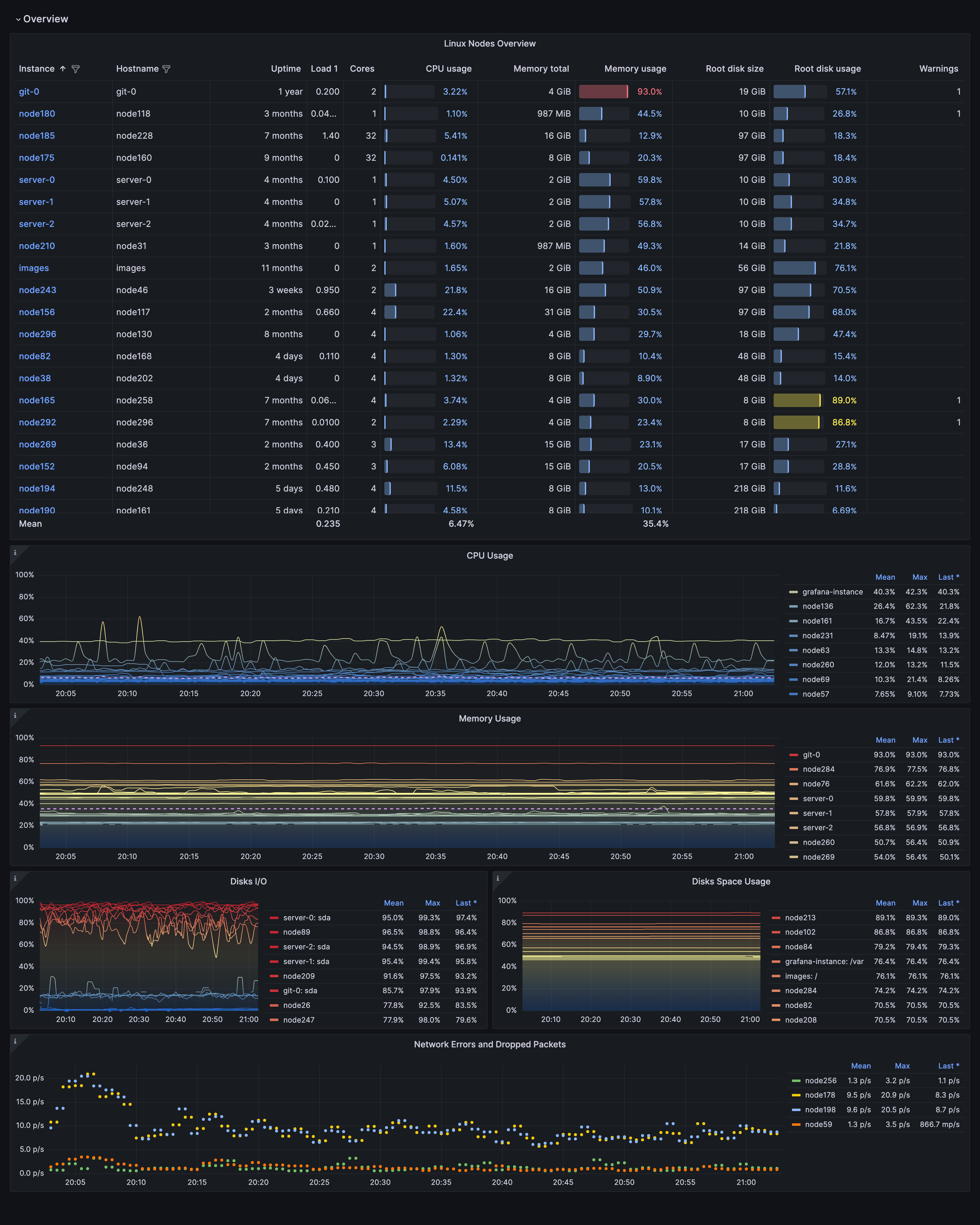

Fleet overview dashboard

Fleet overview dashboard

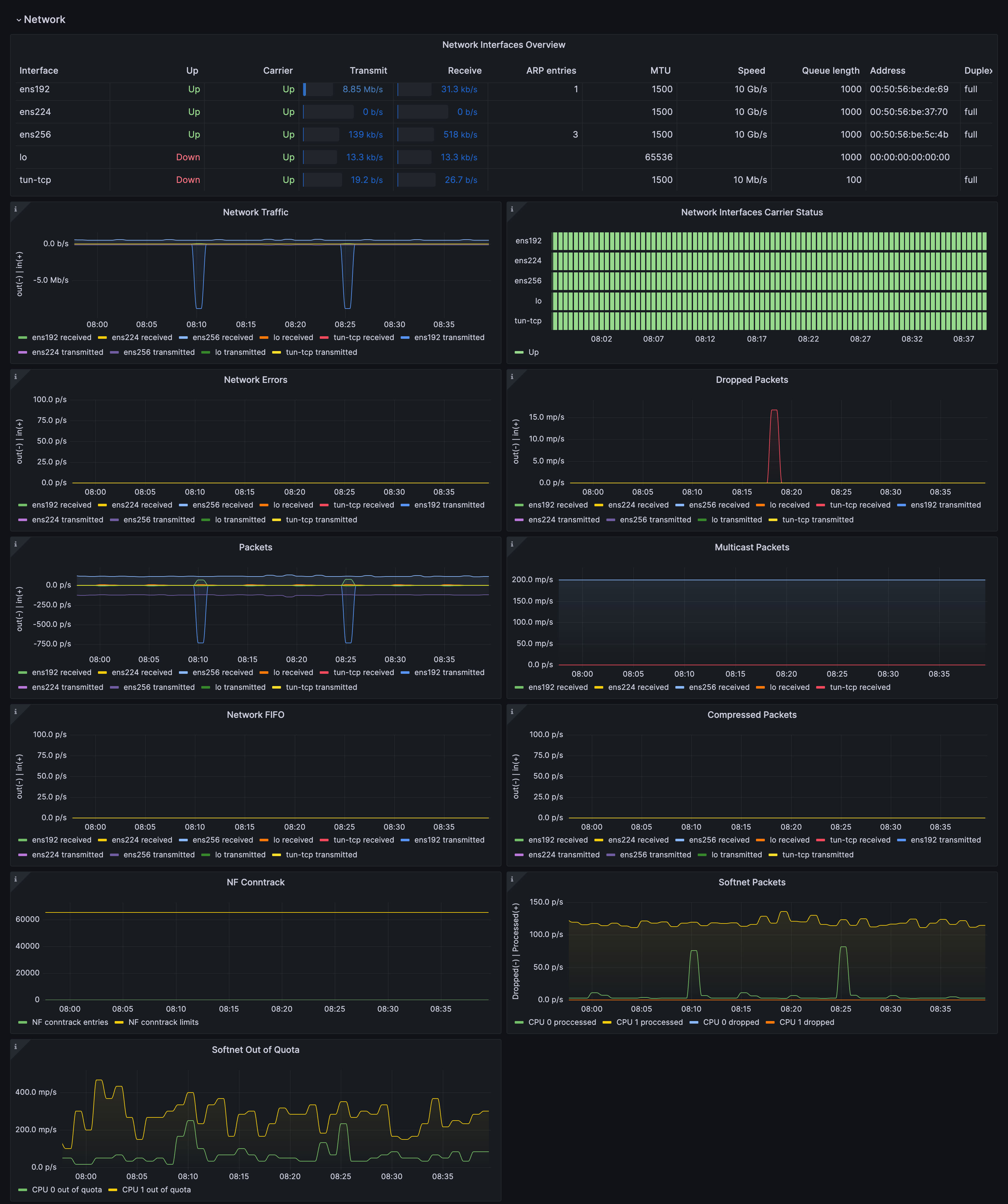

Drill down dashboards: Network interfaces

Drill down dashboards: Network interfaces

Alerts

The Linux Server integration includes the following useful alerts:

node-exporter-filesystem

AlertDescription
NodeFilesystemAlmostOutOfSpaceWarning: Filesystem has less than 5% space left.
NodeFilesystemAlmostOutOfSpaceCritical: Filesystem has less than 3% space left.
NodeFilesystemFilesFillingUpWarning: Filesystem is predicted to run out of inodes within the next 24 hours.
NodeFilesystemFilesFillingUpCritical: Filesystem is predicted to run out of inodes within the next 4 hours.
NodeFilesystemAlmostOutOfFilesWarning: Filesystem has less than 5% inodes left.
NodeFilesystemAlmostOutOfFilesCritical: Filesystem has less than 3% inodes left.

node-exporter

AlertDescription
NodeNetworkReceiveErrsWarning: Network interface is reporting many receive errors.
NodeNetworkTransmitErrsWarning: Network interface is reporting many transmit errors.
NodeHighNumberConntrackEntriesUsedWarning: Number of conntrack are getting close to the limit.
NodeTextFileCollectorScrapeErrorWarning: Node Exporter text file collector failed to scrape.
NodeClockSkewDetectedWarning: Clock skew detected.
NodeClockNotSynchronisingWarning: Clock not synchronising.
NodeRAIDDegradedCritical: RAID Array is degraded.
NodeRAIDDiskFailureWarning: Failed device in RAID array.
NodeFileDescriptorLimitWarning: Kernel is predicted to exhaust file descriptors limit soon.
NodeFileDescriptorLimitCritical: Kernel is predicted to exhaust file descriptors limit soon.
NodeCPUHighUsageInfo: High CPU usage.
NodeSystemSaturationWarning: System saturated, load per core is very high.
NodeMemoryMajorPagesFaultsWarning: Memory major page faults are occurring at very high rate.
NodeMemoryHighUtilizationWarning: Host is running out of memory.
NodeDiskIOSaturationWarning: Disk IO queue is high.
NodeSystemdServiceFailedWarning: Systemd service has entered failed state.
NodeSystemdServiceCrashloopingWarning: Systemd service keeps restaring, possibly crash looping.

Metrics

The most important metrics provided by the Linux Server integration, which are used on the pre-built dashboards and Prometheus alerts, are as follows:

  • node_arp_entries
  • node_boot_time_seconds
  • node_context_switches_total
  • node_cpu_seconds_total
  • node_disk_io_time_seconds_total
  • node_disk_io_time_weighted_seconds_total
  • node_disk_read_bytes_total
  • node_disk_read_time_seconds_total
  • node_disk_reads_completed_total
  • node_disk_write_time_seconds_total
  • node_disk_writes_completed_total
  • node_disk_written_bytes_total
  • node_filefd_allocated
  • node_filefd_maximum
  • node_filesystem_avail_bytes
  • node_filesystem_device_error
  • node_filesystem_files
  • node_filesystem_files_free
  • node_filesystem_readonly
  • node_filesystem_size_bytes
  • node_intr_total
  • node_load1
  • node_load15
  • node_load5
  • node_md_disks
  • node_md_disks_required
  • node_memory_Active_anon_bytes
  • node_memory_Active_bytes
  • node_memory_Active_file_bytes
  • node_memory_AnonHugePages_bytes
  • node_memory_AnonPages_bytes
  • node_memory_Bounce_bytes
  • node_memory_Buffers_bytes
  • node_memory_Cached_bytes
  • node_memory_CommitLimit_bytes
  • node_memory_Committed_AS_bytes
  • node_memory_DirectMap1G_bytes
  • node_memory_DirectMap2M_bytes
  • node_memory_DirectMap4k_bytes
  • node_memory_Dirty_bytes
  • node_memory_HugePages_Free
  • node_memory_HugePages_Rsvd
  • node_memory_HugePages_Surp
  • node_memory_HugePages_Total
  • node_memory_Hugepagesize_bytes
  • node_memory_Inactive_anon_bytes
  • node_memory_Inactive_bytes
  • node_memory_Inactive_file_bytes
  • node_memory_Mapped_bytes
  • node_memory_MemAvailable_bytes
  • node_memory_MemFree_bytes
  • node_memory_MemTotal_bytes
  • node_memory_SReclaimable_bytes
  • node_memory_SUnreclaim_bytes
  • node_memory_ShmemHugePages_bytes
  • node_memory_ShmemPmdMapped_bytes
  • node_memory_Shmem_bytes
  • node_memory_Slab_bytes
  • node_memory_SwapTotal_bytes
  • node_memory_VmallocChunk_bytes
  • node_memory_VmallocTotal_bytes
  • node_memory_VmallocUsed_bytes
  • node_memory_WritebackTmp_bytes
  • node_memory_Writeback_bytes
  • node_netstat_Icmp6_InErrors
  • node_netstat_Icmp6_InMsgs
  • node_netstat_Icmp6_OutMsgs
  • node_netstat_Icmp_InErrors
  • node_netstat_Icmp_InMsgs
  • node_netstat_Icmp_OutMsgs
  • node_netstat_IpExt_InOctets
  • node_netstat_IpExt_OutOctets
  • node_netstat_TcpExt_ListenDrops
  • node_netstat_TcpExt_ListenOverflows
  • node_netstat_TcpExt_TCPSynRetrans
  • node_netstat_Tcp_InErrs
  • node_netstat_Tcp_InSegs
  • node_netstat_Tcp_OutRsts
  • node_netstat_Tcp_OutSegs
  • node_netstat_Tcp_RetransSegs
  • node_netstat_Udp6_InDatagrams
  • node_netstat_Udp6_InErrors
  • node_netstat_Udp6_NoPorts
  • node_netstat_Udp6_OutDatagrams
  • node_netstat_Udp6_RcvbufErrors
  • node_netstat_Udp6_SndbufErrors
  • node_netstat_UdpLite_InErrors
  • node_netstat_Udp_InDatagrams
  • node_netstat_Udp_InErrors
  • node_netstat_Udp_NoPorts
  • node_netstat_Udp_OutDatagrams
  • node_netstat_Udp_RcvbufErrors
  • node_netstat_Udp_SndbufErrors
  • node_network_carrier
  • node_network_info
  • node_network_mtu_bytes
  • node_network_receive_bytes_total
  • node_network_receive_compressed_total
  • node_network_receive_drop_total
  • node_network_receive_errs_total
  • node_network_receive_fifo_total
  • node_network_receive_multicast_total
  • node_network_receive_packets_total
  • node_network_speed_bytes
  • node_network_transmit_bytes_total
  • node_network_transmit_compressed_total
  • node_network_transmit_drop_total
  • node_network_transmit_errs_total
  • node_network_transmit_fifo_total
  • node_network_transmit_multicast_total
  • node_network_transmit_packets_total
  • node_network_transmit_queue_length
  • node_network_up
  • node_nf_conntrack_entries
  • node_nf_conntrack_entries_limit
  • node_os_info
  • node_sockstat_FRAG6_inuse
  • node_sockstat_FRAG_inuse
  • node_sockstat_RAW6_inuse
  • node_sockstat_RAW_inuse
  • node_sockstat_TCP6_inuse
  • node_sockstat_TCP_alloc
  • node_sockstat_TCP_inuse
  • node_sockstat_TCP_mem
  • node_sockstat_TCP_mem_bytes
  • node_sockstat_TCP_orphan
  • node_sockstat_TCP_tw
  • node_sockstat_UDP6_inuse
  • node_sockstat_UDPLITE6_inuse
  • node_sockstat_UDPLITE_inuse
  • node_sockstat_UDP_inuse
  • node_sockstat_UDP_mem
  • node_sockstat_UDP_mem_bytes
  • node_sockstat_sockets_used
  • node_softnet_dropped_total
  • node_softnet_processed_total
  • node_softnet_times_squeezed_total
  • node_systemd_service_restart_total
  • node_systemd_unit_state
  • node_textfile_scrape_error
  • node_time_zone_offset_seconds
  • node_timex_estimated_error_seconds
  • node_timex_maxerror_seconds
  • node_timex_offset_seconds
  • node_timex_sync_status
  • node_uname_info
  • node_vmstat_oom_kill
  • node_vmstat_pgfault
  • node_vmstat_pgmajfault
  • node_vmstat_pgpgin
  • node_vmstat_pgpgout
  • node_vmstat_pswpin
  • node_vmstat_pswpout
  • process_max_fds
  • process_open_fds
  • up

Changelog

md
# 1.3.0 - June 2024

* Add new alert: NodeSystemdServiceCrashlooping
* Fix links in the fleet overview table.

# 1.2.3 - December 2023

* Accept `integrations/unix` for compatibility with default flow mode node_exporter job name.

# 1.2.2 - December 2023

* Fix issues with showing data on dashboards when `cluster` label has no value.

# 1.2.1 - December 2023

* Fix queries for memoryBuffers memoryCached metrics
* Update network traffic panels to show only interfaces that had traffic
* Update network errors/drops panels to show only values greater than 0.

# 1.2.0 - November 2023

* Dashboards prefixes are changed to 'Linux node/ '
* Add new Loki based annotations:
    * Service failed
    * Critical system event
    * Session (ssh,console) opened/closed
* Apply panel changes, some examples:
    * Use Sentence case in titles
    * Memory TS panel: Show only 'Memory total' and 'Memory used' by default
    * CPU usage TS panel: Use Blue-Yellow-Red color Schema
    * Add OS and group labels(job, cluster) as columns in Fleet overview table
* NodeSystemSaturation alert severity is set to warning
* Attach integration status panel to fleet and logs dashboards

# 1.1.2 - August 2023

* Add regex filter for logs datasource

# 1.1.1 - July 2023

* New Filter Metrics option for configuring the Grafana Agent, which saves on metrics cost by dropping any metric not used by this integration. Beware that anything custom built using metrics that are not on the snippet will stop working.

# 1.1.0 - June 2023

* This update introduces generic logs dashboard 'Node Exporter / Node Logs'
    * Drop log panels 'Node Overview' dashboard

# 1.0.1 - June 2023

* This update includes the following, by updating to the latest mixin:
    * Panel description typos have been fixed
    * Incorrect data links in the "Node Fleet Overview" Dashboard now correctly include the dashboard selector

# 1.0.0 - April 2023

* This update introduces 3-tier view of linux nodes:
    * TOP: Fleet view: see group of your linux instances at once
    * Overview of the specific node: see specific node at a glance
    * Drill down: Set of dashboards for deep analysis using advanced metrics (Memory, CPU and System, Filesystem and Disk, Networking)
    * Links and data links are provided for better navigation between views
* Update agent's filter config in docs, to reduce number of timeseries generated per node
    * Metrics filter instructions to exclude dynamic network devices, temp filesystems and extended scrape statistics
* Remove USE dashboards
* Convert all graphs to timeseries panels
* Add information row
* New alerts
* Split alerts into two alert groups
* Annotations for events: Reboot, OOMkill, and 'Kernel update'

# 0.0.8 - October 2022

* Update upstream node_exporter mixin
* Enable multicluster dashboards for use in kubernetes.
* Add direct log file scrape to the agent snippets

# 0.0.7 - September 2022

* Remove source_address from relabel_configs

# 0.0.6 - May 2022

* Reverse fsSpaceAvailableCriticalThreshold and fsSpaceAvailableWarningThreshold
* Update units for disk and networking panels

# 0.0.5 - May 2022

* Update 'Disk Space Usage' panel to table format

# 0.0.4 - April 2022

* Fixed alerts and recording rules by providing proper nodeSelector

# 0.0.3 - February 2022

* Added logs support from Loki datasource

# 0.0.2 - October 2021

* Update all rate queries to use `$__rate_interval`

# 0.0.1 - June 2020

* Initial release

Cost

By connecting your Linux Server instance to Grafana Cloud, you might incur charges. To view information on the number of active series that your Grafana Cloud account uses for metrics included in each Cloud tier, see Active series and dpm usage and Cloud tier pricing.
