Microsoft SQL Server integration for Grafana Cloud
Microsoft SQL Server is a relational database that can be used to store and retrieve data. The Microsoft SQL Server integration uses the Grafana Agent to collect metrics for monitoring a MSSQL instance, including aspects such as active connections, read/write latency, buffer cache hit rate, and page faults. Accompanying dashboards are provided to visualize these metrics, as well as recommended alerting policies.
This integration supports SQL Server 2017, SQL Server 2019, and SQL Server 2022.
This integration includes 5 useful alerts and 2 pre-built dashboards to help monitor and visualize Microsoft SQL Server metrics and logs.
Before you begin
In order to scrape Microsoft SQL Server metrics, you must have a user configured with the following grants:
GRANT VIEW ANY DEFINITION TO <MONITOR_USER>;
GRANT VIEW SERVER STATE TO <MONITOR_USER>;
Install Microsoft SQL Server integration for Grafana Cloud
- In your Grafana Cloud stack, click Connections in the left-hand menu.
- Find Microsoft SQL Server and click its tile to open the integration.
- Review the prerequisites in the Configuration Details tab and set up Grafana Agent to send Microsoft SQL Server metrics and logs to your Grafana Cloud instance.
- Click Install to add this integration’s pre-built dashboards and alerts to your Grafana Cloud instance, and you can start monitoring your Microsoft SQL Server setup.
Configuration snippets for Grafana Alloy
Simple mode
These snippets are configured to scrape a single Microsoft SQL Server instance running locally with default ports.
First, manually copy and append the following snippets into your alloy configuration file.
Integrations snippets
prometheus.exporter.mssql "integrations_mssql" {
connection_string = "sqlserver://user:pass@127.0.0.1:1433"
}
discovery.relabel "integrations_mssql" {
targets = prometheus.exporter.mssql.integrations_mssql.targets
rule {
target_label = "instance"
replacement = constants.hostname
}
rule {
target_label = "job"
replacement = "integrations/mssql"
}
}
prometheus.scrape "integrations_mssql" {
targets = discovery.relabel.integrations_mssql.output
forward_to = [prometheus.remote_write.metrics_service.receiver]
job_name = "integrations/mssql"
}
Logs snippets
linux
local.file_match "logs_integrations_integrations_mssql_linux" {
path_targets = [{
__address__ = "localhost",
__path__ = "/var/opt/mssql/log/errorlog",
}]
}
loki.process "logs_integrations_integrations_mssql_linux" {
forward_to = [loki.write.grafana_cloud_loki.receiver]
stage.multiline {
firstline = "^\\s*\\d{4}-\\d{2}-\\d{2}\\s+\\d{2}:\\d{2}:\\d{2}\\.\\d+"
max_lines = 0
max_wait_time = "3s"
}
stage.regex {
expression = "^(?s)(?P<timestamp>\\s*\\d{4}-\\d{2}-\\d{2}\\s+\\d{2}:\\d{2}:\\d{2}\\.\\d+)\\s+(?P<component>\\w+)\\s+(?P<message>.*)$"
}
stage.timestamp {
source = "timestamp"
format = "RFC3339Nano"
}
stage.static_labels {
values = {
instance = constants.hostname,
job = "integrations/mssql",
log_type = "mssql_error",
}
}
stage.labels {
values = {
component = null,
message = null,
}
}
}
loki.source.file "logs_integrations_integrations_mssql_linux" {
targets = local.file_match.logs_integrations_integrations_mssql_linux.targets
forward_to = [loki.process.logs_integrations_integrations_mssql_linux.receiver]
}
windows
local.file_match "logs_integrations_integrations_mssql_windows" {
path_targets = [{
__address__ = "localhost",
__path__ = "/Program Files/Microsoft SQL Server/MSSQL.*/MSSQL/LOG/ERRORLOG",
}]
}
loki.process "logs_integrations_integrations_mssql_windows" {
forward_to = [loki.write.grafana_cloud_loki.receiver]
stage.multiline {
firstline = "^\\s*\\d{4}-\\d{2}-\\d{2}\\s+\\d{2}:\\d{2}:\\d{2}\\.\\d+"
max_lines = 0
max_wait_time = "3s"
}
stage.regex {
expression = "^(?s)(?P<timestamp>\\s*\\d{4}-\\d{2}-\\d{2}\\s+\\d{2}:\\d{2}:\\d{2}\\.\\d+)\\s+(?P<component>\\w+)\\s+(?P<message>.*)$"
}
stage.timestamp {
source = "timestamp"
format = "RFC3339Nano"
}
stage.static_labels {
values = {
instance = constants.hostname,
job = "integrations/mssql",
log_type = "mssql_error",
}
}
stage.labels {
values = {
component = null,
message = null,
}
}
}
loki.source.file "logs_integrations_integrations_mssql_windows" {
targets = local.file_match.logs_integrations_integrations_mssql_windows.targets
forward_to = [loki.process.logs_integrations_integrations_mssql_windows.receiver]
}
Advanced mode
The following snippets provide examples to guide you through the configuration process.
To instruct Grafana Alloy to scrape your Microsoft SQL Server instances, manually copy and append the snippets to your alloy configuration file, then follow subsequent instructions.
Advanced integrations snippets
prometheus.exporter.mssql "integrations_mssql" {
connection_string = "sqlserver://user:pass@127.0.0.1:1433"
}
discovery.relabel "integrations_mssql" {
targets = prometheus.exporter.mssql.integrations_mssql.targets
rule {
target_label = "instance"
replacement = constants.hostname
}
rule {
target_label = "job"
replacement = "integrations/mssql"
}
}
prometheus.scrape "integrations_mssql" {
targets = discovery.relabel.integrations_mssql.output
forward_to = [prometheus.remote_write.metrics_service.receiver]
job_name = "integrations/mssql"
}
This integrations uses the prometheus.exporter.mssql component to generate metrics from a Microsoft SQL Server instance.
In the agent configuration file, the agent must be provided a connection string with the username, password, and a host:port pair. To configure this, modify the connection_string
in the configuration.
Also, rather than using SQL Server credentials to authenticate, it is possible to use Windows credentials by modifying the connecton_string
accordingly (see the Authentication
section of the Grafana Agent MSSQL Integration documentation).
The ability to pull in custom metrics (outside of the defaults) is also available for this integration. To do this, use the query_config
parameter, under the integrations.mssql
section of your configuration. After configuring to collect custom metrics, the default dashboards will have to be manually modified to include any reference to these new metrics.
For the full array of configuration options, refer to the prometheus.exporter.mssql component reference documentation.
This exporter must be linked with a discovery.relabel component to apply the necessary relabelings.
For each Microsoft SQL Server instance to be monitored you must create a pair of these components.
Configure the following properties within each discovery.relabel
component:
instance
label:constants.hostname
sets theinstance
label to your Grafana Alloy server hostname. If that is not suitable, change it to a value uniquely identifies this Microsoft SQL Server instance. Make sure this label value is the same for all telemetry data collected for this instance.
You can then scrape them by including each discovery.relabel
under targets
within the prometheus.scrape component.
Advanced logs snippets
linux
local.file_match "logs_integrations_integrations_mssql_linux" {
path_targets = [{
__address__ = "localhost",
__path__ = "/var/opt/mssql/log/errorlog",
}]
}
loki.process "logs_integrations_integrations_mssql_linux" {
forward_to = [loki.write.grafana_cloud_loki.receiver]
stage.multiline {
firstline = "^\\s*\\d{4}-\\d{2}-\\d{2}\\s+\\d{2}:\\d{2}:\\d{2}\\.\\d+"
max_lines = 0
max_wait_time = "3s"
}
stage.regex {
expression = "^(?s)(?P<timestamp>\\s*\\d{4}-\\d{2}-\\d{2}\\s+\\d{2}:\\d{2}:\\d{2}\\.\\d+)\\s+(?P<component>\\w+)\\s+(?P<message>.*)$"
}
stage.timestamp {
source = "timestamp"
format = "RFC3339Nano"
}
stage.static_labels {
values = {
instance = constants.hostname,
job = "integrations/mssql",
log_type = "mssql_error",
}
}
stage.labels {
values = {
component = null,
message = null,
}
}
}
loki.source.file "logs_integrations_integrations_mssql_linux" {
targets = local.file_match.logs_integrations_integrations_mssql_linux.targets
forward_to = [loki.process.logs_integrations_integrations_mssql_linux.receiver]
}
To monitor your Microsoft SQL Server instance logs, you will use a combination of the following components:
local.file_match defines where to find the log file to be scraped. Change the following properties according to your environment:
__address__
: The Microsoft SQL Server instance address__path__
: The path to the log file.instance
label:constants.hostname
sets theinstance
label to your Grafana Alloy server hostname. If that is not suitable, change it to a value uniquely identifies this Microsoft SQL Server instance. Make sure this label value is the same for all telemetry data collected for this instance.
loki.process defines how to process logs before sending it to Loki.
loki.source.file sends logs to Loki.
windows
local.file_match "logs_integrations_integrations_mssql_windows" {
path_targets = [{
__address__ = "localhost",
__path__ = "/Program Files/Microsoft SQL Server/MSSQL.*/MSSQL/LOG/ERRORLOG",
}]
}
loki.process "logs_integrations_integrations_mssql_windows" {
forward_to = [loki.write.grafana_cloud_loki.receiver]
stage.multiline {
firstline = "^\\s*\\d{4}-\\d{2}-\\d{2}\\s+\\d{2}:\\d{2}:\\d{2}\\.\\d+"
max_lines = 0
max_wait_time = "3s"
}
stage.regex {
expression = "^(?s)(?P<timestamp>\\s*\\d{4}-\\d{2}-\\d{2}\\s+\\d{2}:\\d{2}:\\d{2}\\.\\d+)\\s+(?P<component>\\w+)\\s+(?P<message>.*)$"
}
stage.timestamp {
source = "timestamp"
format = "RFC3339Nano"
}
stage.static_labels {
values = {
instance = constants.hostname,
job = "integrations/mssql",
log_type = "mssql_error",
}
}
stage.labels {
values = {
component = null,
message = null,
}
}
}
loki.source.file "logs_integrations_integrations_mssql_windows" {
targets = local.file_match.logs_integrations_integrations_mssql_windows.targets
forward_to = [loki.process.logs_integrations_integrations_mssql_windows.receiver]
}
To monitor your Microsoft SQL Server instance logs, you will use a combination of the following components:
local.file_match defines where to find the log file to be scraped. Change the following properties according to your environment:
__address__
: The Microsoft SQL Server instance address__path__
: The path to the log file.instance
label:constants.hostname
sets theinstance
label to your Grafana Alloy server hostname. If that is not suitable, change it to a value uniquely identifies this Microsoft SQL Server instance. Make sure this label value is the same for all telemetry data collected for this instance.
loki.process defines how to process logs before sending it to Loki.
loki.source.file sends logs to Loki.
Grafana Agent static configuration (deprecated)
The following section shows configuration for running Grafana Agent in static mode which is deprecated. You should use Grafana Alloy for all new deployments.
Before you begin
In order to scrape Microsoft SQL Server metrics, you must have a user configured with the following grants:
GRANT VIEW ANY DEFINITION TO <MONITOR_USER>;
GRANT VIEW SERVER STATE TO <MONITOR_USER>;
Install Microsoft SQL Server integration for Grafana Cloud
- In your Grafana Cloud stack, click Connections in the left-hand menu.
- Find Microsoft SQL Server and click its tile to open the integration.
- Review the prerequisites in the Configuration Details tab and set up Grafana Agent to send Microsoft SQL Server metrics and logs to your Grafana Cloud instance.
- Click Install to add this integration’s pre-built dashboards and alerts to your Grafana Cloud instance, and you can start monitoring your Microsoft SQL Server setup.
Post-install configuration for the Microsoft SQL Server integration
In the agent configuration file, the agent must be provided a connection string with the username, password, and a host:port pair. To configure this, modify the connection_string
in the configuration, under the integrations.mssql
section.
Also, rather than using SQL Server credentials to authenticate, it is possible to use Windows credentials by modifying the connecton_string
accordingly (see the Authentication
section of the Grafana Agent MSSQL Integration documentation).
The ability to pull in custom metrics (outside of the defaults) is also available for this integration. To do this, use the query_config
parameter, under the integrations.mssql
section of your configuration. After configuring to collect custom metrics, the default dashboards will have to be manually modified to include any reference to these new metrics.
This integration supports both metrics and logs from an MSSQL instance. In order to see these signals correlated on the same dashboard, the job
and instance
labels must match for the metrics
scrape config and the logs
scrape config in the Agent configuration file (replace <your-instance-name>
with an identifier for your instance):
For the logs section, you may remove the job that does not correspond to your OS (e.g. remove the integrations/mssql-linux
job on Windows systems).
On Linux, you will also need to add the grafana-agent
user to the mssql
group to get logs:
sudo usermod -a -G mssql grafana-agent
Configuration snippets for Grafana Agent
Below integrations
, insert the following lines and change the URLs according to your environment:
mssql:
enabled: true
scrape_interval: 60s
scrape_integration: true
instance: '<your-instance-name>'
connection_string: 'sqlserver://user:pass@127.0.0.1:1433' # replace with your connection string
Below logs.configs.scrape_configs
, insert the following lines according to your environment.
- job_name: integrations/mssql-linux
static_configs:
- targets:
- localhost
labels:
__path__: /var/opt/mssql/log/errorlog
pipeline_stages:
- multiline:
firstline: '^\s*\d{4}-\d{2}-\d{2}\s+\d{2}:\d{2}:\d{2}\.\d+'
- regex:
expression: '^(?s)(?P<timestamp>\s*\d{4}-\d{2}-\d{2}\s+\d{2}:\d{2}:\d{2}\.\d+)\s+(?P<component>\w+)\s+(?P<message>.*)$'
- timestamp:
format: RFC3339Nano
source: timestamp
- static_labels:
instance: '<your-instance-name>'
job: integrations/mssql
log_type: mssql_error
- labels:
message:
component:
- job_name: integrations/mssql-windows
static_configs:
- targets:
- localhost
labels:
__path__: "/Program Files/Microsoft SQL Server/MSSQL.*/MSSQL/LOG/ERRORLOG"
pipeline_stages:
- multiline:
firstline: '^\s*\d{4}-\d{2}-\d{2}\s+\d{2}:\d{2}:\d{2}\.\d+'
- regex:
expression: '^(?s)(?P<timestamp>\s*\d{4}-\d{2}-\d{2}\s+\d{2}:\d{2}:\d{2}\.\d+)\s+(?P<component>\w+)\s+(?P<message>.*)$'
- timestamp:
format: RFC3339Nano
source: timestamp
- static_labels:
instance: '<your-instance-name>'
job: integrations/mssql
log_type: mssql_error
- labels:
message:
component:
Full example configuration for Grafana Agent
Refer to the following Grafana Agent configuration for a complete example that contains all the snippets used for the Microsoft SQL Server integration. This example also includes metrics that are sent to monitor your Grafana Agent instance.
integrations:
prometheus_remote_write:
- basic_auth:
password: <your_prom_pass>
username: <your_prom_user>
url: <your_prom_url>
agent:
enabled: true
relabel_configs:
- action: replace
source_labels:
- agent_hostname
target_label: instance
- action: replace
target_label: job
replacement: "integrations/agent-check"
metric_relabel_configs:
- action: keep
regex: (prometheus_target_sync_length_seconds_sum|prometheus_target_scrapes_.*|prometheus_target_interval.*|prometheus_sd_discovered_targets|agent_build.*|agent_wal_samples_appended_total|process_start_time_seconds)
source_labels:
- __name__
# Add here any snippet that belongs to the `integrations` section.
# For a correct indentation, paste snippets copied from Grafana Cloud at the beginning of the line.
mssql:
enabled: true
scrape_interval: 60s
scrape_integration: true
instance: '<your-instance-name>'
connection_string: 'sqlserver://user:pass@127.0.0.1:1433' # replace with your connection string
logs:
configs:
- clients:
- basic_auth:
password: <your_loki_pass>
username: <your_loki_user>
url: <your_loki_url>
name: integrations
positions:
filename: /tmp/positions.yaml
scrape_configs:
# Add here any snippet that belongs to the `logs.configs.scrape_configs` section.
# For a correct indentation, paste snippets copied from Grafana Cloud at the beginning of the line.
- job_name: integrations/mssql-linux
static_configs:
- targets:
- localhost
labels:
__path__: /var/opt/mssql/log/errorlog
pipeline_stages:
- multiline:
firstline: '^\s*\d{4}-\d{2}-\d{2}\s+\d{2}:\d{2}:\d{2}\.\d+'
- regex:
expression: '^(?s)(?P<timestamp>\s*\d{4}-\d{2}-\d{2}\s+\d{2}:\d{2}:\d{2}\.\d+)\s+(?P<component>\w+)\s+(?P<message>.*)$'
- timestamp:
format: RFC3339Nano
source: timestamp
- static_labels:
instance: '<your-instance-name>'
job: integrations/mssql
log_type: mssql_error
- labels:
message:
component:
- job_name: integrations/mssql-windows
static_configs:
- targets:
- localhost
labels:
__path__: "/Program Files/Microsoft SQL Server/MSSQL.*/MSSQL/LOG/ERRORLOG"
pipeline_stages:
- multiline:
firstline: '^\s*\d{4}-\d{2}-\d{2}\s+\d{2}:\d{2}:\d{2}\.\d+'
- regex:
expression: '^(?s)(?P<timestamp>\s*\d{4}-\d{2}-\d{2}\s+\d{2}:\d{2}:\d{2}\.\d+)\s+(?P<component>\w+)\s+(?P<message>.*)$'
- timestamp:
format: RFC3339Nano
source: timestamp
- static_labels:
instance: '<your-instance-name>'
job: integrations/mssql
log_type: mssql_error
- labels:
message:
component:
metrics:
configs:
- name: integrations
remote_write:
- basic_auth:
password: <your_prom_pass>
username: <your_prom_user>
url: <your_prom_url>
scrape_configs:
# Add here any snippet that belongs to the `metrics.configs.scrape_configs` section.
# For a correct indentation, paste snippets copied from Grafana Cloud at the beginning of the line.
global:
scrape_interval: 60s
wal_directory: /tmp/grafana-agent-wal
Dashboards
The Microsoft SQL Server integration installs the following dashboards in your Grafana Cloud instance to help monitor your system.
- MSSQL overview
- MSSQL pages

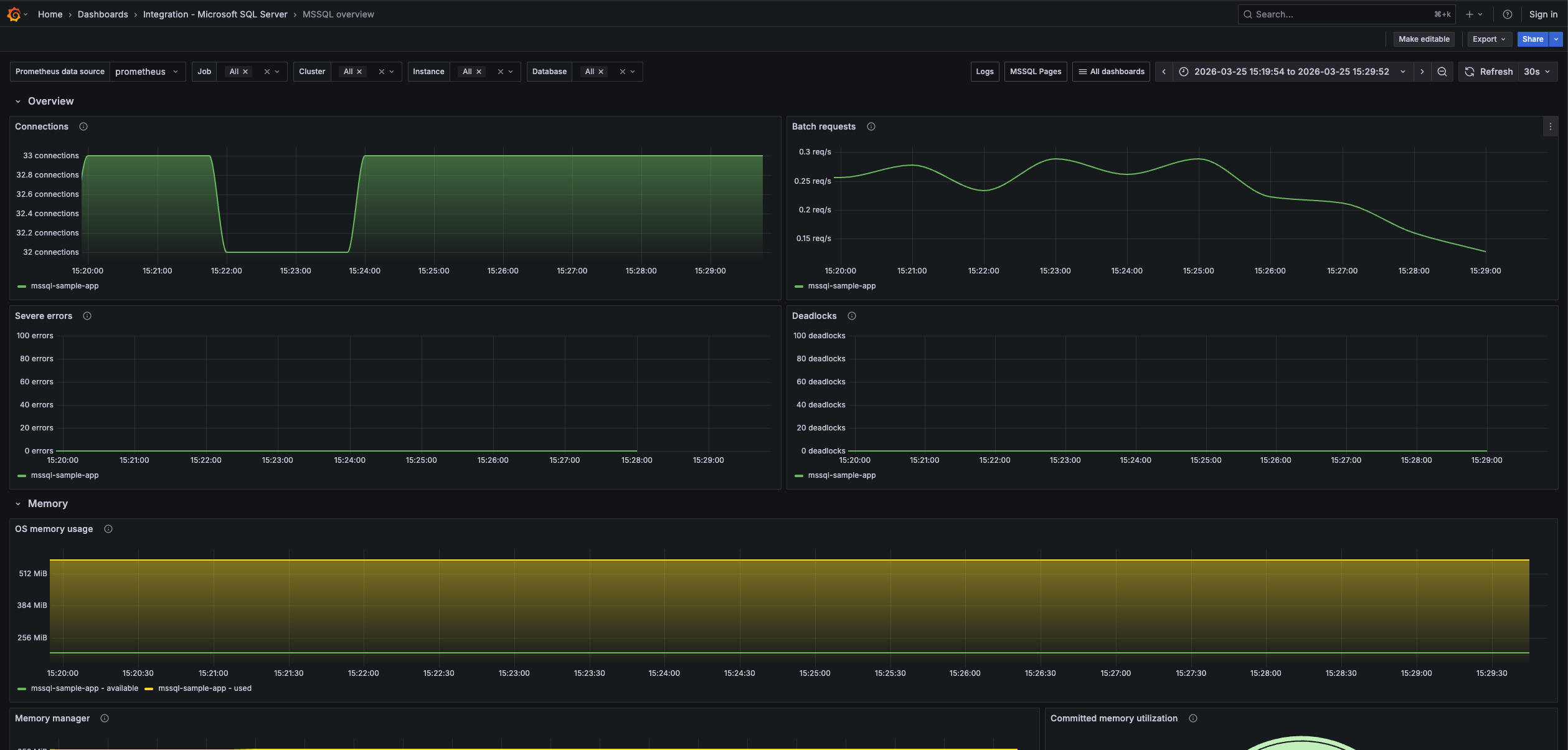

Microsoft SQL Server overview dashboard (1/3).

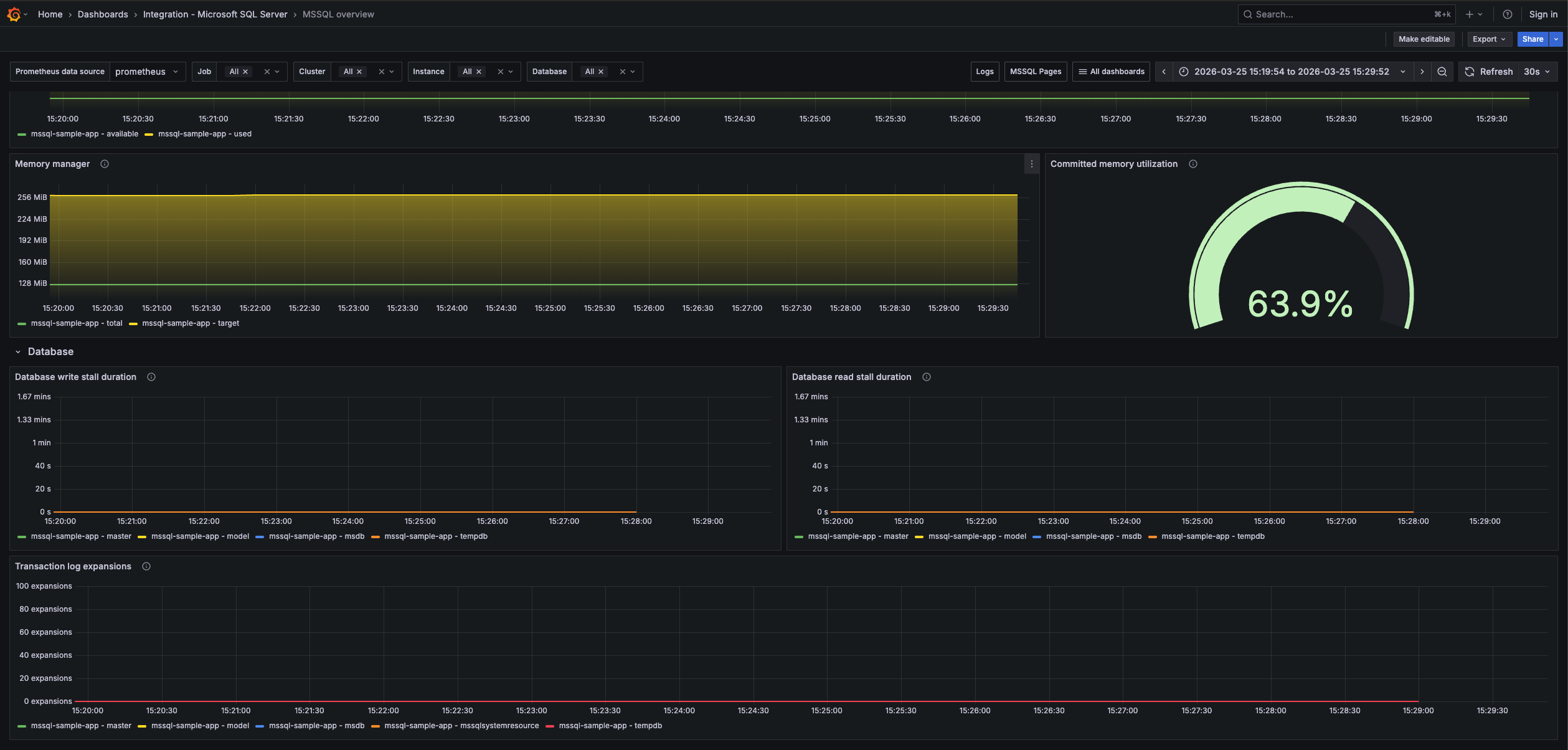

Microsoft SQL Server overview dashboard (2/3).

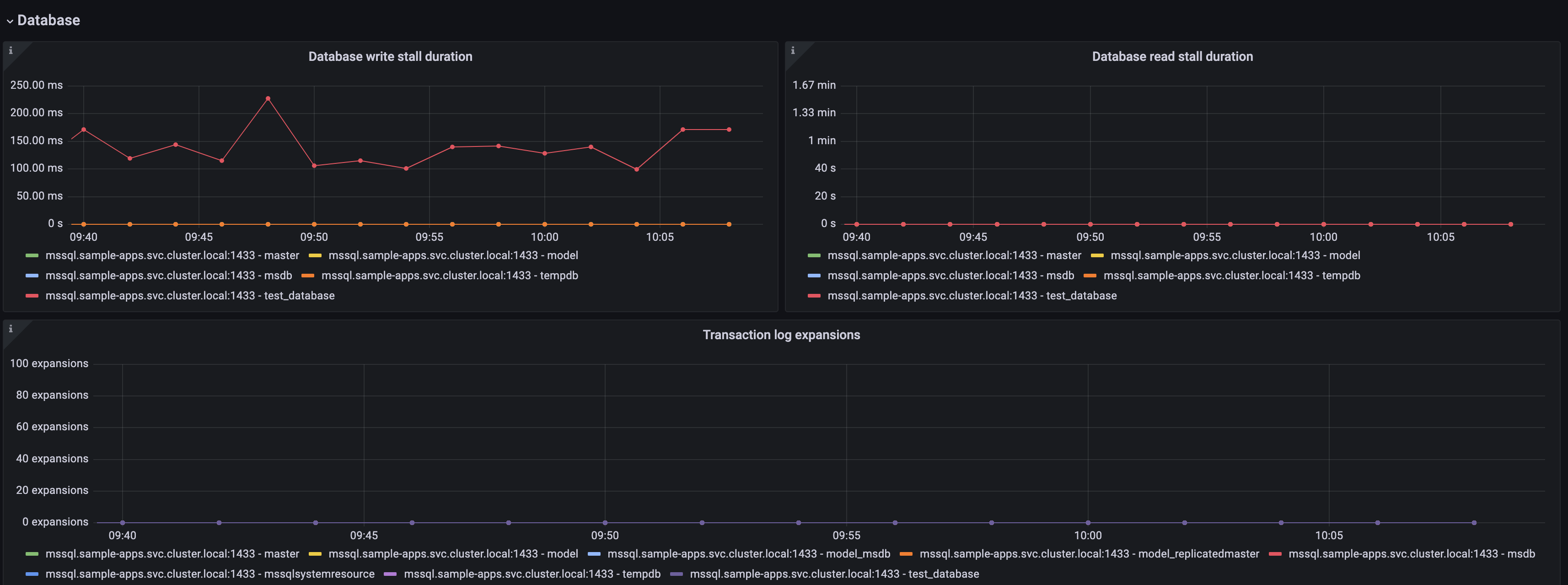

Microsoft SQL Server overview dashboard (3/3).
Alerts
The Microsoft SQL Server integration includes the following useful alerts:
Alert | Description |
---|---|
MSSQLHighNumberOfDeadlocks | Warning: There are deadlocks ocurring in the database. |
MSSQLModerateReadStallTime | Warning: There is a moderate amount of IO stall for database reads. |
MSSQLHighReadStallTime | Critical: There is a high amount of IO stall for database reads. |
MSSQLModerateWriteStallTime | Warning: There is a moderate amount of IO stall for database writes. |
MSSQLHighWriteStallTime | Critical: There is a high amount of IO stall for database writes. |
Metrics
The most important metrics provided by the Microsoft SQL Server integration, which are used on the pre-built dashboards and Prometheus alerts, are as follows:
- mssql_available_commit_memory_bytes
- mssql_batch_requests_total
- mssql_buffer_cache_hit_ratio
- mssql_build_info
- mssql_checkpoint_pages_sec
- mssql_connections
- mssql_deadlocks_total
- mssql_io_stall_seconds_total
- mssql_kill_connection_errors_total
- mssql_log_growths_total
- mssql_os_memory
- mssql_os_page_file
- mssql_page_fault_count_total
- mssql_server_target_memory_bytes
- mssql_server_total_memory_bytes
- up
Changelog
# 1.0.3 - April 2024
* Added cluster selector to dashboards for kubernetes support
* Added default cluster label to agent config
* Bump version to 1.0.3
# 1.0.2 - March 2024
* Updates MSSQL integration with documentation for Windows authentication options
# 1.0.1 - December 2023
* Updates MSSQL integration with documentation for new query_config parameter
* Fixes prometheus metrics list to show new metrics added in 1.0.0
# 1.0.0 - December 2023
* Updates MSSQL integration to use newest MSSQL mixin
# 0.0.4 - September 2023
* Update Grafana Agent configuration snippets to include filtered metrics used in gauge panels
# 0.0.3 - September 2023
* New Filter Metrics option for configuring the Grafana Agent, which saves on metrics cost by dropping any metric not used by this integration. Beware that anything custom built using metrics that are not on the snippet will stop working.
* New hostname relabel option, which applies the instance name you write on the text box to the Grafana Agent configuration snippets, making it easier and less error prone to configure this mandatory label.
# 0.0.2 - August 2023
* Add regex filter for logs datasource
# 0.0.1 - February 2023
* Initial release
Cost
By connecting your Microsoft SQL Server instance to Grafana Cloud, you might incur charges. To view information on the number of active series that your Grafana Cloud account uses for metrics included in each Cloud tier, see Active series and dpm usage and Cloud tier pricing.
