Use Grafana Alloy to send metrics to Prometheus

In the Get started with Alloy tutorial, you learned how to configure Alloy to collect and process logs from your local machine and send them to Loki, running in the local Grafana stack.

As a next step, you will collect and process metrics from the same machine using Alloy and send them to Prometheus, running in the same Grafana stack.

This process will enable you to query and visualize the metrics sent to Prometheus using the Grafana dashboard.

Prerequisites

Complete the previous tutorial to:

  1. Install Alloy and start the service in your environment.
  2. Set up a local Grafana instance.
  3. Create a config.alloy file.

Configure Alloy

Once the prerequisite steps have been completed, the next step is to configure Alloy for metric collection.

Same as you did for logs, you will use the components in the config.alloy file to tell Alloy which metrics you want to scrape, how you want to process that data, and where you want the data sent.

Add the following to the config.alloy file you created in the prerequisite steps.

First component: Scraping

Paste this component into the top of the config.alloy file:

alloy
prometheus.exporter.unix "local_system" { }

prometheus.scrape "scrape_metrics" {
  targets         = prometheus.exporter.unix.local_system.targets
  forward_to      = [prometheus.relabel.filter_metrics.receiver]
  scrape_interval = "10s"
}

This configuration defines a Prometheus exporter for a local system from which the metrics will be collected.

It also creates a prometheus.scrape component named scrape_metrics which does the following:

  1. It connects to the local_system component (its “source” or target).
  2. It forwards the metrics it scrapes to the “receiver” of another component called filter_metrics which you will define next.
  3. It tells Alloy to scrape metrics every 10 seconds.

Second component: Filter metrics

Filtering non-essential metrics before sending them to a data source can help you reduce costs and enable you to focus on the data that matters most. The filtering strategy of each organization will differ as they have different monitoring needs and setups.

The following example demonstrates filtering out or dropping metrics before sending them to Prometheus.

Paste this component next in your configuration file:

alloy
prometheus.relabel "filter_metrics" {
  rule {
    action        = "drop"
    source_labels = ["env"]
    regex         = "dev"
  }

  forward_to = [prometheus.remote_write.metrics_service.receiver]
}
  1. prometheus.relabel is a component most commonly used to filter Prometheus metrics or standardize the label set passed to one or more downstream receivers.
  2. In this example, you create a prometheus.relabel component named “filter_metrics”. This component receives scraped metrics from the scrape_metrics component you created in the previous step.
  3. There are many ways to process metrics. Within this component, you can define rule block(s) to specify how you would like to process metrics before they are stored or forwarded.
  4. This example assumes that you are monitoring a production environment and the metrics collected from the dev environment will not be needed for this particular use case.
  5. To instruct Alloy to drop metrics whose environment label, "env", is equal to "dev", you set the action parameter to "drop", set the source_labels parameter equal to ["env"], and the regex parameter to "dev".
  6. You use the forward_to parameter to specify where to send the processed metrics. In this case, you will send the processed metrics to a component you will create next called metrics_service.

Third component: Write metrics to Prometheus

Paste this component next in your configuration file:

alloy
prometheus.remote_write "metrics_service" {
    endpoint {
        url = "http://localhost:9090/api/v1/write"

        // basic_auth {
        //   username = "admin"
        //   password = "admin"
        // }
    }
}

This last component creates a prometheus.remote_write component named metrics_service that points to http://localhost:9090/api/v1/write.

This completes the simple configuration pipeline.

Tip

The basic_auth is commented out because the local docker compose stack doesn’t require it. It is included in this example to show how you can configure authorization for other environments.

For further authorization options, refer to the prometheus.remote_write component documentation.

This connects directly to the Prometheus instance running in the Docker container.

Reload the Configuration

Copy your local config.alloy file into the default configuration file location, which depends on your OS.

macos
sudo cp config.alloy $(brew --prefix)/etc/alloy/config.alloy
linux
sudo cp config.alloy /etc/alloy/config.alloy

Finally, call the reload endpoint to notify Alloy to the configuration change without the need for restarting the system service.

bash
    curl -X POST http://localhost:12345/-/reload

Tip

This step uses the Alloy UI, which is exposed on localhost port 12345. If you choose to run Alloy in a Docker container, make sure you use the --server.http.listen-addr=0.0.0.0:12345 argument.

If you don’t use this argument, the debugging UI won’t be available outside of the Docker container.

The alternative to using this endpoint is to reload the Alloy configuration, which can be done as follows:

macos
brew services restart alloy
linux
sudo systemctl reload alloy

Inspect your configuration in the Alloy UI

Open http://localhost:12345 and click the Graph tab at the top. The graph should look similar to the following:

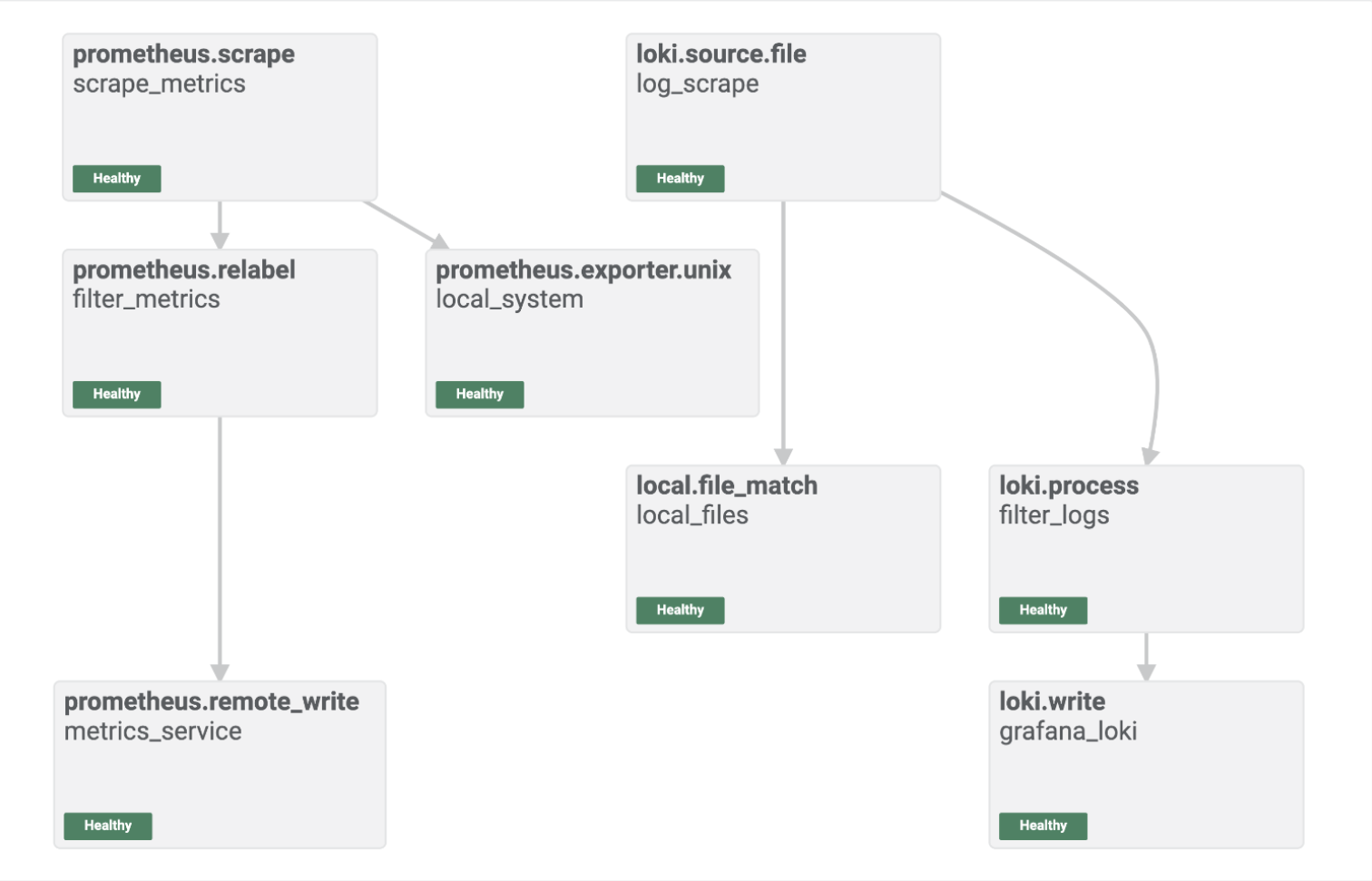

Your configuration in the Alloy UI

The Alloy UI shows you a visual representation of the pipeline you built with your Alloy component configuration.

You can see that the components are healthy, and you are ready to go.

Log into Grafana and explore metrics in Prometheus

Open http://localhost:3000/explore to access the Explore feature in Grafana.

Select Prometheus as the data source and click the Metrics Browser button to select the metric, labels, and values for your labels.

Here you can see that metrics are flowing through to Prometheus as expected, and the end-to-end configuration was successful.

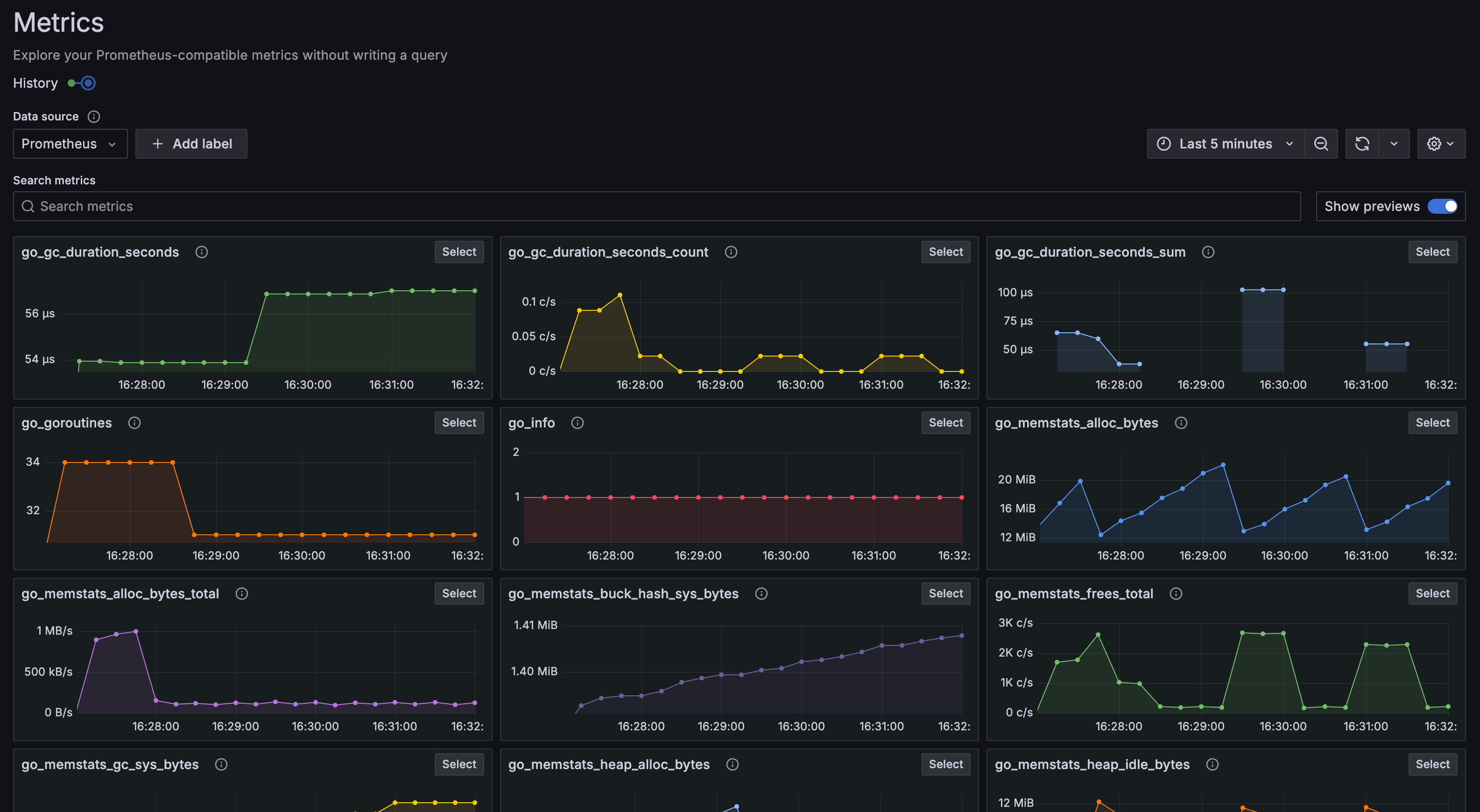

Your data flowing through Prometheus.

Conclusion

Well done. You have configured Alloy to collect and process metrics from your local host and send them to a Grafana stack.
