macOS integration for Grafana Cloud

The macOS integration uses the agent to collect metrics related to the operating system, including aspects like CPU usage, load average, memory usage, and disk and networking I/O. It also supports system logs being scraped by the agent using promtail. An accompanying dashboard is provided to visualize these metrics and logs.

The macOS integration is based on macOS mixin, which is in fact slightly modified node-observ-lib.

This integration includes 9 useful alerts and 2 pre-built dashboards to help monitor and visualize macOS metrics and logs.

Before you begin

This integration running MacOS machine running alongside Grafana Alloy.

Each MacOS node being observed must have a dedicated Grafana Alloy running.

Install macOS integration for Grafana Cloud

In your Grafana Cloud stack, click Connections in the left-hand menu.
Find macOS and click its tile to open the integration.
Review the prerequisites in the Configuration Details tab and set up Grafana Agent to send macOS metrics and logs to your Grafana Cloud instance.
Click Install to add this integration’s pre-built dashboards and alerts to your Grafana Cloud instance, and you can start monitoring your macOS setup.

Configuration snippets for Grafana Alloy

Simple mode

These snippets are configured to scrape a single macOS instance running locally with default ports.

First, manually copy and append the following snippets into your alloy configuration file.

Integrations snippets

prometheus.exporter.unix "integrations_node_exporter" { }

discovery.relabel "integrations_node_exporter" {
	targets = prometheus.exporter.unix.integrations_node_exporter.targets

	rule {
		target_label = "instance"
		replacement  = constants.hostname
	}

	rule {
		target_label = "job"
		replacement  = "integrations/macos-node"
	}
}

prometheus.scrape "integrations_node_exporter" {
	targets    = discovery.relabel.integrations_node_exporter.output
	forward_to = [prometheus.remote_write.metrics_service.receiver]
	job_name   = "integrations/node_exporter"
}

Logs snippets

darwin

local.file_match "logs_integrations_integrations_node_exporter_direct_scrape" {
	path_targets = [{
		__address__ = "localhost",
		__path__    = "/var/log/*.log",
		instance    = constants.hostname,
		job         = "integrations/macos-node",
	}]
}

loki.process "logs_integrations_integrations_node_exporter_direct_scrape" {
	forward_to = [loki.write.grafana_cloud_loki.receiver]

	stage.multiline {
		firstline     = "^([\\w]{3} )?[\\w]{3} +[\\d]+ [\\d]+:[\\d]+:[\\d]+|[\\w]{4}-[\\w]{2}-[\\w]{2} [\\w]{2}:[\\w]{2}:[\\w]{2}(?:[+-][\\w]{2})?"
		max_lines     = 0
		max_wait_time = "10s"
	}

	stage.regex {
		expression = "(?P<timestamp>([\\w]{3} )?[\\w]{3} +[\\d]+ [\\d]+:[\\d]+:[\\d]+|[\\w]{4}-[\\w]{2}-[\\w]{2} [\\w]{2}:[\\w]{2}:[\\w]{2}(?:[+-][\\w]{2})?) (?P<hostname>\\S+) (?P<sender>.+?)\\[(?P<pid>\\d+)\\]:? (?P<message>(?s:.*))$"
	}

	stage.labels {
		values = {
			hostname = null,
			pid      = null,
			sender   = null,
		}
	}

	stage.match {
		selector = "{sender!=\"\", pid!=\"\"}"

		stage.template {
			source   = "message"
			template = "{{ .sender }}[{{ .pid }}]: {{ .message }}"
		}

		stage.label_drop {
			values = ["pid"]
		}

		stage.output {
			source = "message"
		}
	}
}

loki.source.file "logs_integrations_integrations_node_exporter_direct_scrape" {
	targets    = local.file_match.logs_integrations_integrations_node_exporter_direct_scrape.targets
	forward_to = [loki.process.logs_integrations_integrations_node_exporter_direct_scrape.receiver]
}

Advanced mode

The following snippets provide examples to guide you through the configuration process.

To instruct Grafana Alloy to scrape your macOS instances, manually copy and append the snippets to your alloy configuration file, then follow subsequent instructions.

Advanced integrations snippets

prometheus.exporter.unix "integrations_node_exporter" { }

discovery.relabel "integrations_node_exporter" {
	targets = prometheus.exporter.unix.integrations_node_exporter.targets

	rule {
		target_label = "instance"
		replacement  = constants.hostname
	}

	rule {
		target_label = "job"
		replacement  = "integrations/macos-node"
	}
}

prometheus.scrape "integrations_node_exporter" {
	targets    = discovery.relabel.integrations_node_exporter.output
	forward_to = [prometheus.remote_write.metrics_service.receiver]
	job_name   = "integrations/node_exporter"
}

This integrations uses the prometheus.exporter.unix component to generate metrics from a macOS instance.

For the full array of configuration options, refer to the prometheus.exporter.unix component reference documentation.

This exporter must be linked with a discovery.relabel component to apply the necessary relabelings.

For each macOS instance to be monitored you must create a pair of these components.

Configure the following properties within each discovery.relabel component:

instance label: constants.hostname sets the instance label to your Grafana Alloy server hostname. If that is not suitable, change it to a value uniquely identifies this macOS instance. Make sure this label value is the same for all telemetry data collected for this instance.

You can then scrape them by including each discovery.relabel under targets within the prometheus.scrape component.

Note that on Macs with an M1 architecture you might encounter errors similar to the following:

level=error integration=node_exporter msg="collector failed" name=thermal duration_seconds=0.001089125 err="no CPU power status has been recorded"

To avoid collector errors, you can add disable_collectors setting to the prometheus.exporter.unix component to disable it:

    disable_collectors = ["thermal"]

Advanced logs snippets

darwin

local.file_match "logs_integrations_integrations_node_exporter_direct_scrape" {
	path_targets = [{
		__address__ = "localhost",
		__path__    = "/var/log/*.log",
		instance    = constants.hostname,
		job         = "integrations/macos-node",
	}]
}

loki.process "logs_integrations_integrations_node_exporter_direct_scrape" {
	forward_to = [loki.write.grafana_cloud_loki.receiver]

	stage.multiline {
		firstline     = "^([\\w]{3} )?[\\w]{3} +[\\d]+ [\\d]+:[\\d]+:[\\d]+|[\\w]{4}-[\\w]{2}-[\\w]{2} [\\w]{2}:[\\w]{2}:[\\w]{2}(?:[+-][\\w]{2})?"
		max_lines     = 0
		max_wait_time = "10s"
	}

	stage.regex {
		expression = "(?P<timestamp>([\\w]{3} )?[\\w]{3} +[\\d]+ [\\d]+:[\\d]+:[\\d]+|[\\w]{4}-[\\w]{2}-[\\w]{2} [\\w]{2}:[\\w]{2}:[\\w]{2}(?:[+-][\\w]{2})?) (?P<hostname>\\S+) (?P<sender>.+?)\\[(?P<pid>\\d+)\\]:? (?P<message>(?s:.*))$"
	}

	stage.labels {
		values = {
			hostname = null,
			pid      = null,
			sender   = null,
		}
	}

	stage.match {
		selector = "{sender!=\"\", pid!=\"\"}"

		stage.template {
			source   = "message"
			template = "{{ .sender }}[{{ .pid }}]: {{ .message }}"
		}

		stage.label_drop {
			values = ["pid"]
		}

		stage.output {
			source = "message"
		}
	}
}

loki.source.file "logs_integrations_integrations_node_exporter_direct_scrape" {
	targets    = local.file_match.logs_integrations_integrations_node_exporter_direct_scrape.targets
	forward_to = [loki.process.logs_integrations_integrations_node_exporter_direct_scrape.receiver]
}

To monitor your macOS instance logs, you will use a combination of the following components:

local.file_match defines where to find the log file to be scraped. Change the following properties according to your environment:
- __address__: The macOS instance address
- __path__: The path to the log file.
- instance label: constants.hostname sets the instance label to your Grafana Alloy server hostname. If that is not suitable, change it to a value uniquely identifies this macOS instance. Make sure this label value is the same for all telemetry data collected for this instance.
loki.process defines how to process logs before sending it to Loki.
loki.source.file sends logs to Loki.

Grafana Agent static configuration (deprecated)

The following section shows configuration for running Grafana Agent in static mode which is deprecated. You should use Grafana Alloy for all new deployments.

Before you begin with Grafana Agent static

This integration running MacOS machine running alongside Grafana Agent.

Each MacOS node being observed must have a dedicated Grafana Agent running.

Install macOS integration

In your Grafana Cloud stack, click Connections in the left-hand menu.
Find macOS and click its tile to open the integration.
Review the prerequisites in the Configuration Details tab and set up Grafana Agent to send macOS metrics and logs to your Grafana Cloud instance.
Click Install to add this integration’s pre-built dashboards and alerts to your Grafana Cloud instance, and you can start monitoring your macOS setup.

Post-install configuration for the macOS integration

This integration is configured to work with the node_exporter, which is embedded in Grafana Agent.

Enable the integration by adding the provided snippets to your agent configuration file.

This integration supports metrics and logs from MacOS.

If you want to show logs and metrics signals correlated in your dashboards, as a single pane of glass, ensure the following:

job and instance label values must match for node_exporter integration and logs scrape config in your agent configuration file.
job label must be set to integrations/macos-node (already configured in the snippets).
instance label must be set to a value that uniquely identifies your MacOS Node. Please replace it according to your environment, it should be set manually. Please note that if you use localhost for multiple nodes the dashboards will not be able to filter correctly by instance.

Note that on Macs with an M1 architecture you might encounter errors similar to the following:

level=error integration=node_exporter msg="collector failed" name=thermal duration_seconds=0.001089125 err="no CPU power status has been recorded"

To avoid collector errors, you can add disable_collectors setting to the node_exporter integration to disable it:

    disable_collectors:
      - thermal # disable on M1

For a full description of configuration options see how to configure the node_exporter_config block in the agent documentation.

Configuration snippets for Grafana Agent

Below integrations, insert the following lines and change the URLs according to your environment:

  node_exporter:
    enabled: true
    relabel_configs:
    - replacement: '<your-instance-name>'
      target_label: instance
    - replacement: "integrations/macos-node"
      target_label: job

Below logs.configs.scrape_configs, insert the following lines according to your environment.

    - job_name: integrations/node_exporter_direct_scrape
      static_configs:
      - targets:
        - localhost
        labels:
          __path__: /var/log/*.log
          instance: '<your-instance-name>'
          job: integrations/macos-node
      pipeline_stages:
      - multiline:
          firstline: '^([\w]{3} )?[\w]{3} +[\d]+ [\d]+:[\d]+:[\d]+|[\w]{4}-[\w]{2}-[\w]{2} [\w]{2}:[\w]{2}:[\w]{2}(?:[+-][\w]{2})?'
      - regex:
          expression: '(?P<timestamp>([\w]{3} )?[\w]{3} +[\d]+ [\d]+:[\d]+:[\d]+|[\w]{4}-[\w]{2}-[\w]{2} [\w]{2}:[\w]{2}:[\w]{2}(?:[+-][\w]{2})?) (?P<hostname>\S+) (?P<sender>.+?)\[(?P<pid>\d+)\]:? (?P<message>(?s:.*))$'
      - labels:
          sender:
          hostname:
          pid:
      - match:
          selector: '{sender!="", pid!=""}'
          stages:
            - template:
                source: message
                template: '{{ .sender }}[{{ .pid }}]: {{ .message }}'
            - labeldrop:
                - pid
            - output:
                source: message

Full example configuration for Grafana Agent

Refer to the following Grafana Agent configuration for a complete example that contains all the snippets used for the macOS integration. This example also includes metrics that are sent to monitor your Grafana Agent instance.

integrations:
  prometheus_remote_write:
  - basic_auth:
      password: <your_prom_pass>
      username: <your_prom_user>
    url: <your_prom_url>
  agent:
    enabled: true
    relabel_configs:
    - action: replace
      source_labels:
      - agent_hostname
      target_label: instance
    - action: replace
      target_label: job
      replacement: "integrations/agent-check"
    metric_relabel_configs:
    - action: keep
      regex: (prometheus_target_sync_length_seconds_sum|prometheus_target_scrapes_.*|prometheus_target_interval.*|prometheus_sd_discovered_targets|agent_build.*|agent_wal_samples_appended_total|process_start_time_seconds)
      source_labels:
      - __name__
  # Add here any snippet that belongs to the `integrations` section.
  # For a correct indentation, paste snippets copied from Grafana Cloud at the beginning of the line.
  node_exporter:
    enabled: true
    relabel_configs:
    - replacement: '<your-instance-name>'
      target_label: instance
    - replacement: "integrations/macos-node"
      target_label: job
logs:
  configs:
  - clients:
    - basic_auth:
        password: <your_loki_pass>
        username: <your_loki_user>
      url: <your_loki_url>
    name: integrations
    positions:
      filename: /tmp/positions.yaml
    scrape_configs:
      # Add here any snippet that belongs to the `logs.configs.scrape_configs` section.
      # For a correct indentation, paste snippets copied from Grafana Cloud at the beginning of the line.
    - job_name: integrations/node_exporter_direct_scrape
      static_configs:
      - targets:
        - localhost
        labels:
          __path__: /var/log/*.log
          instance: '<your-instance-name>'
          job: integrations/macos-node
      pipeline_stages:
      - multiline:
          firstline: '^([\w]{3} )?[\w]{3} +[\d]+ [\d]+:[\d]+:[\d]+|[\w]{4}-[\w]{2}-[\w]{2} [\w]{2}:[\w]{2}:[\w]{2}(?:[+-][\w]{2})?'
      - regex:
          expression: '(?P<timestamp>([\w]{3} )?[\w]{3} +[\d]+ [\d]+:[\d]+:[\d]+|[\w]{4}-[\w]{2}-[\w]{2} [\w]{2}:[\w]{2}:[\w]{2}(?:[+-][\w]{2})?) (?P<hostname>\S+) (?P<sender>.+?)\[(?P<pid>\d+)\]:? (?P<message>(?s:.*))$'
      - labels:
          sender:
          hostname:
          pid:
      - match:
          selector: '{sender!="", pid!=""}'
          stages:
            - template:
                source: message
                template: '{{ .sender }}[{{ .pid }}]: {{ .message }}'
            - labeldrop:
                - pid
            - output:
                source: message
metrics:
  configs:
  - name: integrations
    remote_write:
    - basic_auth:
        password: <your_prom_pass>
        username: <your_prom_user>
      url: <your_prom_url>
    scrape_configs:
      # Add here any snippet that belongs to the `metrics.configs.scrape_configs` section.
      # For a correct indentation, paste snippets copied from Grafana Cloud at the beginning of the line.
  global:
    scrape_interval: 60s
  wal_directory: /tmp/grafana-agent-wal

Dashboards

The macOS integration installs the following dashboards in your Grafana Cloud instance to help monitor your system.

MacOS / logs
MacOS / overview

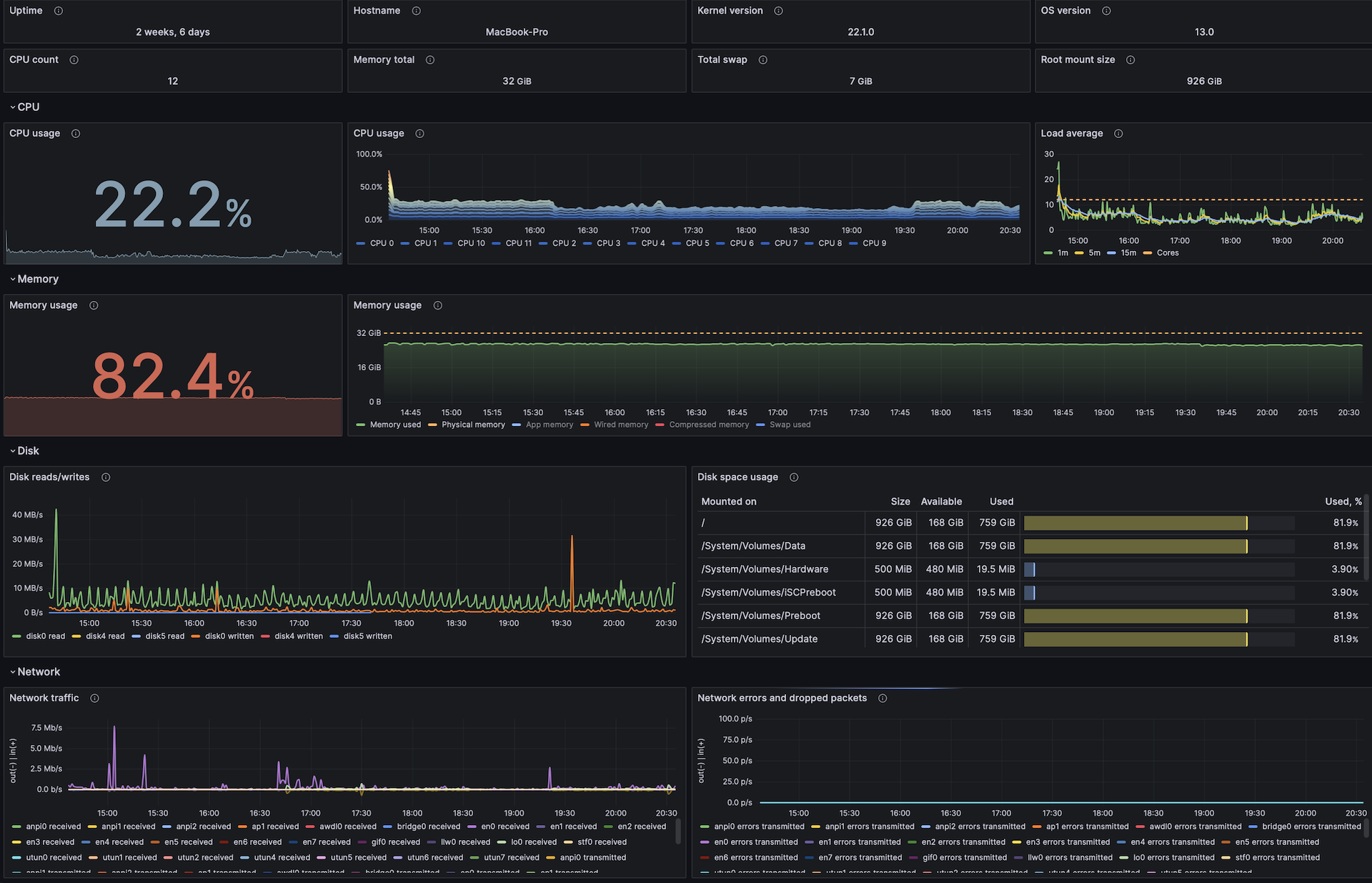

MacOS overview

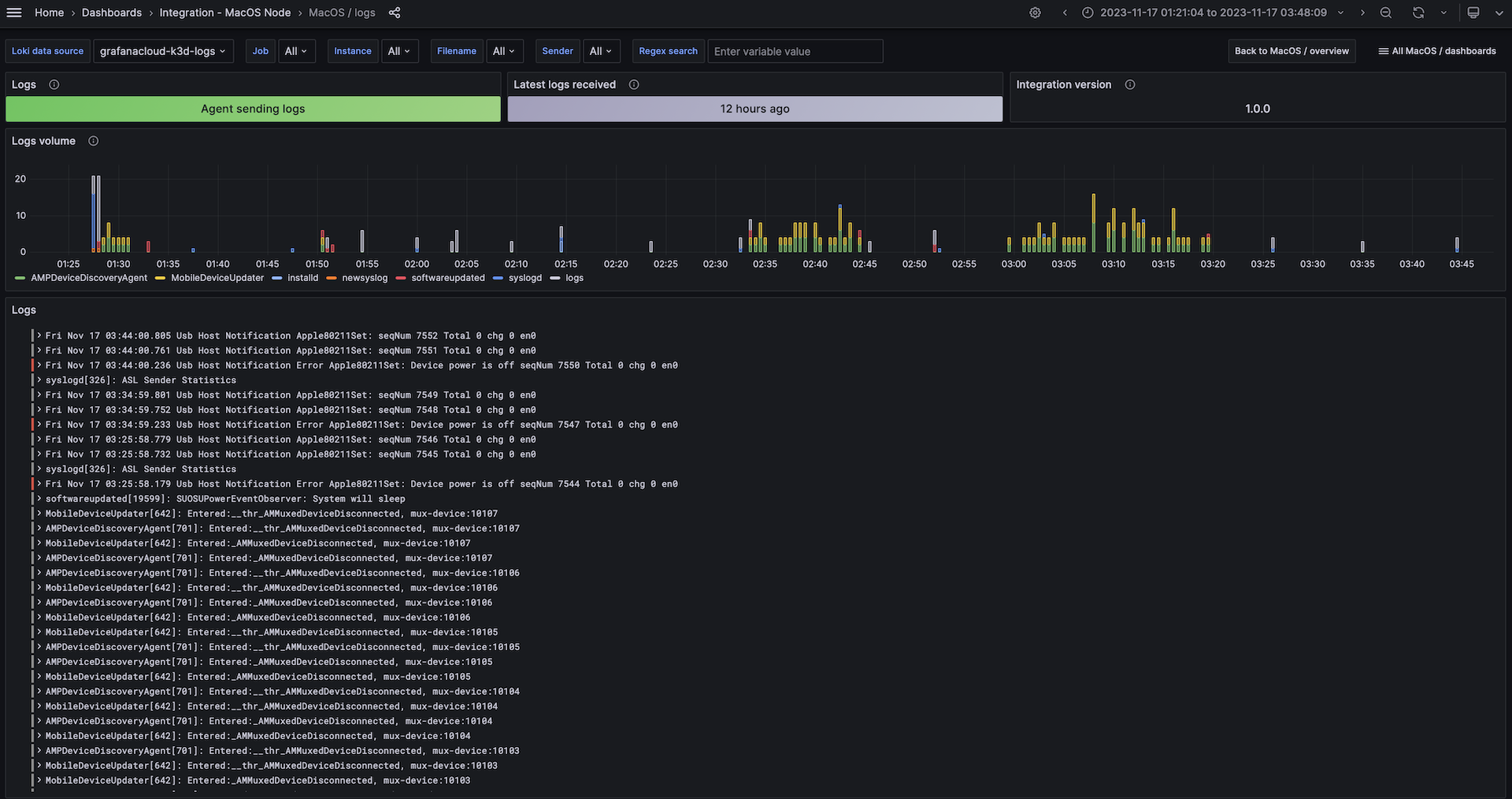

MacOS logs

Alerts

The macOS integration includes the following useful alerts:

darwin-filesystem-alerts

Alert	Description
NodeFilesystemAlmostOutOfSpace	Warning: Filesystem has less than 5% space left.
NodeFilesystemAlmostOutOfSpace	Critical: Filesystem has less than 3% space left.
NodeFilesystemFilesFillingUp	Warning: Filesystem is predicted to run out of inodes within the next 24 hours.
NodeFilesystemFilesFillingUp	Critical: Filesystem is predicted to run out of inodes within the next 4 hours.
NodeFilesystemAlmostOutOfFiles	Warning: Filesystem has less than 5% inodes left.
NodeFilesystemAlmostOutOfFiles	Critical: Filesystem has less than 3% inodes left.

darwin-alerts

Alert	Description
NodeNetworkReceiveErrs	Warning: Network interface is reporting many receive errors.
NodeNetworkTransmitErrs	Warning: Network interface is reporting many transmit errors.
NodeTextFileCollectorScrapeError	Warning: Node Exporter text file collector failed to scrape.

Metrics

The most important metrics provided by the macOS integration, which are used on the pre-built dashboards and Prometheus alerts, are as follows:

node_boot_time_seconds
node_cpu_seconds_total
node_disk_io_time_seconds_total
node_disk_read_bytes_total
node_disk_written_bytes_total
node_filesystem_avail_bytes
node_filesystem_files
node_filesystem_files_free
node_filesystem_readonly
node_filesystem_size_bytes
node_load1
node_load15
node_load5
node_memory_compressed_bytes
node_memory_internal_bytes
node_memory_purgeable_bytes
node_memory_swap_total_bytes
node_memory_swap_used_bytes
node_memory_total_bytes
node_memory_wired_bytes
node_network_receive_bytes_total
node_network_receive_drop_total
node_network_receive_errs_total
node_network_receive_packets_total
node_network_transmit_bytes_total
node_network_transmit_drop_total
node_network_transmit_errs_total
node_network_transmit_packets_total
node_os_info
node_textfile_scrape_error
node_uname_info
up

Changelog

# 1.0.2 - November 2024

* Update Log dashboard job selector to always have a selected option

# 1.0.1 - November 2024

* Update status panel check queries

# 1.0.0 - December 2023

* Sync dashboards styles with Linux/Windows
* Change dashboards prefix to 'MacOS /'
* Add inventory row
* Add reboot annotation
* Add separate dashboards for logs with sender/filename selectors

# 0.0.10 - August 2023

* New Filter Metrics option for configuring the Grafana Agent, which saves on metrics cost by dropping any metric not used by this integration. Beware that anything custom built using metrics that are not on the snippet will stop working.

# 0.0.9 - August 2023

* Add regex filter for logs datasource

# 0.0.8 - July 2023

* Update agent snippets

# 0.0.7 - January 2023

* Status panels fixes
	- Update status panel query to return only single series
	- Resolve status panels not opening when clicking view button
* Update node mixin to latest version

# 0.0.6 - November 2022

* Add integration status panel

# 0.0.5 - September 2022

* Update dashboard panels descriptions.

# 0.0.4 - May 2022

* Reverse fsSpaceAvailableCriticalThreshold and fsSpaceAvailableWarningThreshold
* Update units for disk and networking panels

# 0.0.3 - May 2022

* Use $(hostname) in the generated agent config to avoid manual snippet editing

# 0.0.2 - May 2022

* Update timestamp parsing in logs

# 0.0.1 - May 2022

* Initial release

Cost

By connecting your macOS instance to Grafana Cloud, you might incur charges. To view information on the number of active series that your Grafana Cloud account uses for metrics included in each Cloud tier, see Active series and dpm usage and Cloud tier pricing.
