Ruby Rack integration for Grafana Cloud
The Rack webserver interface for Ruby allows easily building web applications. This integration enables the agent to send metrics to Grafana Cloud along with a useful default dashboard for visualization.
This integration includes 1 pre-built dashboard to help monitor and visualize Ruby Rack metrics.
Before you begin
This integration monitors a Rack web application (e.g. any Sinatra or Rails application) using the
Collector middleware included in the Ruby Prometheus client library.
To get started, add the Prometheus client library to your Gemfile:
Then change the
config.ru file of your Rack application to use the Prometheus
Exporter middlewares before running your app:
require 'prometheus/middleware/collector' require 'prometheus/middleware/exporter' use Prometheus::Middleware::Collector use Prometheus::Middleware::Exporter run Sinatra::Application
You can refer to this example Sinatra app for a complete setup of the Prometheus client library.
Install Ruby Rack integration for Grafana Cloud
- In your Grafana Cloud stack, click Connections in the left-hand menu.
- Find Ruby Rack and click its tile to open the integration.
- Review the prerequisites in the Configuration Details tab and set up Grafana Agent to send Ruby Rack metrics to your Grafana Cloud instance.
- Click Install to add this integration’s pre-built dashboard to your Grafana Cloud instance, and you can start monitoring your Ruby Rack setup.
Post-install configuration for the Ruby Rack integration
After enabling the metrics generation, you should instruct Grafana Agent to scrape your Ruby application.
The Ruby Prometheus client lib exposes a
/metrics endpoint. To scrape it, add the provided snippet to your agent configuration file.
Make sure to change
targets in the snippet according to your environment.
Configuration snippets for Grafana Agent
metrics.configs.scrape_configs, insert the following lines and change the URLs according to your environment:
- job_name: integrations/ruby-rack relabel_configs: - replacement: '<your-instance-name>' target_label: instance static_configs: - targets: ['localhost:9292']
Full example configuration for Grafana Agent
Refer to the following Grafana Agent configuration for a complete example that contains all the snippets used for the Ruby Rack integration. This example also includes metrics that are sent to monitor your Grafana Agent instance.
integrations: prometheus_remote_write: - basic_auth: password: <your_prom_pass> username: <your_prom_user> url: <your_prom_url> agent: enabled: true relabel_configs: - action: replace source_labels: - agent_hostname target_label: instance - action: replace target_label: job replacement: "integrations/agent-check" metric_relabel_configs: - action: keep regex: (prometheus_target_.*|prometheus_sd_discovered_targets|agent_build.*|agent_wal_samples_appended_total|process_start_time_seconds) source_labels: - __name__ # Add here any snippet that belongs to the `integrations` section. # For a correct indentation, paste snippets copied from Grafana Cloud at the beginning of the line. logs: configs: - clients: - basic_auth: password: <your_loki_pass> username: <your_loki_user> url: <your_loki_url> name: integrations positions: filename: /tmp/positions.yaml scrape_configs: # Add here any snippet that belongs to the `logs.configs.scrape_configs` section. # For a correct indentation, paste snippets copied from Grafana Cloud at the beginning of the line. metrics: configs: - name: integrations remote_write: - basic_auth: password: <your_prom_pass> username: <your_prom_user> url: <your_prom_url> scrape_configs: # Add here any snippet that belongs to the `metrics.configs.scrape_configs` section. # For a correct indentation, paste snippets copied from Grafana Cloud at the beginning of the line. - job_name: integrations/ruby-rack relabel_configs: - replacement: '<your-instance-name>' target_label: instance static_configs: - targets: ['localhost:9292'] global: scrape_interval: 60s wal_directory: /tmp/grafana-agent-wal
The Ruby Rack integration installs the following dashboards in your Grafana Cloud instance to help monitor your system.
- Ruby Rack application overview

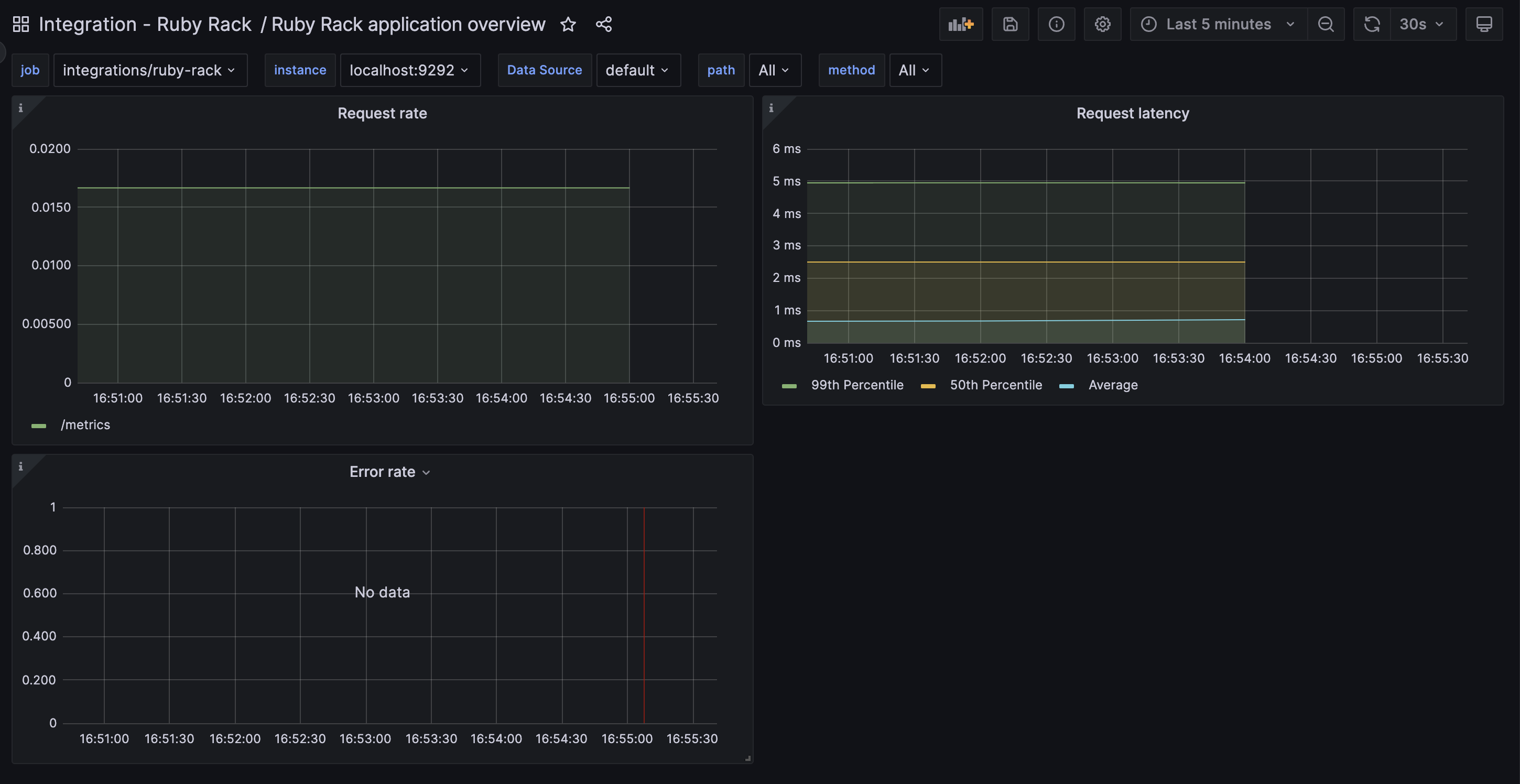

Ruby Rack Overview
The most important metrics provided by the Ruby Rack integration, which are used on the pre-built dashboard, are as follows:
# 0.0.4 - September 2023 * New Filter Metrics option for configuring the Grafana Agent, which saves on metrics cost by dropping any metric not used by this integration. Beware that anything custom built using metrics that are not on the snippet will stop working. * New hostname relabel option, which applies the instance name you write on the text box to the Grafana Agent configuration snippets, making it easier and less error prone to configure this mandatory label. # 0.0.3 - September 2022 * Update dashboard panels descriptions. # 0.0.2 - October 2021 * Update mixin to latest version: - Update queries to use $__rate_interval # 0.0.1 - February 2021 * Initial release
By connecting your Ruby Rack instance to Grafana Cloud, you might incur charges. To view information on the number of active series that your Grafana Cloud account uses for metrics included in each Cloud tier, see Active series and dpm usage and Cloud tier pricing.
