Apache Camel Data metrics

Metrics that are produced by Apache Camel 1) out of the box per each route 2) manually added to meter the critical parts of the Camel routes

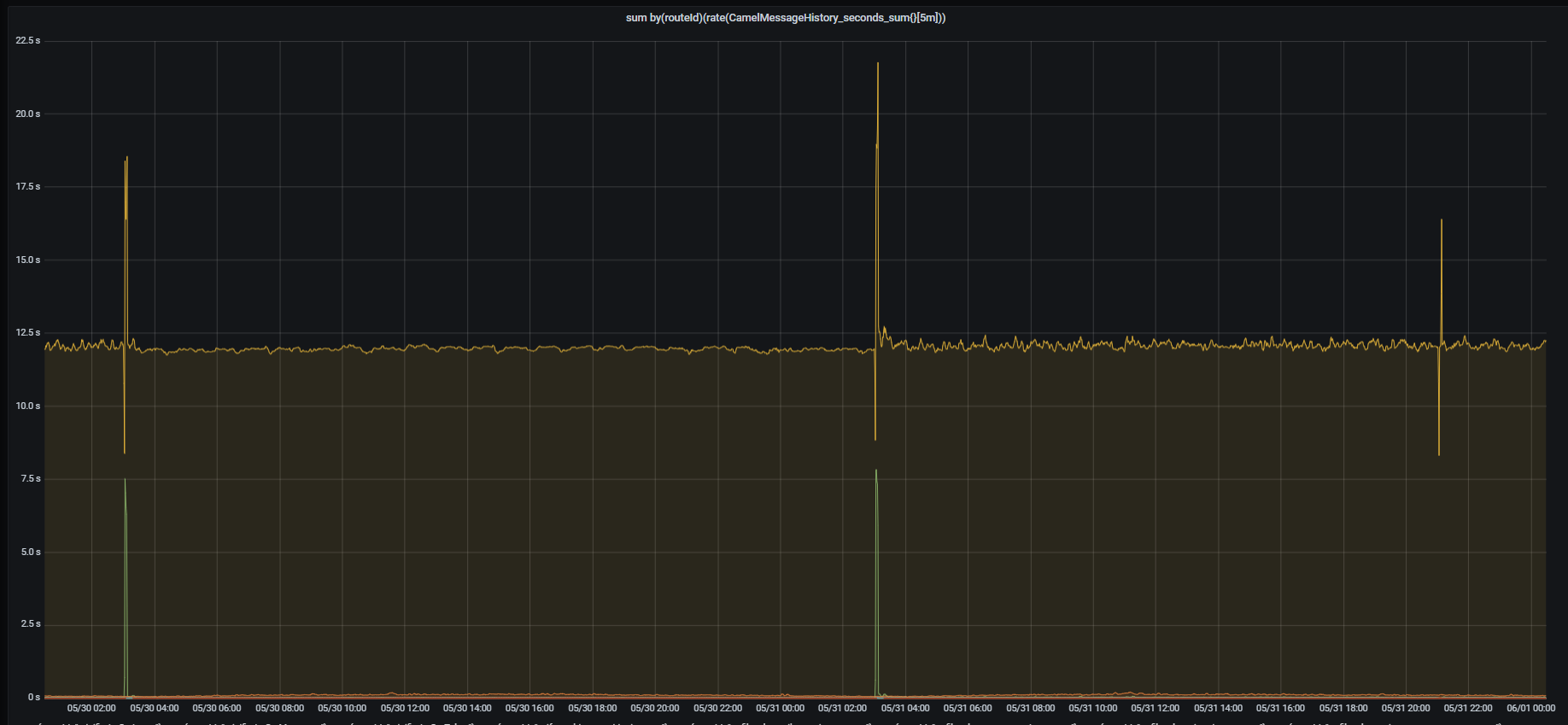

Apache Camel Data metrics screenshot 1

Example of manually set up metrics set up for the Camel route:

Enable routes’ out of box metrics with

io.micrometer micrometer-registry-prometheus 1.1.6 org.springframework.boot spring-boot-starter-actuator ${spring-boot.version} org.apache.camel camel-micrometer-starter org.apache.camel camel-micrometer ${camel.version}

@Configuration public class MetricsConfig {

@Bean
public CamelContextConfiguration camelContextConfiguration() {

    return new CamelContextConfiguration() {
        @Override
        public void beforeApplicationStart(CamelContext camelContext) {
            camelContext.addRoutePolicyFactory(new MicrometerRoutePolicyFactory());
            camelContext.setMessageHistoryFactory(new MicrometerMessageHistoryFactory());

        }

        @Override
        public void afterApplicationStart(CamelContext camelContext) {
        }
    };
}

}
