IBM Workload Automation Grafana Dashboard for Kubernetes environments 9.5 FP4

Visualize Workload Automation and related Kubernetes metrics

IBM Workload Automation Performance Dashboard

Overview

IBM Workload Automation uses Grafana to display performance data related to the product. This data includes metrics related to the server and console application servers (WebSphere Application Server Liberty Base), your workload, your workstations, critical jobs, message queues, the database connection status, and more. Metrics provide insight into the state, health, and performance of your deployments and infrastructure. IBM Workload Automation cloud metric monitoring uses an opensource Cloud Native Computing Foundation (CNCF) project called Prometheus. It is particularly useful for collecting time series data that can be easily queried.

Metrics

Metric	Description

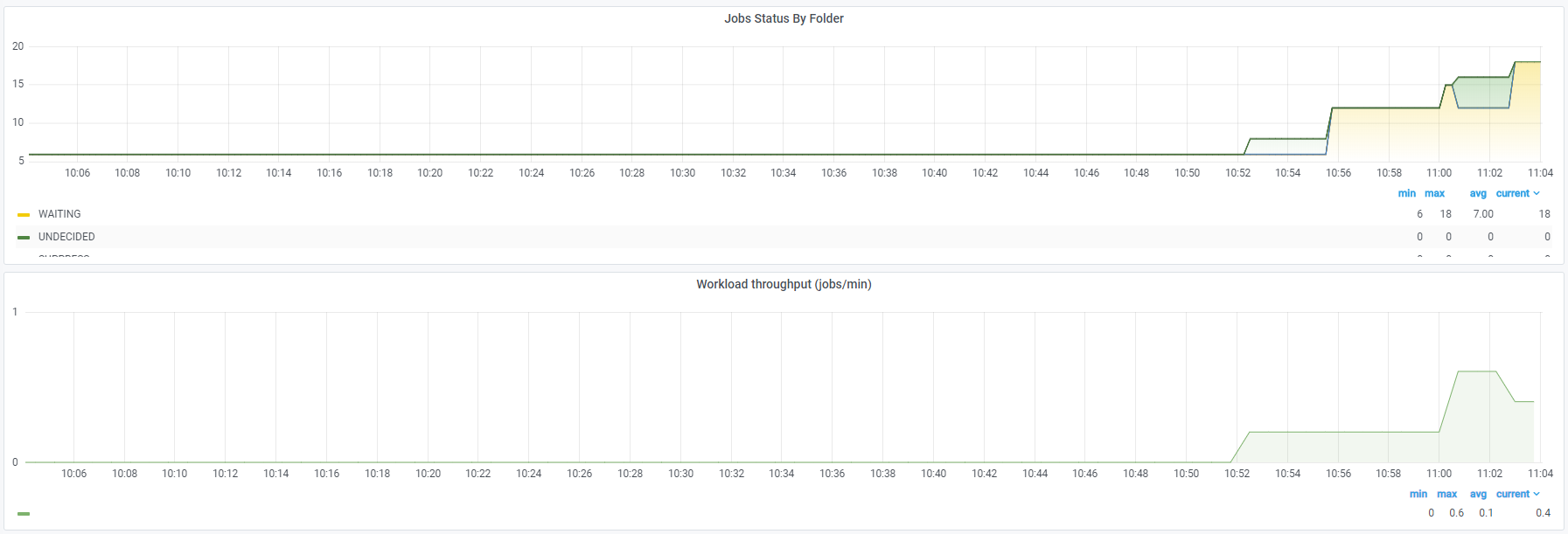

Workload	Jobs by status, Jobs by workstation, Jobs by folder and the Workload throughput by jobs/minutes
Critical Jobs	Incomplete predecessors, critical jobs, risk level for potential and high risks, estimated end and confidential factor

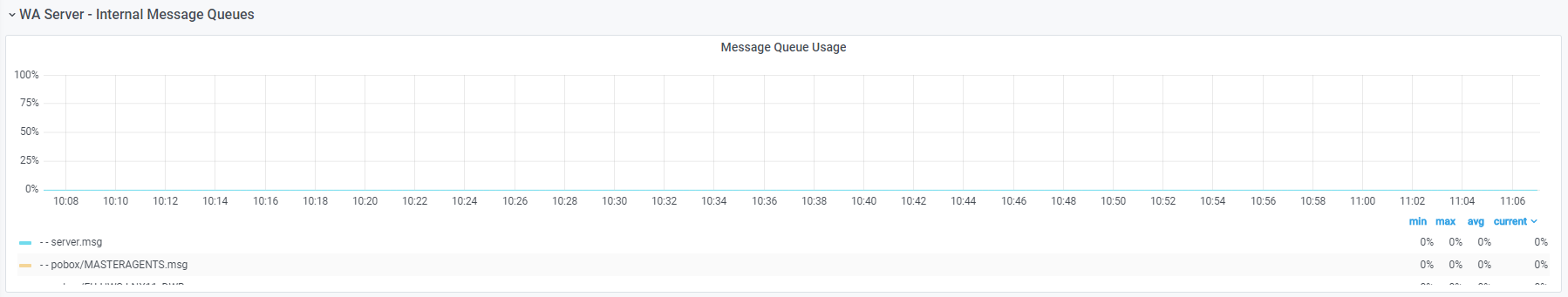

WA Server Internal Message Queue	Internal message queue usage for Appserverbox.msg, Courier.msg, mirrorbox.msg, Mailbox.msg, Monbox.msgn, Moncmd.msg, auditbox.msg, clbox.msg, planbox.msg, Intercom.msg, pobox messages, and server.msg
Workstation Status	The number of running workstations and linked workstations
Database Connection Status	The connection to the database status
PODs	POD restarts, Failing PODs, POD CPU usage, Network I/O and RAM usage
Persistent Volumes	Volumes capacity and Space used

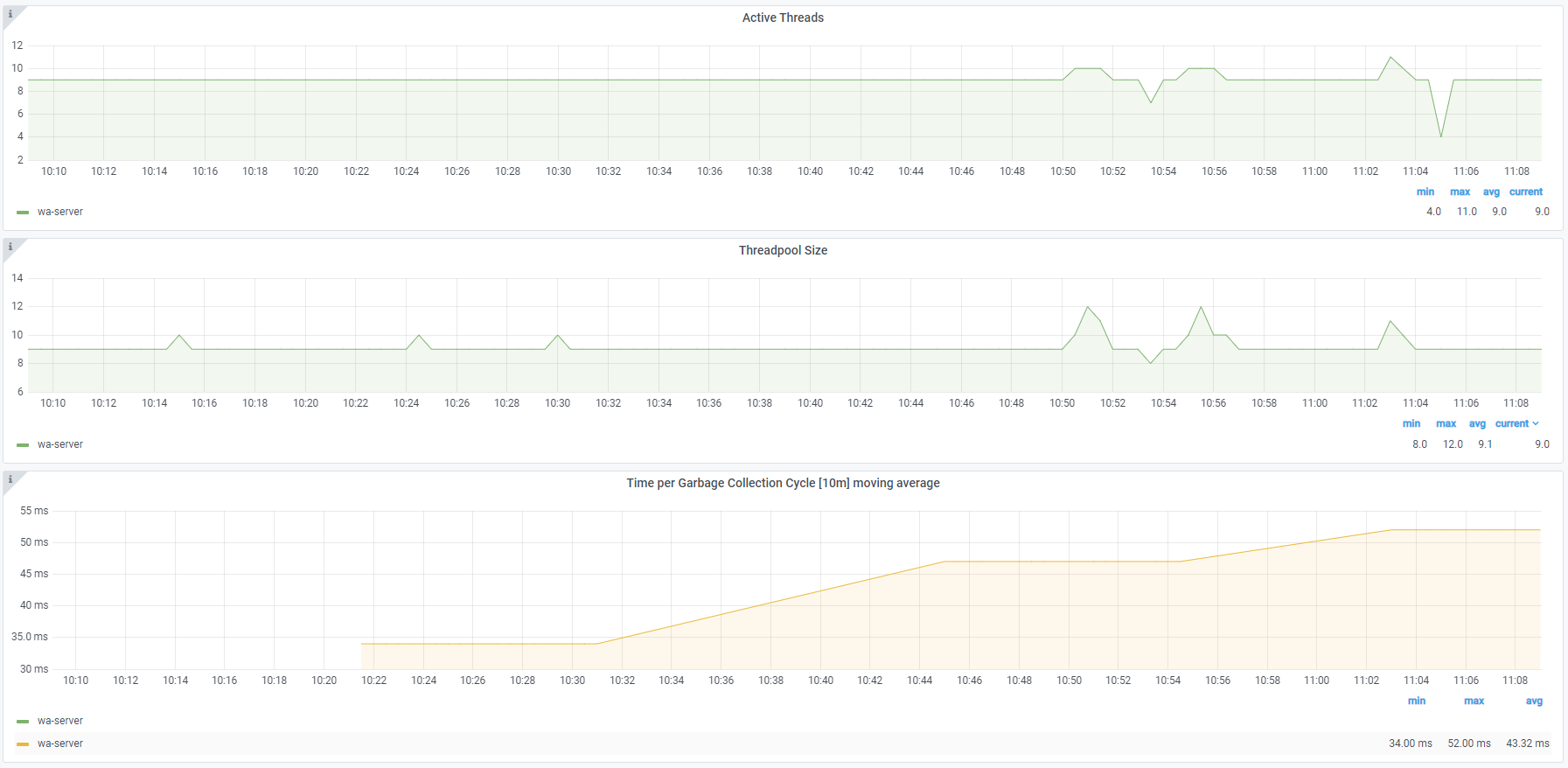

WA Server and Console - Liberty	Heap usage percentage, Active sessions, Live sessions, Active threads, Threadpool size and Time per garbage collection cycle moving average
WA Sever and Console - Connection Pools (Liberty)	Average time usage per connection over last, Managed connections, Free connection, Connection handles and Created and Destroyed connections

For more information see our Documentation

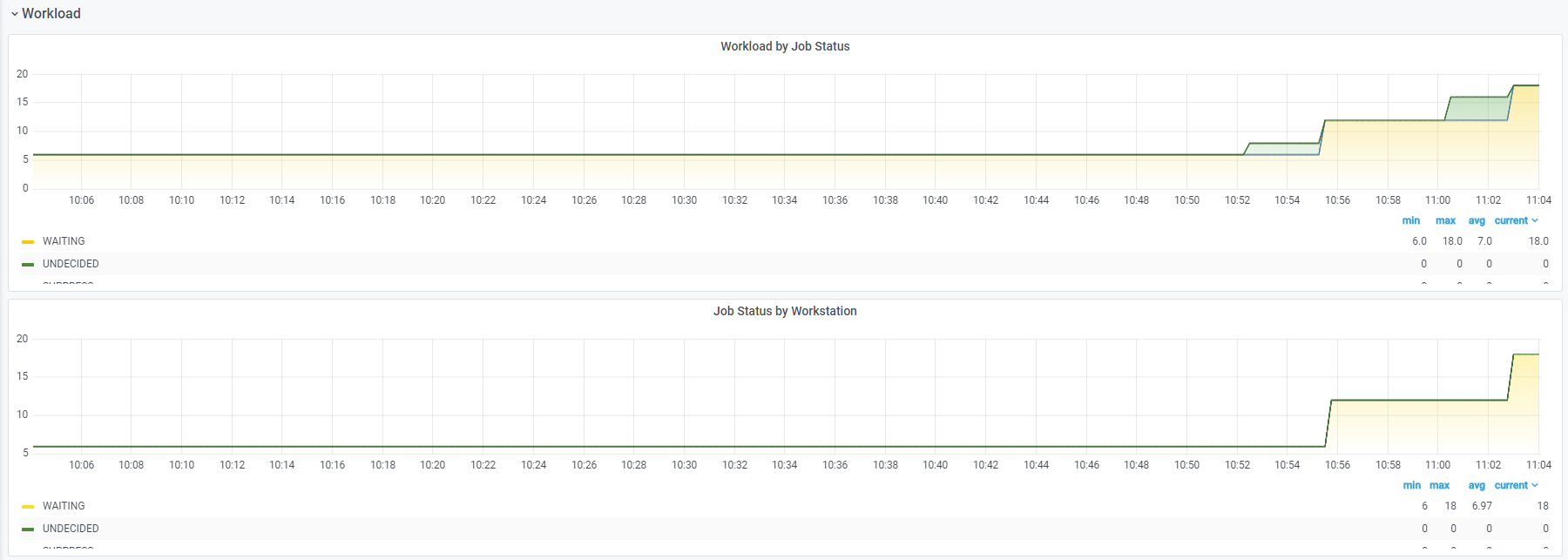

Workload

Internal Message Queues

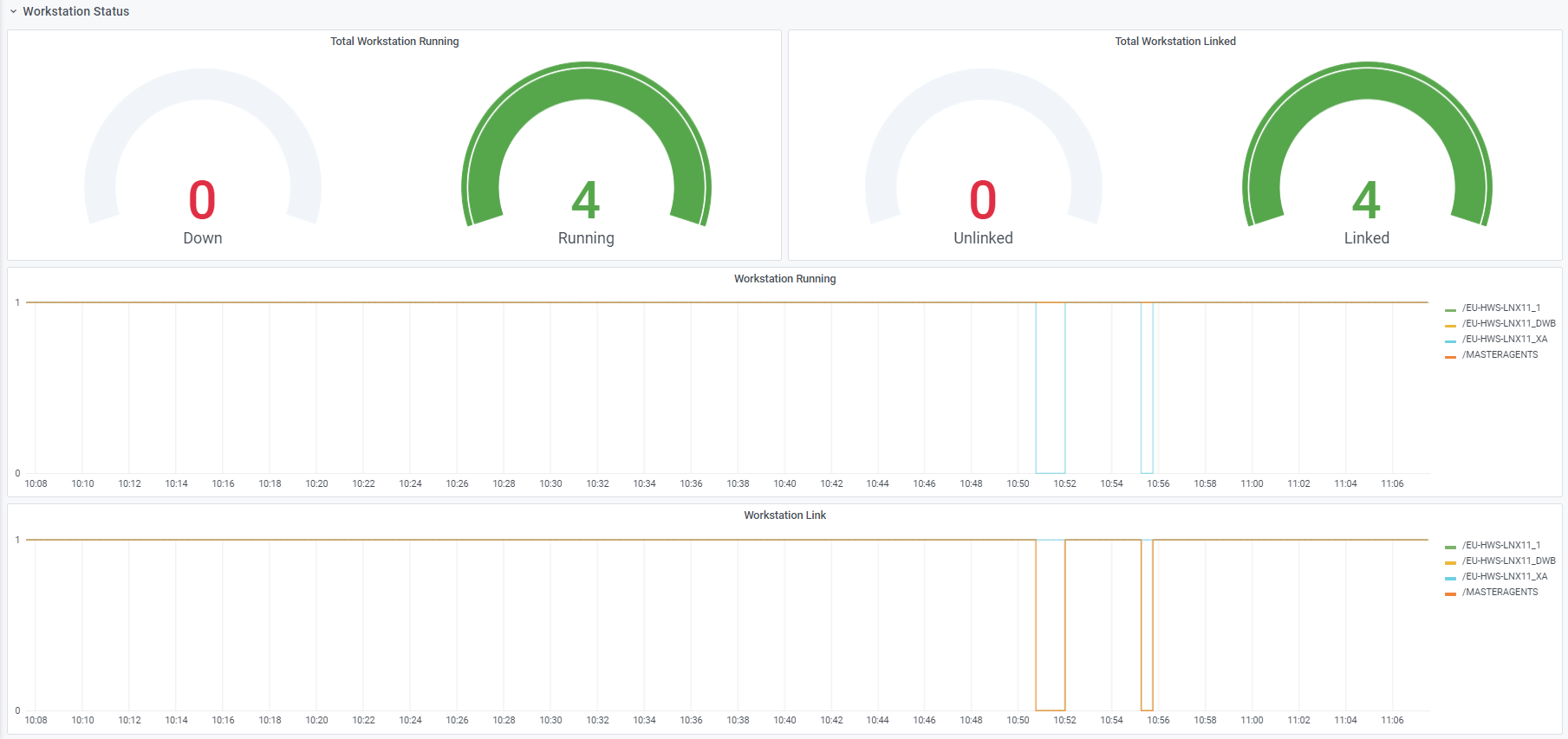

Workstation Status

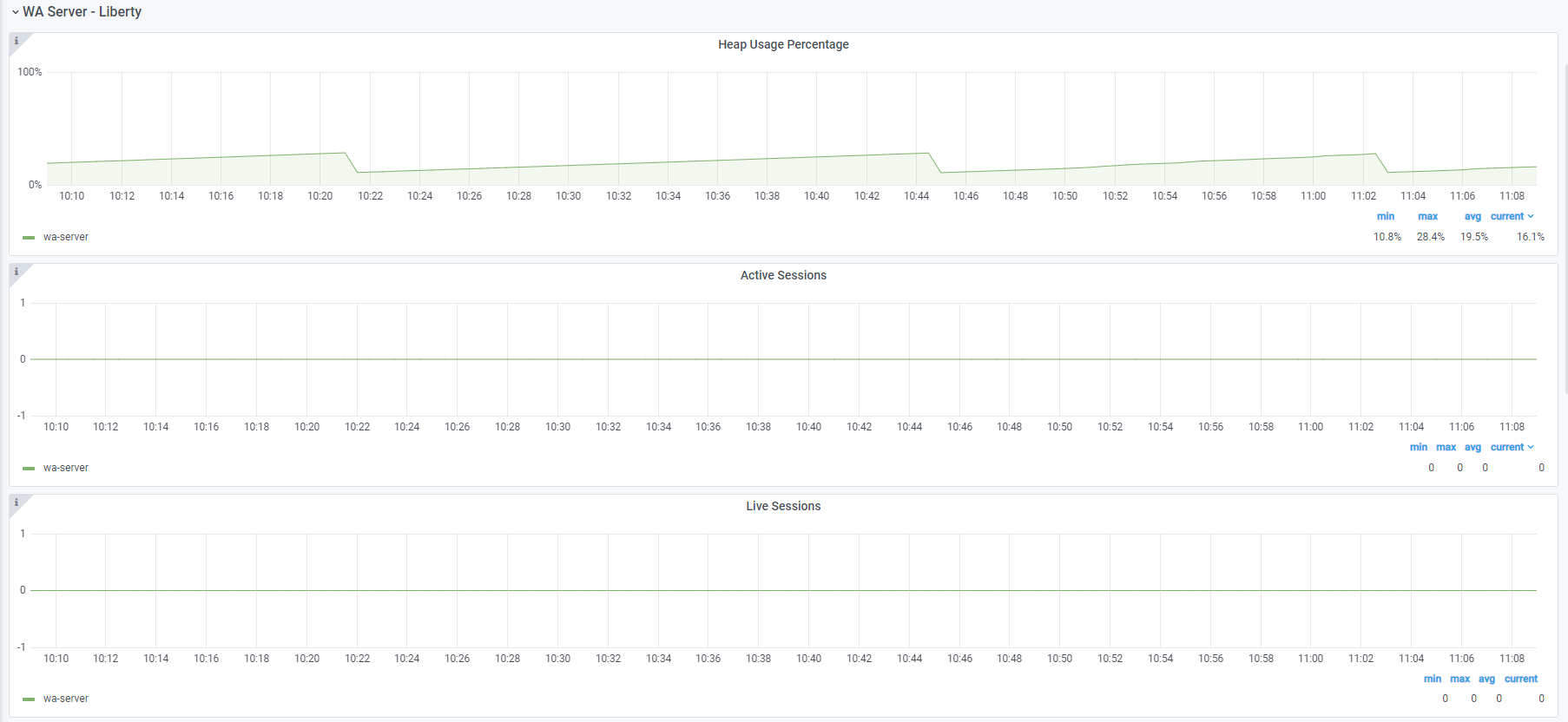

Liberty

Note: Version 9.5, Fix Pack 4 is required to enable the following monitoring features:

Critical Jobs metric
Workstation status metric
Database connection status metric
Job, Job stream, and Workstation Filters

Earlier versions of the product enable only a subset of the monitoring features available with Version 9.5, Fix Pack 4.

This Dashboard is licensed under Apache 2.0 license.
