AWS Cost Explorer for Grafana

Query AWS Cost Explorer directly from Grafana with a visual query builder and server-side caching—without building a CUR/Athena pipeline or manually signing API requests.

This independent open-source backend data-source plugin supports encrypted static credentials and AssumeRole with explicit source credentials. It queries GetCostAndUsage, follows AWS pagination, and returns native Grafana time-series or table data frames.

Highlights

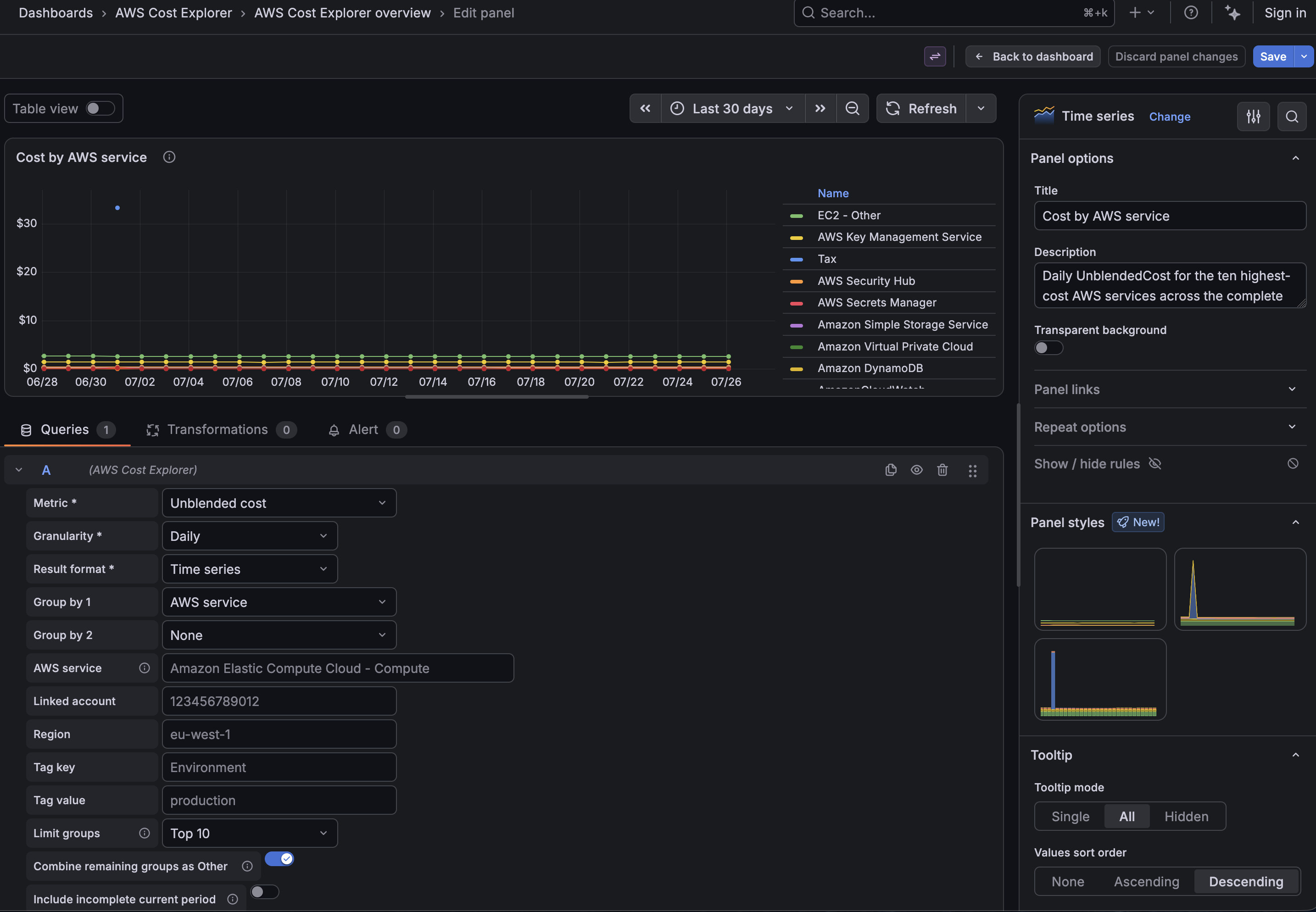

• visual metric, daily/monthly granularity, grouping, filtering, and format controls
• up to two Cost Explorer grouping dimensions
• AWS service, linked account, region, and cost allocation tag filters

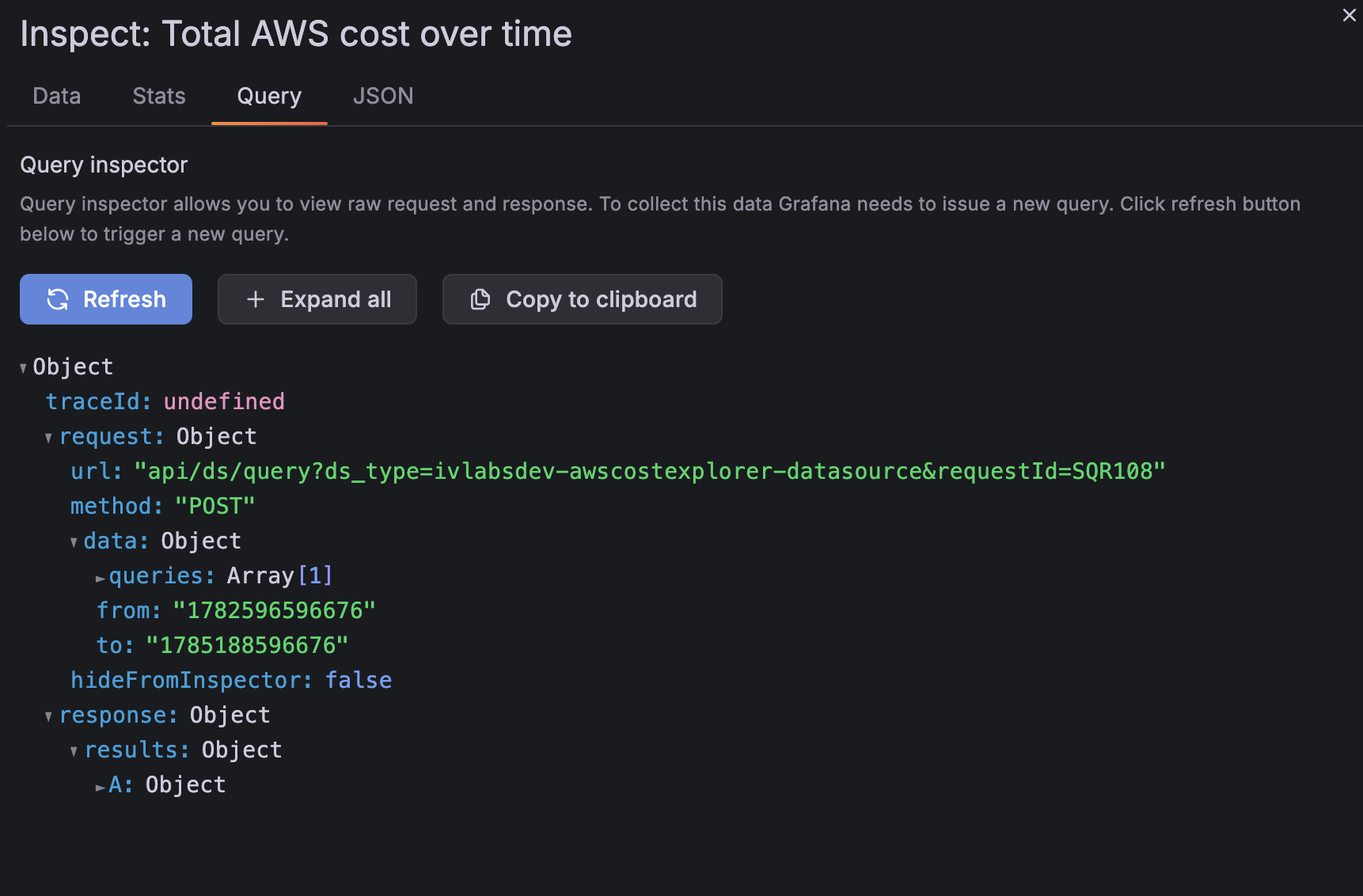

• bounded 15-minute TTL/LRU cache by default
• one AWS API call for identical concurrent cache misses
• no AWS secrets returned to the browser or logged
• least-privilege target policy: ce:GetCostAndUsage

Configuration

Static credentials accepts an access key ID, secret access key, and optional session token. Assume an IAM role requires explicit source credentials and accepts a target role ARN, optional external ID, and session name. All credential values are stored only in Grafana secure JSON data; the plugin does not use the AWS SDK ambient credential chain.

The final AWS identity needs:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": "ce:GetCostAndUsage",
      "Resource": "*"
    }
  ]
}

The plugin requires no AWS write access. AWS Cost Explorer requests can incur AWS charges, so successful responses are cached and identical in-flight requests are deduplicated.

Documentation

Full installation, IAM, development, security, caching, troubleshooting, limitations, and contribution documentation is available in the GitHub repository.

Project status

This is an MVP and has not yet had a signed Grafana catalog release. Screenshots are pending.

This project is not created, sponsored, or endorsed by Amazon Web Services or Grafana Labs. AWS and Amazon Web Services are trademarks of Amazon.com, Inc. or its affiliates. Grafana is a trademark of Grafana Labs.

Licensed under Apache License 2.0.
