GizmoSQL Data Source Plugin for Grafana

A Grafana data source plugin that connects to GizmoSQL via Apache Arrow Flight SQL.

Features

• Native Arrow Flight SQL connectivity for high-performance data transfer
• TLS/SSL support with optional certificate verification skip
• Username/password and token-based authentication
• SQL query editor with syntax highlighting
• Time series and table format support
• Grafana template variable support
• Time range macros ($__timeFrom, $__timeTo, $__timeFilter)
• Alerting and annotation support

Supported Data Types

Arrow Type	Grafana Type
INT8/16/32/64	number
UINT8/16/32/64	number
FLOAT32/64	number
DECIMAL128/256	number (float64)
STRING	string
BOOL	boolean
DATE32/64	time
TIMESTAMP	time

Requirements

• Grafana >= 10.0.0
• GizmoSQL server running with Flight SQL enabled

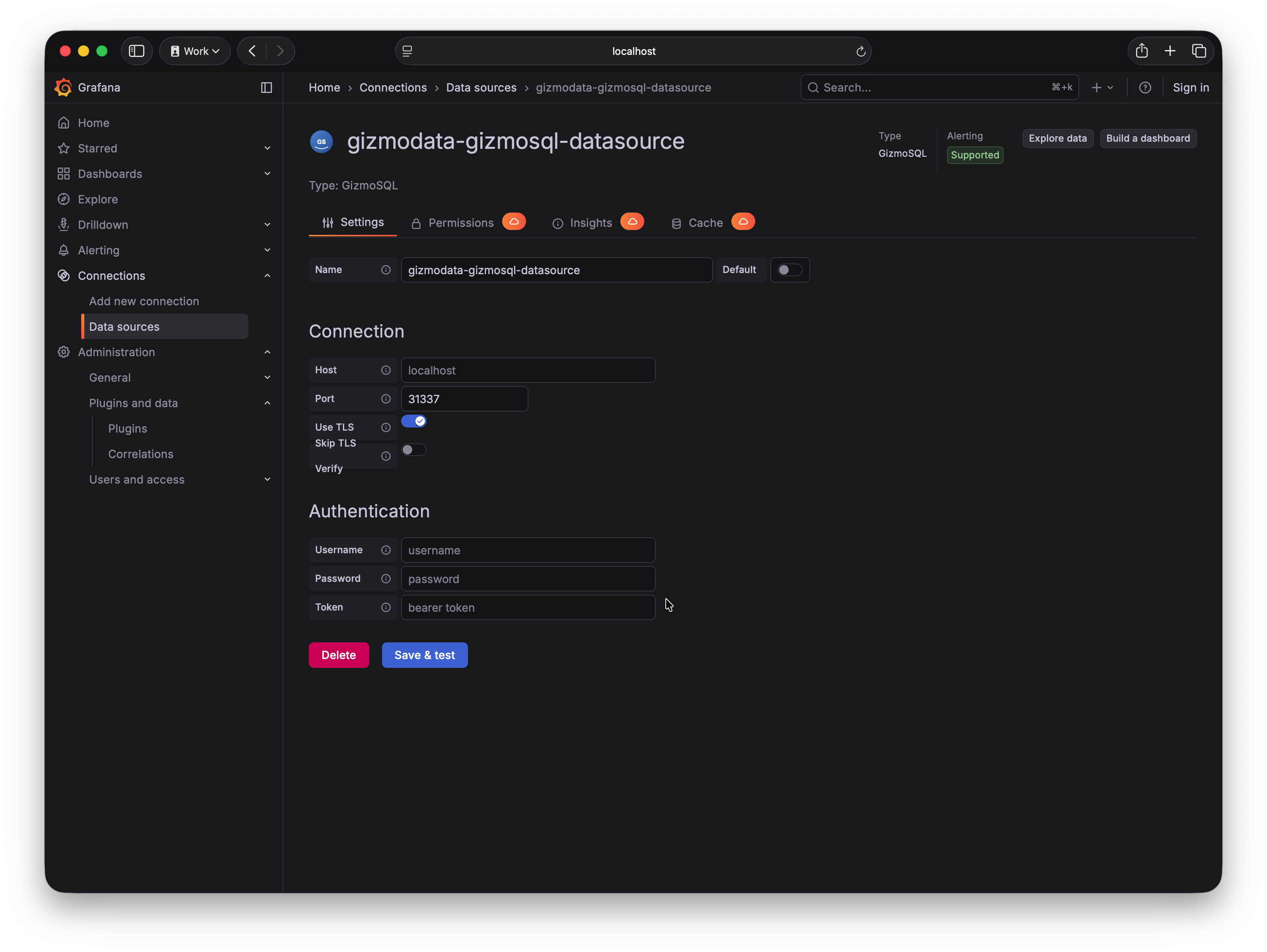

Configuration

1. In Grafana, go to Configuration > Data Sources
2. Click Add data source
3. Search for "GizmoSQL"
4. Configure the connection:

Setting	Description	Default
Connection URI	Full gizmosql:// URI (TLS by default, ?transport=tcp for plaintext); overrides Host/Port/Use TLS	-
Host	GizmoSQL server hostname	localhost
Port	Flight SQL port	31337
Use TLS	Enable TLS encryption	false
Skip TLS Verify	Skip certificate verification	false
Username	Authentication username	-
Password	Authentication password	-
Token	Bearer token (alternative to password)	-

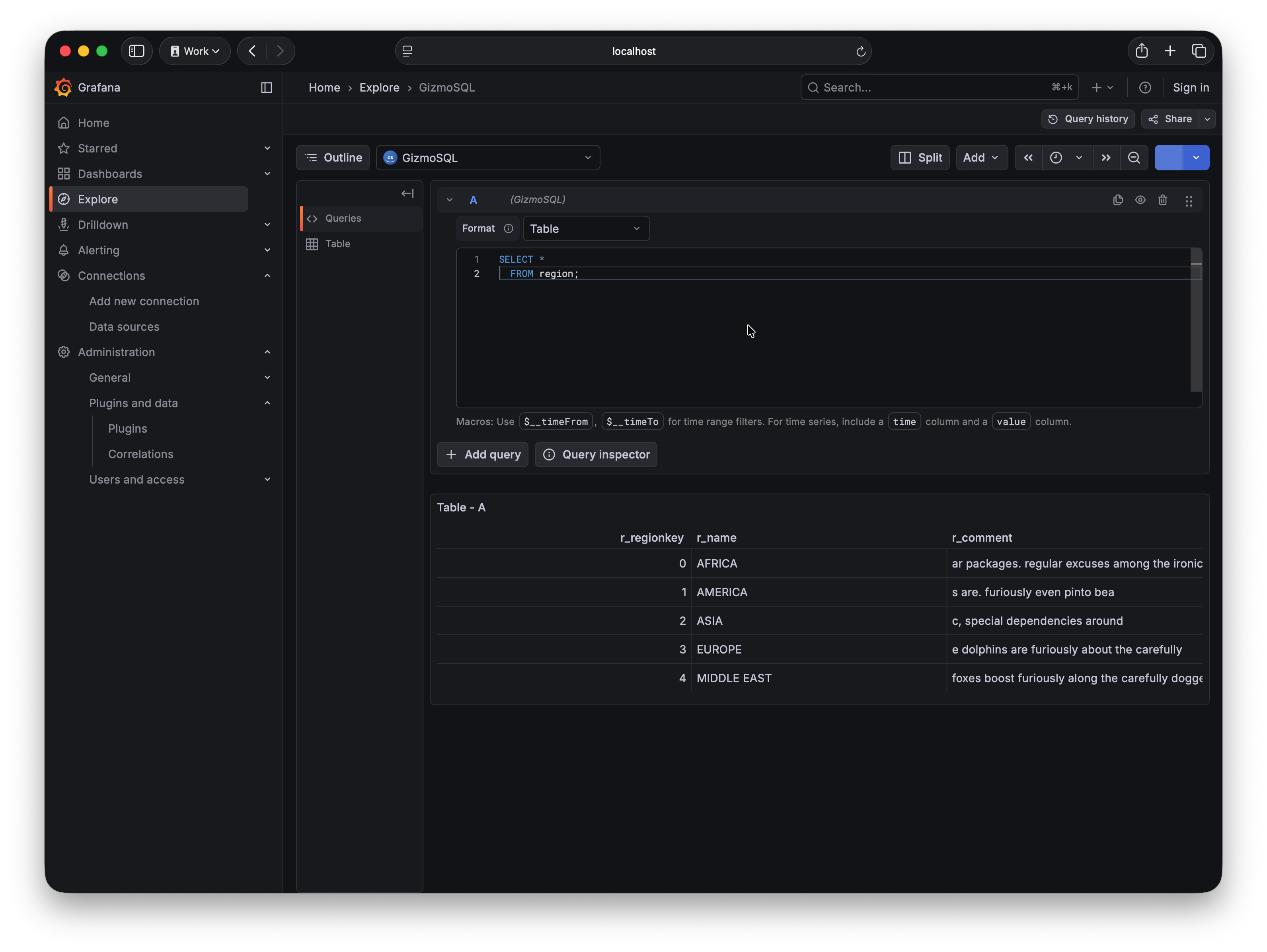

Usage

Basic Query

SELECT * FROM my_table LIMIT 100

Time Series Query

For time series visualizations, ensure your query returns:

• A time column named time, timestamp, ts, or datetime
• One or more value columns

SELECT
  order_date AS time,
  SUM(total_price) AS revenue
FROM orders
WHERE $__timeFilter
GROUP BY order_date
ORDER BY time

Macros

Macro	Description	Example Output
$__timeFrom	Start of time range	'2024-01-01T00:00:00Z'
$__timeTo	End of time range	'2024-01-02T00:00:00Z'
$__timeFilter	Time range filter	time >= '...' AND time <= '...'

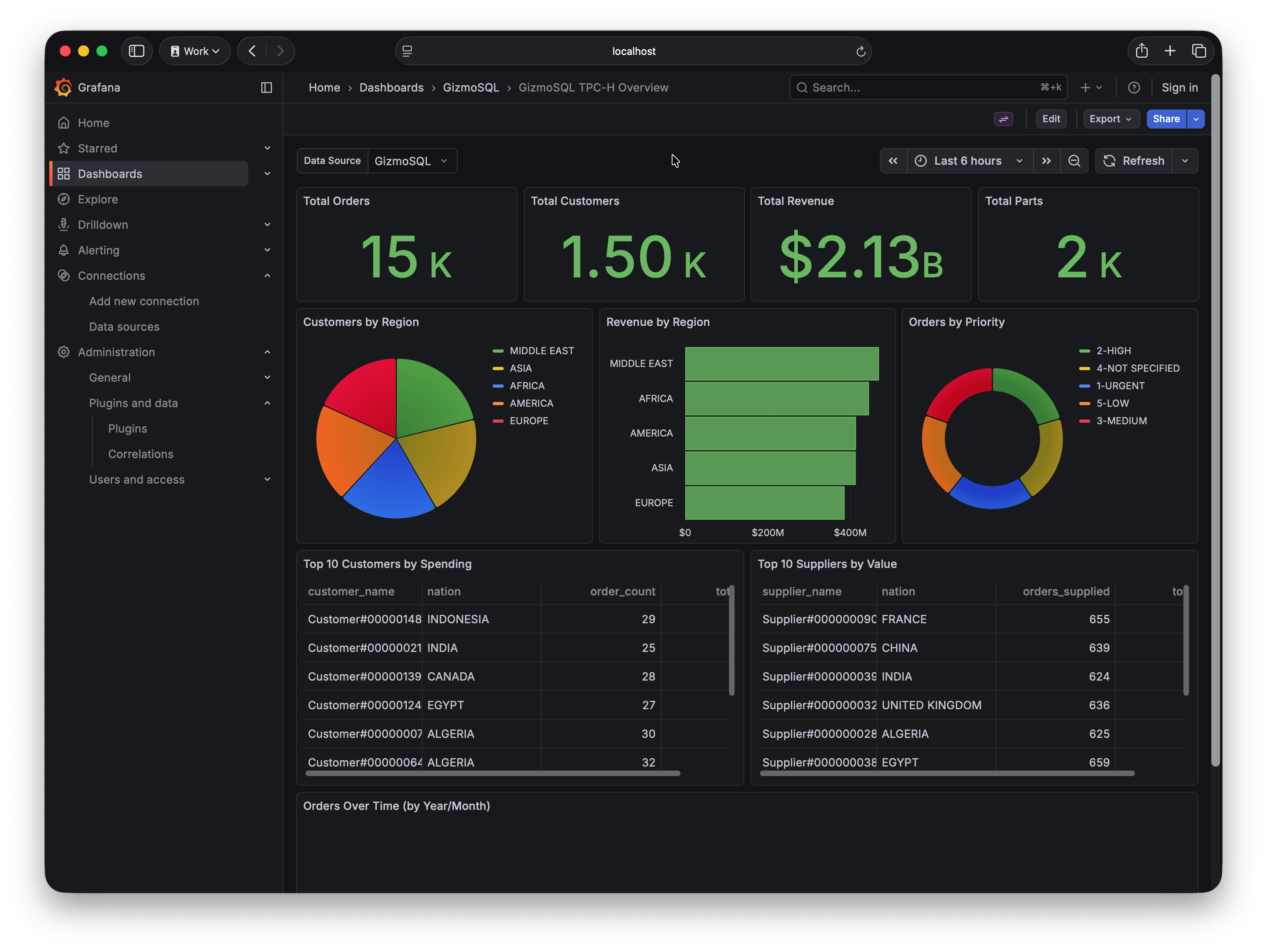

Sample Dashboards

The plugin includes sample dashboards demonstrating its capabilities with the TPC-H dataset, including revenue analytics, customer breakdowns, and data type examples.

License

Apache License 2.0
