Alpine Clock Panel

Alpine Clock Panel is a configurable analog clock plugin for Grafana with watch-inspired styling, timezone support, metric-driven complications, and rich visual customization.

Highlights

Configurable dial shapes, gradients, bezels, tick marks, numerals, and hand styles
Timezone-aware rendering with optional dashboard time synchronization
Stop-to-go second hand, animated bounce, and dynamic hand shadows
Date/day windows, rolling date strip, four subdials, and a global metric hand
Showcase dashboard with multiple design presets and TestData scenarios

Requirements

Grafana 12.3.0 or newer
Node.js version from the repository .nvmrc for local development

Getting started

Install dependencies with npm install.
Start development mode with npm run dev.
Start Grafana locally with npm run server.
Open http://localhost:3000 and add the Alpine Clock Panel to a dashboard.

Documentation

Repository and full setup guide: https://github.com/dzaczek/grafana-alpine-clock-panel
Full configuration reference: https://github.com/dzaczek/grafana-alpine-clock-panel/blob/main/docs/CONFIGURATION.md
Local showcase dashboard: provisioning/dashboards/showcase.json

Contributing

Issues and pull requests are welcome in the GitHub repository: https://github.com/dzaczek/grafana-alpine-clock-panel

Install on Grafana Cloud

Plugins can be installed directly from within your Grafana instance or automated using the Cloud API or Terraform.

Learn more about plugin installation

For more information, visit the docs on plugin installation.

Changelog

All notable changes to this project should be documented in this file.

The format follows Keep a Changelog and the project uses Semantic Versioning.

1.4.0 (2026-05-09)

Added

Chapter ring option — decorative inner ring between dial and bezel for station clocks

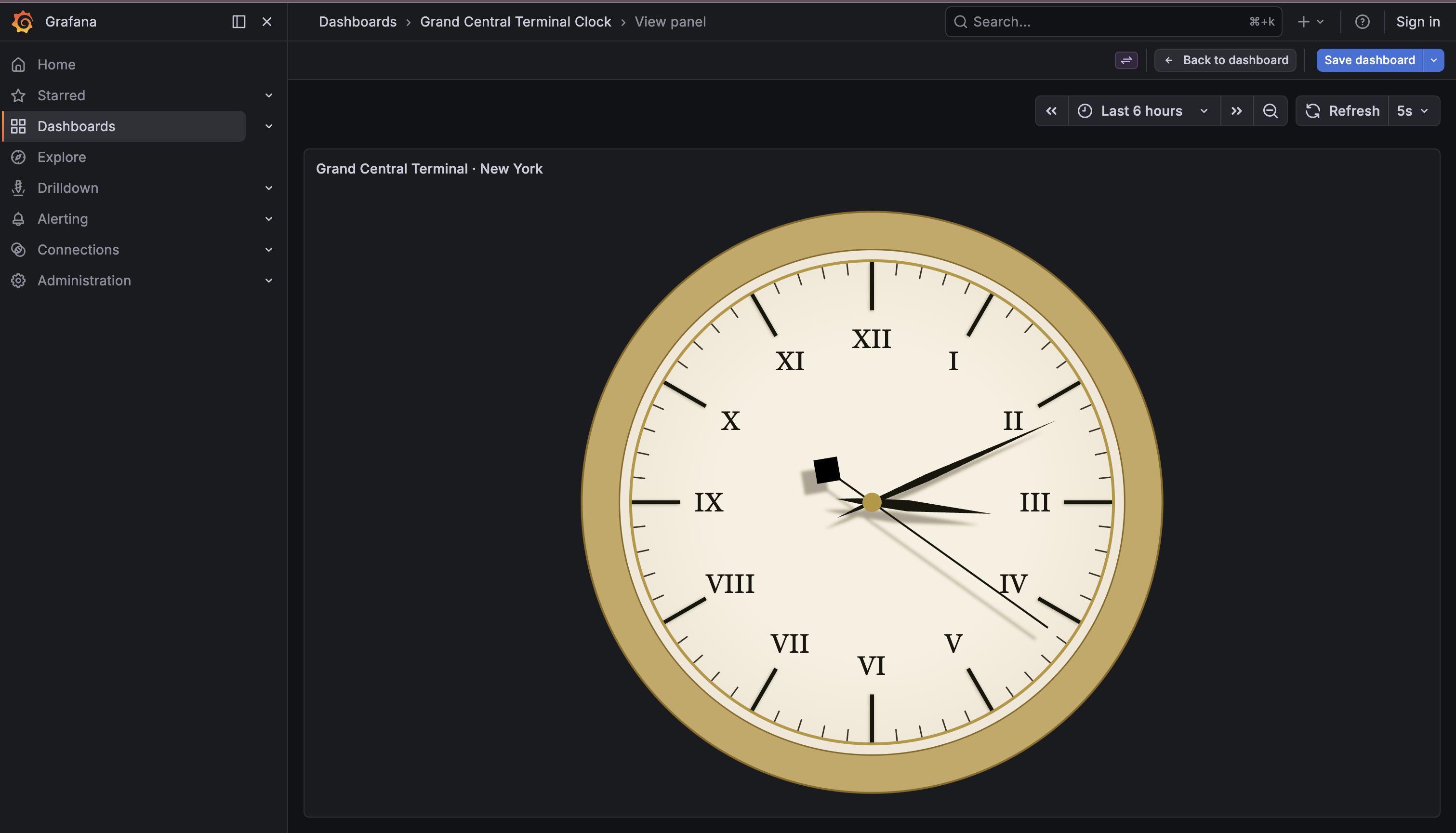

Grand Central Terminal dashboard (New York, cream dial, brass bezel, spade hands)

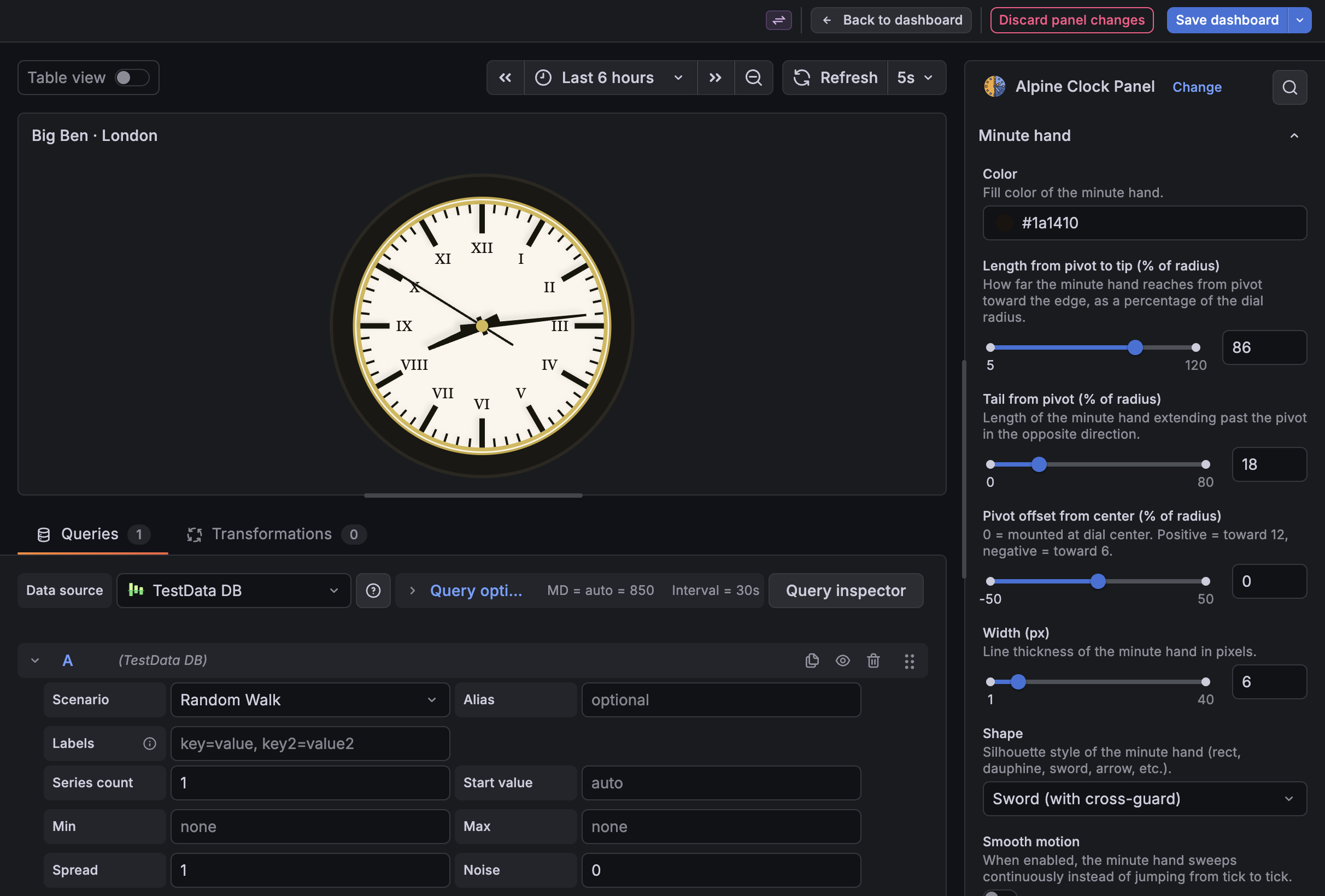

Big Ben dashboard (London, Victorian Gothic, iron bezel, opal glass, sword hands)
World Exchanges dashboard — 14 trading floor clocks across global timezones
108-clock categorized showcase across 9 themes (Retro, Modern, Cyberpunk, Fantasy, Rich, Metrics, Sport, Rails, Airplane)
5 thematic dashboards: Racing Chronograph, Diver's Bezel, Flieger Type A, Bauhaus, Grand Complication
gmShowHand toggle for independent control of global metric hand visibility
gmSmoothDuration slider (0.1–60s) controlling GM hand animation speed
Smooth animation for subdial analog hands (exponential decay, 0.3s time constant)

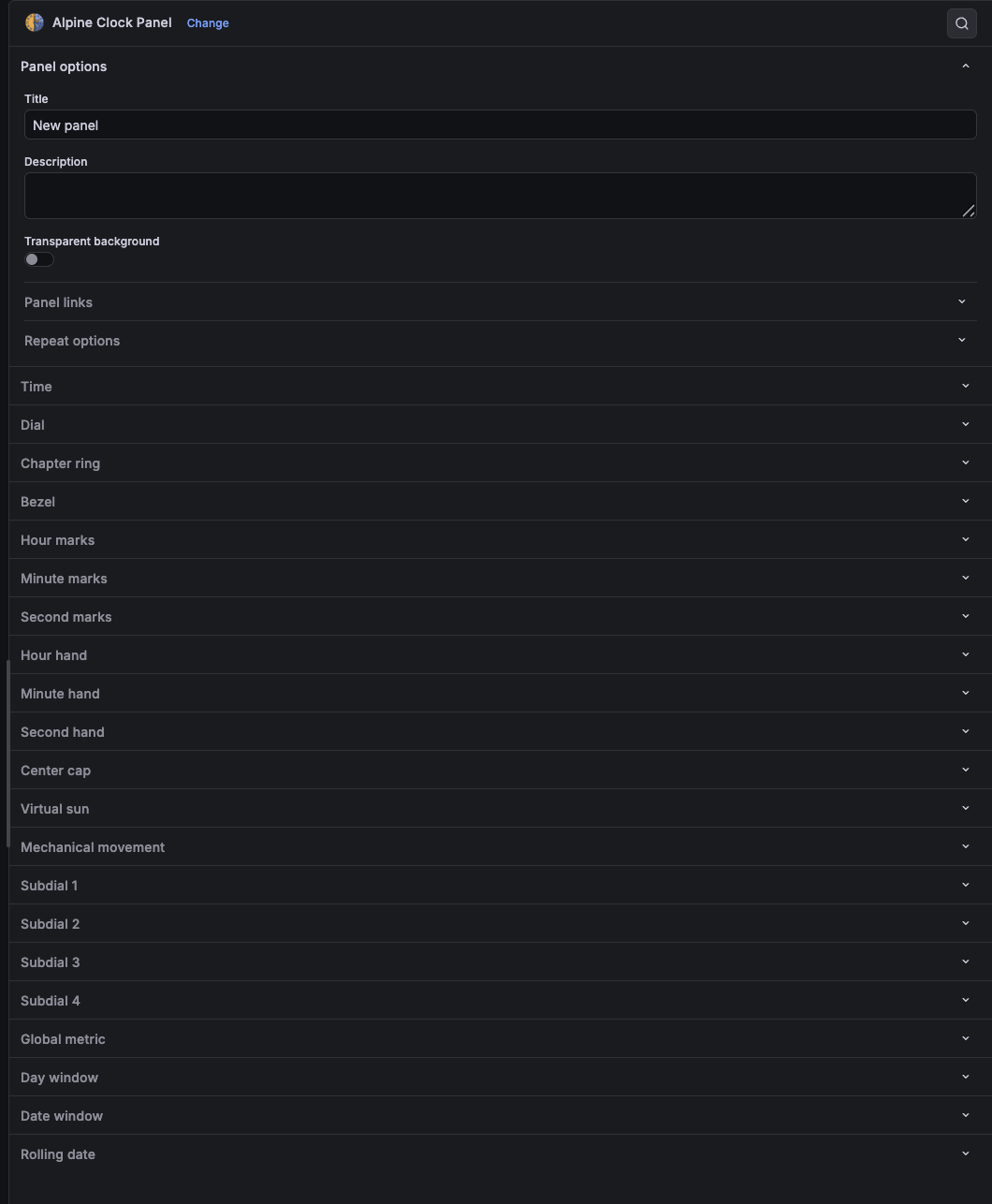

Descriptions for all 274 panel options in the Grafana config UI

Changed

Global Metric category split into 4 subcategories: main, Indicator, Readout, Gauge
Mechanical Movement moved after Virtual Sun (advanced visuals group)
Category names: "Hour/Minute/Second indices" → "Hour/Minute/Second marks"
Second hand counterweight position default changed from 65 to -23
SVG radial gradient r increased from 70% to 85% (Chrome rendering fix)
All dashboard JSONs cleaned of forced counterweight/bounce overrides (534 removed)

Fixed

smoothSecondHand dead control removed (second hand is always smooth)
Element collisions resolved on Full-Featured Metrics Clock and all themed dashboards
GM hand animation — was ignoring gmSmooth, now uses exponential decay
Subdial hands — were jumping, now animate smoothly
Sun indicator disabled on Large Clock with Shadow dashboard

Removed

Unused HandOptions interface from types

1.3.0 (2026-05-07)

Added

Smooth animation for global metric hand (exponential decay interpolation)
gmSmoothDuration option controlling GM hand transition time
Smooth animation for subdial analog hands

Fixed

gmSmooth was registered in UI but ignored by the renderer
Duplicate animation loop performance issue

1.2.0 (2026-04-29)

Added

Extended publishing-ready README and a full configuration reference in docs/CONFIGURATION.md
Catalog-oriented plugin metadata links and a stronger marketplace description
Release and SemVer guidance aligned with Grafana packaging workflows
