Wazuh Datasource for Grafana

Connect Grafana to your Wazuh deployment so security data appears in dashboards and Explore — without manual OpenSearch configuration.

Query alerts, vulnerabilities, file integrity monitoring (FIM), SCA compliance, and agent status from Wazuh's manager API and indexer.

Requirements

• Grafana 10.4 or newer
• Wazuh 4.7 or newer with the manager API and indexer reachable from Grafana

Getting started

1. Install the plugin

In Grafana, go to Administration → Plugins, search for Wazuh, and click Install.

2. Add a datasource

1. Go to Connections → Data sources → Add data source.
2. Select Wazuh.

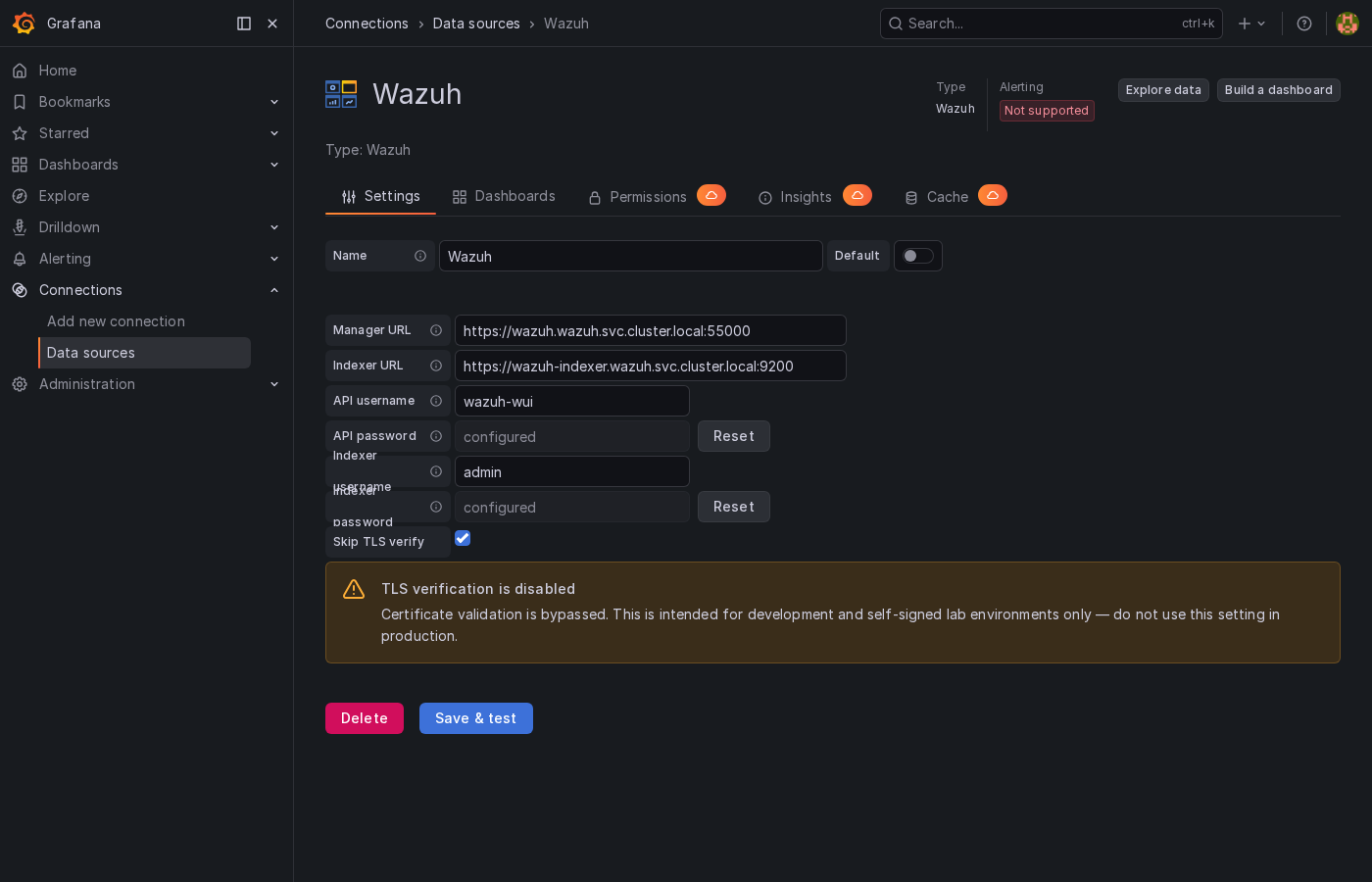

3. Configure:
   • Manager URL — Wazuh manager API base URL (e.g. https://wazuh.example.com:55000)
   • Indexer URL — Wazuh indexer (OpenSearch) URL (e.g. https://wazuh-indexer.example.com:9200)
   • Username / Password — credentials for the manager API
   • Indexer username / Indexer password — optional; defaults to manager credentials
   • Skip TLS verify — enable only for lab environments with self-signed certificates
4. Click Save & test. A successful connection confirms both the manager API and indexer are reachable.

3. Explore your data

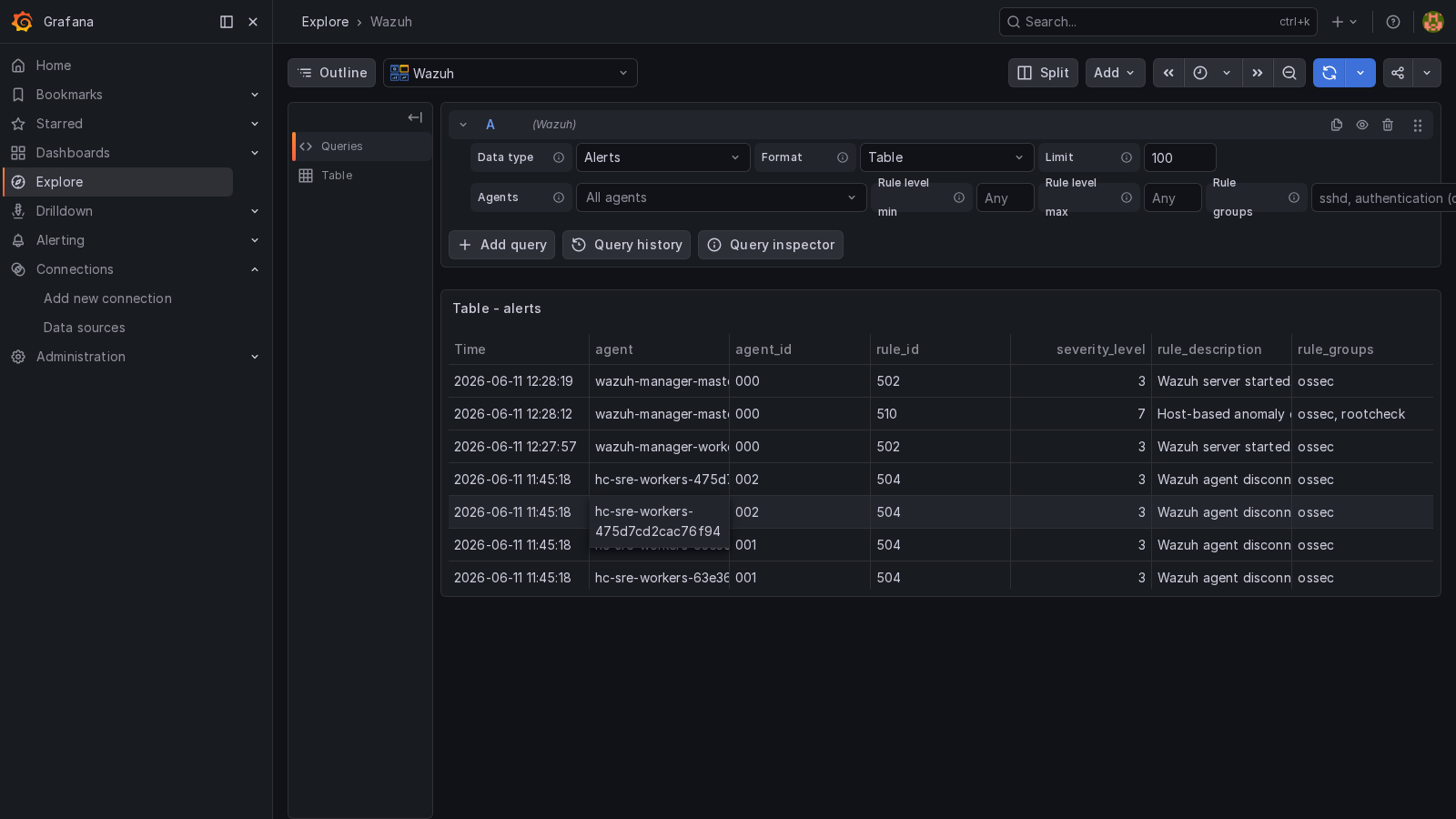

Open Explore, select the Wazuh datasource, choose a data type (alerts, vulnerabilities, FIM, SCA, or agent status), and run a query.

Bundled dashboards

The plugin includes ready-made dashboards:

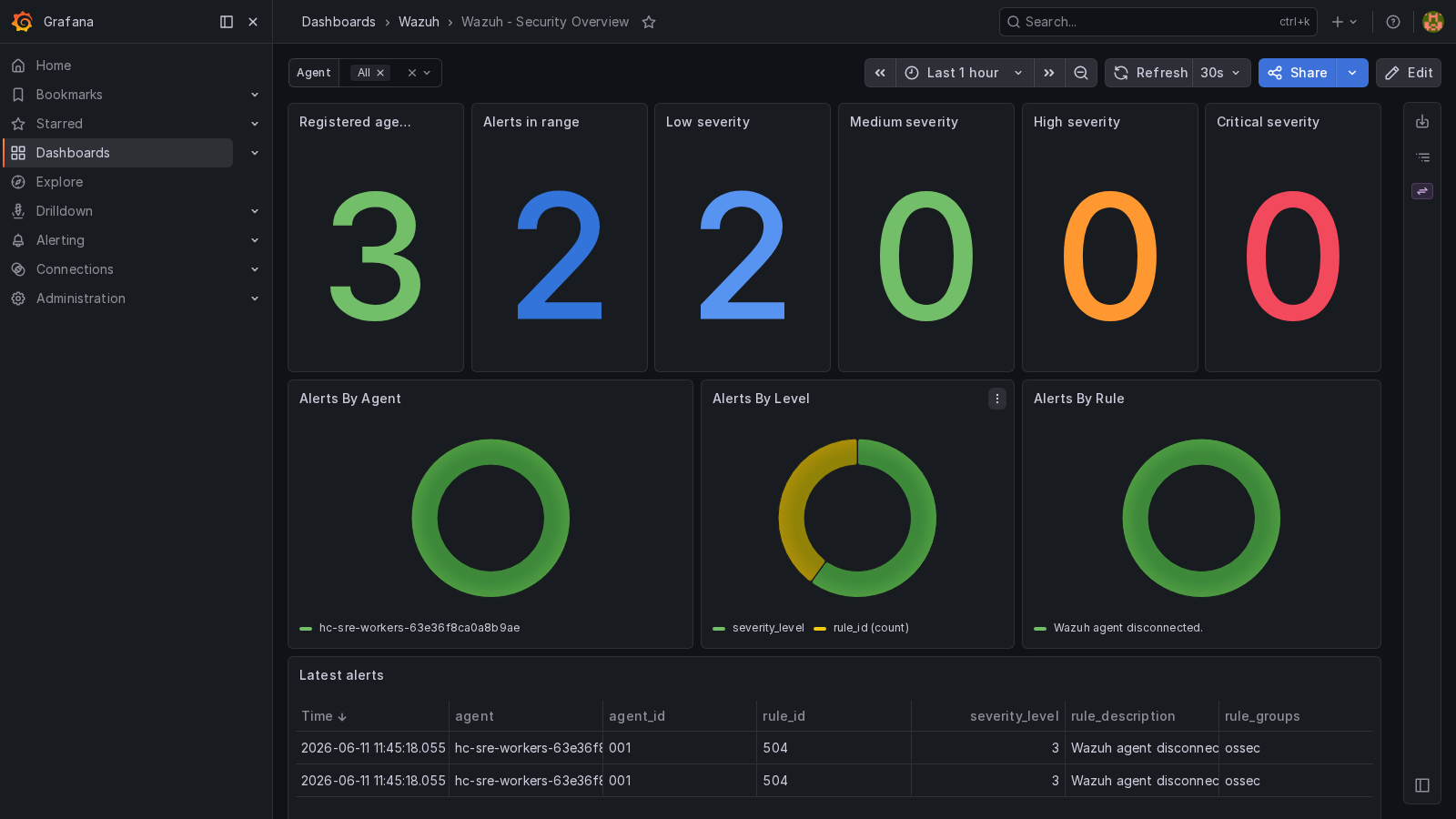

• Security Overview
• Vulnerabilities
• FIM
• SCA
• Agent Status

Find them under the Wazuh folder after installation. If you provision dashboards via YAML, set the datasource uid: wazuh.

Further reading

• Installation and configuration
• RBAC permissions
• Kubernetes deployment
• Source repository

License

Apache 2.0
