Building an end-to-end reliability testing strategy with Grafana Cloud
Modern applications can fail in many different ways, from performance regressions and frontend errors to systems that break under heavy load. Because no single testing or monitoring approach can catch every type of failure, effective reliability testing requires multiple layers that validate your application before, during, and after their release.
In this post, we'll look at how three solutions in Grafana Cloud—Synthetic Monitoring, Frontend Observability, and k6—work together to form a comprehensive reliability testing strategy. While no single tool tells the whole story, layered together they close gaps and prevent failures from slipping through undetected.
To show how you can use these three solutions together, we'll walk through an example using QuickPizza, a simple demo web application that generates pizza combinations.
The Swiss Cheese Model: why one tool isn’t enough for reliability testing

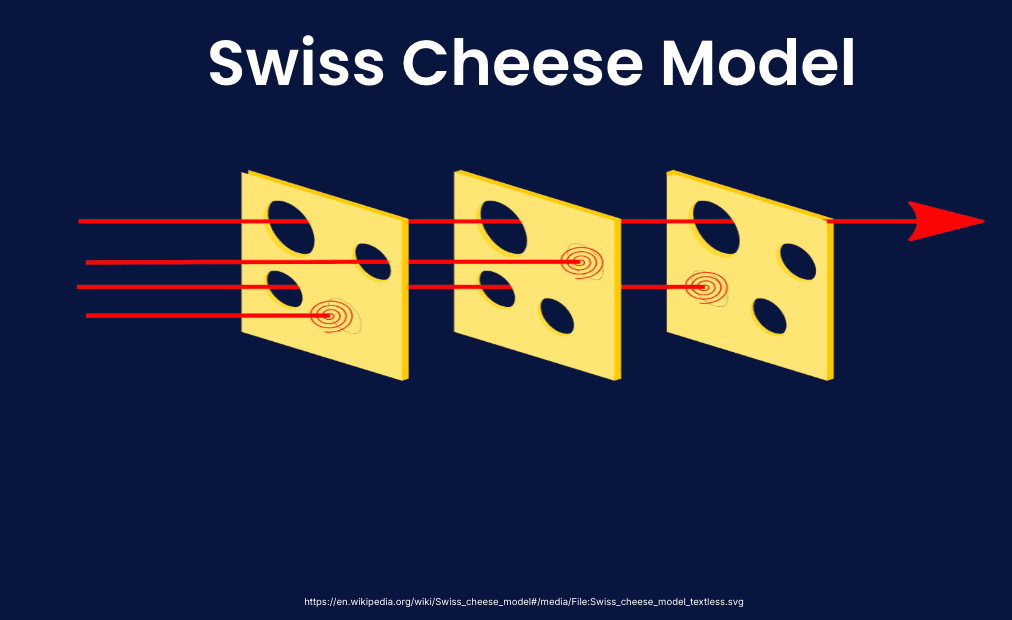

There's a well-known framework in risk management called the Swiss Cheese Model. It was originally developed to explain how to prevent and reduce accidents that happen in complex systems like aviation and healthcare, but it also maps directly to software reliability.
The core idea is simple: a layered strategy stacks multiple approaches one after another. As software passes through these layers, some issues are caught early, while the remaining issues are trapped in subsequent layers. By the time the software reaches the end user, the number of issues is significantly reduced.
The Swiss cheese imagery works because the holes in each slice represent the ways individual layers fail. But stack enough slices, and it becomes very unlikely that holes in every layer will line up perfectly to let a failure reach your users.Think about driving a car. You have a seatbelt, a speedometer, mirrors, lane assist, and airbags. No single feature prevents every accident, but together they dramatically reduce the risk of a catastrophic outcome. Reliability testing in software engineering works the same way.

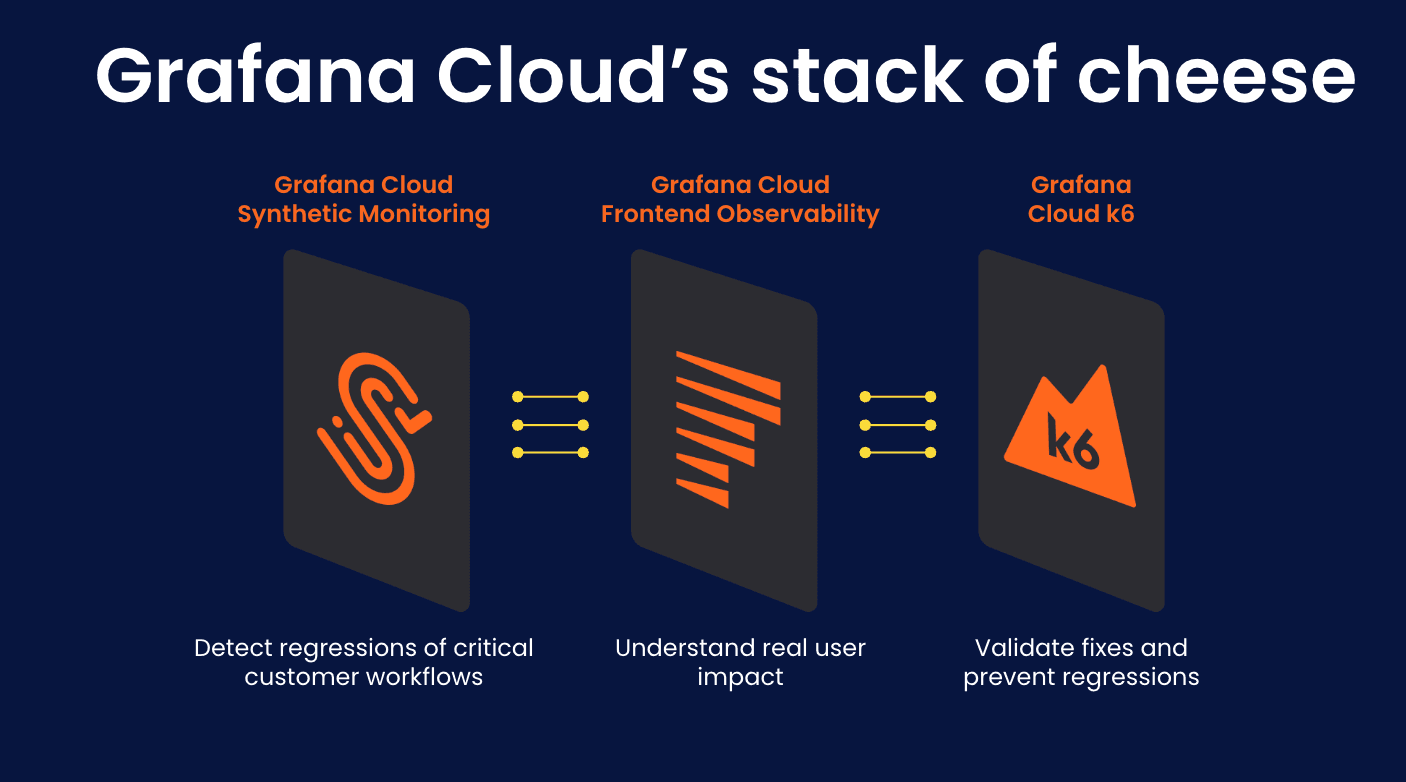

For software reliability specifically, we can apply this Swiss Cheese Model to three tools in the Grafana Cloud reliability testing stack. Each tool functions differently to catch what the others miss. And when stacked together, they reduce the amount of issues that impact end users.
Layer 1: Grafana Cloud Synthetic Monitoring to detect regressions
Let's start with the first layer, Grafana Cloud Synthetic Monitoring. Synthetic Monitoring is a black-box monitoring solution that proactively monitors the performance of your applications and services from public and private probes located around the world, on a continuous schedule. It's your first line of defense, validating that critical workflows are running as expected before real users hit them.
With Synthetic Monitoring in Grafana Cloud, you can run a wide variety of checks including:
- HTTP checks to verify that endpoints return the right status codes and response times
- Browser checks to simulate multi-step user flows like login, checkout, or form submission
- DNS checks to confirm that domain resolution is working correctly
- TCP checks to validate that your services are reachable at the network level
- Ping checks for basic uptime confirmation
One of Synthetic Monitoring's most useful features is its global probe network, which lets you run checks from public and private probes around the world to see how users in different regions experience your service. A slowdown in a specific data center will show up in regional probe results before your users notice. And because Synthetic Monitoring runs on a schedule regardless of real user traffic, it's particularly valuable for catching regressions in critical workflows. If a new deployment quietly breaks a feature at 2 AM, Synthetic Monitoring will catch it and alert you.

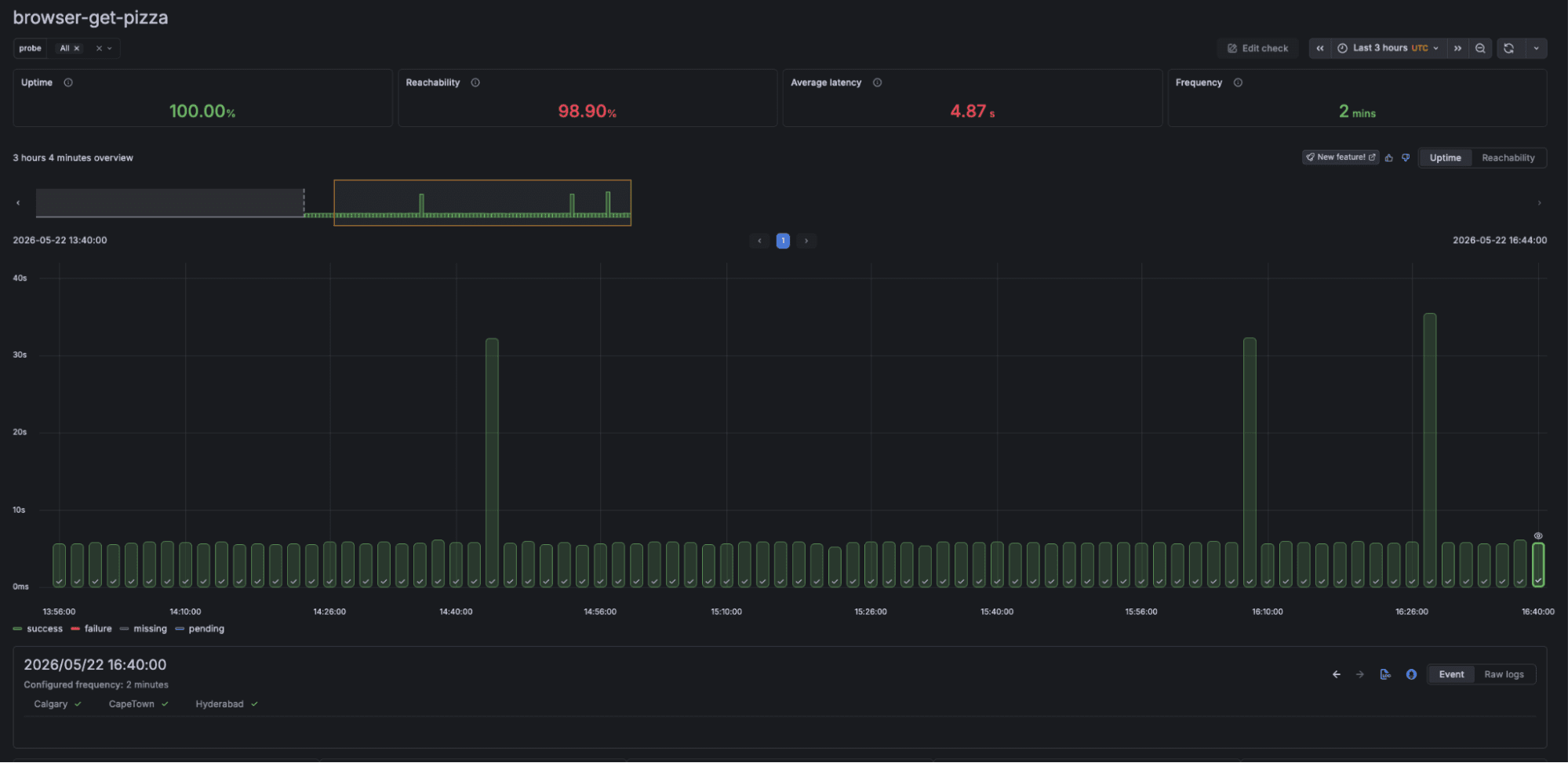

To see this in practice, let's look at our demo app, QuickPizza. We set up several synthetic monitoring checks to proactively monitor different user flows. One of the checks we create is a browser check for the get pizza feature, which gives users a pizza recommendation.
This browser check runs every 2 minutes, giving us global visibility into how users in Calgary, Cape Town, and Hyderabad are experiencing the feature across different regions. We are alerted that even though uptime is at 100% and reachability at 98%, the average latency is 4.87 seconds, which is slower than expected. This is exactly the kind of issue the first layer of synthetic monitoring is designed to surface. Before these issues start to affect users at scale, we can investigate and resolve why our latency is slower than expected.
Layer 2: Grafana Cloud Frontend Observability to understand real user impact
Synthetic Monitoring is great for proactively catching issues before they reach users, but it has limits. It can only test what you've written checks for, and it can't tell you how real users are actually experiencing your service. This is where the second layer comes in.
Grafana Cloud Frontend Observability provides real-time, actionable insights into how users experience your applications. It lets you correlate frontend health with backend data in a single place, so you can identify and resolve issues faster.
Once your service is instrumented with the Grafana Faro SDK, an open source JavaScript instrumentation library, your app sends real user data to Grafana Cloud where pre-built dashboards surface the metrics your team actually needs, including:
- Core Web Vitals, which measure loading performance, interactivity, and visual stability from the real user's perspective
- Errors Overview to help you identify, prioritize, and troubleshoot errors in your frontend application
- Session tracking to inspect the complete user journey from entry to exit

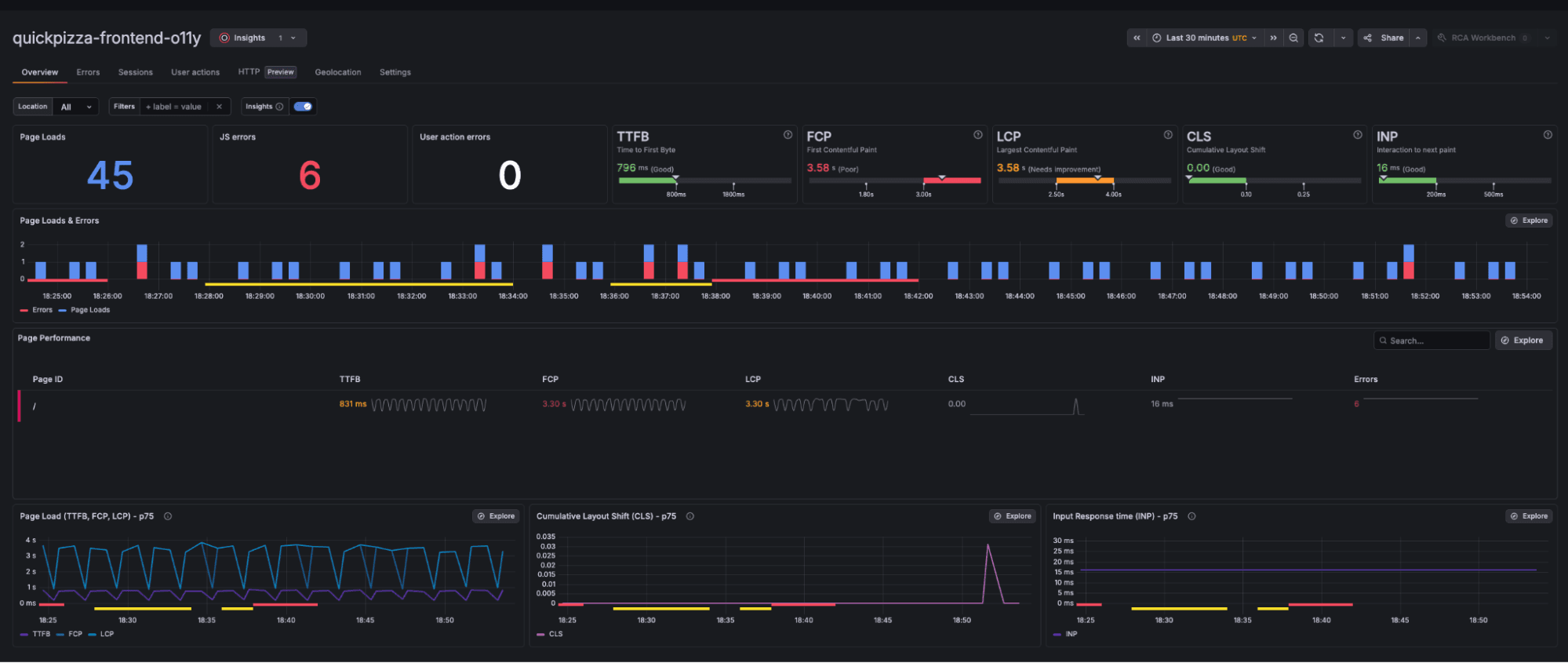

To see this in practice, let's look at our QuickPizza Frontend Observability dashboard. Two things stand out immediately. First, First Contentful Paint (FCP) is sitting at 3.58 seconds, which is poor. FCP measures how long it takes the browser to render the first piece of content, whether that's text, an image, or an SVG element, from the DOM. It's one of the clearest signals of how quickly a page responds after a user navigates to it. At 3.58 seconds, users are staring at a blank screen longer than they should be.
Second, there are six JavaScript errors surfacing a message that reads: "Pizza Error: Pineapple detected! This is a violation of ancient pizza law. Proceed at your own risk!" These errors weren't caught by our synthetic checks, because synthetic checks only validate what you've scripted. Real user data surfaces the unexpected and the errors that happen in actual sessions under real conditions. That's exactly what Frontend Observability is designed to catch.
Layer 3: Grafana Cloud k6 to validate performance under load
Let's move to the final layer, Grafana Cloud k6. Synthetic Monitoring validates that critical workflows are running as expected across global environments, and Frontend Observability shows you how real users are experiencing your app in production. Grafana Cloud k6 is the layer that lets you get ahead of problems and validate performance before you ship, giving you confidence before high-traffic events hit production.
k6 is a developer-first performance testing tool that lets you write load tests in JavaScript. You can model realistic traffic patterns, simulate hundreds or thousands of concurrent users, and assert on performance thresholds, all in a script you can commit to your repo and run in CI. With k6 you can run a wide variety of tests including smoke, stress, and spike tests to understand how your system behaves under different conditions.
k6 also plays a critical role before and after an incident. Once you've identified and fixed a performance problem using signals from Synthetic Monitoring and Frontend Observability, k6 is how you verify the fix actually holds under load, not just under normal conditions. It closes the loop and prevents regressions from shipping.
To see this in practice, the QuickPizza repository includes a variety of k6 tests. Looking at the browser test, it simulates a real user visiting the app, confirming the page loads, clicking the main button, and verifying that a recommendation comes back. The two check calls are the pass/fail assertions: did the right page load, and did the feature work? This is the same flow Synthetic Monitoring validates, but now tested under high load to see how it performs when users are going through that workflow simultaneously. Running this before a release gives you confidence that the feature holds up in high load situations, and running it after a fix confirms any regressions are resolved.
Wrapping up
No single tool tells the whole story, but layering these three approaches together allows you to catch disparate issues, validate their real-world impact, and verify that your fixes actually hold up. In our QuickPizza example, we saw how each layer fills a critical gap: Synthetic Monitoring proactively flagged the latency regression in the get pizza flow, Frontend Observability surfaced the actual blast radius for users, and k6 confirmed the system remained stable under high-traffic conditions.
By stacking Synthetic Monitoring, Frontend Observability, and k6, you create a comprehensive testing strategy where failures must bypass multiple independent layers before reaching your audience. This is the Swiss Cheese Model applied directly to software reliability, and it’s how modern engineering teams ship with confidence.
