KVDB Sentinel Exporter is a tool for monitoring Redis Sentinel.

KVDB Sentinel Exporter

KVDB Sentinel Exporter is a Python and Flask-based tool for monitoring Redis Sentinel clusters, providing Prometheus metrics and a web interface.

中文文档

Preview

Features

Support for multiple Redis sentinel groups
Global and master-specific Redis password configuration
Prometheus metrics endpoint
User-friendly web interface for Redis node status
Multi-threaded parallel collection of Redis metrics
Support for both KVRocks and Redis engines

Screenshots

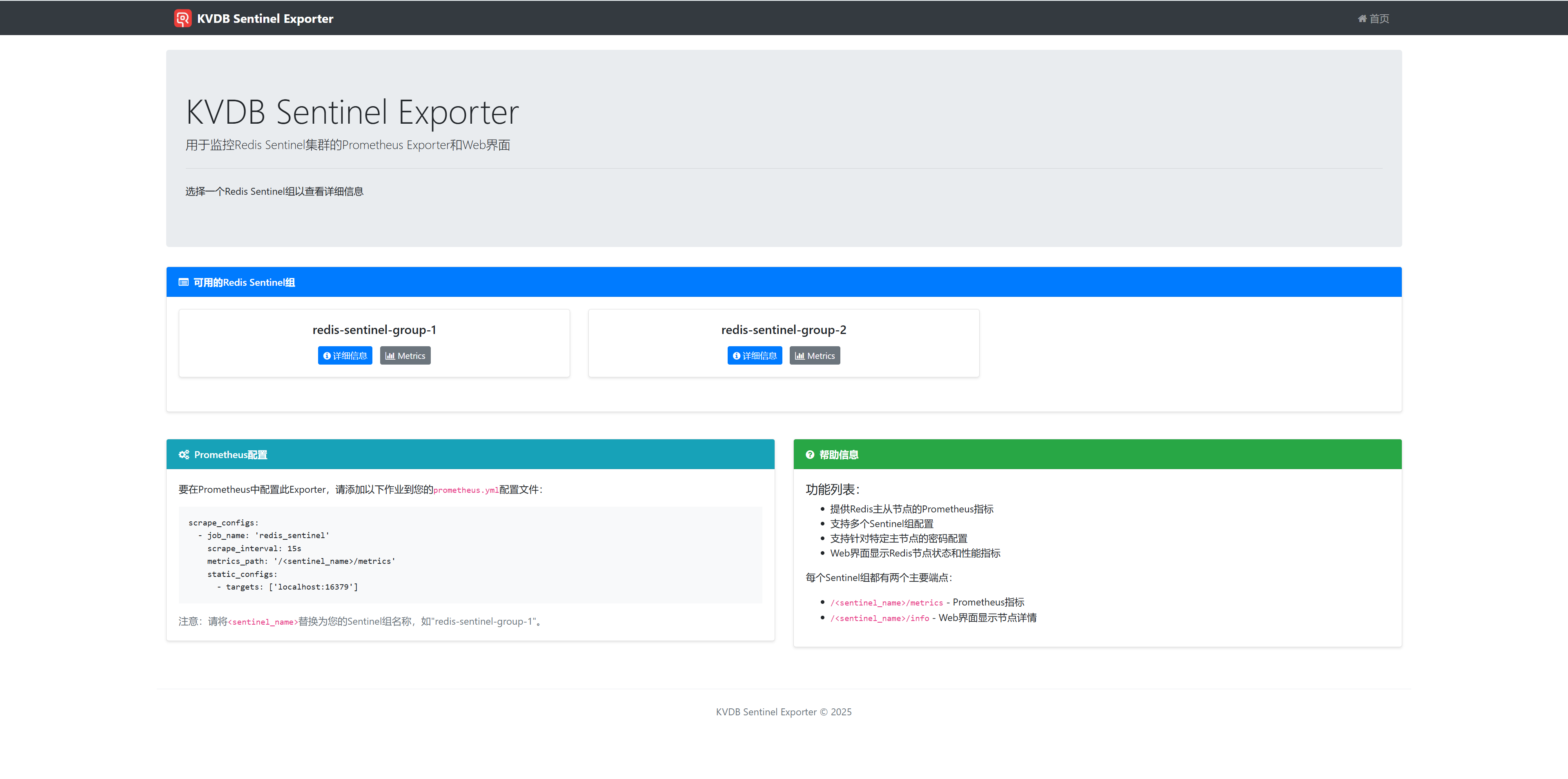

Index Page

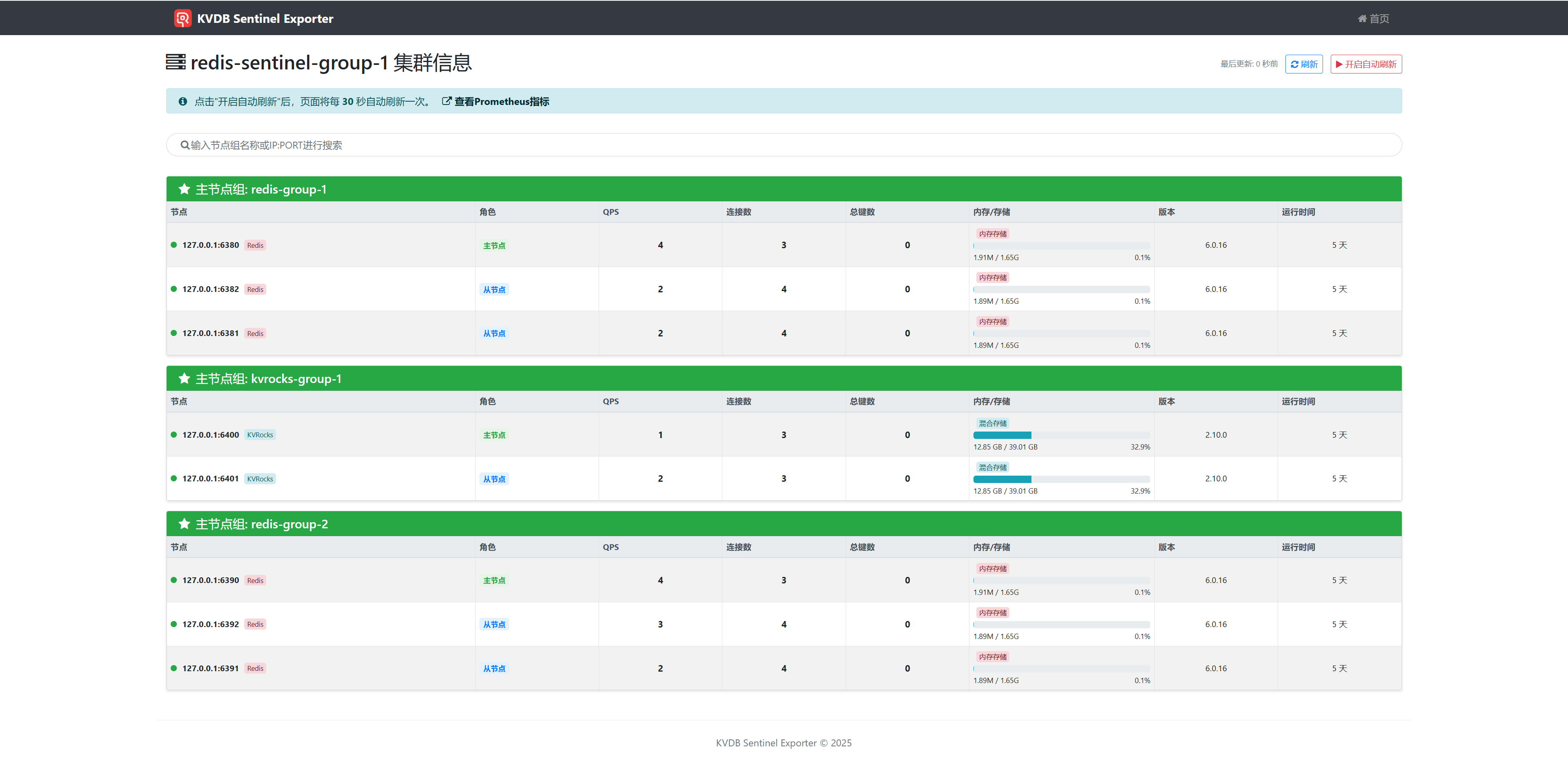

Info Page

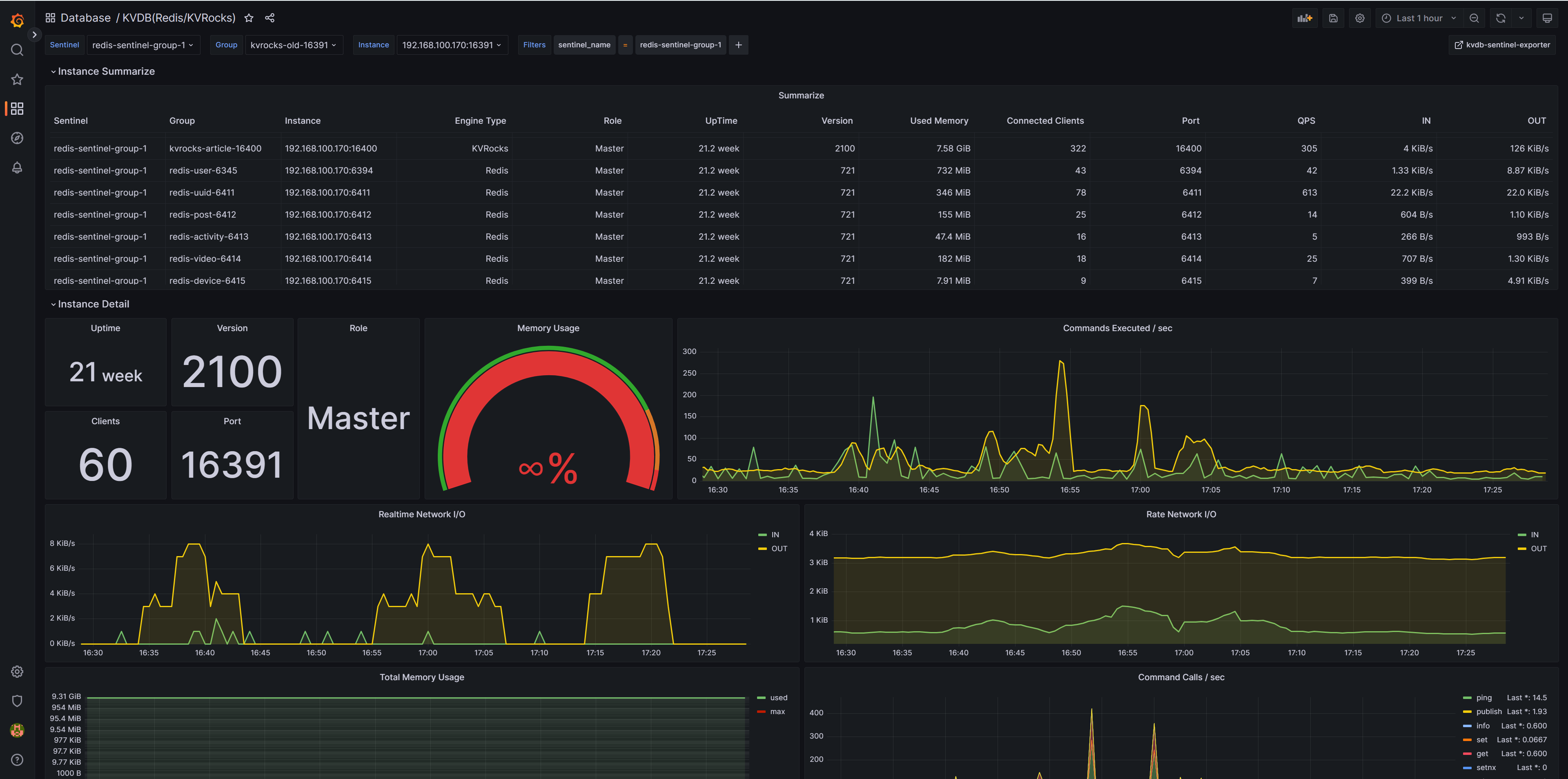

Grafana Metrics Page

Installation

Requirements

Python 3.9+
Redis 5.0+
Flask 2.3+
Prometheus Client

From Source

# Clone repository
git clone https://github.com/luger1990/kvdb-sentinel-exporter.git
cd kvdb-sentinel-exporter

# Install dependencies
pip install -r requirements.txt

# Configure
cp .env.example .env
cp config.yaml config.local.yaml  # Modify configuration as needed

Using Docker

# Use pre-built image
docker pull luger1990/kvdb-sentinel-exporter

# Or build from Dockerfile
docker build -t kvdb-sentinel-exporter .

# Run container
docker run -dit \
  -p 16379:16379 \
  --name=kvdb-sentinel-exporter \
  -v $(pwd)/config.yaml:/app/config.yaml \
  luger1990/kvdb-sentinel-exporter

# Environment variables supported by Docker
docker run -dit \
  -p 16379:16379 \
  --name=kvdb-sentinel-exporter \
  -e DEBUG=true \
  -e HOST=127.0.0.1 \
  -e PORT=6379 \
  -e CONFIG_PATH=/app/config/config.yaml \
  -v $(pwd)/config.yaml:/app/config.yaml \
  luger1990/kvdb-sentinel-exporter

# It is recommended to run in Docker Host mode
docker run -dit \
  --net=host \
  --name=kvdb-sentinel-exporter \
  -e DEBUG=false \
  -v $(pwd)/config.yaml:/app/config.yaml \
  luger1990/kvdb-sentinel-exporter

Configuration

Configuration uses YAML format, with the default path being config.yaml. You can customize the config file path using the CONFIG_PATH environment variable.

Configuration Example

# KVDB Sentinel Exporter 配置文件

# Redis哨兵配置
sentinels:
  # 第一个哨兵组
  redis-group-1:
    # 本组Redis默认密码（可选，当master没有单独指定密码时使用此密码）
    default_password: "ce67a0a422243742573ac12024c39f82"
    sentinel_hosts:
      - "127.0.0.1:26379"
      - "127.0.0.1:26380"
      - "127.0.0.1:26391"
    # 为特定master_name指定密码配置（会覆盖默认密码）
    master_groups:
      # 示例：为特定master_name设置专用密码
      kvrocks-group-1:
        password: "cfc44dfc4f1a3f36400740680fd8c30c"
      # 注意：未在此处列出的master_name将使用default_password

  # 第二个哨兵组
  redis-group-2:
    # 本组Redis默认密码（可选）
    default_password: ""
    sentinel_hosts:
      - "127.0.0.1:16379"
      - "127.0.0.1:16380"
      - "127.0.0.1:16391"

# 指标收集配置
metrics:
  # 收集线程池大小
  thread_pool_size: 10
  # 连接超时时间（秒）
  connect_timeout: 3
  # 读取超时时间（秒）
  read_timeout: 5

# Web UI配置
web_ui:
  # 刷新间隔（秒）
  refresh_interval: 30

Environment Variables

Configuration can be set via .env file or environment variables:

DEBUG: Enable debug mode (default: false)
HOST: Listen address (default: 0.0.0.0)
PORT: Listen port (default: 16379)
CONFIG_PATH: Config file path (default: config.yaml)

Usage

Starting the Service

# Run directly
python run.py

# Specify config file
python run.py /path/to/config.yaml

# Use environment variable for config
CONFIG_PATH=/path/to/config.yaml python run.py

Accessing the Web Interface

Visit http://localhost:16379/ to view the sentinel group list

Visit http://localhost:16379/<sentinel_name>/info to view the Redis node status for a specific sentinel group

Prometheus Metrics

Prometheus metrics endpoint: http://localhost:16379/<sentinel_name>/metrics

Key metrics include:

kvdb_up: Redis instance online status
kvdb_role: Redis node role
kvdb_memory_used_bytes: Redis memory usage
kvdb_connected_clients: Number of client connections
kvdb_commands_processed_total: Total processed commands
kvdb_instantaneous_ops_per_sec: Operations per second
kvdb_engine_type: Engine type (Redis/KVRocks)

Prometheus Configuration Example

scrape_configs:
  - job_name: 'redis_sentinel'
    scrape_interval: 15s
    static_configs:
      - targets: ['localhost:16379']
    metrics_path: '/nct-redis-sentinel/metrics'

Development Mode and Hot Reload

For improved development efficiency, this project supports hot reloading, which automatically restarts the server when code or templates are modified.

Setting Up Development Environment

Install development dependencies
bash
```
pip install -r requirements.txt
```
Create development environment configuration file
bash
```
cp .env.example .env
```
Edit the .env file to enable debug mode
```
DEBUG=true
```
Start the server
bash
```
python run.py
```

Hot Reload Features

When DEBUG=true is set, the application automatically enables:

Auto-reload: The application reloads when Python files, HTML templates, JavaScript, or CSS files are modified
No static resource caching: The browser always gets the latest version of static resources
Debug toolbar: Displays a debug toolbar in the web interface with request, route, and configuration information

Monitored file extensions include:

.py (Python source files)
.html (HTML templates)
.js (JavaScript files)
.css (CSS stylesheets)
.yaml and .yml (Configuration files)

License

MIT
