Ramping VUs

With the ramping-vus executor, a variable number of VUs executes as many iterations as possible for a specified amount of time.

For a shortcut to this executor, use the stages option.

Options

Besides the common configuration options, this executor has the following options:

OptionTypeDescriptionDefault
stages(required)arrayArray of objects that specify the target number of VUs to ramp up or down to.[]
startVUsintegerNumber of VUs to run at test start.1
gracefulRampDownstringTime to wait for an already started iteration to finish before stopping it during a ramp down."30s"

When to use

This executor is a good fit if you need VUs to ramp up or down during specific periods of time.

Example

This example schedules a two-stage test, ramping up from 0 to 10 VUs over 20 seconds, then down to 0 VUs over 10 seconds.

JavaScript
import http from 'k6/http';
import { sleep } from 'k6';

export const options = {
  discardResponseBodies: true,
  scenarios: {
    contacts: {
      executor: 'ramping-vus',
      startVUs: 0,
      stages: [
        { duration: '20s', target: 10 },
        { duration: '10s', target: 0 },
      ],
      gracefulRampDown: '0s',
    },
  },
};

export default function () {
  http.get('https://test.k6.io/contacts.php');
  // Injecting sleep
  // Sleep time is 500ms. Total iteration time is sleep + time to finish request.
  sleep(0.5);
}

Note

With gracefulRampDown set to 0 seconds, some iterations might be interrupted during the ramp down stage.

Observations

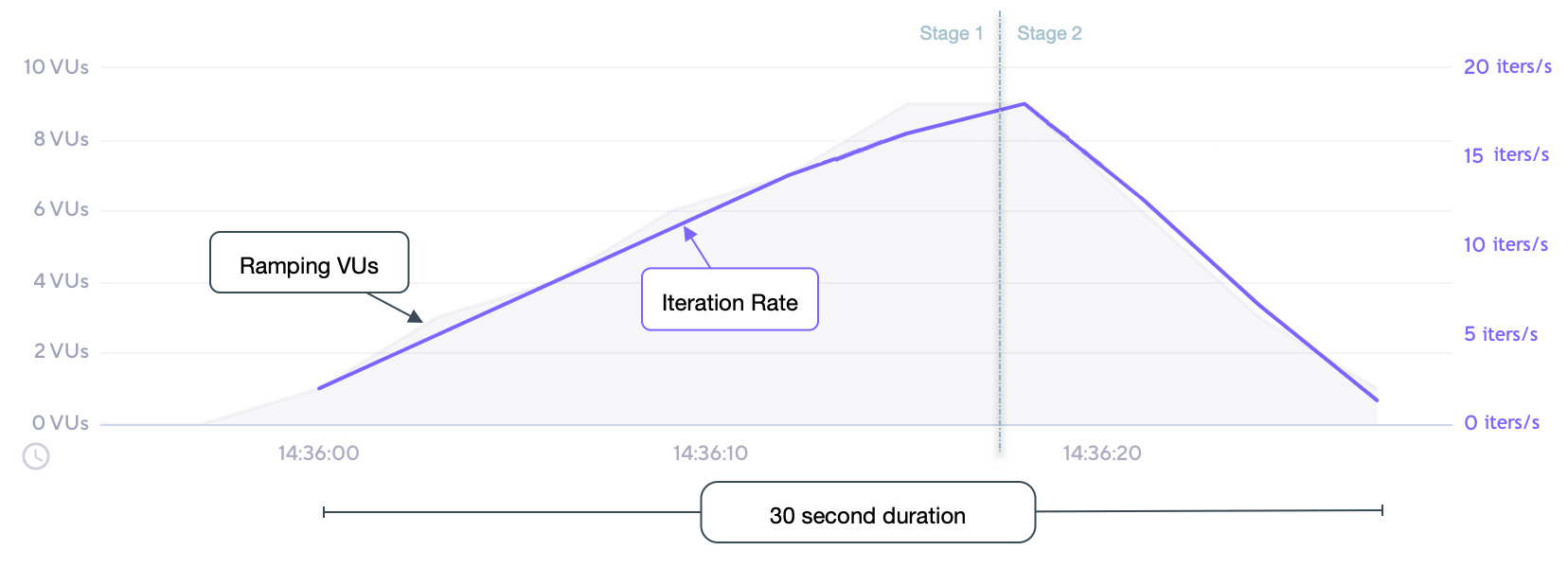

The following graph depicts the performance of the example script:

Ramping VUs

Based upon our test scenario inputs and results:

  • The configuration defines 2 stages for a total test duration of 30 seconds;
  • Stage 1 ramps up VUs linearly from the startVUs of 0 to the target of 10 over a 20 second duration;
  • From the 10 VUs at the end of stage 1, stage 2 then ramps down VUs linearly to the target of 0 over a 10 second duration;
  • Each iteration of the default function is expected to be roughly 515ms, or ~2/s;
  • As the number of VUs changes, the iteration rate directly correlates; each addition of a VU increases the rate by about 2 iters/s, whereas each subtraction of a VU reduces by about 2 iters/s;
  • The example performed ~300 iterations over the course of the test.

Get the stage index

To get the current running stage index, use the getCurrentStageIndex helper function from the k6-jslib-utils library. It returns a zero-based number equal to the position in the shortcut stages array or in the executor’s stages array.

JavaScript
import { getCurrentStageIndex } from 'https://jslib.k6.io/k6-utils/1.3.0/index.js';

export const options = {
  stages: [
    { target: 10, duration: '30s' },
    { target: 50, duration: '1m' },
    { target: 10, duration: '30s' },
  ],
};

export default function () {
  if (getCurrentStageIndex() === 1) {
    console.log('Running the second stage where the expected target is 50');
  }
}

Using this feature, it is possible to automatically tag using the current running stage. Check the Tagging stages section for more details.
