Compare tests

When you deploy code changes, add new features, or update infrastructure, you need to verify that these changes don’t negatively impact your application’s performance. Comparing test results helps you detect performance regressions before they reach production, understand the impact of optimizations, and track performance trends over time.

For example, you can compare test runs to:

• Identify performance degradation after a code deployment
• Verify that performance optimizations actually improve metrics
• Validate that infrastructure changes maintain acceptable performance levels
• Track the impact of dependency updates or configuration changes
• Establish performance baselines for continuous monitoring

Grafana Cloud k6 provides three ways to compare tests:

• Between a recent run and a baseline
• Between two selected runs
• Across all runs for a certain script

Set a baseline test

Comparing results against a known baseline is a core part of the general methodology for automated performance testing. Baseline tests are important for comparing against a control and finding differences.

Baseline tests should produce enough load to generate representative data with expected results. For example, don’t use a heavy stress test as a baseline. Use a smaller load test instead.

To set your baseline, follow these steps:

1. Open the results for the test run you want to use as your baseline
2. In the upper-right corner, click the menu icon (three dots)
3. Click Set as Baseline

Data-retention policies don’t apply to baseline tests. For more information, refer to data-retention policies.

Select test runs to compare

To compare two test runs, follow these steps:

1. Open a test run
2. In the upper-right corner, next to Compare with, click Select a test run
3. Select the test run you want to compare the test to

Test comparison mode

When you compare tests, the layout of the performance-overview section changes to comparison mode. Comparison mode has controls for selecting which tests to display on the left and right, and the performance overview chart now renders time series for the two compared test runs.

Solid lines represent the base run, and dashed lines represent the comparison. To highlight a specific time series, select it in the interactive legend.

Compare scenarios

If a test has multiple scenarios, k6 presents a performance overview for each one. If the test script uses multiple protocols, k6 categorizes the overview data by protocol.

Compare thresholds

To compare thresholds, select the Thresholds tab. You can add additional data to the table for the base and target test runs.

Compare the following threshold data between runs:

• The value of the threshold.
• pass/fail statuses.
• Previous and current test-run values for each threshold and its pass/fail status.

To display a separate threshold chart for each test run, select a threshold.

Compare checks

To compare checks, use the Checks tab. The table shows additional data for the base and target test runs.

Compare the following metrics between runs:

• Success Rate
• Success Count
• Fail Count

To display separate check charts for each test run, select a check.

Compare HTTP requests

To compare HTTP requests, use the HTTP tab. The table shows additional data for the base and target test runs.

Compare the following data between runs:

• Metrics, such as request count, avg, and p95 response time
• Additional data for individual HTTP requests

To show separate charts, select the rows for each test run that you want to compare. You can add extra charts, such as timing breakdowns for each HTTP request.

Compare scripts

To compare scripts, use the Scripts tab. You can view the scripts for each test run in the read-only editor mode.

At the top of the tab, you can:

• See the total number of changes between the test runs.
• Click the up and down arrows to navigate on the editor to the next/previous script change.
• Select a Split or Inline view mode

The editor works similarly to other code editors, highlighting any lines that were updated, added, or removed.

Compare scripts to see whether modifications to your test script caused differences in the test results, similar to comparing other types of test data like checks or thresholds. As your test scripts evolve over time, it can be helpful to create a new test whenever significant alterations are made, as this lets you more accurately evaluate the performance of your systems.

Explore test trends

To compare runs for a test across time, use the performance-trending chart. The chart displays test-run metrics, using colors to signal the status of a specific run.

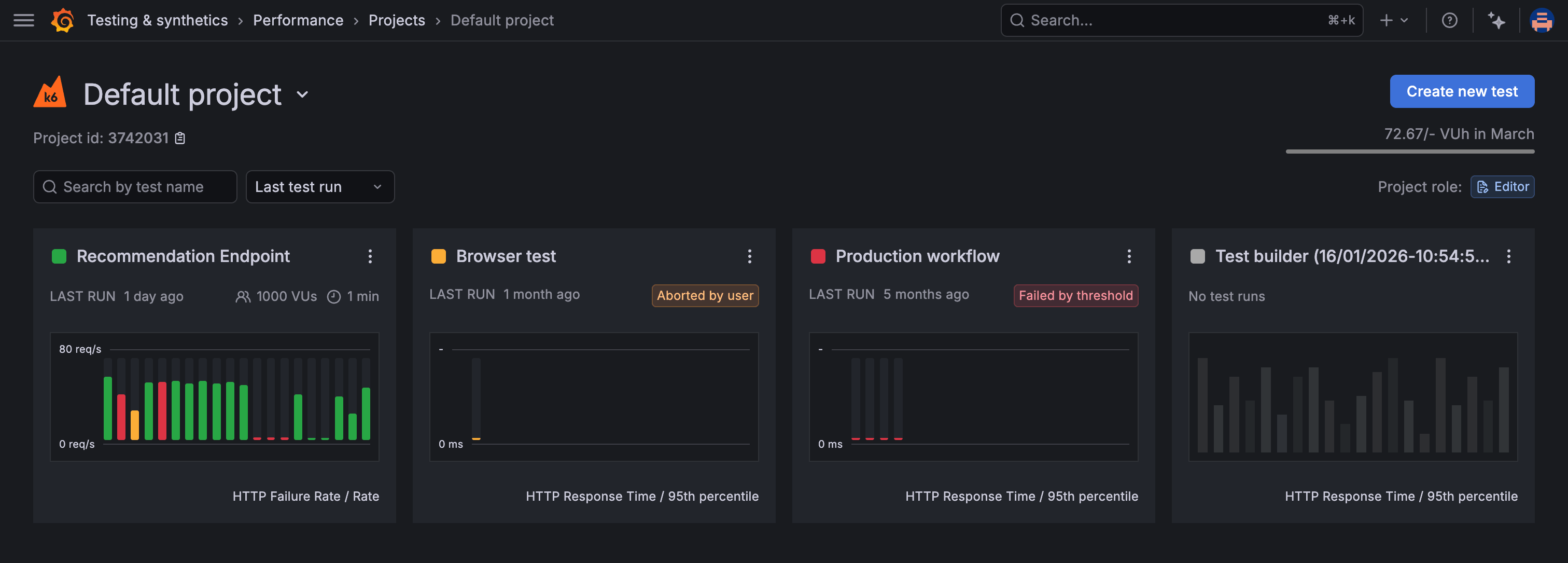

To view the performance-trending chart for multiple tests that belong to the same project, open the Project page:

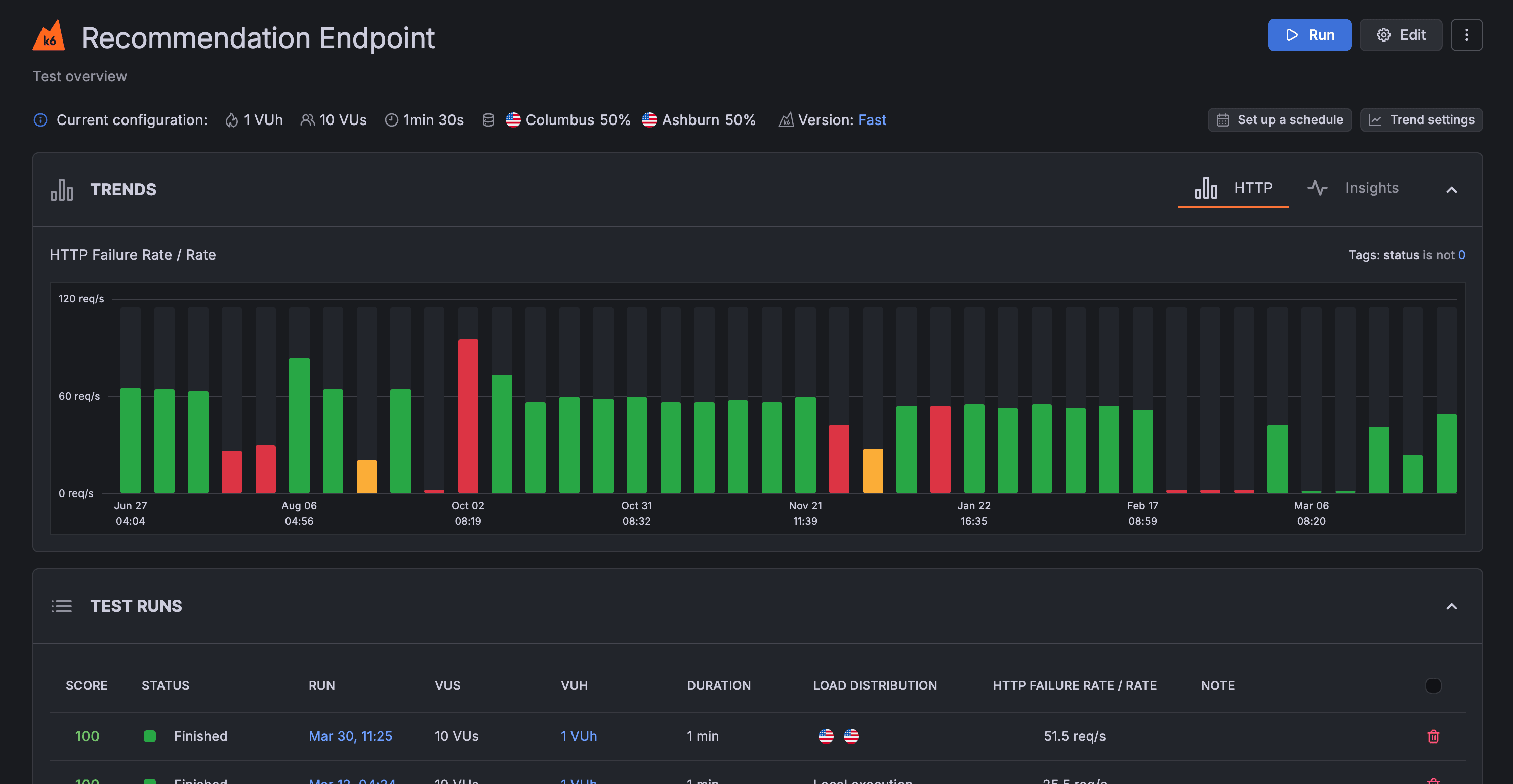

To view the performance-trending chart for an individual test, open the test’s page:

This last chart shows more data points over time. For more information about an individual run, hover over any bar in the chart.

By default, the data displayed in the performance-trending chart is the p95 of the HTTP response time (http_req_time).

The chart displays a summary trending metric, an aggregated value for all metric data points in the test run. k6 produces a single value for each test run using the trending metric, and then plots each value the chart. You can customize the trending metric on a per-test basis.

Customize the trending metric

To customize the trending metric used for a test:

1. Navigate to the Project page
2. In the top-right corner of the test’s performance-trending chart, click the menu icon (three dots)
3. Select Customize trend

This opens a window where you can:

• Select the metric to use in the performance-trending chart. The list includes both standard metrics (created by all k6 test runs) and custom metrics (user-defined).
• Select the aggregation function to apply to the metric. In this case, “Avg” (Average) is selected.
• Select or add one or more sets of tags and tag values. In this case, you can select values only from instances in the amazon:se:stockholm load zone.

After you select the desired parameters, click Save to apply the changes.

To reset the configuration, use the default trending metric with Reset to default trending metric button in the bottom left corner.

k6 calculates the required values, then plots them in the performance-trending chart.
