Oracle Database

Documentation →

How to configure the Oracle Database plugin

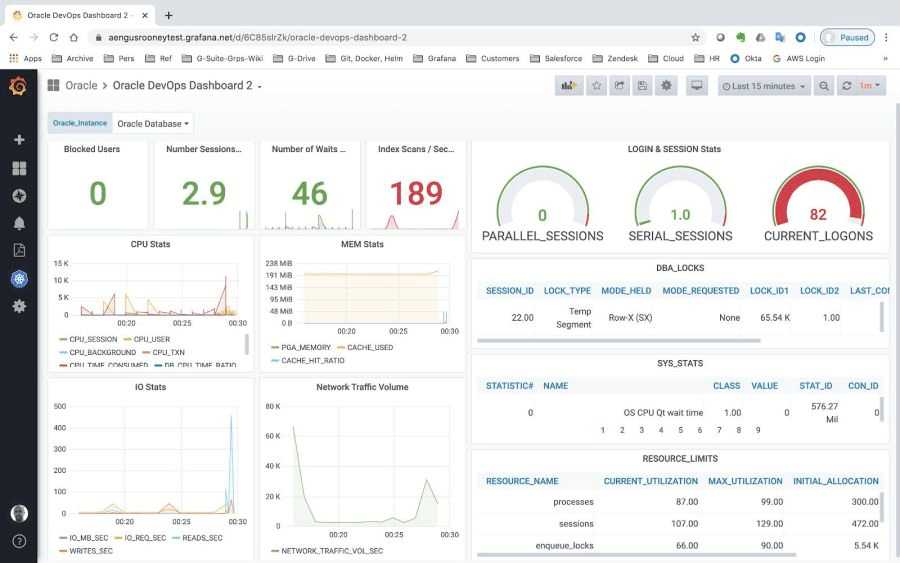

Instantly visualize Oracle data in Grafana

The Oracle data source plugin is the easiest way to pull Oracle data directly into Grafana dashboards.

  • Visualize it either in isolation (one database) or blend it with other data sources.
  • Discover correlations and covariances across all your data in minutes.

Installing Oracle Database on Grafana Cloud:

For more information, visit the docs on plugin installation.

Installing on a local Grafana:

For local instances, plugins are installed and updated via a simple CLI command. Plugins are not updated automatically, however you will be notified when updates are available right within your Grafana.

1. Install the Data Source

Use the grafana-cli tool to install Oracle Database from the commandline:

grafana-cli plugins install

The plugin will be installed into your grafana plugins directory; the default is /var/lib/grafana/plugins. More information on the cli tool.

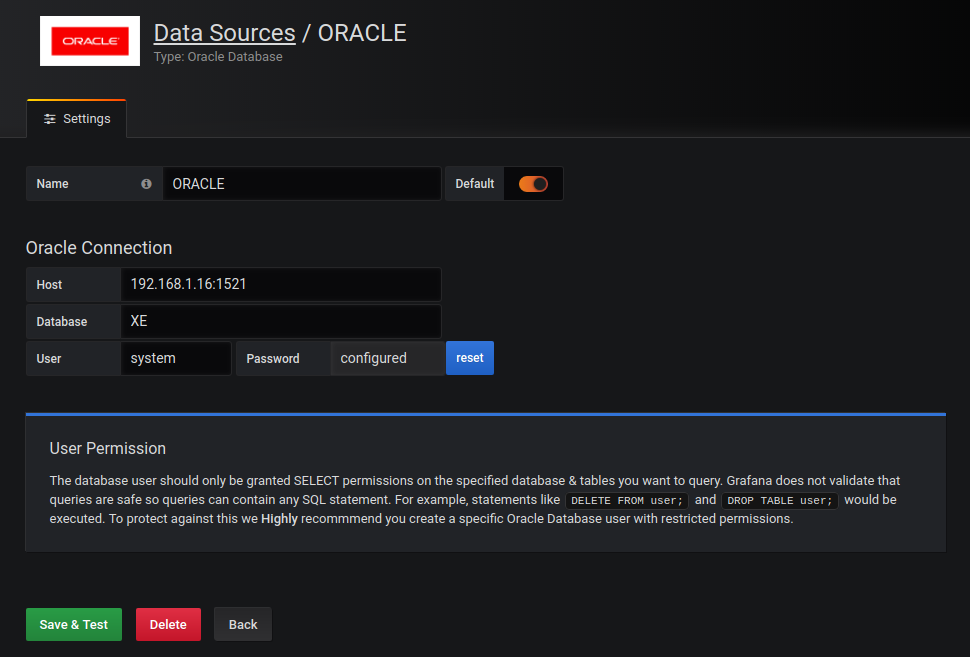

2. Configure the Data Source

Accessed from the Grafana main menu, newly installed data sources can be added immediately within the Data Sources section.

Next, click the Add data source button in the upper right. The data source will be available for selection in the Type select box.

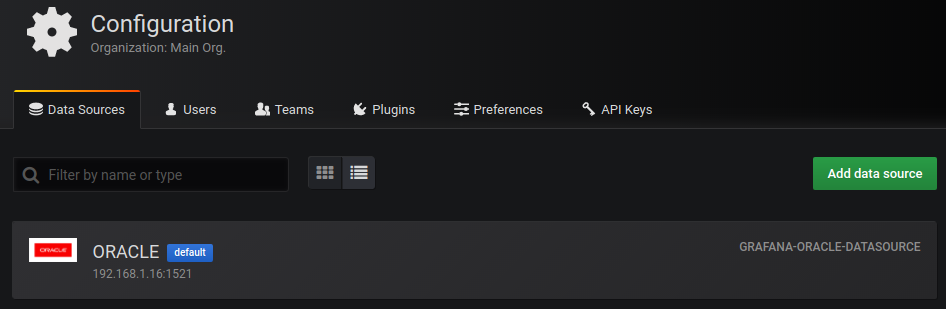

To see a list of installed data sources, click the Plugins item in the main menu. Both core data sources and installed data sources will appear.

Change Log

v2.10.5 - 2025-02-04

  • update frontend dependencies

v2.10.4 - 2025-01-10

  • ⚙️ Chore: Update backend dependencies

v2.10.3 - 2025-01-06

  • ⚙️ Chore: update backend dependencies

v2.10.2 - 2024-12-30

  • 🐛 Fix: Refactor database connector to avoid data races
  • ⚙️ Chore: Update backend dependencies

v2.10.1 - 2024-12-18

  • ⚙️ Chore: Update backend driver

v2.10.0 - 2024-12-18

  • 🐛 Fix: Add timeout to health + query

v2.9.2 - 2024-12-18

  • ⚙️ Chore: Update backend dependencies

v2.9.1- 2024-12-17

  • ⚙️ Chore: Update backend dependencies

v2.9.0 - 2024-12-16

  • 🚀 Feature: Move environment variables into config page

v2.8.13 - 2024-11-12

  • ⚙️ Chore: Updated backend dependencies

v2.8.12 - 2024-10-03

  • ⚙️ Chore: Update frontend dependencies
  • ⚙️ Chore: Minimal supported Grafana version is now 10.4.8

v2.8.11 - 2024-09-23

  • ⚙️ Chore: Update backend dependencies

v2.8.10 - 2024-08-30

  • ⚙️ Chore: update backend dependencies

v2.8.9 - 2024-08-30

  • ⚙️ Chore: add logging on timezone load failures

v2.8.8 - 2024-08-02

  • 🐛 Fix: refactor db connections cache locking to prevent cases when it's always locked

v2.8.7 - 2024-07-22

  • ⚙️ Chore: Add logging in case cached connection verification fails

v2.8.6 - 2024-07-19

  • ⚙️ Chore: Update backend dependencies and add more debug logging

v2.8.5 - 2024-06-19

  • ⚙️ Chore: update backend dependencies

v2.8.4 - 2024-06-13

  • 🐛 Fix: Fix response format when no rows are returned
  • ⚙️ Chore: Update backend dependencies

v2.8.3 - 2024-04-05

  • 🐛 Fix: Fix broken PDC

v2.8.2 - 2024-03-18

  • ⚙️ Chore: Backend binaries are now compiled with Go version 1.22.1

v2.8.1 - 2024-03-18

  • ⚙️ Chore: Update backend dependencies

v2.8.0 - 2024-02-29

  • ⚙️ Chore: add error source

v2.7.1 - 2023-11-16

  • 📝 Documentation: Updates to Oracle data source documentation breaking it into topics

v2.7.0 - 2023-11-01

  • ⚙️ Chore: Update backend and frontend dependencies
  • ⚙️ Chore: Minimum required Grafana runtime version is now 9.5.13

v2.6.4 - 2023-09-07

  • 🐛 Fix: Fix bug causing configuration page not working in some cases

v2.6.3 - 2023-08-25

  • ⚙️ Chore: Remove "Generated SQL" button from the query editor as it duplicates the functionality of the query inspector

v2.6.2 - 2023-08-24

  • ⚙️ Chore: add debug container

v2.6.1 - 2023-08-23

  • ⚙️ Chore: e2e test support

v2.6.0 - 2023-06-09

  • ⚙️ Chore: Configuration page UI and UX overhaul

v2.5.1 - 2023-06-08

  • ⚙️ Chore: backend libs updated with golang:1.20.5

v2.5.0 - 2023-05-31

v2.4.6 - 2023-05-23

  • ⚙️ Chore: Fixes a bug with the QueryEditor onBlur event so it fires the correct onChange prop

v2.4.5 - 2023-05-05

  • ⚙️ Chore: Updating Dockerfiles to use Go version 1.20.4 which contains security fixes

v2.4.4 - 2023-05-03

  • ⚙️ Chore: Backend binaries are now compiled with Go version 1.20.4 which contains security fixes

v2.4.3 - 2023-04-19

  • ⚙️ Chore: Backend binaries are now compiled with Go version 1.20.3 which contains security fixes
  • ⚙️ Chore: Minimum required Grafana runtime version is now 8.4.7

v2.4.2 - 2023-04-19

  • ⚙️ Chore: Backend dependencies updated

v2.4.1 - 2023-03-30

  • ⚙️ Chore: Remove unused images in screenshots folder

v2.4.0 - 2023-03-28

  • 🚀 Feature: Prevent from using kerberos when TNSNames option is disabled
  • 🚀 Feature: Prevent from running query on editor blur
  • 🐛 Fix: Fix Generated SQL in code Editor
  • 📝 Documentation: Fix formatting and cleanup in docs

v2.3.0 - 2023-02-10

  • 🚀 Feature: Data source config page improvements

v2.2.8 - 2022-12-15

  • ⚙️ Chore: Backend dependencies updated
  • ⚙️ Chore: Backend binaries are now compiled with Go 1.19.4

v2.2.7 - 2022-11-01

  • backend binaries are compiled with go 1.19.3

v2.2.6 - 2022-10-14

  • follow-up on obfuscate password input: replace input field with SecretInput from @grafana/ui
  • update dependencies to v8.4.7
  • update docs

v2.2.5 - 2022-10-14

  • obfuscate password input in datasource setting
  • update docs

v2.2.4 - 2022-10-05

  • Update the feature for response data size

v2.2.3 - 2022-09-28

  • Update docs

v2.2.2 - 2022-09-28

  • User can define query response data size with environment variable GF_PLUGINS_ORACLE_DATASOURCE_MAX_RESPONSE_SIZE
  • Update DEV_GUIDE.md for ARM64 developers

v2.2.1 - 2022-09-06

  • ⚙️ Chore: Add back the format selector in the query editor

v2.2.0 - 2022-07-22

  • ⚙️ Chore: update linux amd64 oracle client to 21.6

v2.1.3 - 2022-06-09

  • 🐛 Fix: set exec permissions

v2.1.2 - 2022-05-17

  • Fix libs for rhel/centos 7.x

v2.1.1 - 2022-05-17

  • Add libs for rhel/centos 7.x

v2.1.0 - 2022-05-05

  • Reduce size of Linux zip

v2.0.9 - 2022-03-03

  • Re-implement timezone translation

v2.0.8 - 2022-01-13

  • Adds error message that warns user when response message size is larger than 16Mb
  • Adds the option to compile back-end for ARM64 processors

v2.0.7 - 2022-01-10

  • ⚙️ Chore: Update Licensing

v2.0.6 - 2021-08-10

  • Adds documentation for RHEL 8 libnsl dependency
  • Fixes an issue where hidden queries were still being executed
  • Fixes an issue where queries with just whitespace (empty) were being executed.

v2.0.4 - 2021-04-12

  • ⚙️ Chore: Update SDK

v2.0.2 - 2020-10-09

  • Fixed signed plugin issue

v2.0.1 - 2020-10-06

  • Fixed configuration editor to allow tnsname and kerberos options to be selected during manual setup
  • Adjusted configuration editor entry field sizes

v2.0.2 - 2020-10-09

  • Fixed signed plugin issue

v2.0.1 - 2020-10-06

  • Fixed configuration editor to allow tnsname and kerberos options to be selected during manual setup
  • Adjusted configuration editor entry field sizes

v2.0.0 - 2020-10-01

  • Compatible with Grafana v7.1+

Key Features:

  • Conversion to dataframes for easier use with different visualizations and data transformations
  • Updated to use InstantClient v19, supporting stcp connections
  • Query editor now uses monaco for syntax

Bugfixes:

  • Connection cache will expire idle connections to prevent slow responses

Note: Time Zone support not included in v2.0.0, to be added in next minor release. All connections and results are processed as UTC.

v1.2.2 - 2020-08-28

  • Fix for kerberos authentication error output

v1.2.1 - 2020-08-19

  • NEW: Support for TNSNAMES and Kerberos Authentication
  • Fix for issue #133 (redact message on connection error)
  • Fix field comparisons for Annotation Queries
  • Increase max message size to 16MB

v1.2.0 - 2020-05-15

  • Now compatible with Grafana v7.0.0
  • Now grafana-cli installable

v1.1.7 - 2020-03-27

  • Fix for Edge Browser

v1.1.6 - 2020-03-25

  • New fill options for macros (intervals now the same as other sql datasources)
  • New timezone configuration setting for datasource (default is UTC)
  • 🐛 Fix: removed auto-quoting of time columns in macros

v1.1.5 - 2020-02-13

  • Better handling of macro $__timeGroup
  • Implements fill options for $__timeGroup similar to other sql datasources
  • Upgrade build to go-1.13.7
  • Converted to go mod
  • Additional test coverage

v1.1.4 - 2020-02-05

  • Connection pool size is now working
  • Profiling setting now working
  • Fix for backend crash when nil values are return
  • Fix for locking issue causing backend to hang
  • Fix quoting issues
  • Implement braces for macros
  • Now allows sql statements inside macros

v1.1.3 - 2019-12-18

  • GF_PLUGINS_ORACLE_DATASOURCE_POOLSIZE can be used to increase/decrease the size of the connection pool with Oracle. The new default is 50

v1.1.2 - 2019-11-04

  • GF_PLUGINS_PROFILER must be set to "oracle-datasource" to enable profiling. default is false.

v1.1.1 - 2019-09-20

  • Remove connection string output from debug mode
  • Refactor to clean up go lint warnings

v1.1.0 - 2019-07-20

  • Fixes panic of backend plugin on windows
  • Update to all package dependencies

v1.0.9 - 2019-06-10

  • Return message when query results are too large
  • Prevent crash due to attempting too large response
  • Additional handling of nullable columns
  • Updated packages

v1.0.8 - 2019-05-15

  • Now handles nullable column for value field when transforming to timeseries

v1.0.7 - 2019-05-09

  • lower query cache TTL to 60 seconds
  • fix leak due to deferred close inside loop
  • reuse fingerprint vs recalculating (small performance gain)
  • detect errors iterating rows
  • add more debug output
  • updated vendored packages

v1.0.6 - 2019-04-25

  • Now provides info level log line when type is not matched
  • Added additional data types
    • converts to type FLOAT: SQLT_INT, SQLT_UIN, SQLT_FLT, SQLT_VNU, SQLT_LNG, SQLT_BFLOAT, SQLT_BDOUBLE
    • converts to type STRING: SQLT_STR, SQLT_LVC, SQLT_VST, SQLT_VBI, SQLT_LBI, SQLT_LVB
    • converts to type DATE: SQLT_DATE
    • converts to type BYTES: SQLT_FILE
  • 🐛 Fix: when a query returns no results (and data types as a part of the results), the types are not cached to allow future queries with results update the cache

v1.0.5 - 2019-04-08

  • gRPC: hardcode message size to 16MB vs 4MB
  • enable alerting

v1.0.4 - 2019-03-29

  • Plugin now links oracle libraries from plugin directory, no need for installation externally on system (linux only, windows requires install)

v1.0.3 - 2019-03-18

  • Support additional field type SQLT_NUME
  • Better type conversions
  • Add quoted time field to variable interpolation

v1.0.2 - 2019-03-04

  • Update golang dependencies

v1.0.1 - 2019-02-05

Fixed

#13

  • High CPU utilization issue fix via short-term cache of column types
  • Connection errors fixed by testing cached connections before returning to caller

v0.0.1 - 2018-05-09

Initial Release
