RARE/freeRouter - BFD states

Display BFP state metrics

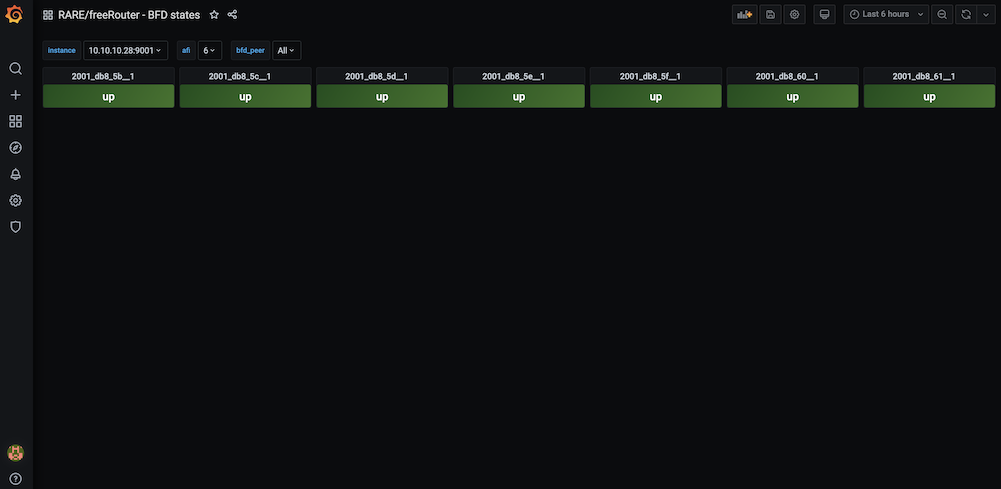

RARE/freeRouter - BFD states screenshot 1

scope:local to freeRouter node

freeRouter Prometheus configuration: (copy & paste in freeRouter CLI)

  • Create hardware and software sensor
sensor bfd4
path bfd4/peer/peer
prefix freertr-bfd4
key name bfd4/peer
command sho ipv4 bfd inet neighbor
prepend bfd4_
name 1 ip=
replace \. _
column 2 name state
column 2 replace down 0
column 2 replace init 1
column 2 replace shut -1
column 2 replace up 2
.
exit

sensor bfd6
path bfd6/peer/peer
prefix freertr-bfd6
key name bfd6/peer
command sho ipv6 bfd inet neighbor
prepend bfd6_
name 1 ip=
replace \: _
column 2 name state
column 2 replace down 0
column 2 replace init 1
column 2 replace shut -1
column 2 replace up 2
.
exit
  • freeRtr server Prometheus agent configuration
server prometheus pr
 sensor bfd4
 sensor bfd6
 vrf <PROMETHEUS_VRF>
 exit
  • Prometheus server configuration (sample config with 2 nodes)
global:
  scrape_interval: 15s
  scrape_timeout: 10s
  evaluation_interval: 30s
alerting:
  alertmanagers:
  - static_configs:
    - targets: []
    scheme: http
    timeout: 10s
scrape_configs:
- job_name: router
  scrape_interval: 15s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: http
  static_configs:
  - targets:
    - <prometheus_agent_ip_1>:9001
    labels:
      node_name: <prometheus_agent_1_node_name>
  - targets:
    - <prometheus_agent_ip_2>:9001
    labels:
      node_name: <prometheus_agent_2_node_name>
