RARE/freeRouter - LDP null dashboard

LDP dashboard global to a backbone network

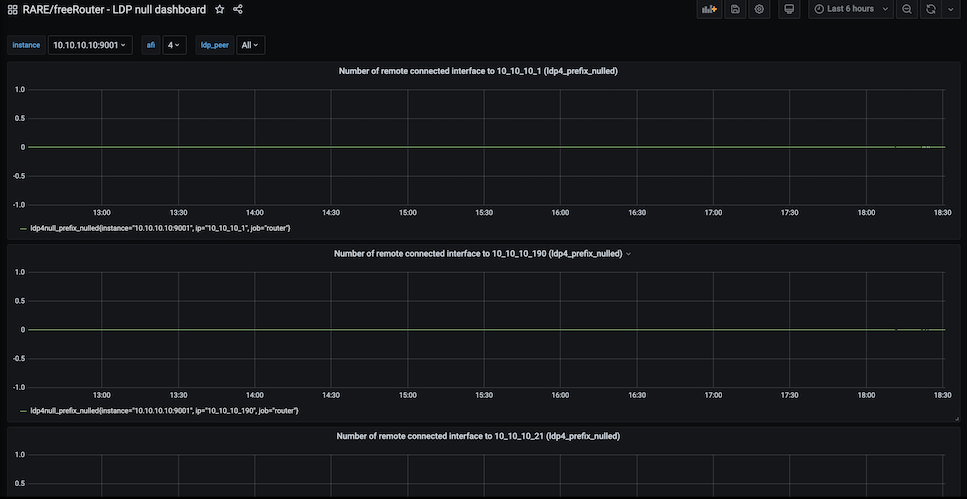

RARE/freeRouter - LDP null dashboard screenshot 1

scope:global to freeRouter node

freeRouter Prometheus configuration: (copy & paste in freeRouter CLI)

  • Create hardware and software sensor
sensor ldp4nul
path ldp4nul/peer/peer
prefix freertr-ldp4nul
key name ldp4nul/peer
command sho ipv4 ldp inet nulled-summary
prepend ldp4null_
name 3 ip=
skip 2
replace \. _
column 0 name prefix_learn
column 1 name prefix_advert
column 2 name prefix_nulled
.
exit

sensor ldp6nul
path ldp6nul/peer/peer
prefix freertr-ldp6nul
key name ldp6nul/peer
command sho ipv6 ldp inet nulled-summary
prepend ldp6null_
name 3 ip=
skip 2
replace \: _
column 0 name prefix_learn
column 1 name prefix_advert
column 2 name prefix_nulled
.
exit
  • freeRtr server Prometheus agent configuration
server prometheus pr
 sensor ldp4nul
 sensor ldp6nul
 vrf <PROMETHEUS_VRF>
 exit
  • Prometheus server configuration (sample config with 2 nodes)
global:
  scrape_interval: 15s
  scrape_timeout: 10s
  evaluation_interval: 30s
alerting:
  alertmanagers:
  - static_configs:
    - targets: []
    scheme: http
    timeout: 10s
scrape_configs:
- job_name: router
  scrape_interval: 15s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: http
  static_configs:
  - targets:
    - <prometheus_agent_ip_1>:9001
    labels:
      node_name: <prometheus_agent_1_node_name>
  - targets:
    - <prometheus_agent_ip_2>:9001
    labels:
      node_name: <prometheus_agent_2_node_name>
