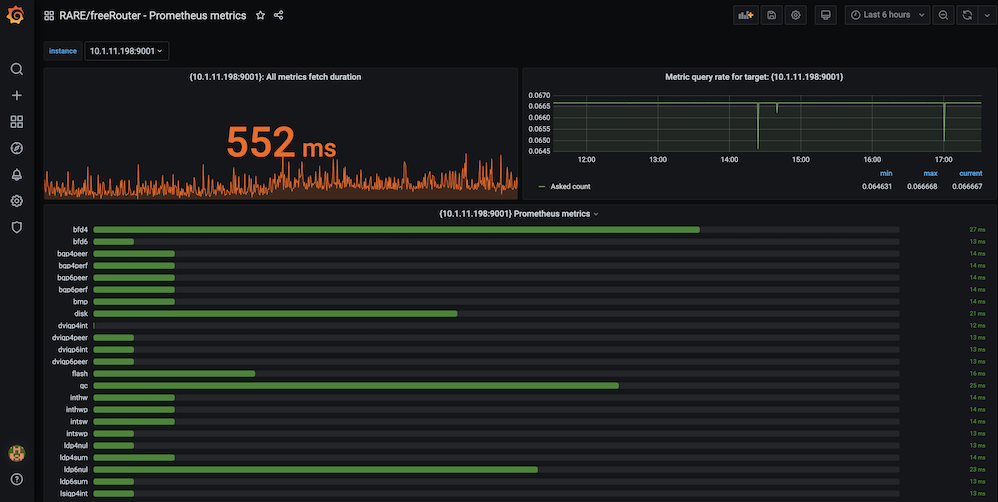

RARE/freeRouter - Prometheus metrics
Display freeRouter Prometheus metrics
scope:local to freeRouter node
freeRouter Prometheus configuration: (copy & paste in freeRouter CLI)
- Create hardware and software sensor
sensor sensor
path sensor/peer/peer
prefix freertr-sensor
prepend sensor_
command sho sensor
name 0 met=
key name sensor/peer
column 1 name asked
column 2 name time
exit- freeRtr server Prometheus agent configuration
server prometheus pr
sensor sensor
vrf <PROMETHEUS_VRF>
exit- Prometheus server configuration (sample config with 2 nodes)
global:
scrape_interval: 15s
scrape_timeout: 10s
evaluation_interval: 30s
alerting:
alertmanagers:
- static_configs:
- targets: []
scheme: http
timeout: 10s
scrape_configs:
- job_name: router
scrape_interval: 15s
scrape_timeout: 10s
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- <prometheus_agent_ip_1>:9001
labels:
node_name: <prometheus_agent_1_node_name>
- targets:
- <prometheus_agent_ip_2>:9001
labels:
node_name: <prometheus_agent_2_node_name>Data source config
Collector type:
Collector plugins:
Collector config:
