RARE/freeRouter - Tracker

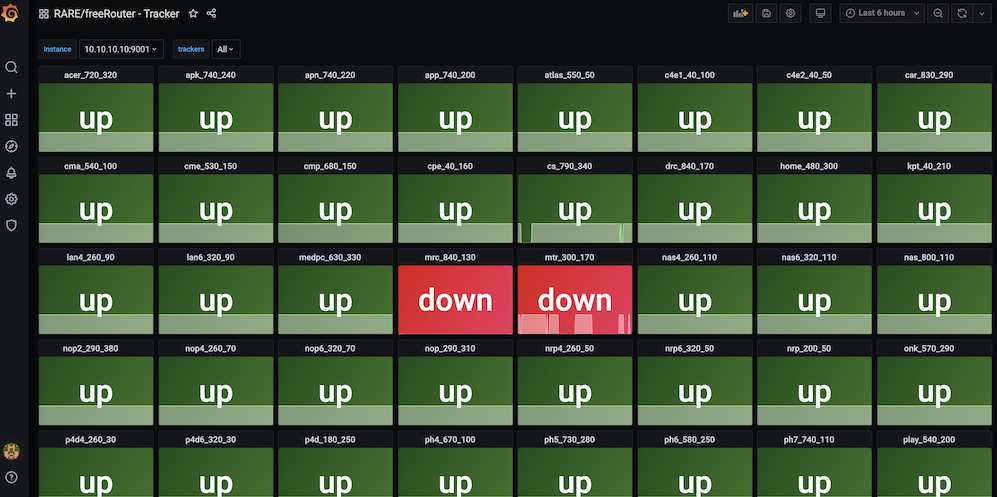

Display freeRouter tracker status
scope:local to freeRouter node
freeRouter Prometheus configuration: (copy & paste in freeRouter CLI)
- Create hardware and software sensor
sensor tracker
path tracker/peer/peer
prefix freertr-tracker
key name tracker/peer
command sho tracker
prepend tracker_
name 0 name=
replace \- _
column 4 name state
column 4 replace down 0
column 4 replace up 1
.
exit- freeRtr server Prometheus agent configuration
server prometheus pr
sensor tracker
vrf <PROMETHEUS_VRF>
exit- Prometheus server configuration (sample config with 2 nodes)
global:
scrape_interval: 15s
scrape_timeout: 10s
evaluation_interval: 30s
alerting:
alertmanagers:
- static_configs:
- targets: []
scheme: http
timeout: 10s
scrape_configs:
- job_name: router
scrape_interval: 15s
scrape_timeout: 10s
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- <prometheus_agent_ip_1>:9001
labels:
node_name: <prometheus_agent_1_node_name>
- targets:
- <prometheus_agent_ip_2>:9001
labels:
node_name: <prometheus_agent_2_node_name>Data source config
Collector type:
Collector plugins:
Collector config:
Revisions
Upload an updated version of an exported dashboard.json file from Grafana
| Revision | Description | Created | |
|---|---|---|---|
| Download |
