XPS - SRX60A - ROW

Coleta os seguintes dados de Retificadoras XPS SRX60 via snmp; Local; Alarme urgente; Alarme nao urgente; Alarme de advertencia; Temperatura; Corrente URs; Uso da Baterias; Fusiveis; Falha URs; VCA URs; Limite de VCA baixa e alta; Consuno do Sistema; VCA;

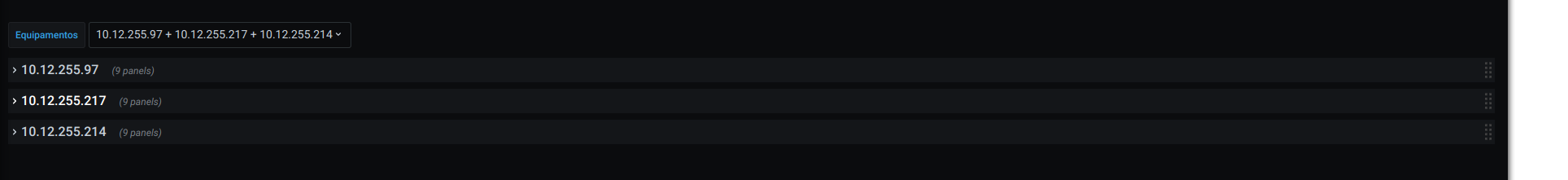

XPS - SRX60A - ROW screenshot 1

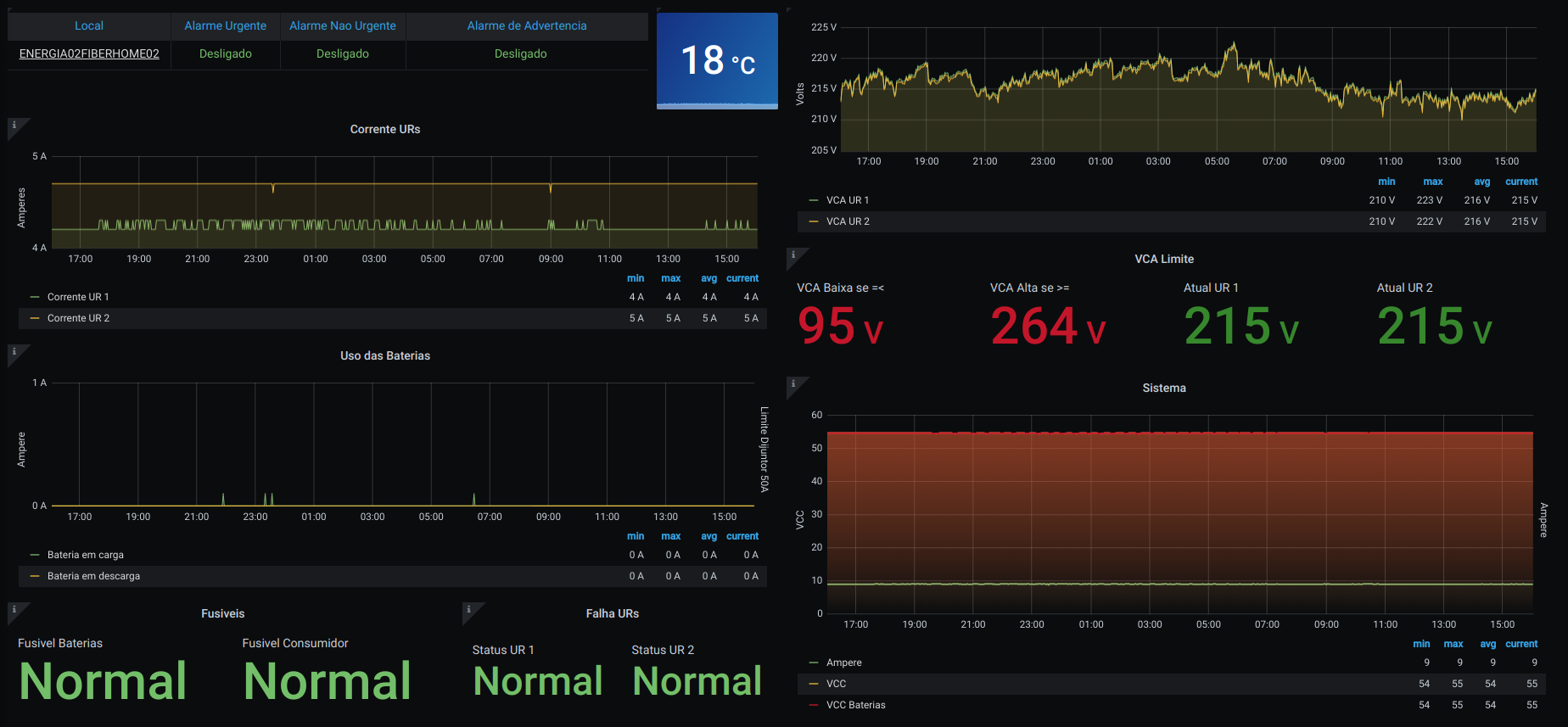

XPS - SRX60A - ROW screenshot 2

Criar o arquivo /etc/telegraf/telegraf.d/xps-srx60a.conf

Para varios hosts alterar agents = [ “host01:161” ] por agents = [ “host01:161” , “host02:161”, “host03:161” ]

[[inputs.snmp]] agents = [ “host01:161” ] version = 2 name = “xps-srx60a” community = “admin” interval = “60s” timeout = “10s” retries = 3

[[inputs.snmp.field]] name = “Identidade” oid = “1.3.6.1.4.1.34252.5.2.1.0”

[[inputs.snmp.field]] name = “Corrente UR 1” oid = “1.3.6.1.4.1.34252.5.1.1.1.1.0”

[[inputs.snmp.field]] name = “Corrente UR 2” oid = “1.3.6.1.4.1.34252.5.1.1.1.2.0”

[[inputs.snmp.field]] name = “Falha UR 1” oid = “1.3.6.1.4.1.34252.5.1.1.2.1.0”

[[inputs.snmp.field]] name = “Falha UR 2” oid = “1.3.6.1.4.1.34252.5.1.1.2.2.0”

[[inputs.snmp.field]] name = “VCA UR 1” oid = “1.3.6.1.4.1.34252.5.1.2.0”

[[inputs.snmp.field]] name = “VCA UR 2” oid = “1.3.6.1.4.1.34252.5.1.3.0”

[[inputs.snmp.field]] name = “CaBaixa” oid = “1.3.6.1.4.1.34252.5.2.7.0”

[[inputs.snmp.field]] name = “CaAlta” oid = “1.3.6.1.4.1.34252.5.2.8.0”

[[inputs.snmp.field]] name = “Sistema VCC” oid = “1.3.6.1.4.1.34252.5.1.5.0”

[[inputs.snmp.field]] name = “Sistema Ah” oid = “1.3.6.1.4.1.34252.5.1.7.0”

[[inputs.snmp.field]] name = “TempAmb1” oid = “1.3.6.1.4.1.34252.5.1.15.6.0”

[[inputs.snmp.field]] name = “FusCons” oid = “1.3.6.1.4.1.34252.5.1.12.0”

[[inputs.snmp.field]] name = “FusBat” oid = “1.3.6.1.4.1.34252.5.1.13.0”

[[inputs.snmp.field]] name = “IBatC” oid = “1.3.6.1.4.1.34252.5.1.8.0”

[[inputs.snmp.field]] name = “IBatD” oid = “1.3.6.1.4.1.34252.5.1.9.0”

[[inputs.snmp.field]] name = “VBat” oid = “1.3.6.1.4.1.34252.5.1.6.0”

[[inputs.snmp.field]] name = “AlarmeUrg” oid = “1.3.6.1.4.1.34252.5.1.14.1.0”

[[inputs.snmp.field]] name = “AlarmeNaoUrg” oid = “1.3.6.1.4.1.34252.5.1.14.2.0”

[[inputs.snmp.field]] name = “AlarmeAdivertencia” oid = “1.3.6.1.4.1.34252.5.1.14.3.0”
