Bitvise SFTP Logs

Bitvise SFTP dashboard

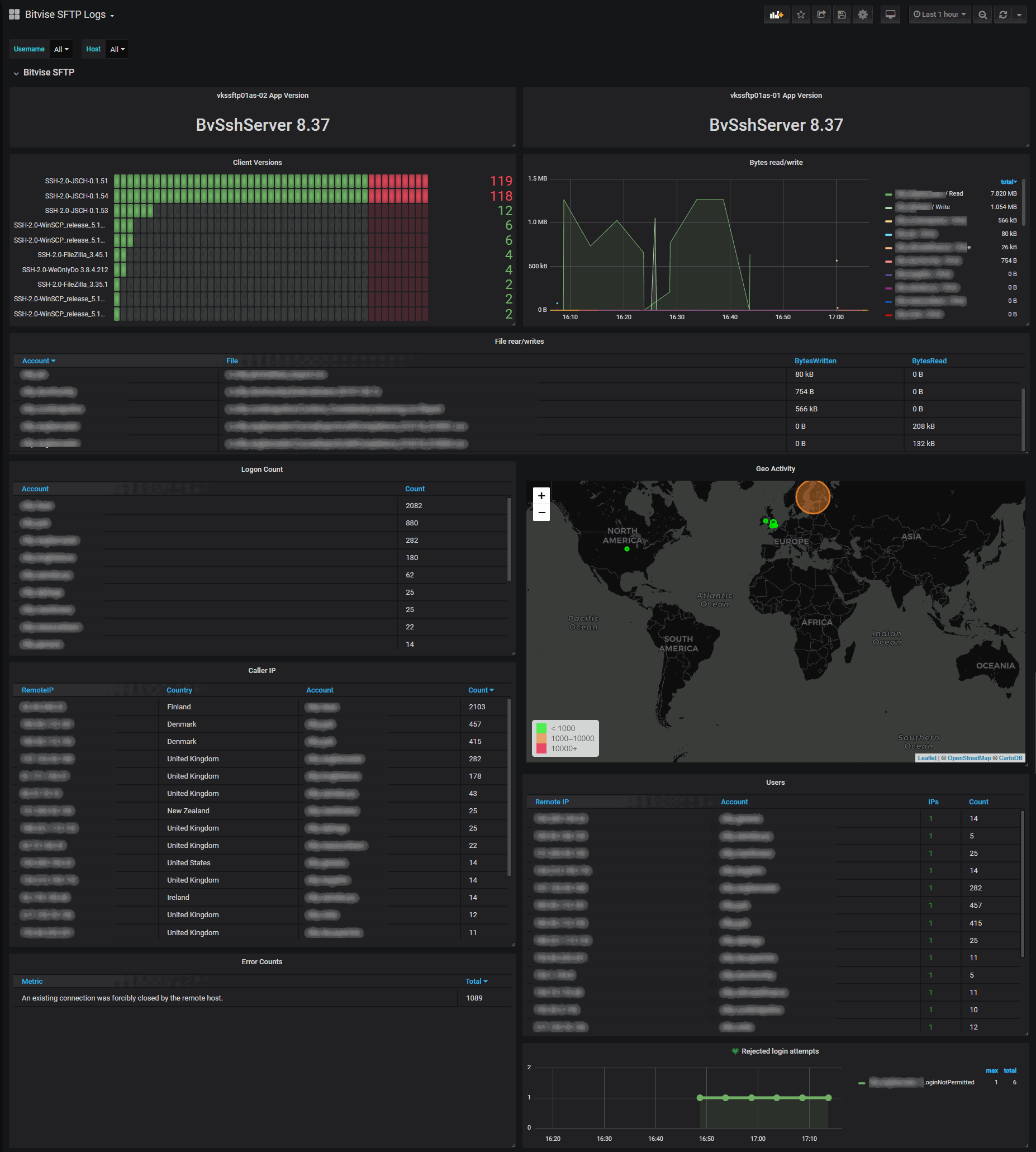

Bitvise SFTP Log Dashboard

Dashboard to visualize Bitvise SFTP Log data from Bitvise

Dashboard is setup to filter based on a host name or by virtual account. The Logstash filter files have been provided on Github, along with Filebeat config.

Bugs, suggestions and feedback.

Bug reports, suggestions and feedback to GitHub please!

Gotchas

Some panels formatting expect all accounts to begin with sftp. If a panel is all on the Y-axis, remove the formatting.
All panels and variables are based on the VirtualUser. Nothing has been setup for the WindowsUser. If you use Windows accounts for logins you’ll need to edit the panels.

Logstash filter

filter {
  if "bitvise" in [tags] {
    xml {
      force_array => false
      source => "message"
      store_xml => true
      target => "sftp"
      remove_field => [ "message" ]
    }
mutate {
        convert => {"[sftp][parameters][channelBytesReceived]" => "integer"}
        convert => {"[sftp][parameters][channelBytesSent]" => "integer"}
        convert => {"[sftp][parameters][payloadBytesReceived]" => "integer"}
        convert => {"[sftp][parameters][payloadBytesSent]" => "integer"}
        convert => {"[sftp][parameters][socketBytesReceived]" => "integer"}
        convert => {"[sftp][parameters][socketBytesSent]" => "integer"}
        convert => {"[sftp][parameters][bytesReceived]" => "integer"}
        convert => {"[sftp][parameters][bytesSent]" => "integer"}
        convert => {"[sftp][seq]" => "integer"}
        convert => {"[sftp][session][id]" => "integer"}
        convert => {"[sftp][sessions][ftp]" => "integer"}
        convert => {"[sftp][sessions][ftpAuth]" => "integer"}
        convert => {"[sftp][sessions][ssh]" => "integer"}
        convert => {"[sftp][sessions][sshAut]" => "integer"}
        convert => {"[sftp][error][code]" => "integer"}
        convert => {"[sftp][sfs][code]" => "integer"}
        convert => {"[sftp][sfs][parameters][bytesRead]" => "integer"}
        convert => {"[sftp][sfs][parameters][bytesWritten]" => "integer"}
        convert => {"[sftp][sfs][parameters][finalSize]" => "integer"}
        convert => {"[sftp][sfs][parameters][readRangeLength]" => "integer"}
        convert => {"[sftp][sfs][parameters][readRangeOffset]" => "integer"}
        convert => {"[sftp][sfs][parameters][startSize]" => "integer"}
        convert => {"[sftp][sfs][parameters][timeMs]" => "integer"}
        convert => {"[sftp][sfs][parameters][upload]" => "integer"}
        convert => {"[sftp][sfs][parameters][writeRangeLength]" => "integer"}
        convert => {"[sftp][sfs][parameters][writeRangeOffset]" => "integer"}
          split => { "[sftp][session][remoteAddress]" => ":"}
            add_field => { "remoteIP" => "%{[sftp][session][remoteAddress][0]}"
          }
       }
  geoip {
    source => "remoteIP"
  }
  date{
    match => ["sftp.time" , "yyyy-MM-dd HH:mm:ss.SSS Z"]
  }
  }
}
