Grafana Mimir Writes networking dashboard

The Writes networking dashboard shows receive/transmit bandwidth, inflight requests, and TCP connections. The dashboard isolates each service on the write path into its own section and displays the order in which a write request flows.

This dashboard requires additional resources metrics.

Use this dashboard for the following use cases:

• Monitor the network performance of the write path within a Mimir cluster.
• Identify where in the write path network delays or congestion are occurring.
• Diagnose networking bottlenecks in the write path.

Example

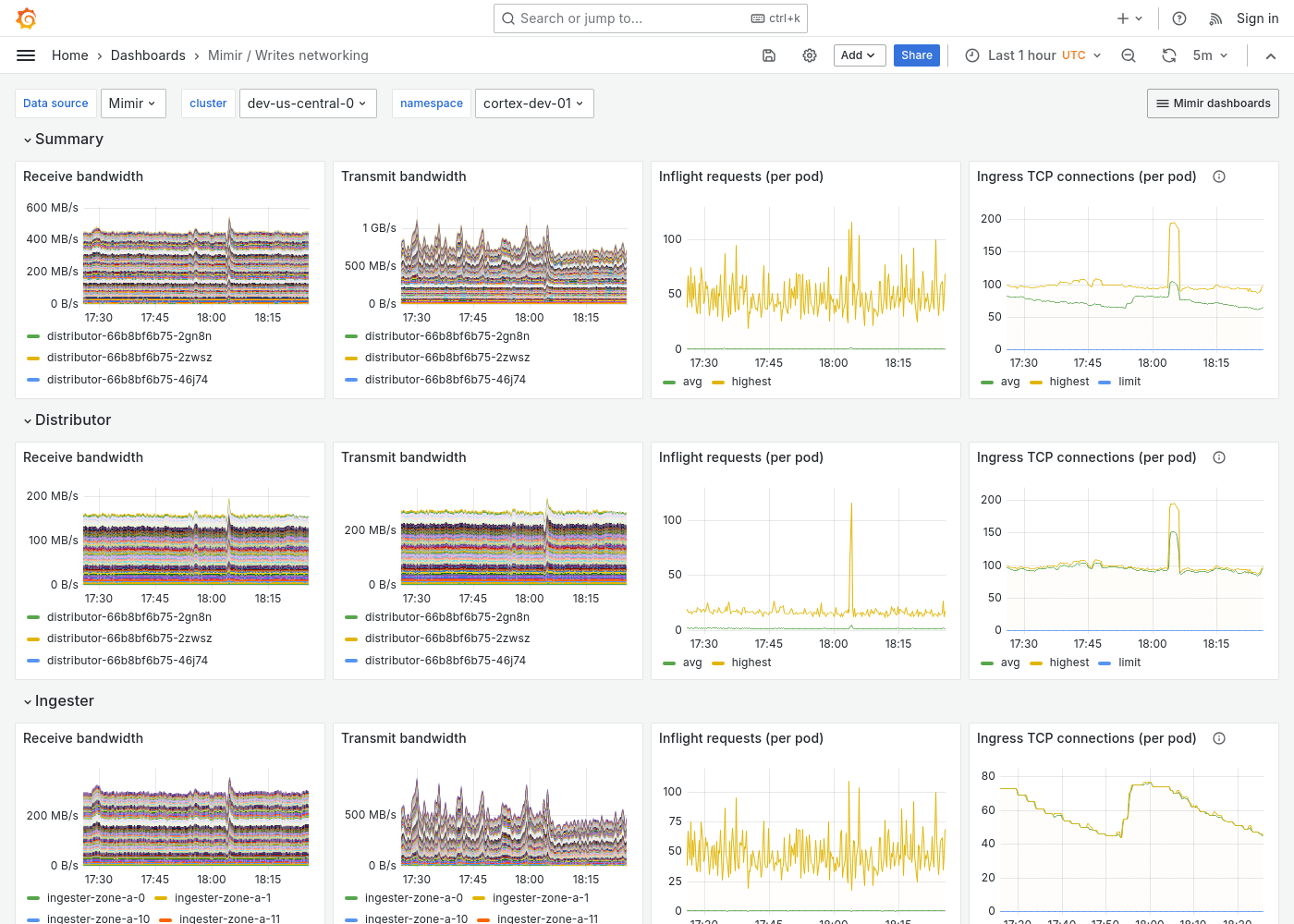

The following example shows a Writes networking dashboard from a demo cluster.
