Grafana Mimir Reads networking dashboard

The Reads networking dashboard shows receive and transmit bandwidth, in-flight requests, and TCP connections. The dashboard isolates each service on the read path into its own section and displays the order in which a read request flows.

This dashboard requires additional resources metrics.

Use this dashboard for the following use cases:

• Monitor in-flight requests and TCP connections to identify any potential bottlenecks or connection issues between services.
• Visualize bandwidth to detect if any component is experiencing network saturation or unusual traffic patterns.

Example

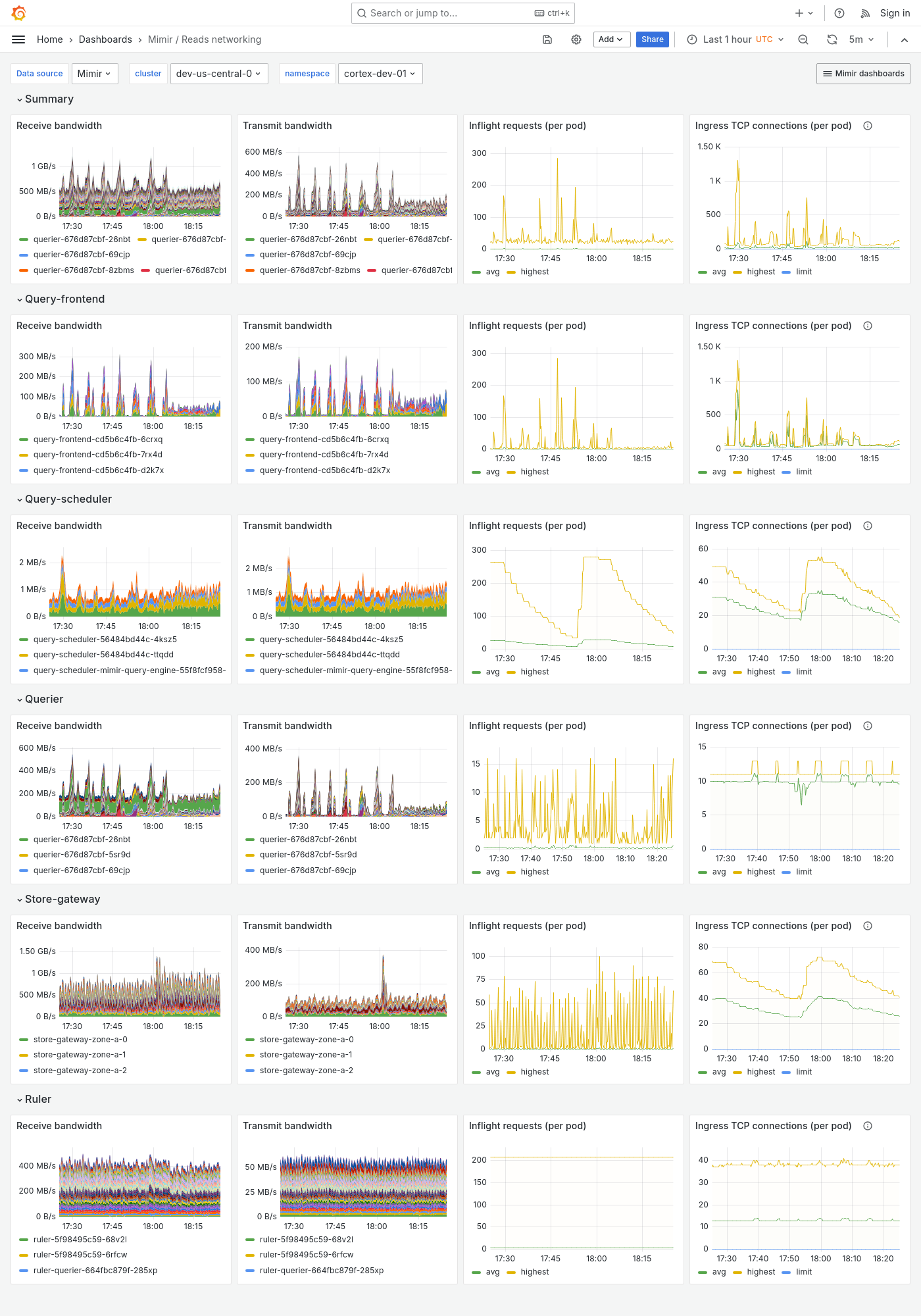

The following example shows a Reads networking dashboard from a demo cluster.
