Grafana Mimir hash rings

Hash rings are a distributed consistent hashing scheme that Grafana Mimir uses for sharding, replication, and service discovery.

The following Mimir features are built on top of hash rings:

  • Service discovery: Instances can discover each other by looking up which peers are registered in the ring.
  • Health check: Instances periodically send a heartbeat to the ring to signal that they are healthy. An instance is considered unhealthy if it misses heartbeats for a configured period.
  • Zone-aware replication: Optionally replicate data across failure domains for high availability. For more information, refer to Configure zone-aware replication.
  • Shuffle sharding: Optionally limit the blast radius of failures in a multi-tenant cluster by isolating tenants. For more information, refer to Configure shuffle sharding.

How the hash ring is used for sharding

The primary use of hash rings in Mimir is to consistently shard data, such as time series, and workloads, such as compaction jobs, without a central coordinator or single point of failure.

Each of the following Mimir components joins its own dedicated hash ring for sharding:

A hash ring is a data structure that represents the data space as 32-bit unsigned integers. Each instance of a Mimir component owns a set of token ranges that define which portion of the data space it is responsible for.

The data or workload to be sharded is hashed using a function that returns a 32-bit unsigned integer, called a token. The instance that owns that token handles the data.

When an instance starts, it generates a fixed number of tokens and registers them in the ring. A token is owned by the instance that registered the smallest value greater than the lookup token being looked up and wraps around to zero after (2^32)-1.

Hash rings provide consistent hashing. When an instance joins or leaves the ring, only a small, bounded portion of data moves. On average, only n/m tokens move, where n is the total number of tokens (32-bit unsigned integer) and m is the number of instances that are registered in the ring.

How series sharding works

The most important hash ring in Grafana Mimir is the one used to shard series. The implementation details depend on the configured architecture.

Series sharding in ingest storage architecture

Note

This guidance applies to ingest storage architecture. For more information about the supported architectures in Grafana Mimir, refer to Grafana Mimir architecture.

In ingest storage architecture, distributors shard incoming series across Kafka partitions. Each series is assigned to a single Kafka partition. Replication is handled by Kafka.

Ingesters own Kafka partitions, consuming the series written to the partitions they own and making those series available for querying. Each ingester owns one partition, but multiple ingesters can own the same partition for high availability.

Series sharding in ingest storage architecture relies on two hash rings that work together:

  • Partitions ring
  • Ingesters ring

Write path

The partitions ring is the source of truth for the Kafka partitions that Grafana Mimir currently uses. Each partition owns a range of tokens used to shard series among partitions and includes the unique identifiers of the ingesters that own that partition.

When a distributor receives a write request containing series data:

  1. It hashes each series using the fnv32a hashing function.
  2. It looks up the resulting token in the partitions ring to determine the Kafka partition for that series.
  3. It writes the series to the matching Kafka partition.

A write request is considered successful when all series in the request are successfully committed to Kafka.

Read path

The ingesters ring is the source of truth for all ingesters currently running in the Grafana Mimir cluster and is used for service discovery. Each ingester registers itself in the ring and periodically updates its heartbeat.

Queriers watch the ingesters ring to identify healthy ingesters and their IP addresses. When a querier receives a query:

  1. It looks up the partitions ring to find which partitions contain the relevant data.
  2. It looks up the ingesters ring to find which ingesters own those partitions.
  3. It fetches the matching series by contacting the ingesters that own the partitions.

In ingest storage architecture, consistency is guaranteed with a quorum of 1. Each partition needs to be queried only once. If multiple ingesters own the same partition, the querier fetches data from only one of the healthy ingesters for that partition.

Partitions ring lifecycle

A partition in the ring can be in one of the following states:

  • Pending: No writes or reads are allowed.
  • Active: The partition is in read-write mode.
  • Inactive: The partition is in read-only mode.

Partitions are not live components and cannot register themselves in the ring. Their lifecycle is managed by ingesters. Each ingester manages the lifecycle of the partition it owns.

When ingesters are scaled out, new partitions are added to the ring. When ingesters are scaled in, their partitions are removed from the ring through a decommissioning procedure.

Partition creation and activation

When an ingester starts up, it checks whether the partition it owns already exists in the ring. If the partition does not exist, the ingester creates it in the Pending state and adds itself as the partition owner.

This is the initial state for a new partition, allowing time for additional ingesters to join as owners and for ring changes to propagate across instances. While a partition is in the Pending state, distributors cannot write to it, and queriers cannot read from it.

After the partition has at least one owner and remains in Pending for longer than a configured grace period, the ingester transitions it to the Active state. When a partition is Active, distributors can write to it, and queriers must read from it. This is the normal operational state of a partition.

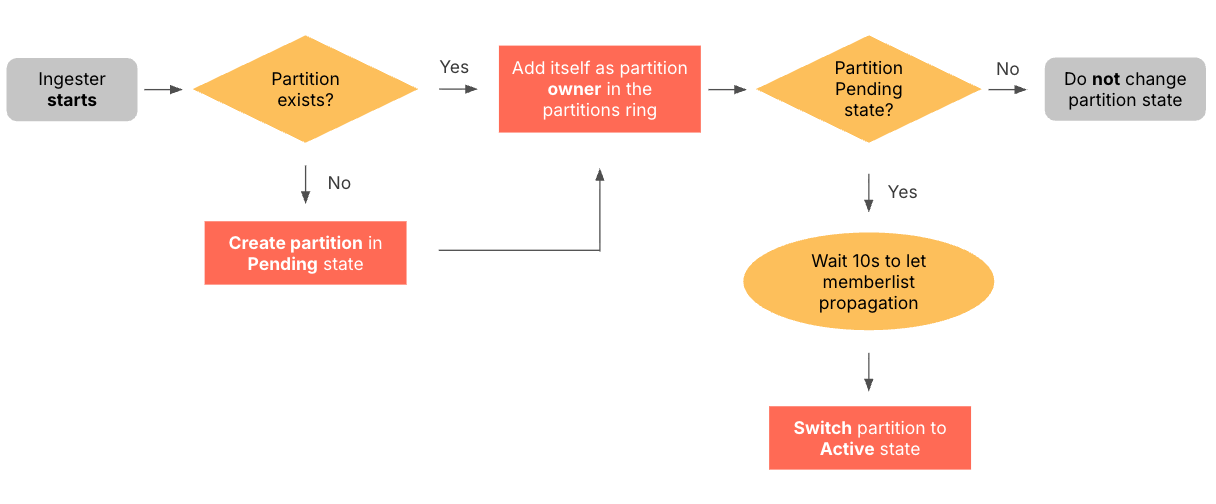

Partitions lifecycle - How it works when an ingester starts

Partition decommissioning and downscaling

Grafana’s Kubernetes Rollout Operator manages partition and ingester downscaling.

When an ingester is marked for termination due to a downscaling event, the rollout operator invokes the “prepare delayed downscale endpoint” API exposed by the ingester. This API switches the partition from Active to Inactive.

When a partition is Inactive, distributors can no longer write to it, but queriers must still read from it. The partition remains in this state until it is safe to stop querying the ingester, specifically, when the data has become available for querying from long-term object storage.

Once the grace period passes, the rollout operator invokes a second API exposed by the ingester, the “prepare shutdown endpoint”. This API removes the ingester as a partition owner from the ring. If the partition has no remaining owners, it is then removed from the ring entirely.

Finally, the rollout operator terminates the ingester pod, completing the safe downscaling procedure.

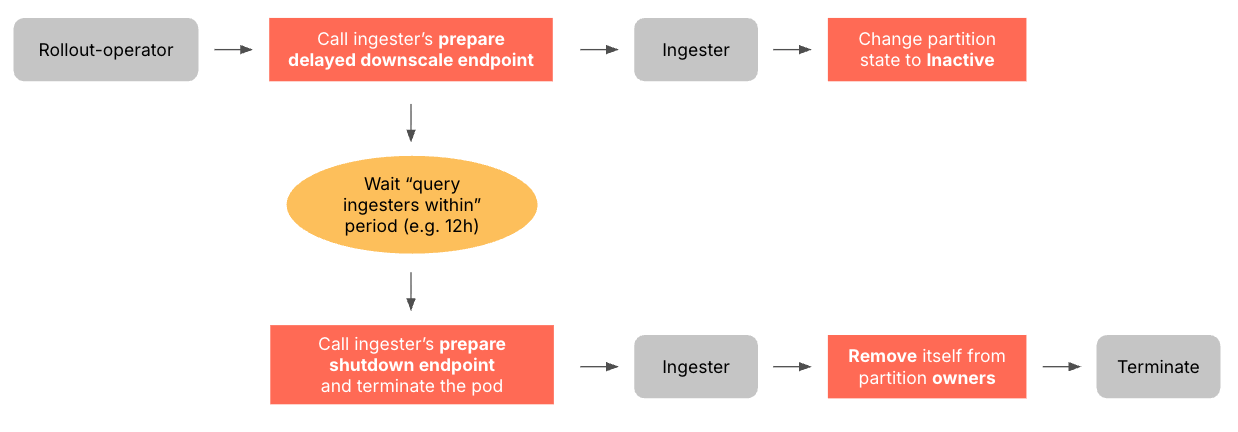

Partitions lifecycle - How it works when an ingester stop

Series sharding in classic architecture

Note

This guidance applies to classic architecture. For more information about the supported architectures in Grafana Mimir, refer to Grafana Mimir architecture.

In classic architecture, distributors shard and replicate the incoming series among ingesters.

Each ingester joins the ingesters hash ring and owns a subset of token ranges. When a distributor receives a write request containing series data, it hashes each series using the fnv32a hashing function. It then looks up the resulting token in the ingesters hash ring to find the authoritative owner and replicates the series to the next RF - 1 ingesters in the ring (where RF is the replication factor, 3 by default). Then the distributor writes the series to the RF ingesters owning the series itself.

To illustrate, consider four ingesters and a token space from 0 to 9:

  • Ingester #1 is registered in the ring with the token 2.
  • Ingester #2 is registered in the ring with the token 4.
  • Ingester #3 is registered in the ring with the token 6.
  • Ingester #4 is registered in the ring with the token 9.

A distributor receives an incoming sample for the series {__name__="cpu_seconds_total",instance="1.1.1.1"}. It hashes the seriesโ€™ labels, and the result of the hashing function is the token 3.

To find which ingester owns token 3, the distributor looks up the token 3 in the ingesters ring and finds the ingester that is registered with the smallest token larger than 3. The ingester #2, which is registered with token 4, is the authoritative owner of the series {__name__="cpu_seconds_total",instance="1.1.1.1"}.

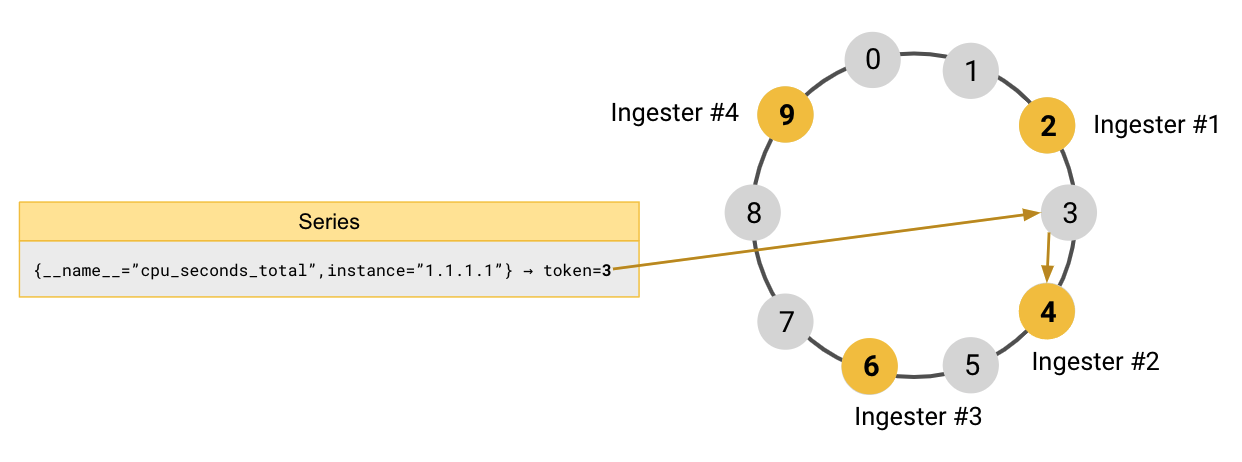

Hash ring without replication

By default, Grafana Mimir replicates each series to three ingesters. After finding the authoritative owner of the series, the distributor continues to walk the ring clockwise to find the remaining two instances where the series should be replicated. In the example that follows, the series are replicated to the instances of Ingester #3 and Ingester #4.

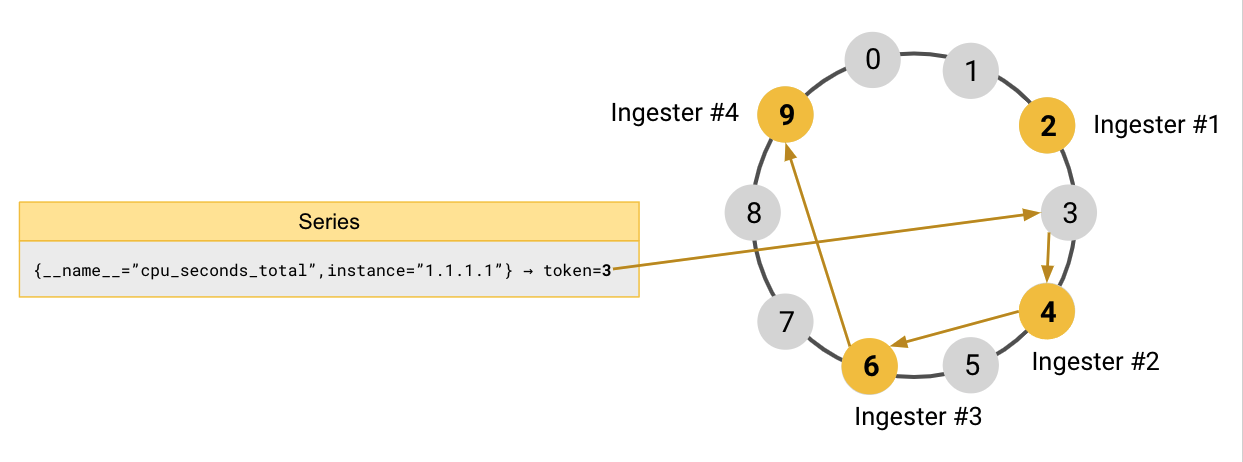

Hash ring with replication

How the hash ring is used for service discovery

Grafana Mimir also uses the ring for built-in service discovery. Since instances register themselves in their ring and periodically send heartbeats, it’s convenient to use the hash ring for internal service discovery as well.

When the hash ring is used exclusively for service discovery, rather than sharding, instances don’t register tokens in the ring. Instead, they only register their presence and periodically update a heartbeat timestamp. When other instances need to find the healthy instances of a given component, they look up the ring to find the instances that have successfully updated the heartbeat timestamp in the ring.

The Grafana Mimir components using the ring for service discovery or coordination are:

  • Distributors: Enforce global rate limits as local limits by dividing the global limit by the number of healthy distributor instances.
  • Query-schedulers: Allow query-frontends and queriers to discover available schedulers.
  • (Optional) Overrides-exporters: Self-elect a leader among replicas to export high-cardinality metrics. No strict leader election is required.

Share a hash ring between Grafana Mimir instances

Hash ring data structures need to be shared between Grafana Mimir instances. To propagate changes to a given hash ring, Grafana Mimir uses a key-value store. You can configure the key-value store independently for the hash rings of different components.

For more information, refer to Grafana Mimir key-value store.
