Satellite Visualizer

Dynamic JSON Badge

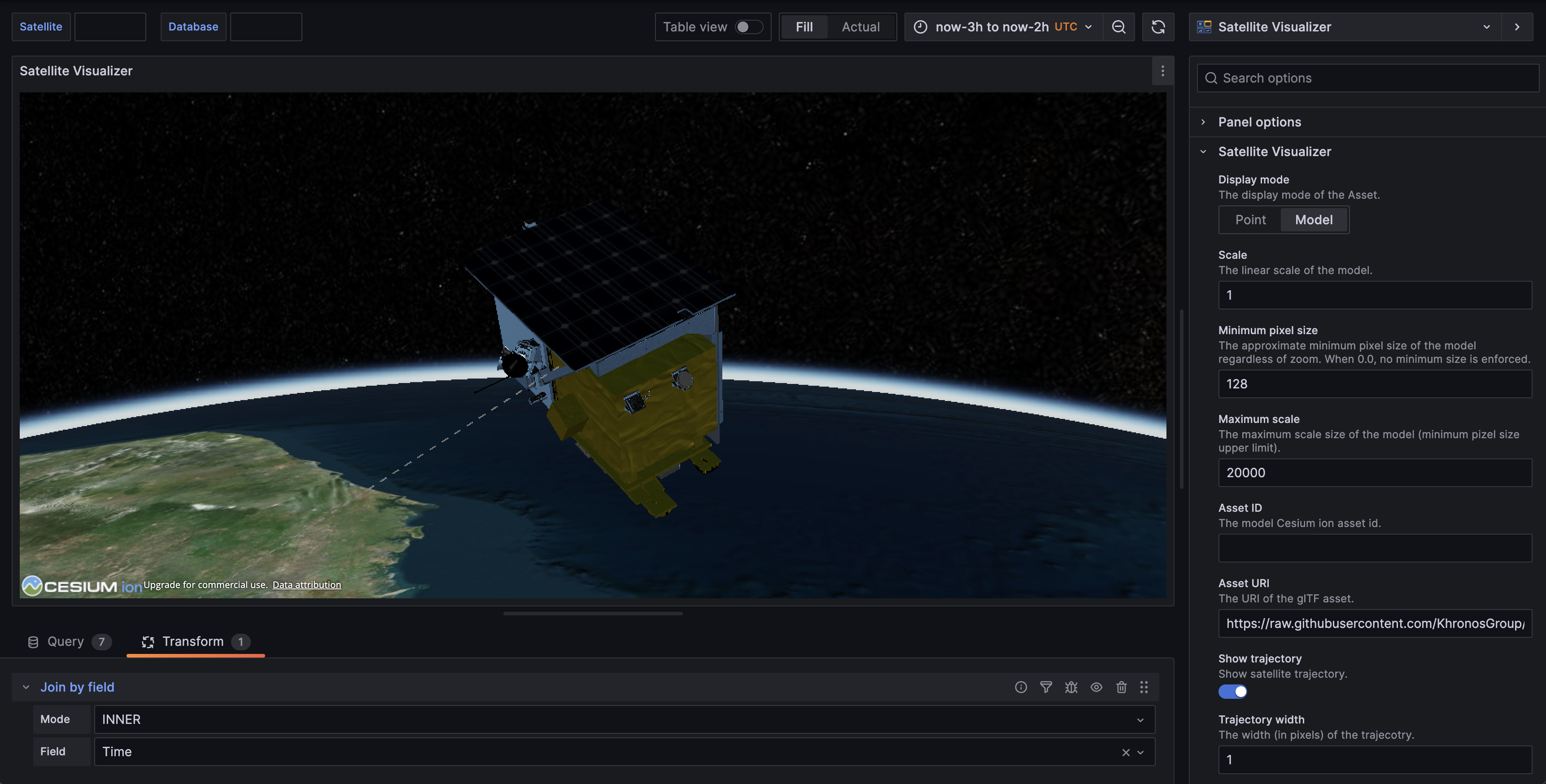

A satellite visualization panel plugin for Grafana based on CesiumJS.

Settings

  1. Set Access token with a Cesium ion access token (security best practices).
  2. (optional) Set Asset ID with ID of the glTF asset stored in Cesium ion.

Data

This plugin needs a data series with 8 columns:

Column #Description
1Time
2Longitude (deg) / x_ECI (m) / x_ECEF (m)
3Latitude (deg) / y_ECI (m) / y_ECEF (m)
4Altitude (m) / z_ECI (m) / z_ECEF (m)
5-8Orientation in inertial frame (x, y, z, s quaternion)

References

Installing Satellite Visualizer on Grafana Cloud:

For more information, visit the docs on plugin installation.

Installing on a local Grafana:

For local instances, plugins are installed and updated via a simple CLI command. Plugins are not updated automatically, however you will be notified when updates are available right within your Grafana.

1. Install the Panel

Use the grafana-cli tool to install Satellite Visualizer from the commandline:

grafana-cli plugins install

The plugin will be installed into your grafana plugins directory; the default is /var/lib/grafana/plugins. More information on the cli tool.

2. Add the Panel to a Dashboard

Installed panels are available immediately in the Dashboards section in your Grafana main menu, and can be added like any other core panel in Grafana.

To see a list of installed panels, click the Plugins item in the main menu. Both core panels and installed panels will appear.

Changelog

1.0.0 (Unreleased)

Initial release.
