Cognite Data Source for Grafana

Grafana datasource for Cognite Data Fusion.


Features

  • Easily create graphs with timeseries from Cognite Data Fusion

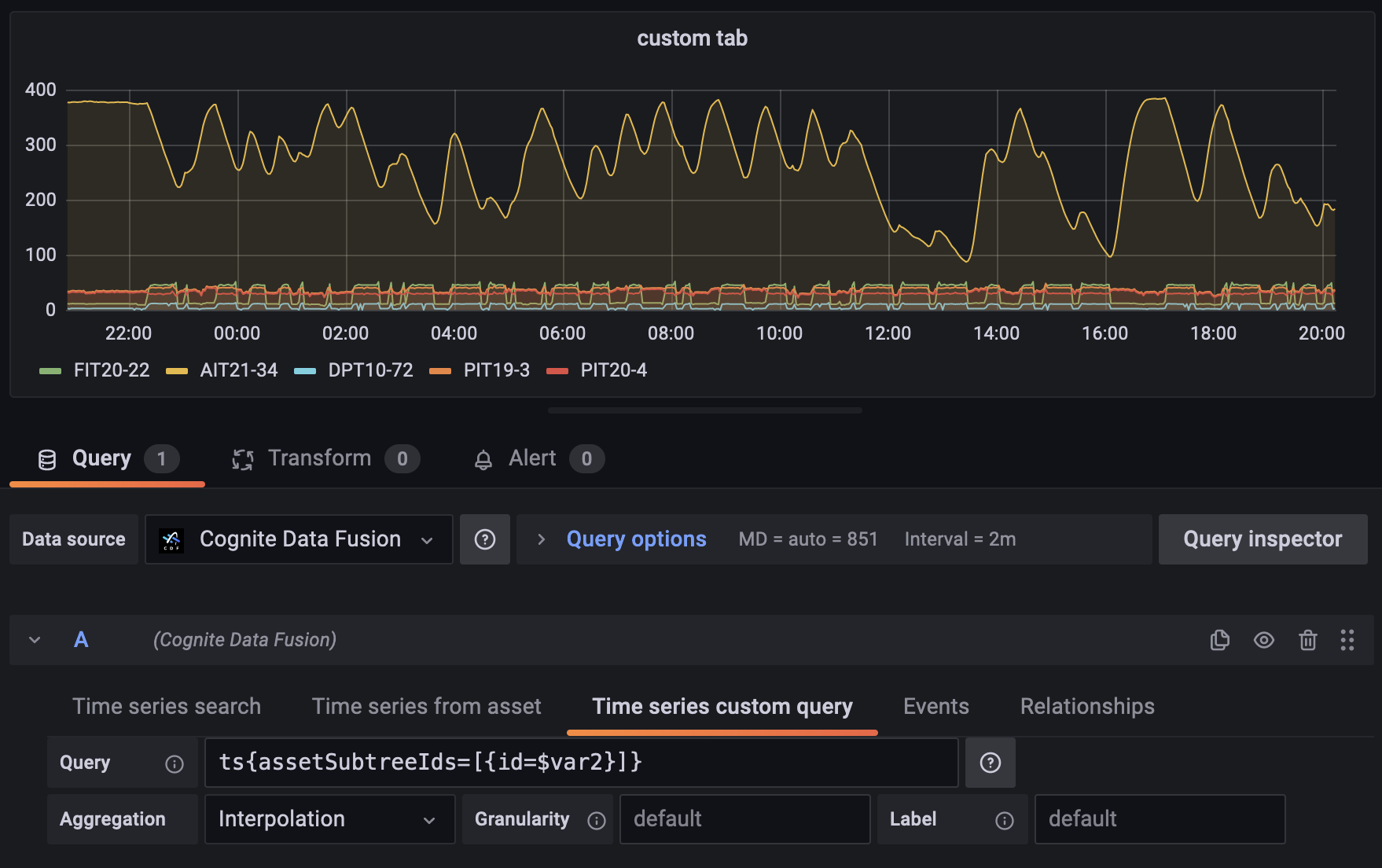

  • Perform custom queries to filter for specific timeseries
  • Use variables to create templated dashboards
  • Add event annotations to graphs
  • Apply custom functions to timeseries

Select Timeseries

Installation

The easiest way to install this plugin is to follow the installation instructions on this page.

Documentation

To learn more about the connector please visit our documentation

Feedback

If you find any bugs, or have any suggestions, please visit support portal.


Developing

The easiest way to work on this datasource is to create a symbolic link in data/plugins that points to this directory.

cd /path/to/grafana/data/plugins
ln -s /path/to/cognite-grafana-datasource cognitedata-datasource

Building

yarn followed by yarn build should work on systems with a shell.

For debugging and development, use yarn dev:watch, and for testing use yarn test.

Docker

The Grafana image is also hosted on Docker Hub as cognite/grafana-cdf or cognite/grafana-cdf-dev and bundled with a Cognite Data Source. You may use it for development and testing purposes only.

To run it, first create a Docker volume to store your dashboards and settings.

docker volume create grafana-storage

Run the Docker image using this volume:

docker run -d --name grafana -p 3000:3000 -v grafana-storage:/var/lib/grafana cognite/grafana-cdf

Now you can access Grafana at http://localhost:3000

Standard username/password for logging in is admin/admin. See http://docs.grafana.org/installation/docker/ for configuration details.

For more help with Docker, see the step-by-step guide.

For more information, visit the docs on plugin installation.

Releases

This article documents the ongoing improvements we're making to the Cognite Data Source for Grafana.

2.4.0 - August 20, 2021

Features

  • OAuth 2.0 client credentials grant flow to authenticate and authorize against CDF.

2.3.0 - June 1, 2021

Features

  • Ability to link variables so that the value of one variable can be used as an input to another.

2.2.0 - April 6, 2021

Features

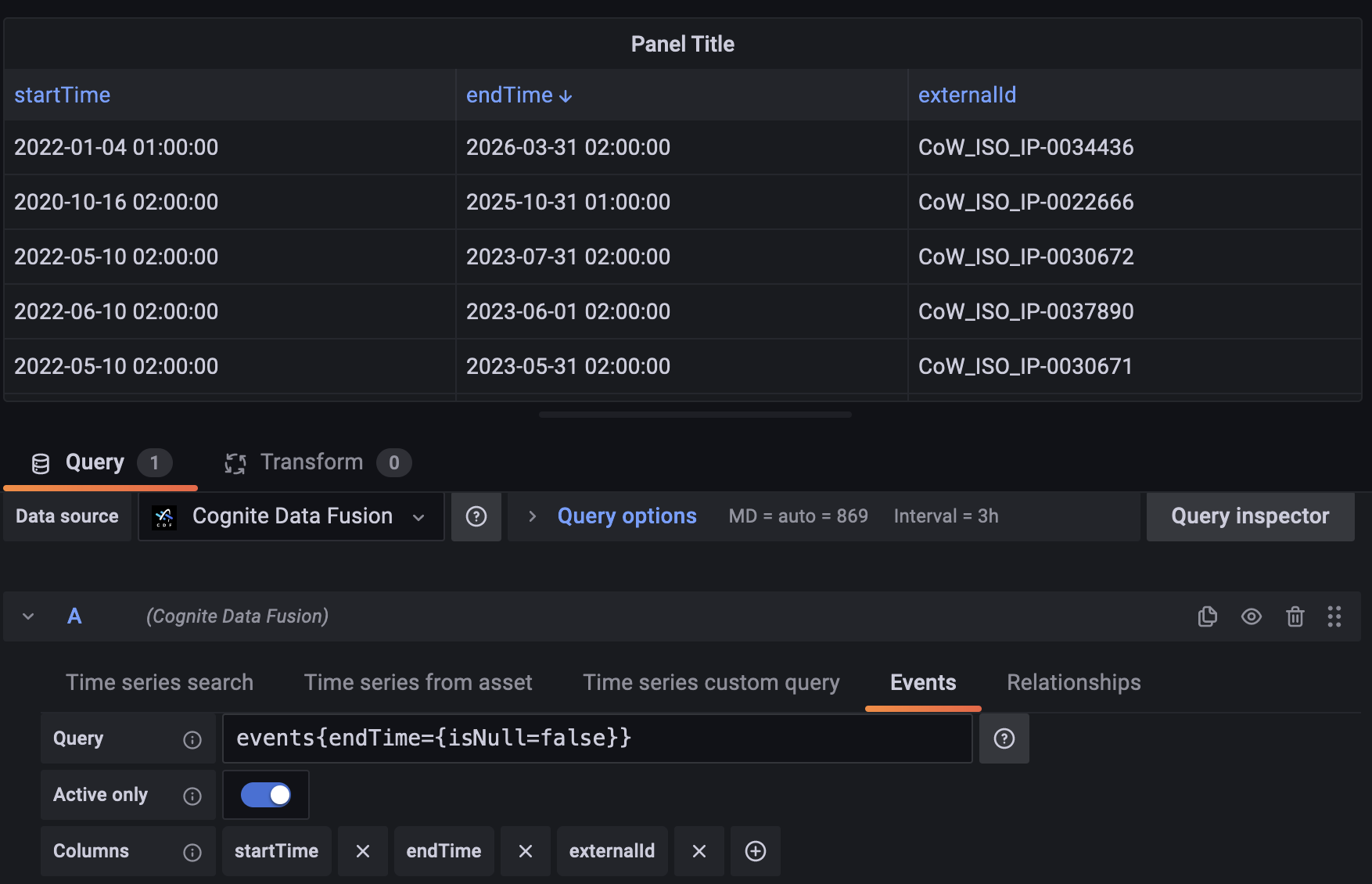

  • Tabular representation of events data.
  • Event annotation query shows unfinished events by default.
  • Support for OAuth authentication with CDF.
  • Option to fetch only the latest data point for the time series.

2.1.1 - November 23, 2020

Bug fixes:

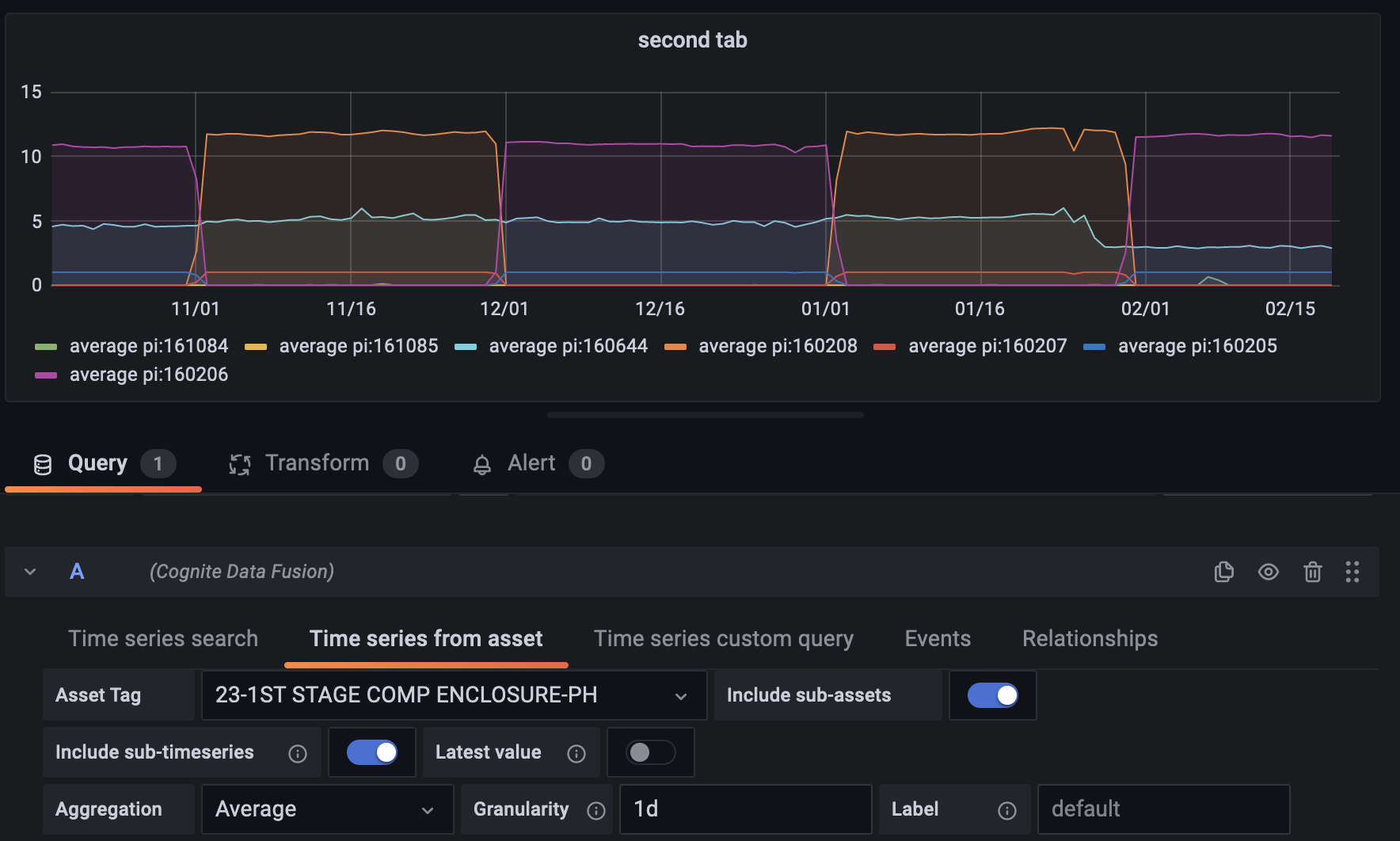

  • Support variables in time series by asset query. In version 2.1.0 $variable used as an Asset tag worked for earlier created dashboards, but it was impossible to create a new panel with the same capability.

2.1.0 - November 19, 2020

  • The data source requires Grafana version 7.0.6 or above.
  • Time series are now saved to dashboards by their externalId where possible. This allows you to switch between CDF projects that contain time series with matching externalIds.
  • Support for synthetic time series alignment.
  • Rewrote data source GUI to React.
  • Updated CDF logo to match light/dark theme.

2.0.1 - August 25, 2020

Bug fixes:

  • [Custom query] Option to display legend label as a plain text instead of expression

    Example for query: ts{id=1} + ts{id=2} + 1:

    • User label custom name results in custom name label. (No specific timeseries referenced in the label)
    • User label {{name}} results in timeseries_name_1 + timeseries_name_2 + 1 label. (This works the same way as before)
  • [Custom query] Improved error handling

    • HTTP 500 errors messages are visible from the GUI
  • [Custom query] Default granularity falls back to 1 second if shorter value is provided

    • Previously, selecting a time span less than 10 minutes resulted in a HTTP 400 error.

2.0.0 - June 29, 2020

General improvements

  • A new query language inspired by PromQL and compatible with synthetic time series in CDF. Learn more.
  • Support for all filtering capabilities available in CDF API v1 for the respective resource types (assets, events, times series).
  • Any future filtering capabilities added to CDF API v1 will be automatically supported by the data source (filters are passed directly to CDF).
  • Query expressions resulting in errors now displays error messages in the UI.
  • Regular expressions filtering can be used as part of the Query expression. The Filter field has been removed.
  • Supports CDF API v1, with no dependency to older API versions.
  • New documentation section for the connector, covering installation and administration, upgrades, feature documentation and getting started information.
  • Compatibility with Grafana 7.0. Learn more about the new capabilities here.

Time series and custom queries

  • You can now access time series that don't have the legacyName attribute populated with the data source.
  • Setting Root Asset in the Custom query tab is no longer required. This filter has been removed from the UI and is now available as part of a custom query expression. For example: ts{rootAssetIds=[12335453, 3455566]}.
  • Custom query aggregation requests are less likely to trigger rate limiting in CDF API.
  • Functions:
    • Support for string time series through the new map function allows you to convert string values to numeric values which can then be plotted by Grafana. For example: map(ts{externalId='pump_29'}, ['OPEN', 'CLOSED'], [1, 0], -1).
    • Use the on_error function to gain control over query calculations resolving with errors, such as division by 0. The function allows you to set a default value for individual data points that resolved with errors. Without the on_error function, the chart shows empty space in those places. Example: on_error(1/ts{externalId='canBeZero'}, 0).
    • Variable length functions: max(x1, x2, ...), min(...), avg(...).
    • The power function has been renamed to pow.
    • These functions are no longer supported: acos, asin, atan, ceil, celing, cot, degrees, floor, log, log2, log10, radians, sign, tan, atan2, mod, truncate, rand, crc32, conv, div.
  • These aggregates are no longer supported by custom queries: max, min, count, sum, continuousVariance, discreteVariance, totalVariation.
  • Short names for aggregation functions are no longer supported. Use full names instead: average, interpolation, stepInterpolation.
  • The timeseries{options} function has been renamed to ts{options}.
  • Filtering:
    • New options:isString=false, externalId='my_id', id=123, externalIdPrefix='my_'
    • Relate to asset tree with: assetSubtreeIds=[{id=754173880412890},{externalId="23-TE-96148"}], assetIds=[123, 234], assetExternalIds=['pump_1', 'pump_2'], rootAssetIds=[123, 234]
    • New range filters for create and updated time: createdTime={min=0, max= 1593018651}, lastUpdatedTime={min=1493018651, max= 1593018651}
    • Select time series based on dataSet membership: dataSetIds=[{externalId='Prediction Model A'},{id=123}]
    • path is no longer supported
    • See the full list of supported filters for the ts{} expression.

Annotations

  • New filters: assetExternalIds, rootAssetIds, dataSetIds, externalIdPrefix, source.
  • Find active events in range with the activeAtTime filter. If endTime is null, the event is active from startTime onwards. The activeAtTime filter will match all events that are active at some point from min to max. Example: activeAtTime={min=1591018651, max= 1593018651}.
  • description supports only regular expression operators =~, !~, and !=.
  • minStartTime/maxStartTime has been replaced by the startTime={min=0, max= 1593018651} filter.
  • minEndTime/maxEndTime has been replaced by the endTime={min=0, max= 1593018651} filter, enabling you to also filter for events without the endTime set: endTime={isNull=true}.
  • minCreatedTime/maxCreatedTime has been replaced by the createdTime={min=0, max= 1593018651} filter.
  • minLastUpdatedTime/maxLastUpdatedTime has been replaced by the lastUpdatedTime={min=0, max= 1593018651} filter.
  • assetSubtrees has been replaced by the assetSubtreeIds=[{id=754173880412890},{externalId="23-TE-96148"}] filter which introduces support for Id/ExternalId input.
  • These filters are no longer supported: sort, dir, limit, offset, sourceId.
  • See the full list of supported filters for the events{} expression.

Templating

  • New filters: parentIds, parentExternalIds, rootIds, dataSetIds, externalIdPrefix, root.
  • The description field supports only regular expression operators =~, !~, and !=.
  • Select assets based on label: labels={contains={externalId="pump"}}, labels={containsAny=[{externalId="pump_type_A"},{externalId="pump_type_B"}]}, labels={containsAll=[{externalId="pump"},{externalId="rust_detected"}]}
  • assetSubtrees replaced by the assetSubtreeIds=[{id=754173880412890},{externalId="23-TE-96148"}] filter which introduces support for Id/ExternalId inputs.
  • minCreatedTime/maxCreatedTime has been replaced by the createdTime={min=0, max= 1593018651} filter.
  • minLastUpdatedTime/maxLastUpdatedTime has been replaced by the lastUpdatedTime={min=1592222651, max= 1593018651} filters.
  • These options are no longer supported: query, sort, dir, offset, boostname, path, depth, sourceId.
  • See the full list of supported filters for the assets{} expression.

Other

The Cognite Data Source for Grafana 2.0.0 is compatible with CDF API v1.

Cognite Data Source for Grafana 2.0.0 is not backward compatible with dashboards created using older versions of the connector. Follow the steps in the upgrade guide to upgrade your existing installation.

1.0.1 - May 27, 2019

  • Rename Cognite Data Platform to Cognite Data Fusion.
  • Allowing for templating variables to be used anywhere in custom queries.
  • Allowing for the base url to be modified when adding a new data source.

Other

The Cognite Data Source for Grafana 1.0.1 is compatible with CDF API 0.5.

1.0.0 - March 26, 2019

  • Fixing templating so that repeated panels/rows work properly.
  • Changing checkboxes to Grafana checkboxes and adding Select All option.
  • Fixing data source configuration to verify the project name.
  • Breaking change: function= inside of timeseries{ ... } no longer works for custom queries. Instead, functions are now applied outside of timeseries{}[] such as:
    • (timeseries{description=~".*TEMP.*"}[avg] - 32) * 5/9
    • sum(timeseries{name=~".*VALUE"}[count,1d])
    • max(timeseries{metadata.on="True"}[count,5m]) - min(timeseries{metadata.on="True"}[count,5m])

Other

The Cognite Data Source for Grafana 1.0.0 is compatible with CDF API 0.5
