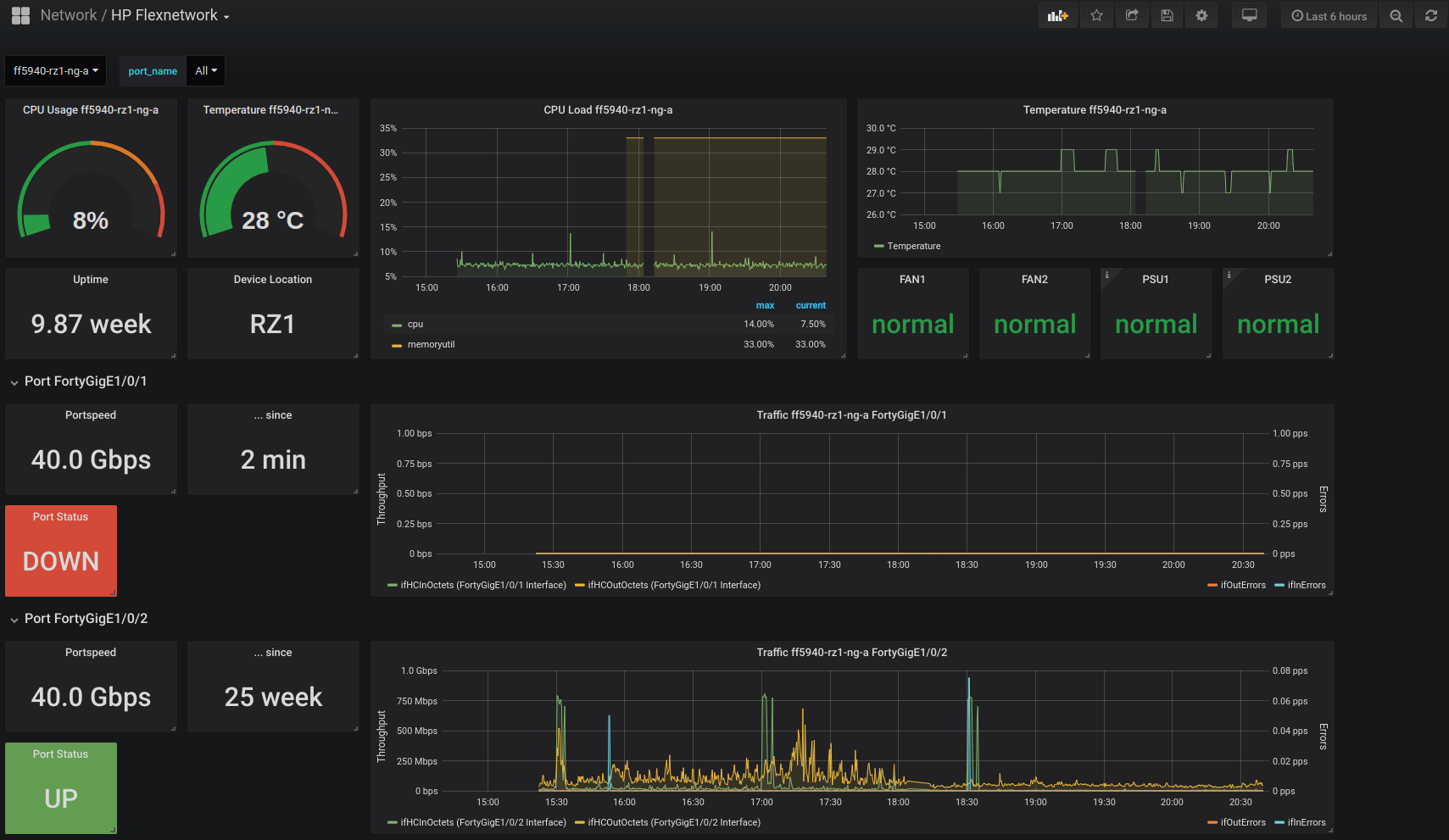

If you think HPE IMC is too slow and ugly, pull you stats to InfluxDB and visualise with Grafana.
You need a Telegraf as Collector with the above Config, as well as SNMP Read access to the Switch you want to pull Metrics from.
Collector Configuration Details
[[inputs.snmp]]
agents = [ "snmpagent1",
"snmpagent2"
]
version = 2
community = "public"
[[inputs.snmp.field]]
name = "sysName"
oid = "SNMPv2-MIB::sysName.0"
is_tag = true
[[inputs.snmp.field]]
name = "sysLocation"
oid = "SNMPv2-MIB::sysLocation.0"
[[inputs.snmp.field]]
name = "uptime"
oid = "DISMAN-EVENT-MIB::sysUpTimeInstance"
[[inputs.snmp.field]]
name = "tempc"
oid = "SNMPv2-SMI::enterprises.25506.2.6.1.1.1.1.12.212"
[[inputs.snmp.field]]
name = "tempc"
oid = "SNMPv2-SMI::enterprises.25506.2.6.1.1.1.1.12.192"
[[inputs.snmp.field]]
name = "cpu"
oid = ".1.3.6.1.4.1.25506.2.6.1.1.1.1.6.212"
[[inputs.snmp.field]]
name = "cpu"
oid = ".1.3.6.1.4.1.25506.2.6.1.1.1.1.6.192"
[[inputs.snmp.field]]
name = "fan1"
oid = "SNMPv2-SMI::enterprises.25506.2.6.1.1.1.1.19.198"
[[inputs.snmp.field]]
name = "fan2"
oid = "SNMPv2-SMI::enterprises.25506.2.6.1.1.1.1.19.199"
[[inputs.snmp.field]]
name = "fan1"
oid = "SNMPv2-SMI::enterprises.25506.2.6.1.1.1.1.19.216"
[[inputs.snmp.field]]
name = "fan2"
oid = "SNMPv2-SMI::enterprises.25506.2.6.1.1.1.1.19.217"
#fn
[[inputs.snmp.field]]
name = "psu1"
oid = "SNMPv2-SMI::enterprises.25506.2.6.1.1.1.1.19.213"
[[inputs.snmp.field]]
name = "psu2"
oid = "SNMPv2-SMI::enterprises.25506.2.6.1.1.1.1.19.214"
#ff
[[inputs.snmp.field]]
name = "psu1"
oid = "SNMPv2-SMI::enterprises.25506.2.6.1.1.1.1.19.193"
[[inputs.snmp.field]]
name = "psu2"
oid = "SNMPv2-SMI::enterprises.25506.2.6.1.1.1.1.19.194"
#fn
[[inputs.snmp.field]]
name = "ffmemory"
oid = "SNMPv2-SMI::enterprises.25506.2.6.1.1.1.1.8.212"
#ff
[[inputs.snmp.field]]
name = "ffmemory"
oid = "SNMPv2-SMI::enterprises.25506.2.6.1.1.1.1.8.192"
[[inputs.snmp.table]]
name = "interface"
inherit_tags = [ "sysName" ]
[[inputs.snmp.table.field]]
oid = "IF-MIB::ifHCInOctets"
[[inputs.snmp.table.field]]
oid = "IF-MIB::ifHCOutOctets"
[[inputs.snmp.table.field]]
oid = "IF-MIB::ifDescr"
is_tag = true
[[inputs.snmp.table.field]]
oid = "IF-MIB::ifAlias"
is_tag = true
[[inputs.snmp.table.field]]
oid = "IF-MIB::ifHighSpeed"
[[inputs.snmp.table.field]]
oid = "IF-MIB::ifOperStatus"
[[inputs.snmp.table.field]]
oid = "IF-MIB::ifLastChange"
[[inputs.snmp.table.field]]
oid = "IF-MIB::ifInErrors"
[[inputs.snmp.table.field]]
oid = "IF-MIB::ifOutErrors"
