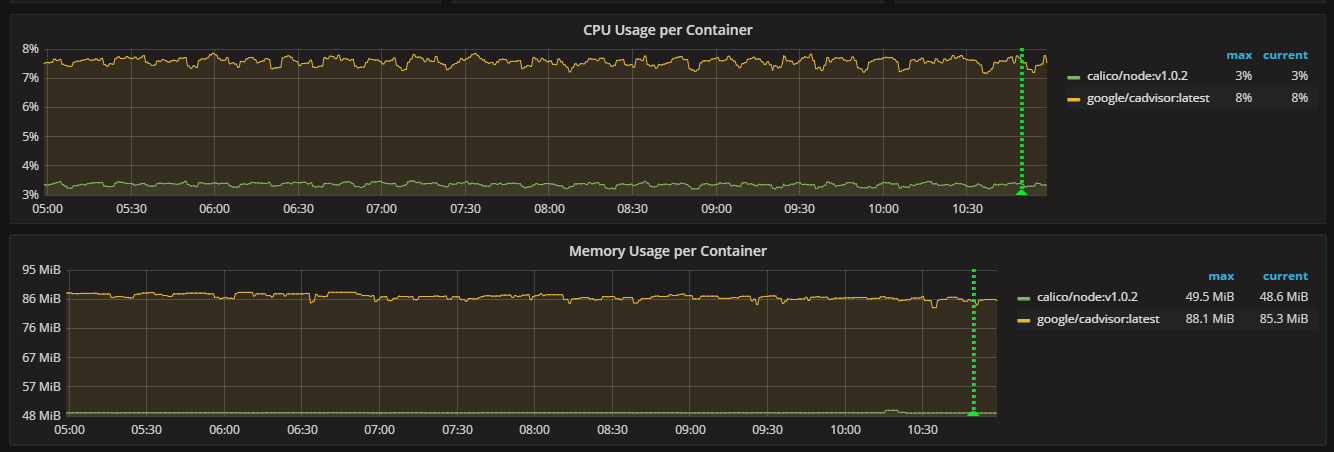

Docker and Container Stats
prometheus

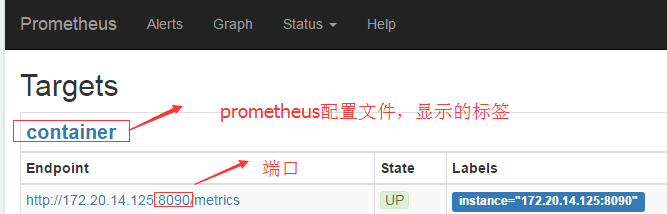

需要对模板就行修改，在设置—templating 点击，修改label_values(up{job=“container”}, instance)，其中注意修改container，它是在prometheus里面的标签，cadvisor端口为8090
docker run
–volume=/:/rootfs:ro
–volume=/var/run:/var/run:rw
–volume=/sys:/sys:ro
–volume=/var/lib/docker/:/data/docker:ro
-p 8090:8080
–detach=true
–name=cadvisor
google/cadvisor:latest
-storage_driver=influxdb
-storage_driver_db=cadvisor

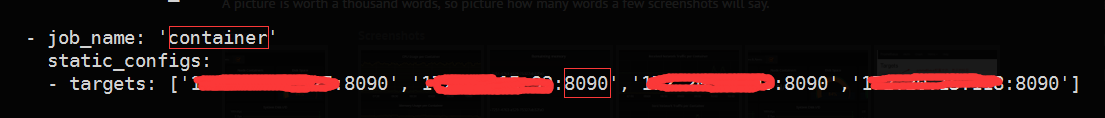

在prometheus.yml文件文件添加；根据实际情况修改ip
- job_name: ‘container’
static_configs:
- targets: [‘182.20.14.2:8090’,‘182.20.15.3:8090’,‘182.20.15.4:8090’,‘182.20.15.5:8090’]
Data source config
Collector type:
Collector plugins:
Collector config:
