Alloy Modular Pipeline Demo

Alloy Configuration Template Dashboard

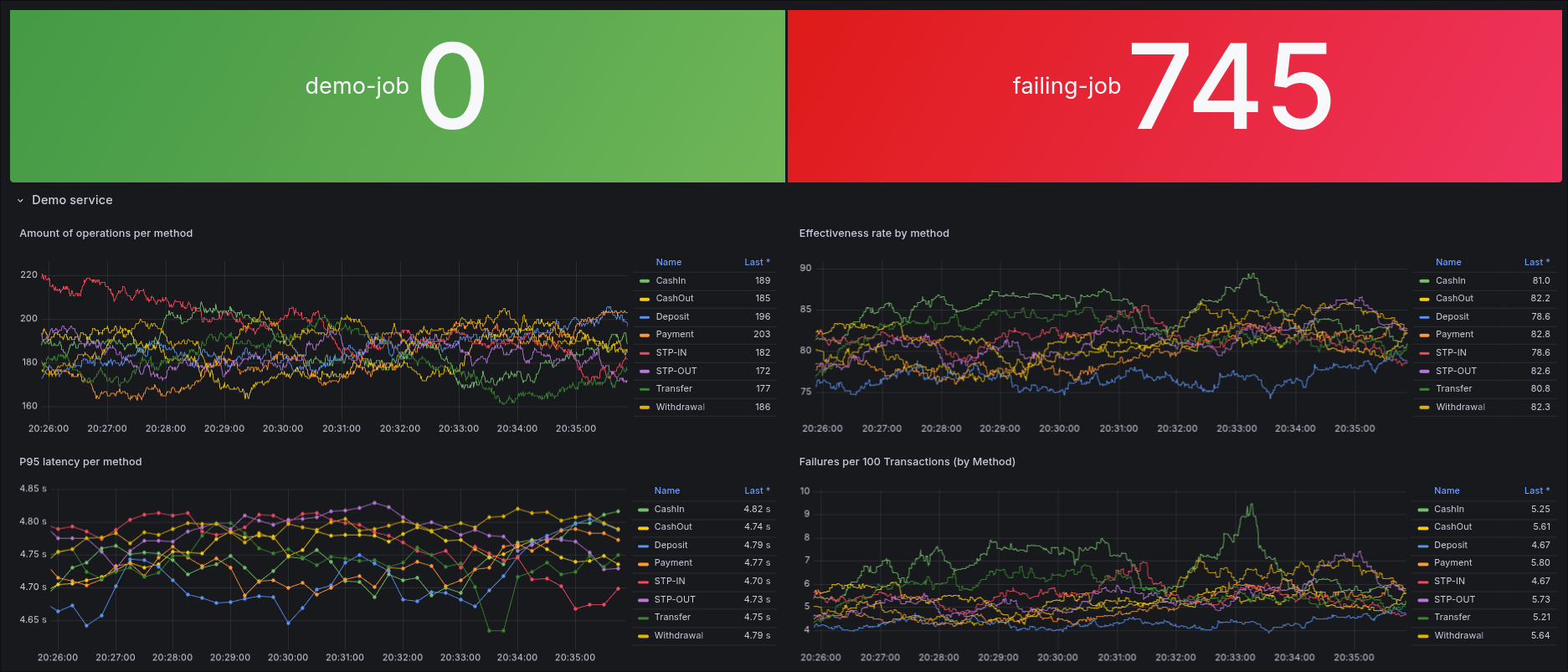

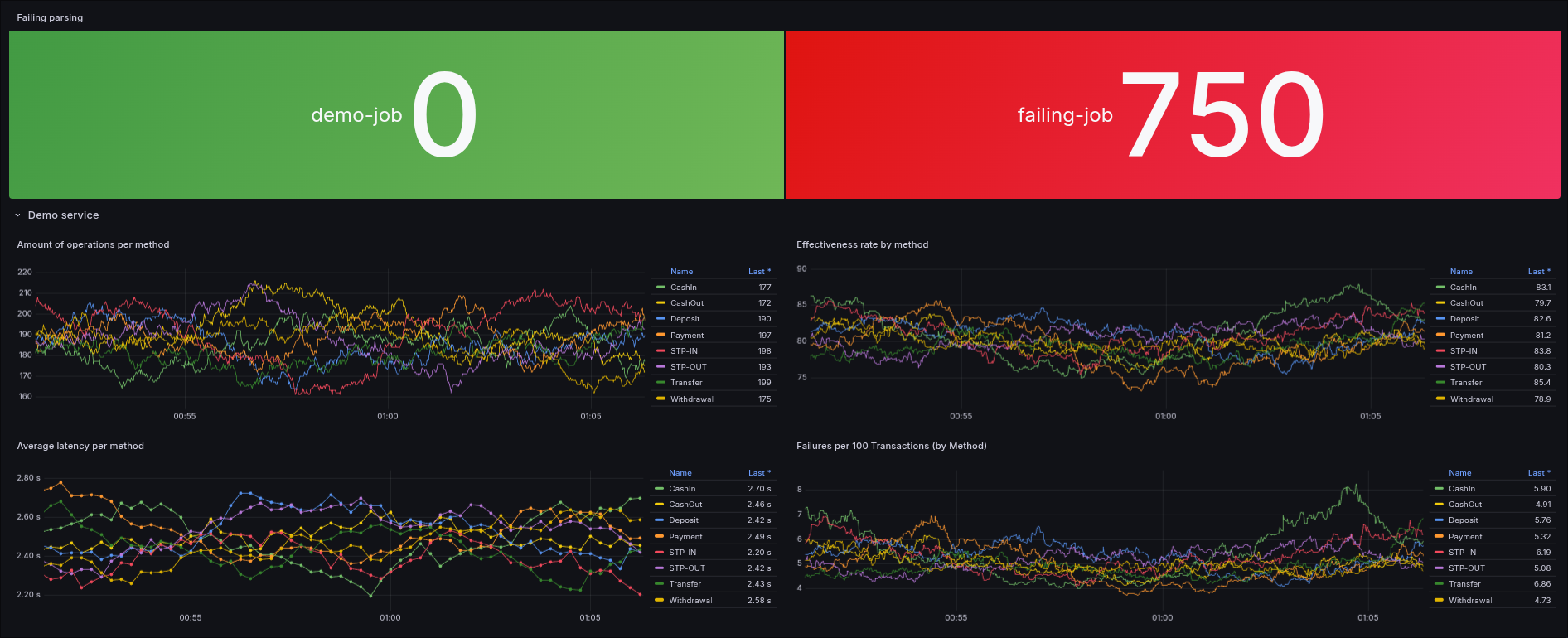

This dashboard serves as a visualization layer for the Grafana Alloy Modular Configuration POC. It is designed to demonstrate the real-time processing, parsing, and metric generation capabilities of Grafana Alloy using modular pipelines.

Data Collection & Pipeline

The pipeline implements a fail-first validation pattern to ensure visibility into log processing health.

1. Ingestion

Logs are generated by a Python script in two distinct pipe-delimited formats to simulate inconsistent log sources:

• Format 1: date|start_time|end_time|latency_ms|method|detail|status|code
• Format 2: |date|start_time|end_time|latency_ms|method|detail|status|code|

2. Processing (Grafana Alloy)

The configuration uses a modular approach, importing specialized pipeline components (template.alloy and failing.alloy) into a main config.alloy file. The processing stages include:

• Multi-Format Parsing: Using stage.regex to handle both standard and wrapped pipe-delimited formats.
• Dynamic Labeling: Extracting fields like method, status, and status_code into Loki labels for efficient querying.
• Validation: Every log starts with parse_status="failed". Only if the regex successfully extracts a method value is the label updated to parse_status="success".

3. Metric Generation

The dashboard visualizes Prometheus metrics generated directly from the log stream:

• Transaction Latency: A histogram metric named transaction_latency is created from the extracted latency data.
• Metric Prefix: All generated metrics use the template_ prefix for easy discovery.

Project Repository

This dashboard is part of a larger Proof of Concept demonstrating modular Alloy configuration architectures. The full source code, including the log generator, pipeline configurations, and the Docker Compose infrastructure, can be found here:

https://github.com/m0r4a/alloy-config-demo

Disclaimer

Do not use this dashboard for production environments.

This configuration is intended solely for educational and demonstration purposes to validate specific parsing logic and modular import patterns in Grafana Alloy. It lacks the necessary security hardening and high availability required for production monitoring.
