sFlow-RT IXP Member Traffic Top N
Internet eXchange Provider member to member traffic
sFlow-RT IXP Member to Member Traffic

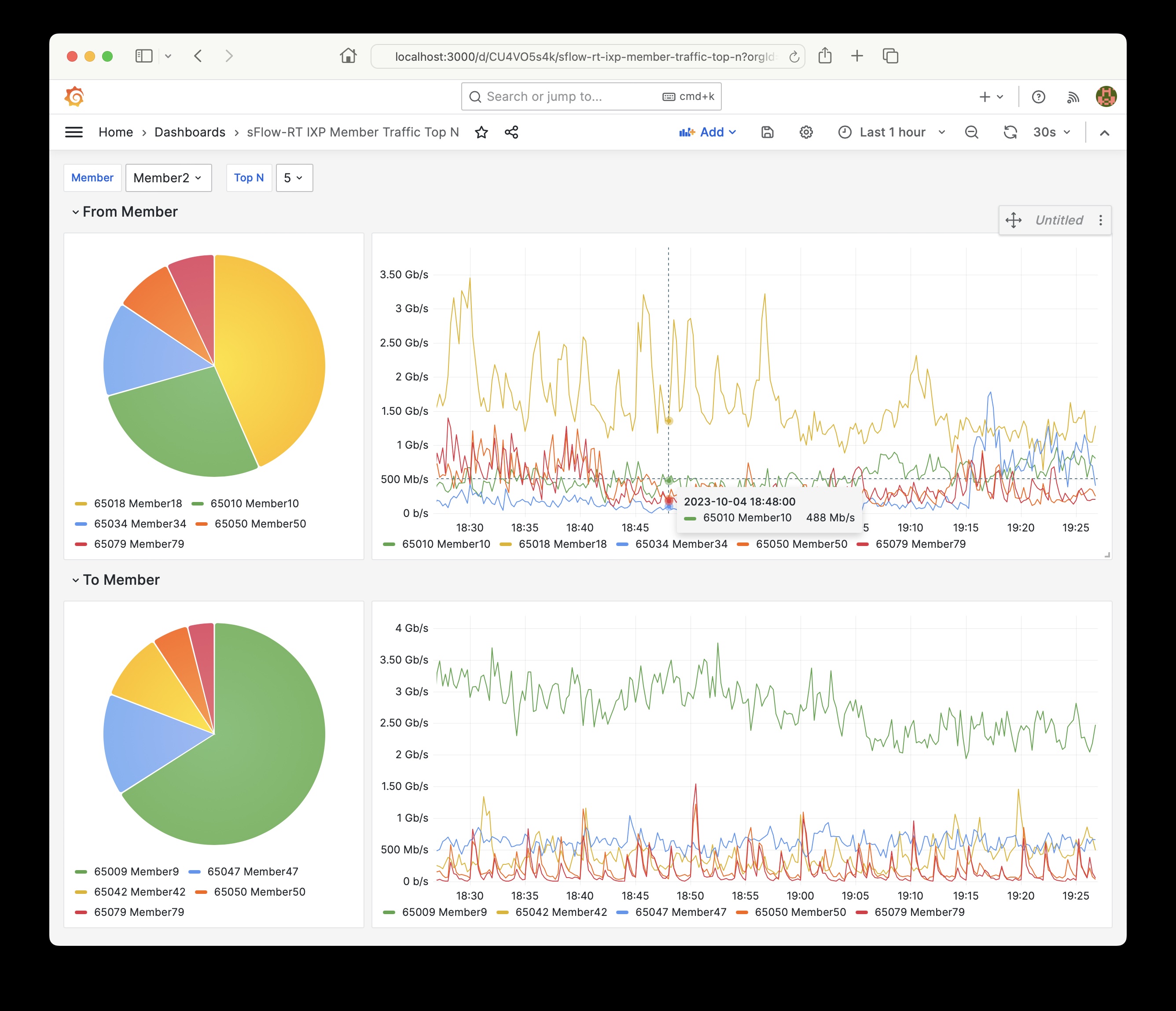

This dashboard trends Internet eXchange Provider (IXP) member to member traffic reported by sFlow-RT analyzer running the ixp-metrics application. The sFlow-RT analysis software collects streaming telemetry from industry standard sFlow Agents embedded in network devices.
Use the sflow/ixp-metrics image to run sFlow-RT using Docker:
docker run -v $PWD/store:/sflow-rt/store/ -p 8008:8008 -p 6343:6343/udp sflow/ixp-metricsUse the following Prometheus scrape configuration to collect the metrics from sFlow-RT:
scrape_configs:
- job_name: sflow-rt-ixp-metrics
metrics_path: /app/ixp-metrics/scripts/metrics.js/prometheus/txt
static_configs:
- targets: ['sflow-rt.mysite.org:8008']Data source config
Collector type:
Collector plugins:
Collector config:
