Linux Overview With Telegraf

Dashboard

Metric view designed for a single system since some graphs overlay multiple queries.
Last updated: 9 hours ago

Start with Grafana Cloud and the new FREE tier. Includes 10K series Prometheus or Graphite Metrics and 50gb Loki Logs

Downloads: 1

Reviews: 0

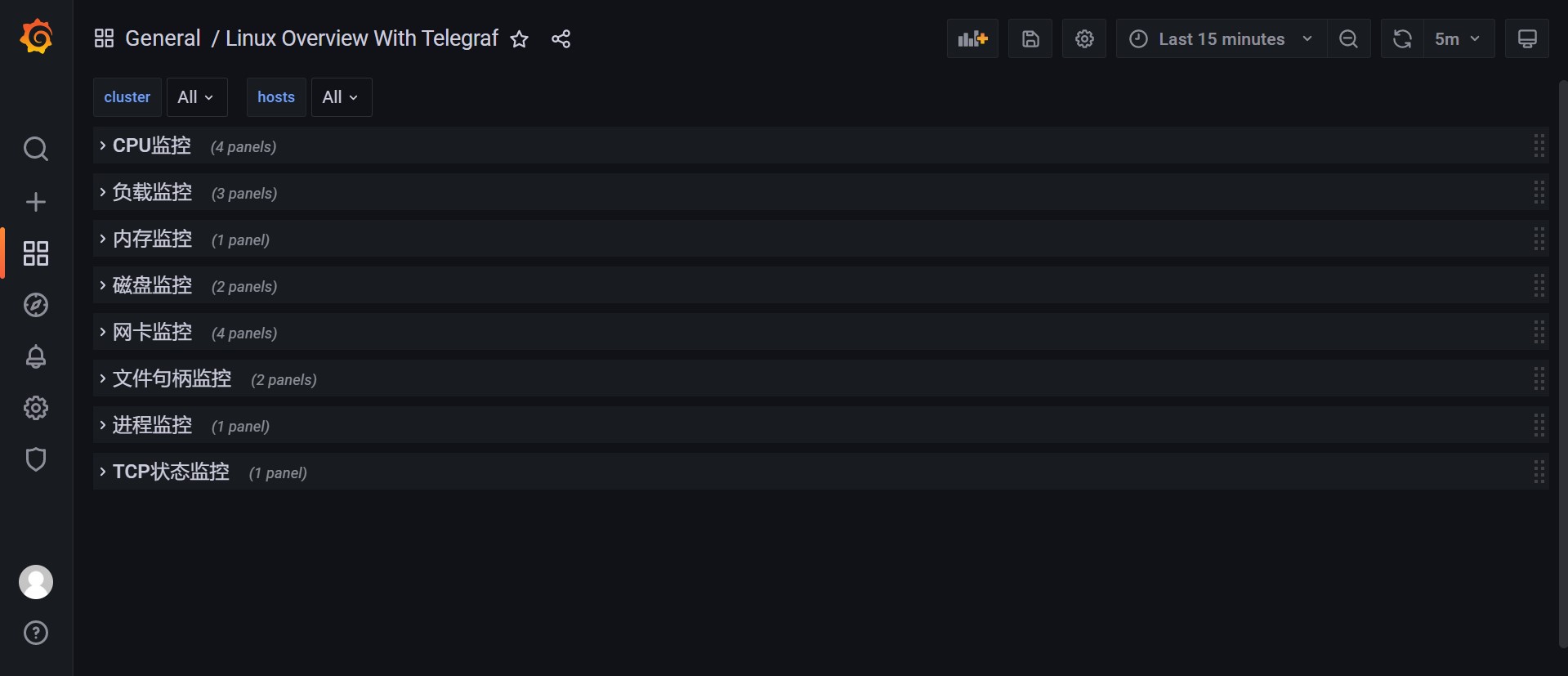

  • 概览.jpg

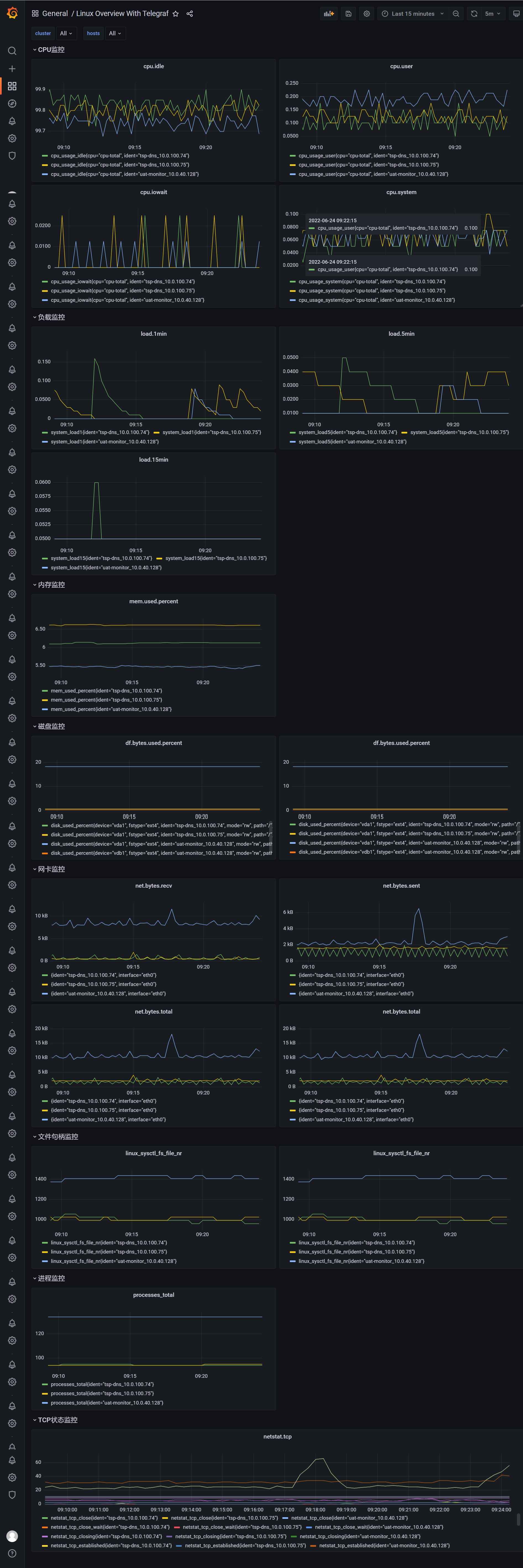

  • 详情_.jpg

telegraf ---> n9e server ---> prometheus ---> grafana

Include metric

  • Cpu
  • Load
  • Memory
  • Disk
  • Network
  • Fd
  • Process
  • Tcp Status

Collector Configuration Details

telegraf.conf

[global_tags]

[agent]
  interval = "10s"
  round_interval = true
  metric_batch_size = 1000
  metric_buffer_limit = 10000
  collection_jitter = "0s"
  flush_interval = "10s"
  flush_jitter = "0s"
  precision = ""
  hostname = "your ip address or endpoint name"
  omit_hostname = false
  logfile = "/data/apps/telegraf/var/log/telegraf/telegraf.log"

[[outputs.opentsdb]]
  host = "http://10.0.40.128" # n9e-server
  port = 19000
  http_batch_size = 50
  http_path = "/opentsdb/put"
  debug = false
  separator = "_"

[[inputs.cpu]]
  percpu = true
  totalcpu = true
  collect_cpu_time = false
  report_active = true

[[inputs.disk]]
  ignore_fs = ["tmpfs", "devtmpfs", "devfs", "iso9660", "overlay", "aufs", "squashfs"]

[[inputs.diskio]]

[[inputs.kernel]]

[[inputs.mem]]

[[inputs.processes]]

[[inputs.system]]
  fielddrop = ["uptime_format"]

[[inputs.net]]
  ignore_protocol_stats = true

[[inputs.linux_sysctl_fs]]

[[inputs.netstat]]
Get this dashboard:
16499
Dependencies:
