VPA Recommendations

A dashboard to visualize metrics about the Vertical Pod Autoscalar (https://github.com/kubernetes/autoscaler/tree/master/vertical-pod-autoscaler) using the generated Prometheus metrics of the Kube-State-Metrics (https://github.com/kubernetes/kube-state-metrics/blob/master/docs/verticalpodautoscaler-metrics.md)

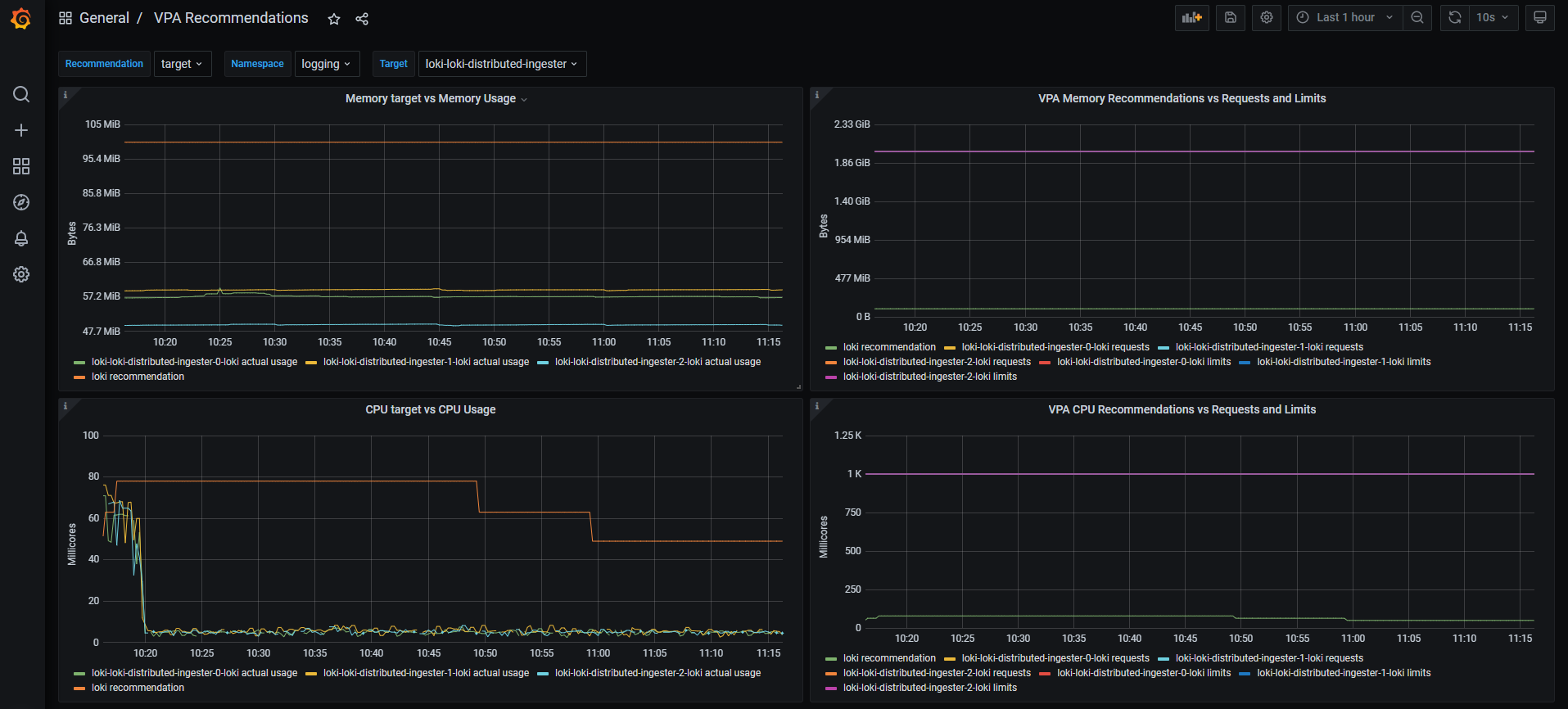

VPA Recommendations screenshot 1

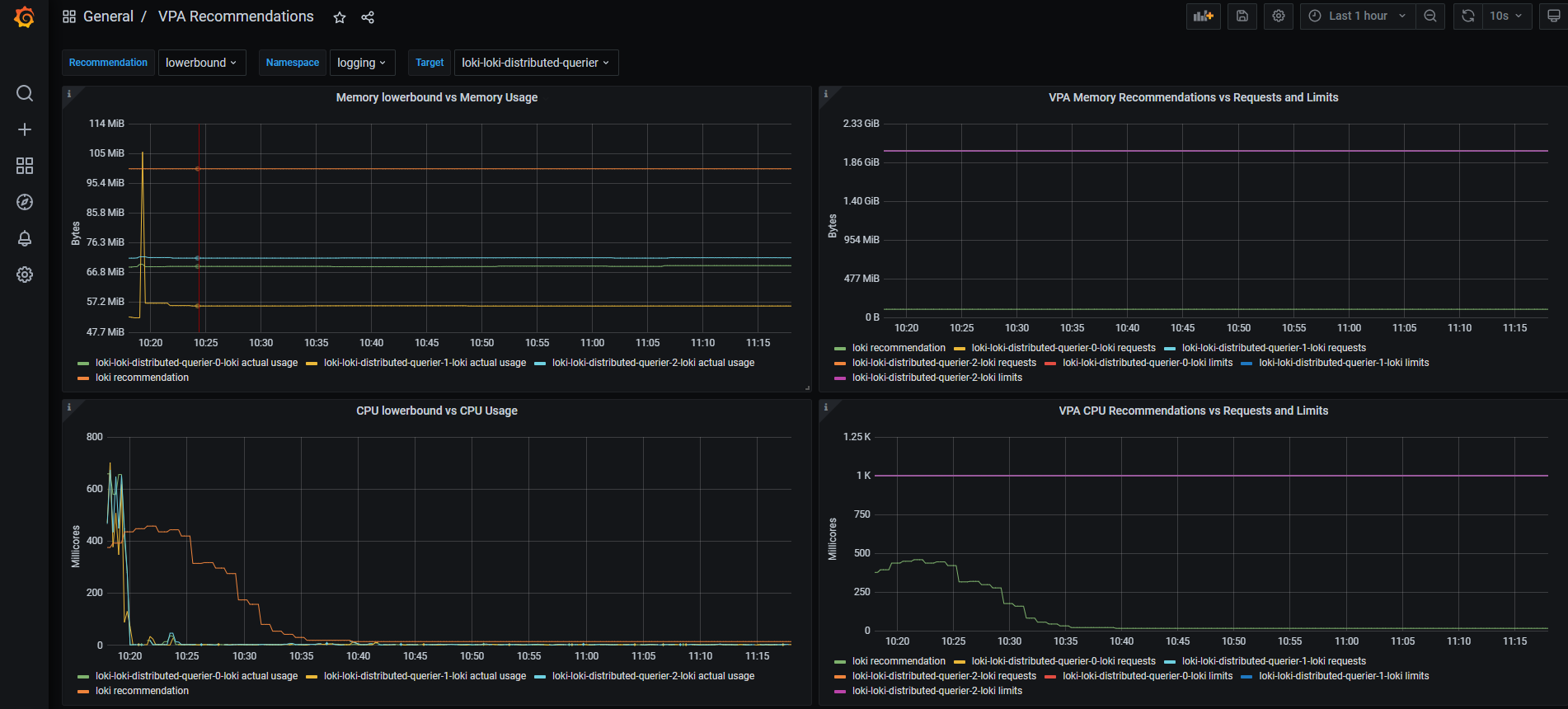

VPA Recommendations screenshot 2

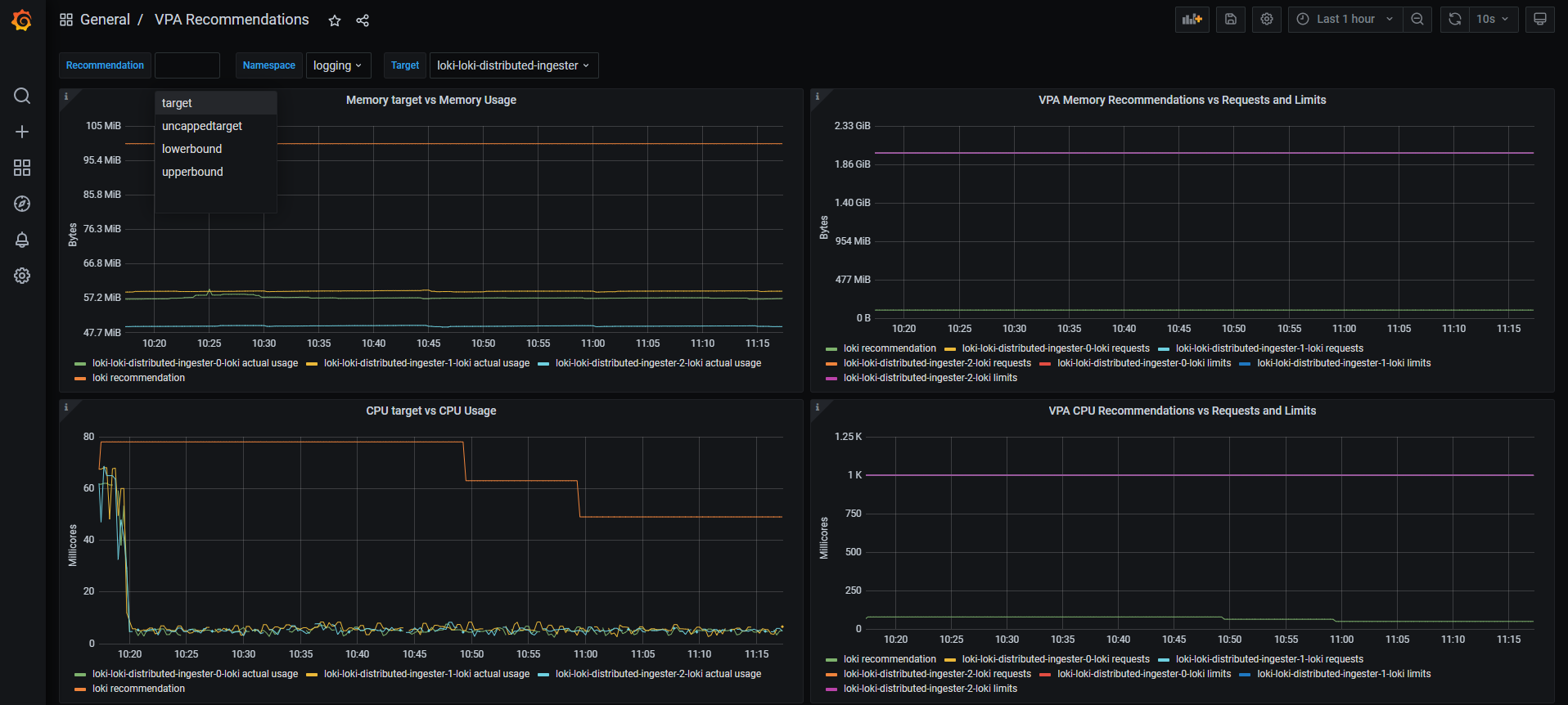

VPA Recommendations screenshot 3

What’s it all about?

A dashboard to visualize metrics about the Vertical Pod Autoscalar (https://github.com/kubernetes/autoscaler/tree/master/vertical-pod-autoscaler) using the generated Prometheus metrics of the Kube-State-Metrics (https://github.com/kubernetes/kube-state-metrics/blob/master/docs/verticalpodautoscaler-metrics.md)

What do I need as a perquisite?

  • Prometheus installed => ultimately using the kube-prometheus stack (https://github.com/prometheus-community/helm-charts/tree/main/charts/kube-prometheus-stack)
  • VPA Installed and at least one VerticalPodAutoscalar CRD is configured against a certain target (check the documentation of the VPA for more info)
  • Optionally: VPA is using Prometheus as a historical query backend to monitor changes over time.
  • The kube-state-metrics MUST be configured to enable Vertical Pod Autoscalar metrics. Example for the Helm Chart above:
yaml
kube-state-metrics:
  rbac:
    extraRules:
      - apiGroups: ["autoscaling.k8s.io"]
        resources: ["verticalpodautoscalers"]
        verbs: ["list", "watch"]
  prometheus:
    monitor:
      enabled: true
  # https://github.com/kubernetes/kube-state-metrics/blob/main/docs/customresourcestate-metrics.md#verticalpodautoscaler
  # https://github.com/kubernetes/kube-state-metrics/issues/2041#issuecomment-1614327806
  customResourceState:
    enabled: true
    config:
      kind: CustomResourceStateMetrics
      spec:
        resources:
          - groupVersionKind:
              group: autoscaling.k8s.io
              kind: "VerticalPodAutoscaler"
              version: "v1"
            labelsFromPath:
              verticalpodautoscaler: [metadata, name]
              namespace: [metadata, namespace]
              target_api_version: [apiVersion]
              target_kind: [spec, targetRef, kind]
              target_name: [spec, targetRef, name]
            metrics:
              - name: "vpa_containerrecommendations_target"
                help: "VPA container recommendations for memory."
                each:
                  type: Gauge
                  gauge:
                    path: [status, recommendation, containerRecommendations]
                    valueFrom: [target, memory]
                    labelsFromPath:
                      container: [containerName]
                commonLabels:
                  resource: "memory"
                  unit: "byte"
              - name: "vpa_containerrecommendations_target"
                help: "VPA container recommendations for cpu."
                each:
                  type: Gauge
                  gauge:
                    path: [status, recommendation, containerRecommendations]
                    valueFrom: [target, cpu]
                    labelsFromPath:
                      container: [containerName]
                commonLabels:
                  resource: "cpu"
                  unit: "core"
  selfMonitor:
    enabled: true

My installation & configurations for the VPA

I am using the Helm chart at https://github.com/FairwindsOps/charts/tree/master/stable/vpa for the installing the VPA. There are other ways to do so. Just thought of sharing my values.yml for customizing this chart as the Prometheus part wasn’t that trivial. You can check my GitHub Gist here https://gist.github.com/sherifkayad/1b4e4df408e1be357168a38e1980b9a5
