SolidFire Overutilized Volumes (DEPRECATED)
NetApp SolidFire Overutilized Volume powered by https://github.com/mjavier2k/solidfire-exporter
DEPRECATED - NetApp SolidFire Overutilized Volumes
This dashboard is no longer maintained and will only work with versions v0.5.2 or earlier of solidfire-exporter

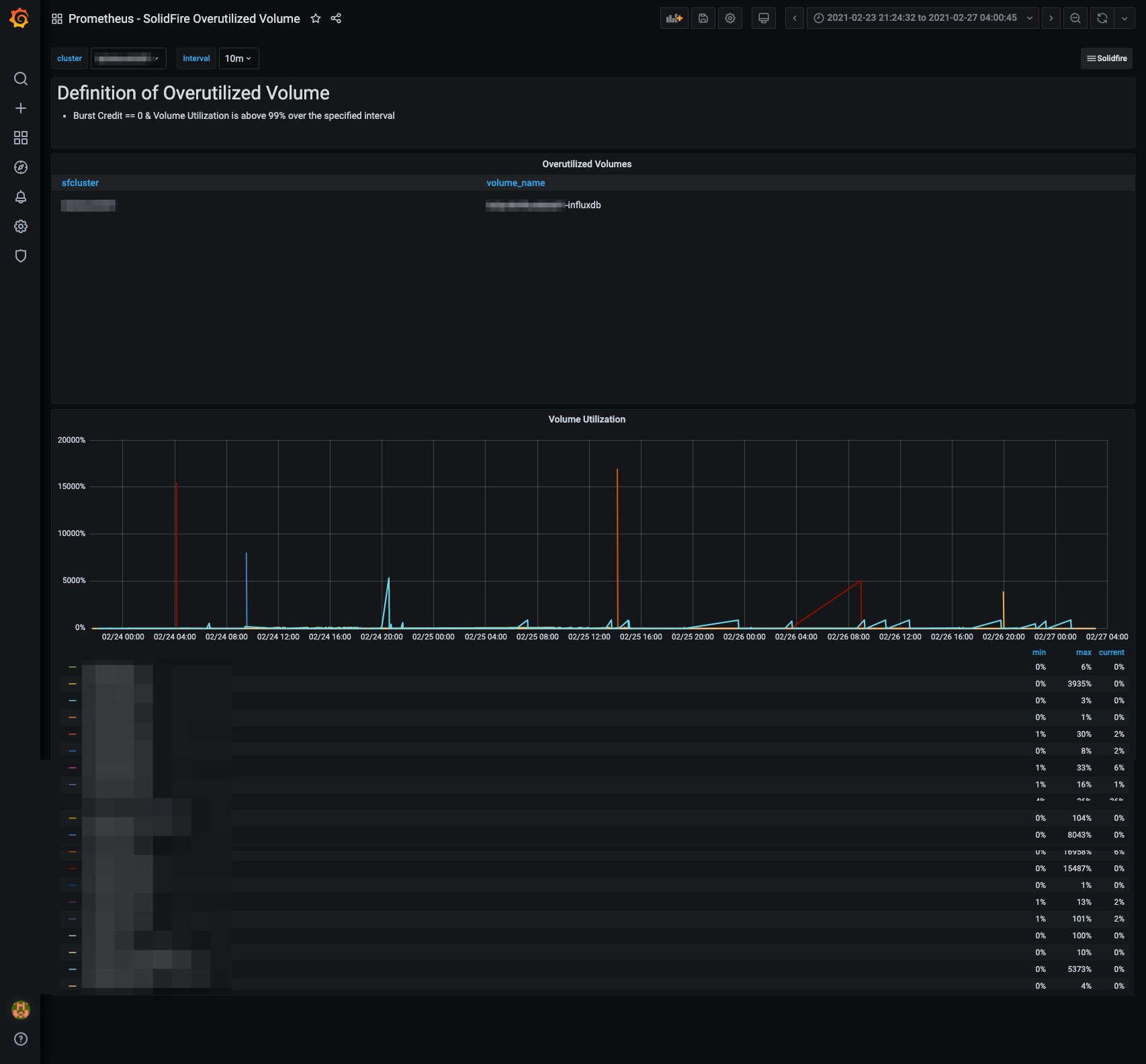

The over-utilized volume dashboard contains information for debugging volumes that are over-utilized (i.e. going over their allocated burst capacity.
See also:
- SolidFire Cluster Overview
- SolidFire Volume Details
- SolidFire Node Details
- SolidFire TopK Volumes
- SolidFire Overutilized Volume
The sfcluster label is required for the dashboard to work properly - be sure to add it in your Prometheus scrape config:
- job_name: solidfire_exporter
honor_timestamps: true
scrape_interval: 30s
scrape_timeout: 20s
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- localhost:9987
labels:
sfcluster: sfcluster01
Data source config
Collector type:
Collector plugins:
Collector config:
Revisions
Upload an updated version of an exported dashboard.json file from Grafana
| Revision | Description | Created | |
|---|---|---|---|
| Download |
