Netdata: MySQL Overview
Detailed stats for MySQL (queries, cache, buffers, etc)
About dashboard

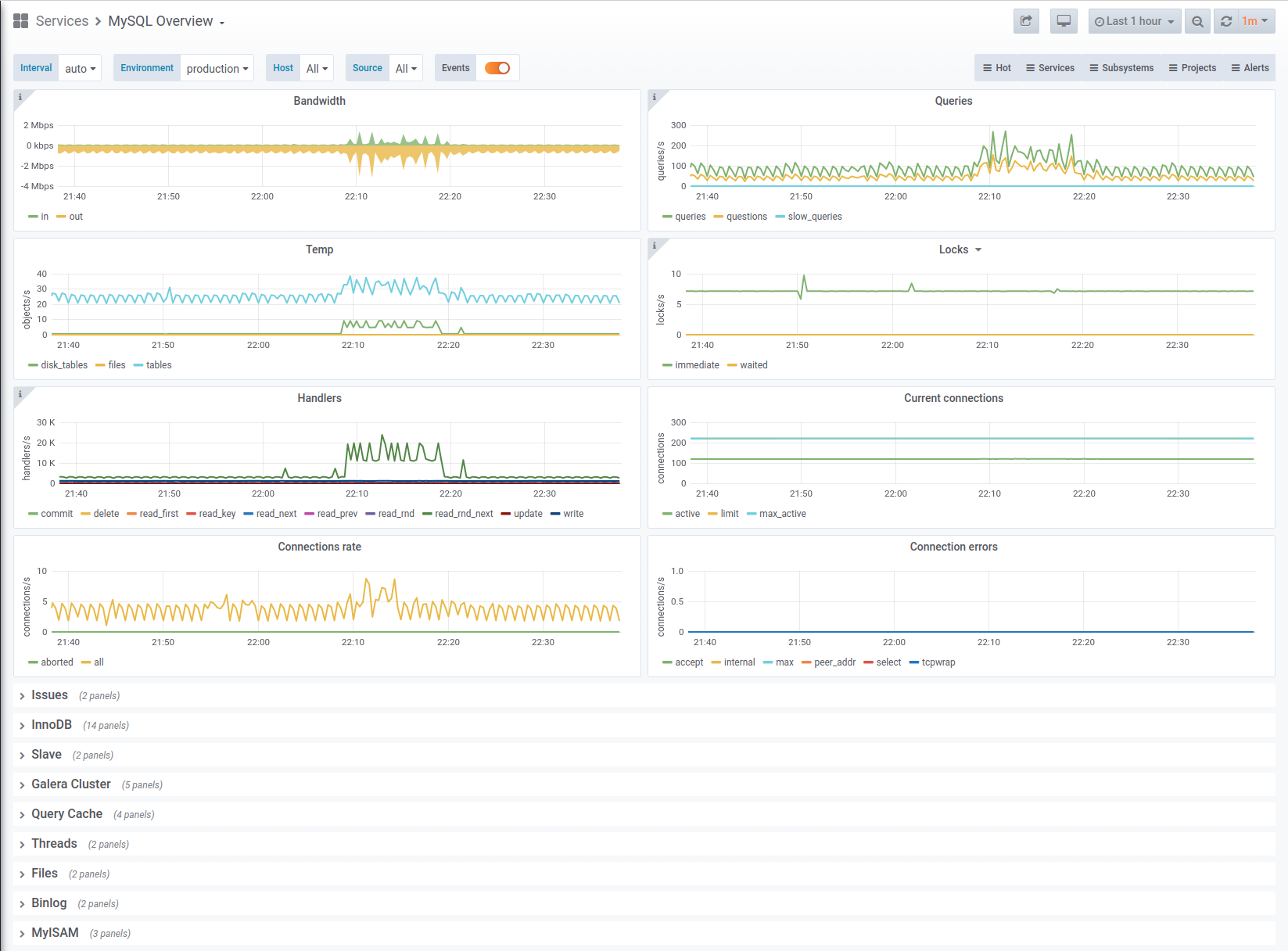

A dashboard with an overview for MySQL metrics:
- Bandwidth, queries, connections
- Handlers, queries by type
- InnoDB (bandwidth, buffers, logs, locks, etc)
- MyISAM (key cache requests, blocks, operations)
- Replication stats (binlog, threads, delay)
- Galera Cluster (writesets, queue, conflicts, flow control)
- Query Cache (operations, queries, memory, blocks)
- Threads, opened files, temp tables
More dashboards for Netdata you can find here.
How to use
Netdata setup
Follow these instructions to setup MySQL monitoring in Netdata.
Prometheus setup
Please note that you need Netdata as an exporter for metrics. Plus, these labels are mandatory:
- job
- env
- instance
- group
- source
In your prometheus.yml it should look like this:
- job_name: netdata
metrics_path: /api/v1/allmetrics?format=prometheus_all_hosts&source=raw
relabel_configs:
- source_labels: [__address__]
regex: ^(.+)\.\w+:\d+
target_label: instance
action: replace
static_configs:
- targets: [netdata.hostname.here:19999]
labels:
env: production
group: applications
source: newprojectWARNING: Without these labels, this dashboard won’t be fully functioning.
Links
License
GPL3
Author
OSSHelp Team, see https://oss.help
Data source config
Collector type:
Collector plugins:
Collector config:
Revisions
Upload an updated version of an exported dashboard.json file from Grafana
