Netdata: Network Stats

Detailed network stats (IPv4 and IPv6)

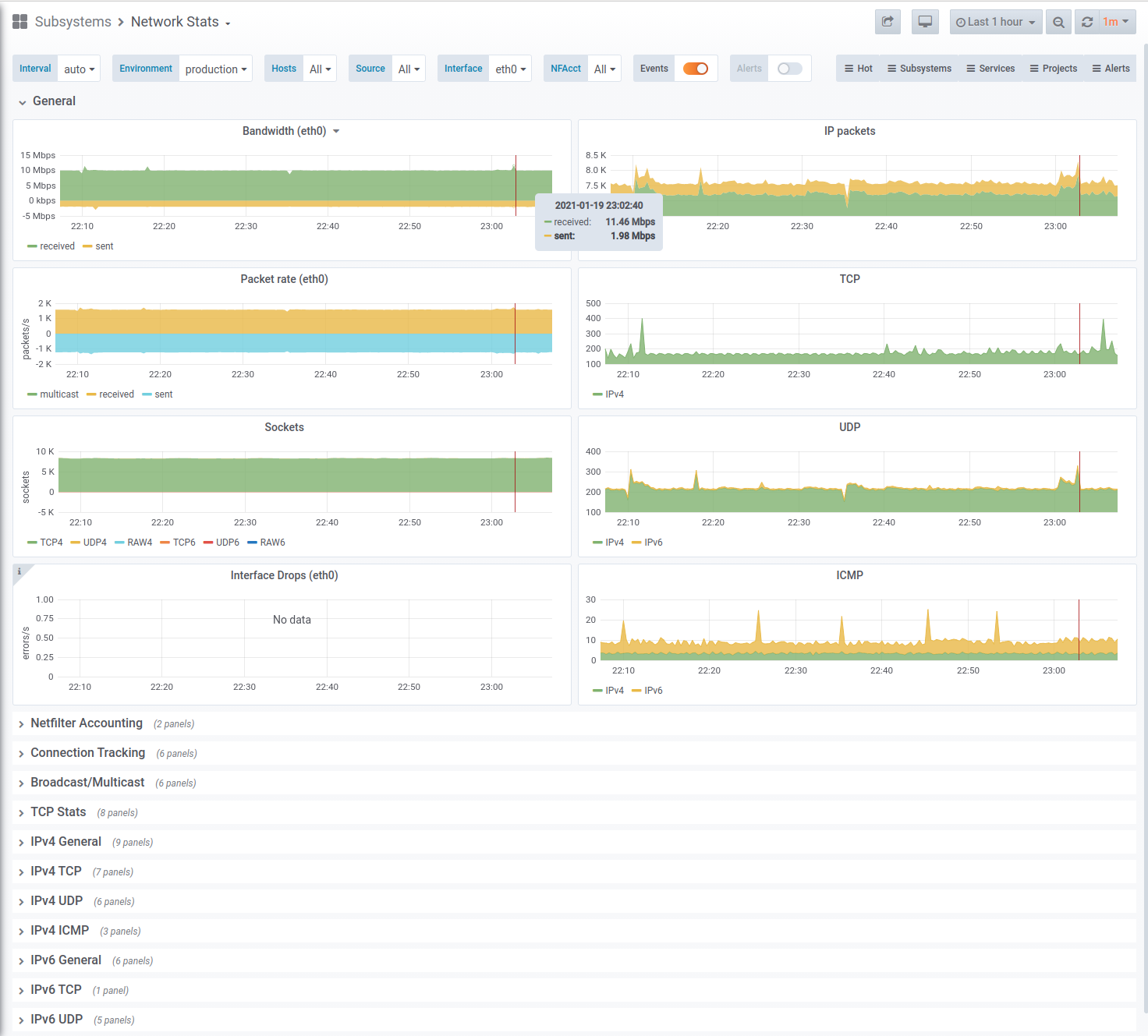

Netdata: Network Stats screenshot 1

About dashboard

Dashboard with a detailed network statistics:

  • bandwidth and pps per interfaces
  • generic per-protocol stats
  • netfilter accounting (bandwidth and pps)
  • conntrack (connections, errors, changes, searches)
  • broadcast and multicast (bandwidth and pps)

Generic stats for IPv4 and IPv6:

  • sockets and packets
  • errors and raw sockets
  • fragments and reassembly
  • aborts, syn cookies, ecn, out-of-order

Detailed stats for TCP/UDP/ICMP over IPv4 and IPv6:

  • connections, sockets, packets
  • handshakes, errors, memory usage

More dashboards for Netdata you can find here.

How to use

Netdata setup

Follow these instructions to setup network monitoring in Netdata.

Prometheus setup

Please note that you need Netdata as an exporter for metrics. Plus, these labels are mandatory:

  • job
  • env
  • instance
  • group
  • source

In your prometheus.yml it should look like this:

yaml
- job_name: netdata
  metrics_path: /api/v1/allmetrics?format=prometheus_all_hosts&source=raw
  relabel_configs:
  - source_labels: [__address__]
    regex: ^(.+)\.\w+:\d+
    target_label: instance
    action: replace
  static_configs:
  - targets: [netdata.hostname.here:19999]
    labels:
      env: production
      group: applications
      source: newproject

WARNING: Without these labels, this dashboard won’t be fully functioning.

License

GPL3

Author

OSSHelp Team, see https://oss.help
