All dashboards

Netdata: Apps Stats

Per application overview (CPU/RAM/Disk/etc)

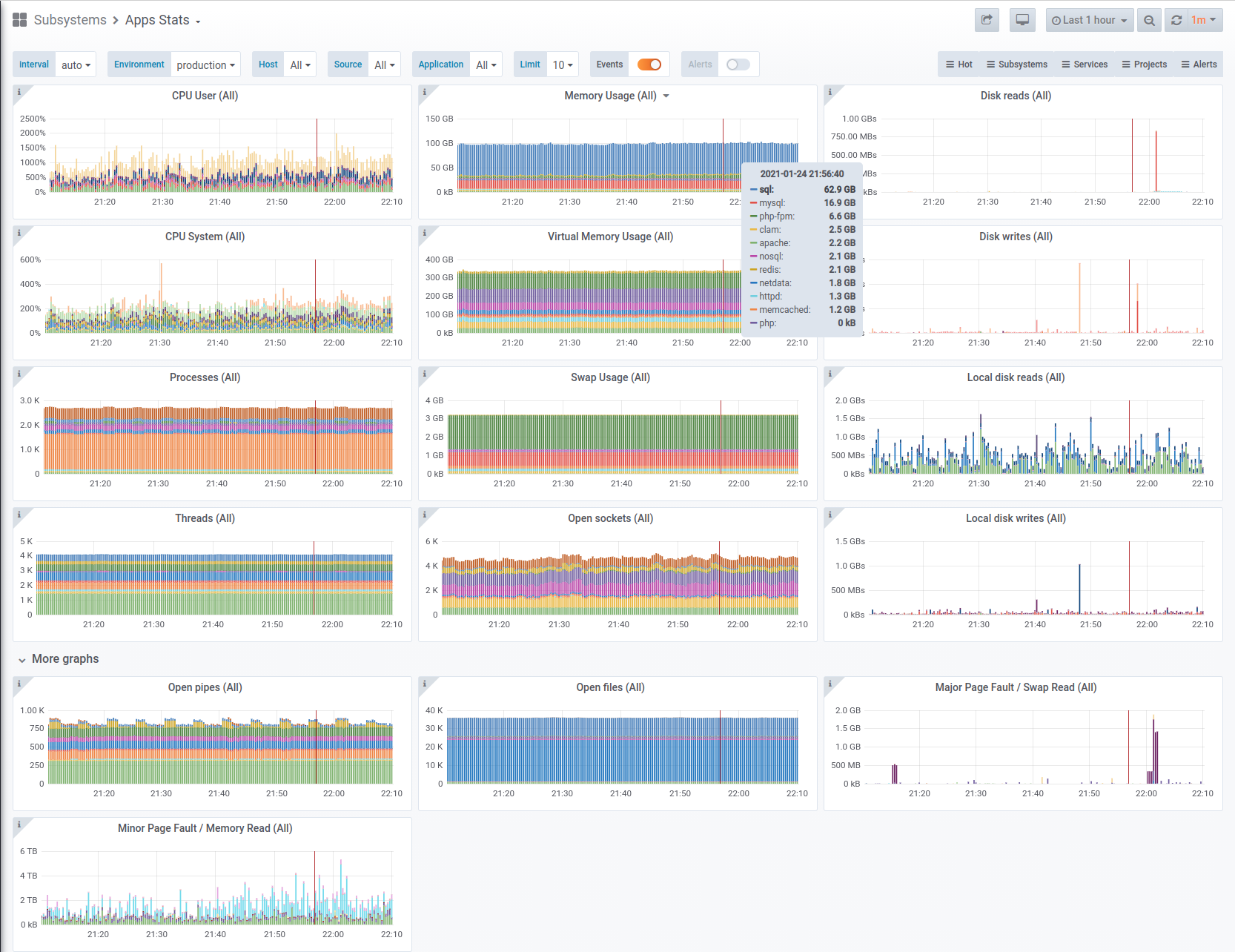

Netdata: Apps Stats screenshot 1

About dashboard

A simple dashboard with an overview for running applications:

  • CPU (user and system)
  • RAM and swap
  • Disks I/O
  • Network bandwidth and PPS
  • Process and threads
  • Number of open files, sockets, pipes
  • Minor and major page faults

More dashboards for Netdata you can find here.

How to use

Netdata setup

Follow these instructions to setup applications monitoring in Netdata.

Prometheus setup

Please note that you need Netdata as an exporter for metrics. Plus, these labels are mandatory:

  • job
  • env
  • instance
  • group
  • source

In your prometheus.yml it should look like this:

yaml
- job_name: netdata
  metrics_path: /api/v1/allmetrics?format=prometheus_all_hosts&source=raw
  relabel_configs:
  - source_labels: [__address__]
    regex: ^(.+)\.\w+:\d+
    target_label: instance
    action: replace
  static_configs:
  - targets: [netdata.hostname.here:19999]
    labels:
      env: production
      group: applications
      source: newproject

WARNING: Without these labels, this dashboard won’t be fully functioning.

License

GPL3

Author

OSSHelp Team, see https://oss.help

Revisions
RevisionDescriptionCreated
