WeaveNet

WeaveNet metrics. It was made on top of the weavenet prometheus metrics. Please check this for more details https://www.weave.works/docs/net/latest/tasks/manage/metrics

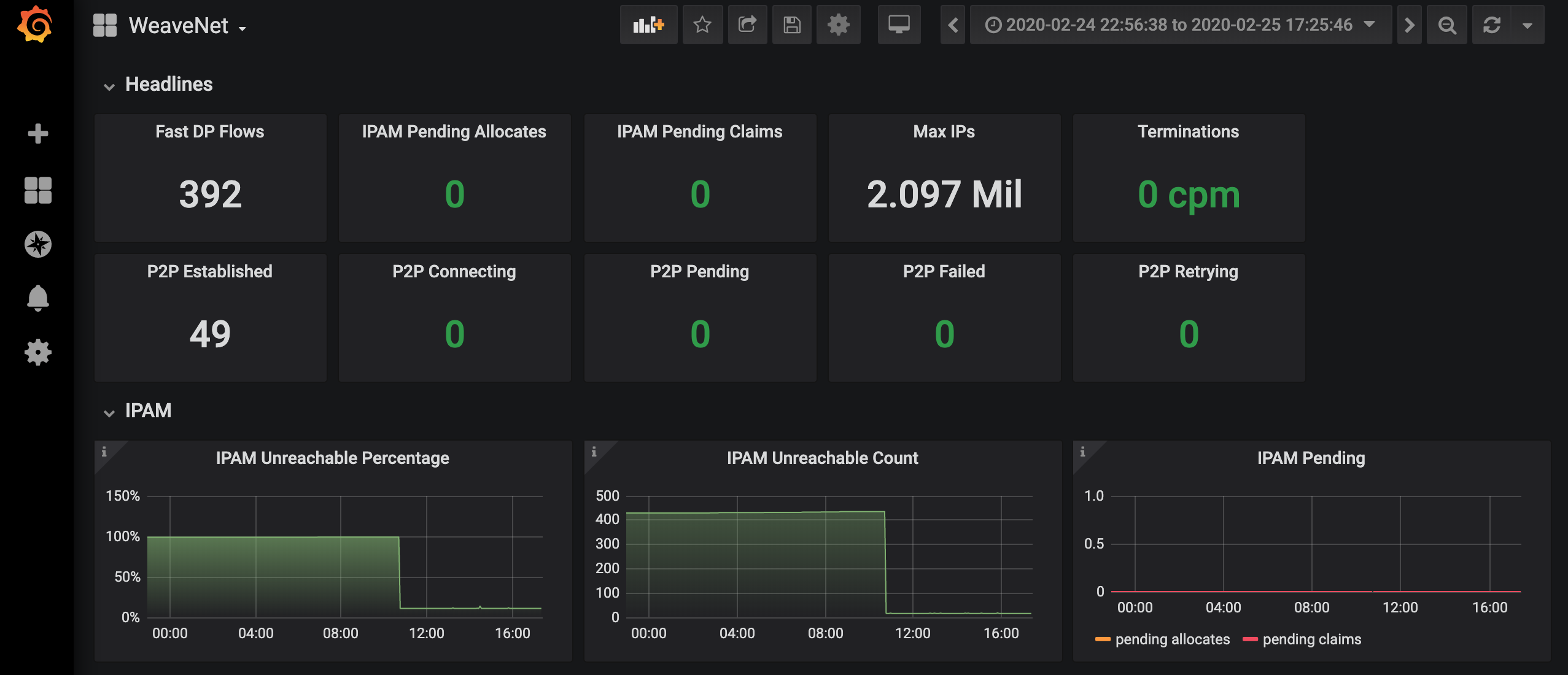

WeaveNet screenshot 1

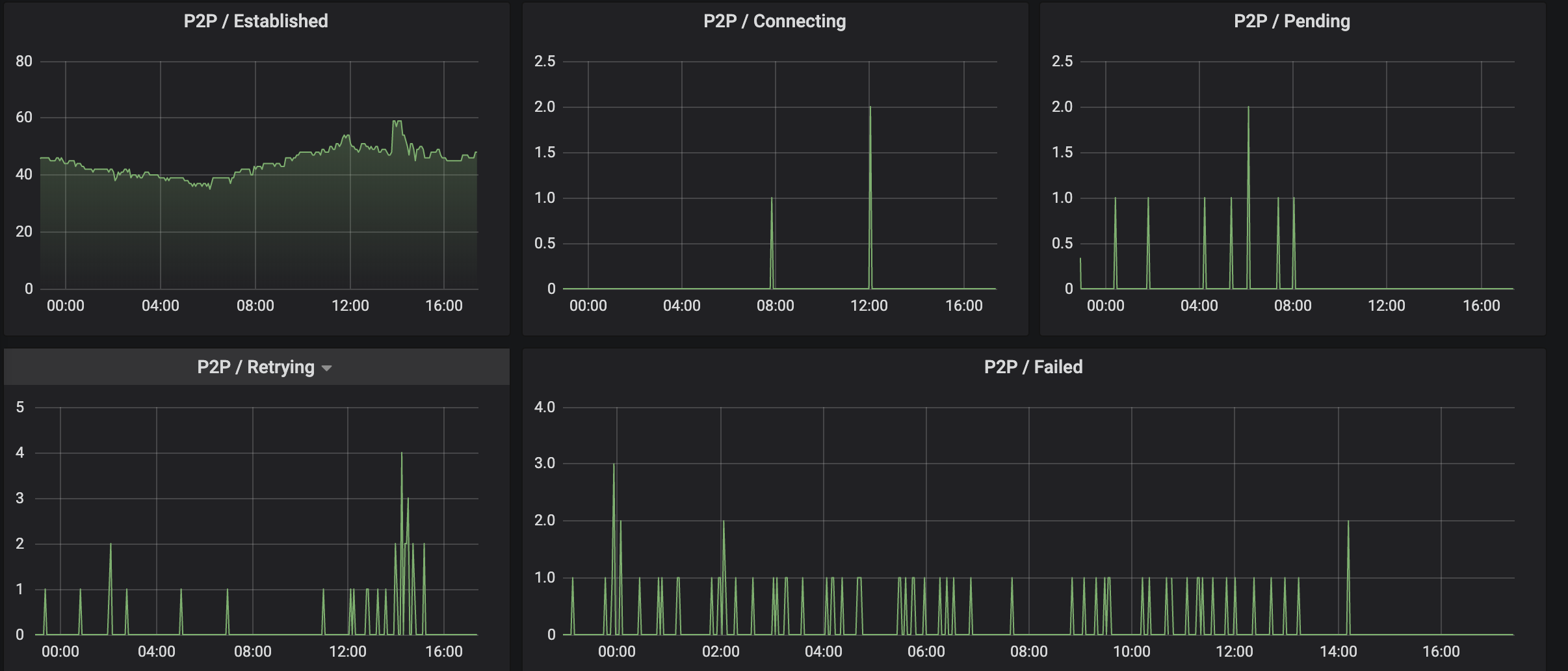

WeaveNet screenshot 2

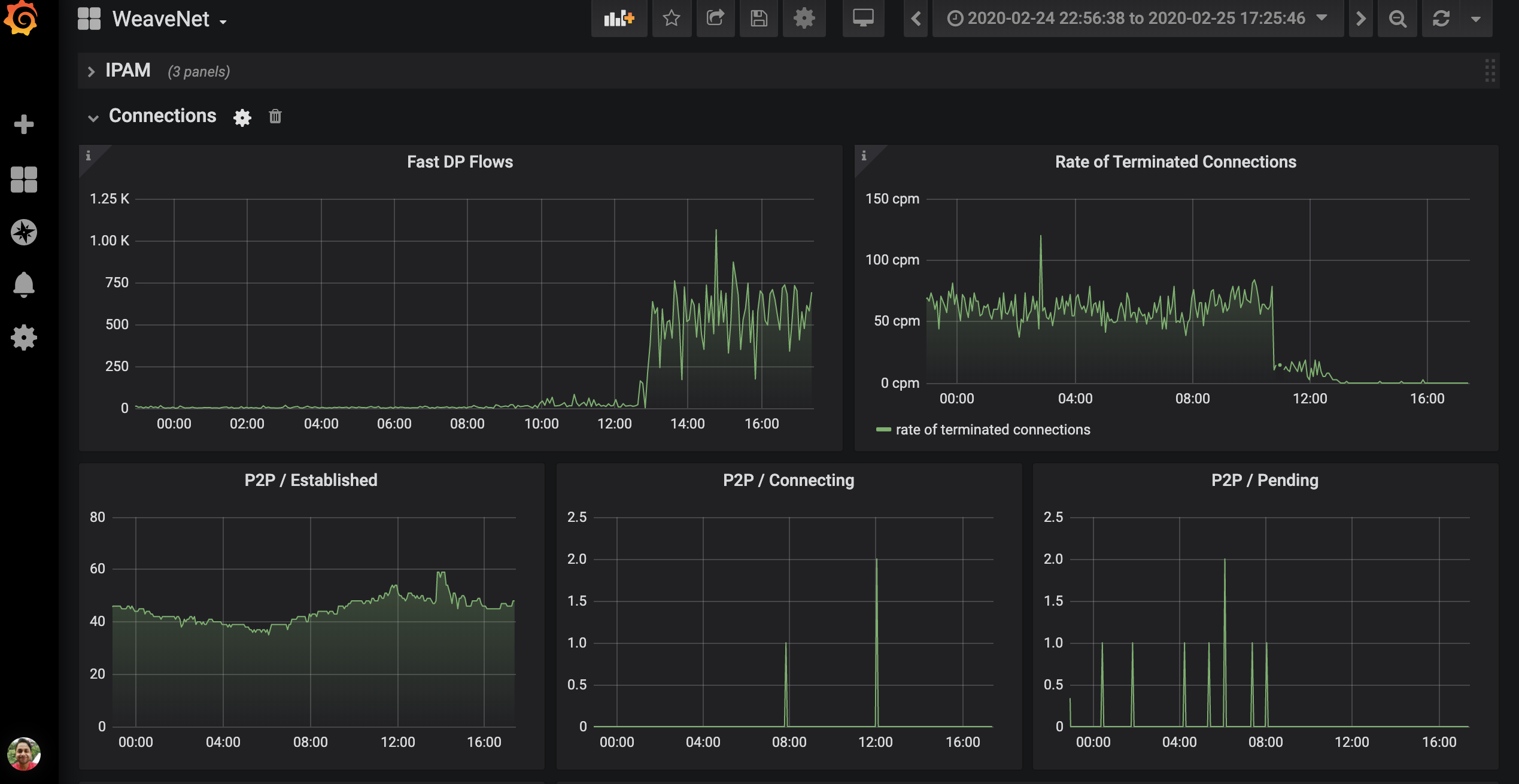

WeaveNet screenshot 3

Weave-net monitoring dashboard.

Weave-net emits prometheus metrics which is the backend of this dashboard. https://www.weave.works/docs/net/latest/tasks/manage/metrics/

The dashboard is categorized under three things

  1. Headlines: Current metrics for the weave-net.
  2. IPAM: All the IPAM metric dashboards.
  3. Connections: All the peer to peer connection dashboards and weave flows dashboard.

For Weave Cluster dashboard which gives a view of weave net at a cluster level. Visit here: https://grafana.com/grafana/dashboards/11804
