Variables

Use the context.grafana.replaceVariables() function to replace dashboard and global variables.

JavaScript
const email = context.grafana.replaceVariables("${__user.email}");

You can get familiar with three types of variables in our Grafana Crash Course.

Replace variables

In the following example, we replaced the series’s name with a value from the variable.

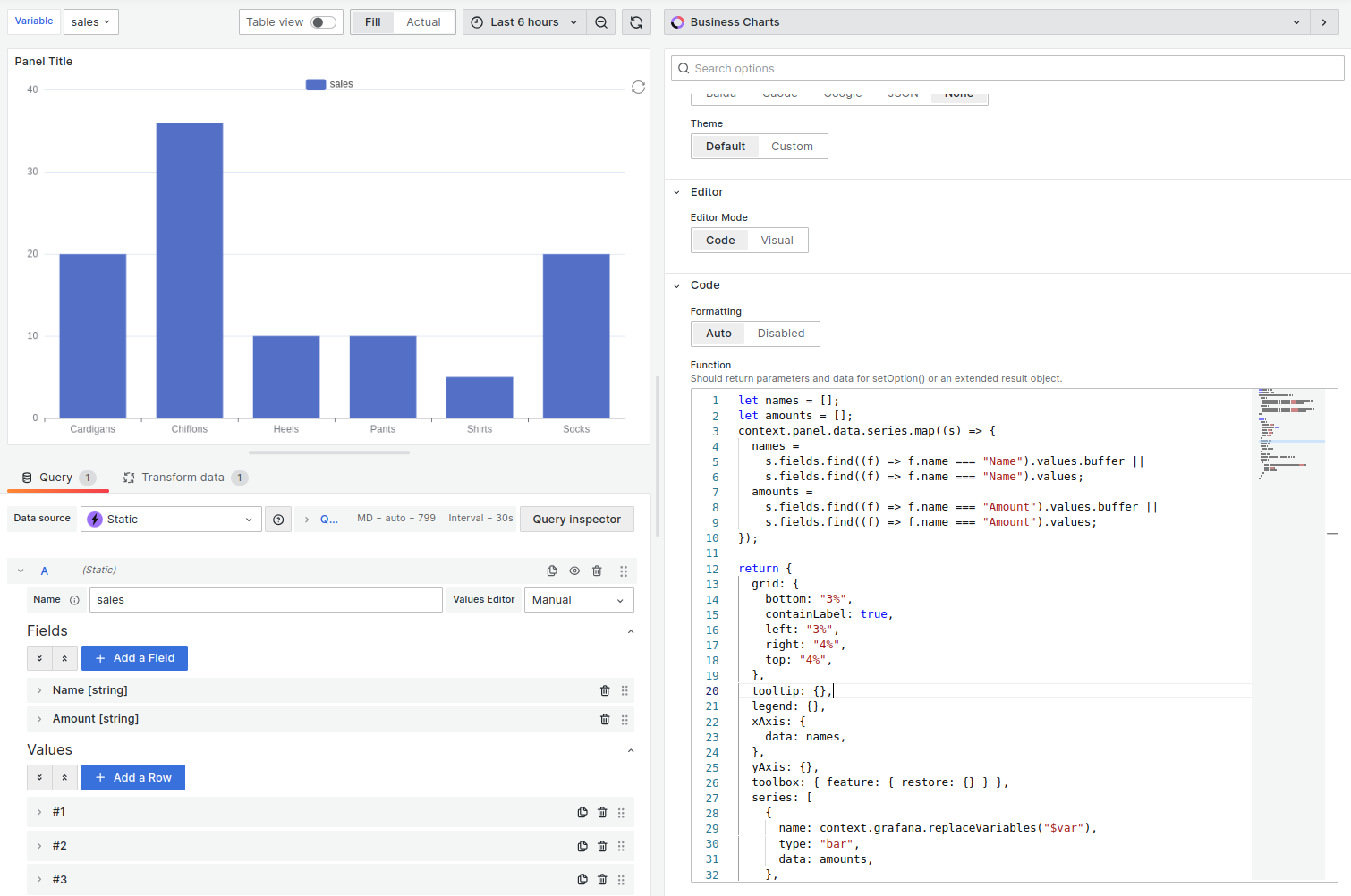

Replace Dashboard Variables.

Example

js
let names = [];
let amounts = [];

context.panel.data.series.map((s) => {
  names = s.fields.find((f) => f.name === "Name").values;
  amounts = s.fields.find((f) => f.name === "Amount").values;
});

return {
  grid: {
    bottom: "3%",
    containLabel: true,
    left: "3%",
    right: "4%",
    top: "4%",
  },
  tooltip: {},
  legend: {},
  xAxis: {
    data: names,
  },
  yAxis: {},
  toolbox: { feature: { restore: {} } },
  series: [
    {
      name: context.grafana.replaceVariables("$var"),
      type: "bar",
      data: amounts,
    },
  ],
};

Update variables

You can update dashboard variables with event handlers, where

  • name is the name of the variable. Add var- to update the variable value in the URL.
  • value is the updated value.
js
context.panel.chart.on("click", (params) => {
  context.grafana.locationService.partial({ "var-name": value }, true);
});
