Table Panel

The new table panel is very flexible, supporting both multiple modes for time series as well as for table, annotation and raw JSON data. It also provides date formatting and value formatting and coloring options.

To view table panels in action and test different configurations with sample data, check out the Table Panel Showcase in the Grafana Playground.

Options overview

The table panel has many ways to manipulate your data for optimal presentation.

1. Data: Control how your query is transformed into a table.
2. Table Display: Table display options.
3. Column Styles: Column value formatting and display options.

Data to Table

The data section contains the To Table Transform (1). This is the primary option for how your data/metric query should be transformed into a table format. The Columns (2) option allows you to select what columns you want in the table. Only applicable for some transforms.

Time series to rows

In the most simple mode you can turn time series to rows. This means you get a Time, Metric and a Value column. Where Metric is the name of the time series.

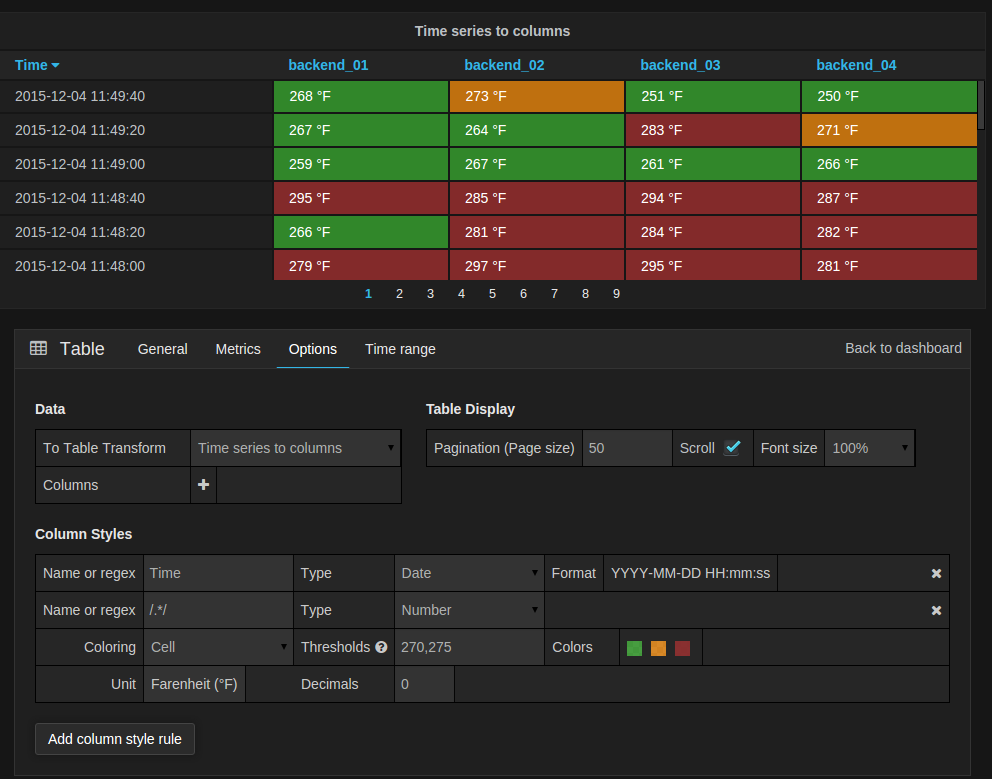

Time series to columns

This transform allows you to take multiple time series and group them by time. Which will result in the primary column being Time and a column for each time series.

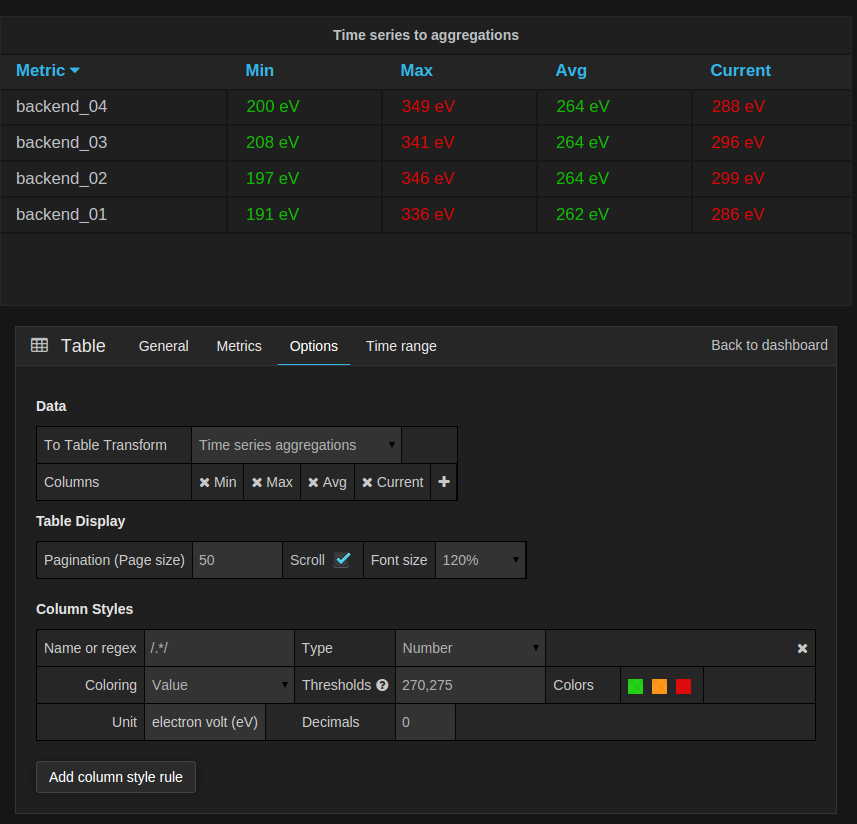

Time series aggregations

This table transformation will lay out your table into rows by metric, allowing columns of Avg, Min, Max, Total, Current and Count. More than one column can be added.

Annotations

If you have annotations enabled in the dashboard you can have the table show them. If you configure this mode then any queries you have in the metrics tab will be ignored.

JSON Data

If you have an Elasticsearch Raw Document query or an Elasticsearch query without a date histogram use this transform mode and pick the columns using the Columns section.

Table Display

1. Pagination (Page Size): The table display fields allow you to control The Pagination (page size) is the threshold at which the table rows will be broken into pages. For example, if your table had 95 records with a pagination value of 10, your table would be split across 9 pages.
2. Scroll: The scroll bar checkbox toggles the ability to scroll within the panel, when unchecked, the panel height will grow to display all rows.
3. Font Size: The font size field allows you to increase or decrease the size for the panel, relative to the default font size.

Column Styles

The column styles allow you control how dates and numbers are formatted.

1. Name or regex: The Name or Regex field controls what columns the rule should be applied to. The regex or name filter will be matched against the column name not against column values.
2. Type: The three supported types of types are Number, String and Date.
3. Title: Title for the column, when using a Regex the title can include replacement strings like $1.
4. Format: Specify date format. Only available when Type is set to Date.
5. Coloring and Thresholds: Specify color mode and thresholds limits.
6. Unit and Decimals: Specify unit and decimal precision for numbers.
7. Add column style rule: Add new column rule.
