PostgreSQL query editor

The PostgreSQL query editor lets you build and run queries against your data source. For general query editor and data transformation concepts, see Query and transform data.

You can open the PostgreSQL query editor from the Explore page or from a dashboard panel—click the ellipsis in the upper right of the panel and select Edit.

PostgreSQL query editor components

The PostgreSQL query editor has two modes: Builder and Code.

Builder mode helps you build a query using a visual interface. Code mode allows for advanced querying and offers support for complex SQL query writing.

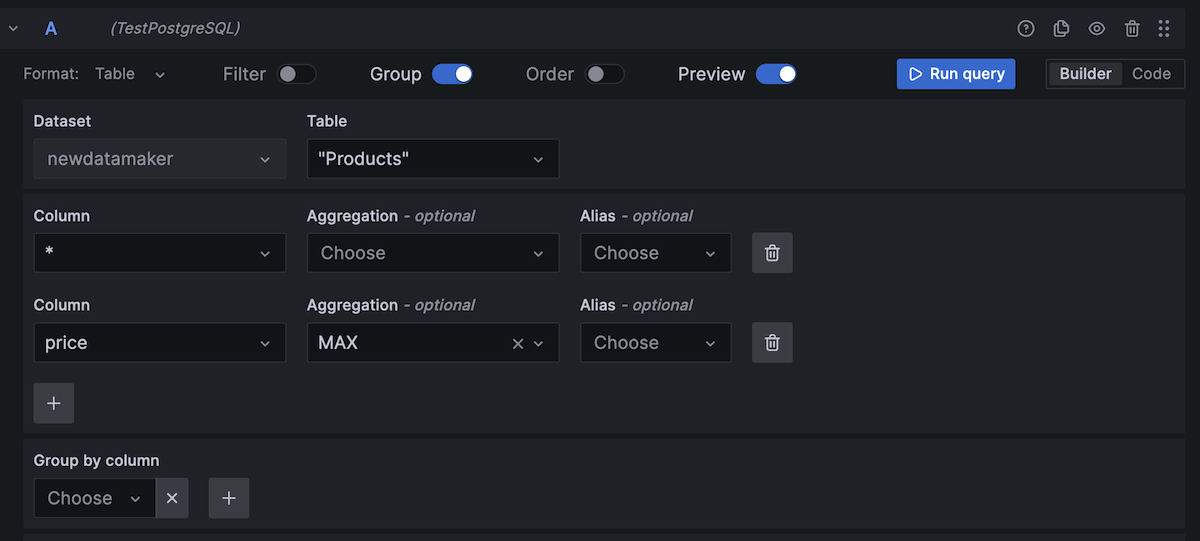

PostgreSQL Builder mode

The following components will help you build a PostgreSQL query:

• Format - Select the query result format from the drop-down. The default is Table. If you use the Time series format option, one of the columns must be time. Refer to Time series queries for more information.
• Table - Select a table from the drop-down. Tables correspond to the chosen database.
• Data operations - Optional Select an aggregation from the drop-down. You can add multiple data operations by clicking the + sign. Click the X sign to remove data operations.
• Column - Select a column on which to run the aggregation.
• Alias - Optional Add an alias from the drop-down. You can also add your own alias by typing it in the box and clicking Enter. Remove an alias by clicking the X.
• Filter - Toggle to add filters.
• Filter by column value - Optional If you toggle Filter, you can add a column to filter by from the drop-down. To filter on more columns, click the + sign to the right of the condition drop-down. Choose an operator from the drop-down next to the condition. When multiple filters are added, you can add an AND operator to display all true conditions or an OR operator to display any true conditions. Use the second drop-down to choose a filter value. To remove a filter, click the X next to that filter’s drop-down. After selecting a date-type column, you can choose Macros from the operators list and select timeFilter to add the $__timeFilter macro to the query with the selected date column.
• Group - Toggle to add Group by column.
• Group by column - Select a column to group by from the drop-down. Click the + sign to group by multiple columns. Click the X to remove a column.
• Order - Toggle to add an ORDER BY statement.
• Order by - Select a column to order by from the drop-down. Select ascending (ASC) or descending (DESC) order.
• Limit - You can add an optional limit on the number of retrieved results. Default is 50.
• Preview - Toggle for a preview of the SQL query generated by the query builder. Preview is toggled on by default.

PostgreSQL Code mode

To create advanced queries, switch to Code mode by clicking Code in the upper right of the editor window. Code mode supports the auto-completion of tables, columns, SQL keywords, standard SQL functions, Grafana template variables, and Grafana macros. Columns cannot be completed before a table has been specified.

Select Table or Time Series as the format. Click the {} in the bottom right to format the query. Click the downward caret to expand the Code mode editor. CTRL/CMD + Return serves as a keyboard shortcut to execute the query.

Macros

You can add macros to your queries to simplify the syntax and enable dynamic elements, such as date range filters.

PostgreSQL expands macros into native SQL. When the TimescaleDB extension is enabled, $__timeGroup and $__timeGroupAlias use time_bucket() for more efficient grouping.

Table SQL queries

If the Format option is set to Table, you can execute virtually any type of SQL query. The Table panel will automatically display the resulting columns and rows from your query.

You can change or customize the name of a Table panel column by using the SQL keyword AS syntax.

SQL Copy

SELECT
  title as "Title",
  "user".login as "Created By",
  dashboard.created as "Created On"
FROM dashboard
INNER JOIN "user" on "user".id = dashboard.created_by
WHERE $__timeFilter(dashboard.created)

You can use template variables in queries. For example, to filter by a variable named hostname: WHERE hostname IN($hostname).

Time series queries

Set the Format option to Time series to create and run time series queries.

The examples in this section refer to the data in the following table:

text Copy

+---------------------+--------------+---------------------+----------+
| time_date_time      | value_double | CreatedAt           | hostname |
+---------------------+--------------+---------------------+----------+
| 2020-01-02 03:05:00 | 3.0          | 2020-01-02 03:05:00 | 10.0.1.1 |
| 2020-01-02 03:06:00 | 4.0          | 2020-01-02 03:06:00 | 10.0.1.2 |
| 2020-01-02 03:10:00 | 6.0          | 2020-01-02 03:10:00 | 10.0.1.1 |
| 2020-01-02 03:11:00 | 7.0          | 2020-01-02 03:11:00 | 10.0.1.2 |
| 2020-01-02 03:20:00 | 5.0          | 2020-01-02 03:20:00 | 10.0.1.2 |
+---------------------+--------------+---------------------+----------+

Time series query results are returned in wide data frame format. In the data frame query result, any column, except for time or string-type columns, transforms into value fields. String columns, on the other hand, become field labels.

Example with metric column:

SQL Copy

SELECT
  $__timeGroupAlias("time_date_time",'5m'),
  min("value_double"),
  'min' as metric
FROM test_data
WHERE $__timeFilter("time_date_time")
GROUP BY time
ORDER BY time

Data frame result:

text Copy

+---------------------+-----------------+
| Name: time          | Name: min       |
| Labels:             | Labels:         |
| Type: []time.Time   | Type: []float64 |
+---------------------+-----------------+
| 2020-01-02 03:05:00 | 3               |
| 2020-01-02 03:10:00 | 6               |
+---------------------+-----------------+

To customize default series name formatting, refer to Standard options definitions.

Following are time series query examples.

Example with no grouping (raw points):

To return raw time and value points without grouping, use $__time to alias your date/time column as time:

SQL Copy

SELECT
  $__time("time_date_time"),
  "value_double" as value
FROM test_data
WHERE $__timeFilter("time_date_time")
ORDER BY time

Example using the fill parameter in the $__timeGroupAlias macro to convert null values to zero:

SQL Copy

SELECT
  $__timeGroupAlias("CreatedAt",'5m',0),
  sum(value) as value,
  hostname
FROM test_data
WHERE
  $__timeFilter("CreatedAt")
GROUP BY time, hostname
ORDER BY time

Based on the data frame result in the following example, the time series panel will generate two series named value 10.0.1.1 and value 10.0.1.2. To display the series names as 10.0.1.1 and 10.0.1.2, use the Standard options definitions display value ${__field.labels.hostname}.

Data frame result:

text Copy

+---------------------+---------------------------+---------------------------+
| Name: time          | Name: value               | Name: value               |
| Labels:             | Labels: hostname=10.0.1.1 | Labels: hostname=10.0.1.2 |
| Type: []time.Time   | Type: []float64           | Type: []float64           |
+---------------------+---------------------------+---------------------------+
| 2020-01-02 03:05:00 | 3                         | 4                         |
| 2020-01-02 03:10:00 | 6                         | 7                         |
+---------------------+---------------------------+---------------------------+

Example with multiple columns:

SQL Copy

SELECT
  $__timeGroupAlias("time_date_time",'5m'),
  min("value_double") as "min_value",
  max("value_double") as "max_value"
FROM test_data
WHERE $__timeFilter("time_date_time")
GROUP BY time
ORDER BY time

Data frame result:

text Copy

+---------------------+-----------------+-----------------+
| Name: time          | Name: min_value | Name: max_value |
| Labels:             | Labels:         | Labels:         |
| Type: []time.Time   | Type: []float64 | Type: []float64 |
+---------------------+-----------------+-----------------+
| 2020-01-02 03:04:00 | 3               | 4               |
| 2020-01-02 03:05:00 | 6               | 7               |
+---------------------+-----------------+-----------------+

Example with UNIX epoch time column:

When your time column stores UNIX epoch (seconds), use $__timeEpoch to alias it as time and $__unixEpochFilter in the WHERE clause:

SQL Copy

SELECT
  $__timeEpoch(epoch_seconds_column),
  value_column as value
FROM my_table
WHERE $__unixEpochFilter(epoch_seconds_column)
ORDER BY time

For grouped time series with epoch columns, use $__unixEpochGroupAlias and $__unixEpochFilter. See the Macros table for details.

Next steps

• Use template variables to create dynamic, reusable dashboards.
• Add annotations from PostgreSQL to overlay events on your panels.
• Set up alerting to get notified when metrics cross thresholds (time series format only).
• Troubleshoot issues if you encounter problems with queries.
