OpenTelemetry to Grafana stack

You can configure Grafana Agent Flow to collect OpenTelemetry-compatible data and forward it to the Grafana stack

This topic describes how to:

  • Configure Agent to send your data to Loki
  • Configure Agent to send your data to Tempo
  • Configure Agent to send your data to Mimir or Prometheus Remote Write

Components used in this topic

Before you begin

  • Ensure that you have basic familiarity with instrumenting applications with OpenTelemetry.
  • Have a set of OpenTelemetry applications ready to push telemetry data to Grafana Agent Flow.
  • Identify where Grafana Agent Flow will write received telemetry data.
  • Be familiar with the concept of Components in Grafana Agent Flow.
  • Complete the Collect open telemetry data getting started guide. You will pick up from where that guide ended.

The Pipeline

You can start with the Grafana Agent Flow configuration you created in the previous getting started guide:

river
otelcol.receiver.otlp "example" {
  grpc {
    endpoint = "127.0.0.1:4317"
  }

  http {
    endpoint = "127.0.0.1:4318"
  }

  output {
    metrics = [otelcol.processor.batch.example.input]
    logs    = [otelcol.processor.batch.example.input]
    traces  = [otelcol.processor.batch.example.input]
  }
}

otelcol.processor.batch "example" {
  output {
    metrics = [otelcol.exporter.otlp.default.input]
    logs    = [otelcol.exporter.otlp.default.input]
    traces  = [otelcol.exporter.otlp.default.input]
  }
}

otelcol.exporter.otlp "default" {
  client {
    endpoint = "my-otlp-grpc-server:4317"
  }
}

The pipeline currently looks like this:

Metrics, Logs, Traces: OTLP Receiver → batch processor → OTLP Exporter

You will implement the following pipelines to send your data to Loki, Tempo, and Mimir or Prometheus:

Metrics: OTel → batch processor → Mimir or Prometheus remote write
Logs: OTel → batch processor → Loki exporter
Traces: OTel → batch processor → OTel exporter

Grafana Loki

Grafana Loki is a horizontally scalable, highly available, multi-tenant log aggregation system inspired by Prometheus. Similar to Prometheus, to send from OTLP to Loki, we will do a passthrough from the otelcol.exporter.loki component to loki.write component.

river
otelcol.exporter.loki "default" {
	forward_to = [loki.write.default.receiver]
}

loki.write "default" {
	endpoint {
		url = "http://loki-endpoint:8080/loki/api/v1/push"
}

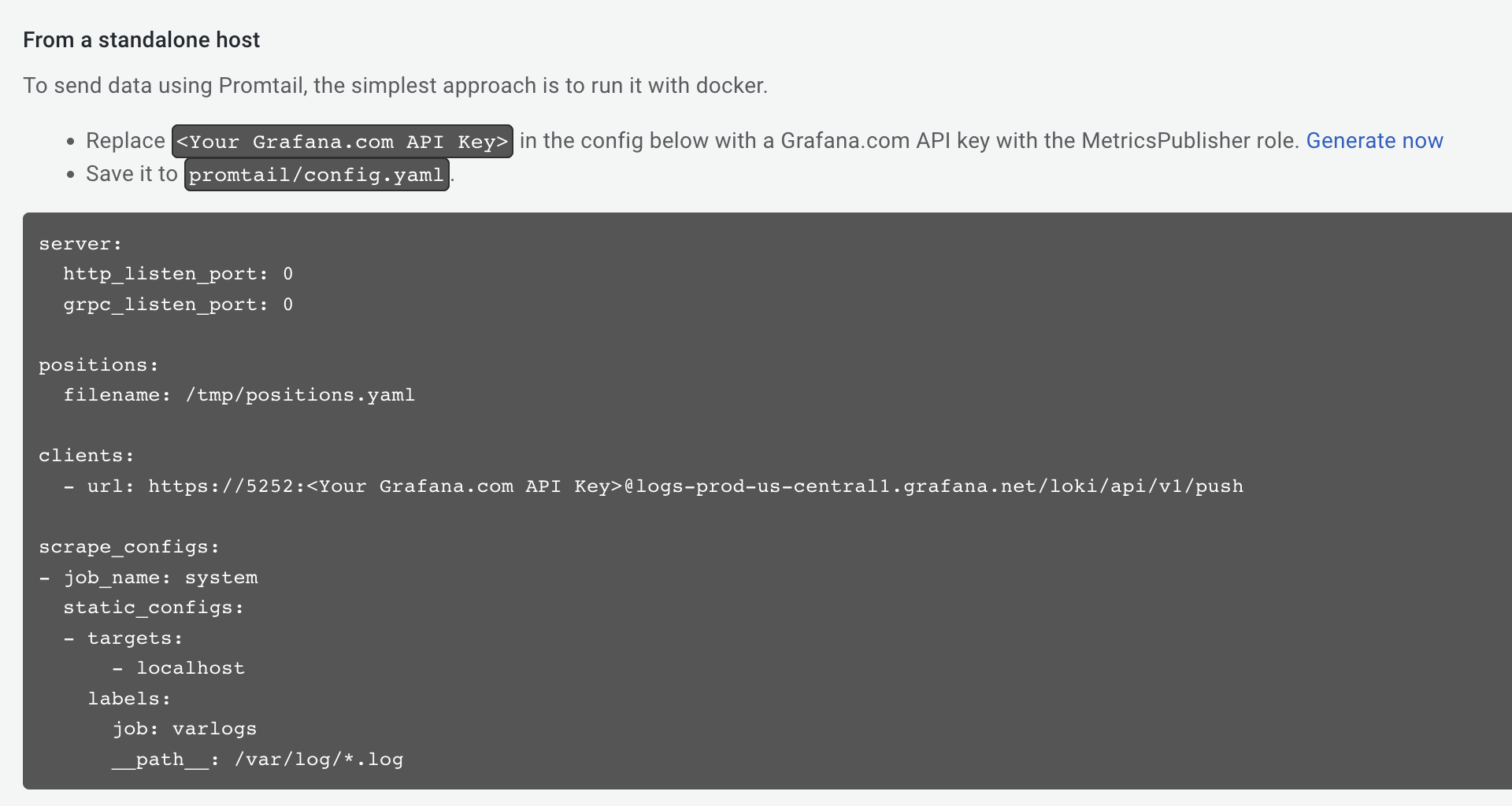

To use Loki with basic-auth, which is required with GrafanaCloud Loki, you must configure the loki.write component. You can get the Loki config from the Loki Details page in the GrafanaCloud Portal:

river
otelcol.exporter.loki "grafana_cloud_loki" {
	forward_to = [loki.write.grafana_cloud_loki.receiver]
}

loki.write "grafana_cloud_loki" {
	endpoint {
		url = "https://logs-prod-us-central1.grafana.net/loki/api/v1/push"

		basic_auth {
			username = 5252
			password = env("GRAFANA_CLOUD_API_KEY")
		}
	}
}

Grafana Tempo

Grafana Tempo is an open-source, easy-to-use, scalable distributed tracing backend. Tempo can ingest OTLP directly, and you can use the OTLP exporter to send the traces to Tempo.

river
otelcol.exporter.otlp "default" {
  client {
    endpoint = "tempo-server:4317"
  }
}

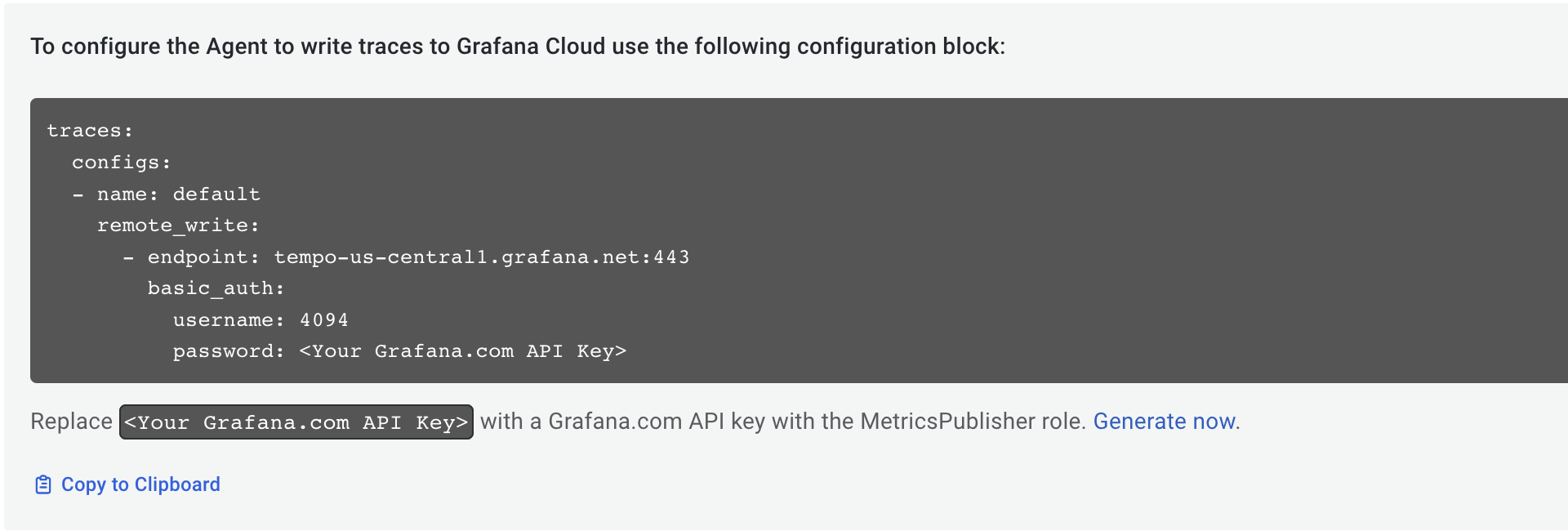

To use Tempo with basic-auth, which is required with GrafanaCloud Tempo, you must use the otelcol.auth.basic component. You can get the Tempo config from the Tempo Details page in the GrafanaCloud Portal:

river
otelcol.exporter.otlp "grafana_cloud_tempo" {
	client {
		endpoint = "tempo-us-central1.grafana.net:443"
		auth     = otelcol.auth.basic.grafana_cloud_tempo.handler
	}
}

otelcol.auth.basic "grafana_cloud_tempo" {
	username = 4094
	password = env("GRAFANA_CLOUD_API_KEY")
}

Grafana Mimir or Prometheus Remote Write

Prometheus Remote Write is a popular metrics transmission protocol supported by most metrics systems, including Grafana Mimir and GrafanaCloud. To send from OTLP to Prometheus, we do a passthrough from the otelcol.exporter.prometheus to the prometheus.remote_write component. The Prometheus remote write component in Agent is a robust protocol implementation, including a Write Ahead Log for resiliency.

river
otelcol.exporter.prometheus "default" {
	forward_to = [prometheus.remote_write.default.receiver]
}

prometheus.remote_write "default" {
	endpoint {
		url = "http://prometheus:9090/api/v1/write"
	}
}

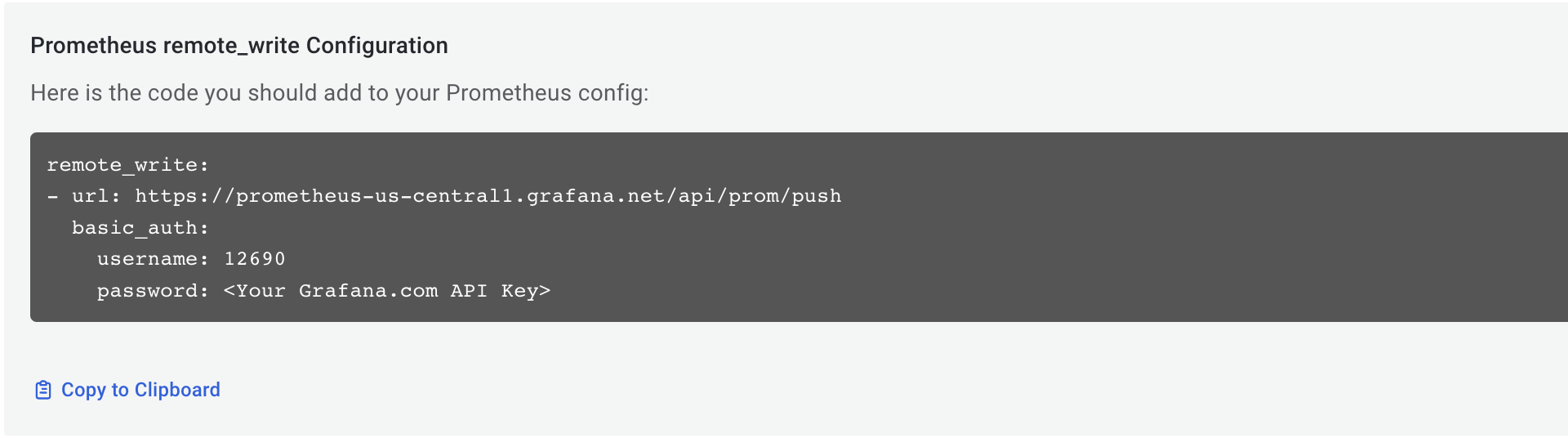

To use Prometheus with basic-auth, which is required with GrafanaCloud Prometheus, you have to configure the prometheus.remote_write component. You can get the Prometheus config from the Prometheus Details page in the GrafanaCloud Portal:

river
otelcol.exporter.prometheus "grafana_cloud_prometheus" {
        forward_to = [prometheus.remote_write.grafana_cloud_prometheus.receiver]
    }

prometheus.remote_write "grafana_cloud_prometheus" {
    endpoint {
        url = "https://prometheus-us-central1.grafana.net/api/prom/push"

        basic_auth {
            username = 12690
            password = env("GRAFANA_CLOUD_API_KEY")
        }
    }
}

Putting it all together

Instead of referencing otelcol.exporter.otlp.default.input in the output of otelcol.processor.batch, we need to reference the three exporters we set up. The final configuration becomes:

river
otelcol.receiver.otlp "example" {
  grpc {
    endpoint = "127.0.0.1:4317"
  }

  http {
    endpoint = "127.0.0.1:4318"
  }

  output {
    metrics = [otelcol.processor.batch.example.input]
    logs    = [otelcol.processor.batch.example.input]
    traces  = [otelcol.processor.batch.example.input]
  }
}

otelcol.processor.batch "example" {
  output {
    metrics = [otelcol.exporter.prometheus.grafana_cloud_prometheus.input]
    logs    = [otelcol.exporter.loki.grafana_cloud_loki.input]
    traces  = [otelcol.exporter.otlp.grafana_cloud_tempo.input]
  }
}

otelcol.exporter.otlp "grafana_cloud_tempo" {
	client {
		endpoint = "tempo-us-central1.grafana.net:443"
		auth     = otelcol.auth.basic.grafana_cloud_tempo.handler
	}
}

otelcol.auth.basic "grafana_cloud_tempo" {
	username = 4094
	password = env("GRAFANA_CLOUD_API_KEY")
}

otelcol.exporter.prometheus "grafana_cloud_prometheus" {
        forward_to = [prometheus.remote_write.grafana_cloud_prometheus.receiver]
    }

prometheus.remote_write "grafana_cloud_prometheus" {
    endpoint {
        url = "https://prometheus-us-central1.grafana.net/api/prom/push"

        basic_auth {
            username = 12690
            password = env("GRAFANA_CLOUD_API_KEY")
        }
    }
}

otelcol.exporter.loki "grafana_cloud_loki" {
	forward_to = [loki.write.grafana_cloud_loki.receiver]
}

loki.write "grafana_cloud_loki" {
	endpoint {
		url = "https://logs-prod-us-central1.grafana.net/loki/api/v1/push"

		basic_auth {
			username = 5252
			password = env("GRAFANA_CLOUD_API_KEY")
		}
	}
}

Running the Agent now will give you the following:

AGENT_MODE=flow ./grafana-agent run agent-config.river
AGENT_MODE=flow ./grafana-agent run agent-config.river
ts=2023-05-09T09:37:15.300959Z level=info msg="running usage stats reporter"
ts=2023-05-09T09:37:15.300958Z level=info msg="now listening for http traffic" addr=127.0.0.1:12345
ts=2023-05-09T09:37:15.301104Z level=info trace_id=6466516c9e1a556422df7a84c0ade6b0 msg="starting complete graph evaluation"
ts=2023-05-09T09:37:15.301307Z level=info trace_id=6466516c9e1a556422df7a84c0ade6b0 msg="finished node evaluation" node_id=loki.write.grafana_cloud_loki duration=188.209µs
ts=2023-05-09T09:37:15.301334Z level=info trace_id=6466516c9e1a556422df7a84c0ade6b0 msg="finished node evaluation" node_id=otelcol.exporter.loki.grafana_cloud_loki duration=18.791µs
ts=2023-05-09T09:37:15.303138Z component=prometheus.remote_write.grafana_cloud_prometheus level=info subcomponent=wal msg="replaying WAL, this may take a while" dir=data-agent/prometheus.remote_write.grafana_cloud_prometheus/wal
ts=2023-05-09T09:37:15.303257Z component=prometheus.remote_write.grafana_cloud_prometheus level=info subcomponent=wal msg="WAL segment loaded" segment=0 maxSegment=1
ts=2023-05-09T09:37:15.303302Z component=prometheus.remote_write.grafana_cloud_prometheus level=info subcomponent=wal msg="WAL segment loaded" segment=1 maxSegment=1
ts=2023-05-09T09:37:15.303507Z component=prometheus.remote_write.grafana_cloud_prometheus subcomponent=rw level=info remote_name=7f623a url=https://prometheus-us-central1.grafana.net/api/prom/push msg="Starting WAL watcher" queue=7f623a
ts=2023-05-09T09:37:15.303515Z component=prometheus.remote_write.grafana_cloud_prometheus subcomponent=rw level=info remote_name=7f623a url=https://prometheus-us-central1.grafana.net/api/prom/push msg="Starting scraped metadata watcher"
ts=2023-05-09T09:37:15.303522Z level=info trace_id=6466516c9e1a556422df7a84c0ade6b0 msg="finished node evaluation" node_id=prometheus.remote_write.grafana_cloud_prometheus duration=2.181958ms
ts=2023-05-09T09:37:15.303557Z level=info trace_id=6466516c9e1a556422df7a84c0ade6b0 msg="finished node evaluation" node_id=otelcol.exporter.prometheus.grafana_cloud_prometheus duration=30.083µs
ts=2023-05-09T09:37:15.303611Z component=prometheus.remote_write.grafana_cloud_prometheus subcomponent=rw level=info remote_name=7f623a url=https://prometheus-us-central1.grafana.net/api/prom/push msg="Replaying WAL" queue=7f623a
ts=2023-05-09T09:37:15.303618Z level=info trace_id=6466516c9e1a556422df7a84c0ade6b0 msg="finished node evaluation" node_id=otelcol.auth.basic.grafana_cloud_tempo duration=52.5µs
ts=2023-05-09T09:37:15.303694Z level=info trace_id=6466516c9e1a556422df7a84c0ade6b0 msg="finished node evaluation" node_id=otelcol.exporter.otlp.grafana_cloud_tempo duration=70.375µs
ts=2023-05-09T09:37:15.303782Z component=otelcol.processor.memory_limiter.default level=info msg="Memory limiter configured" limit_mib=150 spike_limit_mib=30 check_interval=1s
ts=2023-05-09T09:37:15.303802Z level=info trace_id=6466516c9e1a556422df7a84c0ade6b0 msg="finished node evaluation" node_id=otelcol.processor.memory_limiter.default duration=100.334µs
ts=2023-05-09T09:37:15.303853Z level=info trace_id=6466516c9e1a556422df7a84c0ade6b0 msg="finished node evaluation" node_id=otelcol.processor.batch.default duration=44.75µs
ts=2023-05-09T09:37:15.303948Z level=info trace_id=6466516c9e1a556422df7a84c0ade6b0 msg="finished node evaluation" node_id=otelcol.receiver.otlp.default duration=87.333µs
ts=2023-05-09T09:37:15.303968Z level=info trace_id=6466516c9e1a556422df7a84c0ade6b0 msg="finished node evaluation" node_id=tracing duration=10.792µs
ts=2023-05-09T09:37:15.303981Z level=info trace_id=6466516c9e1a556422df7a84c0ade6b0 msg="finished node evaluation" node_id=logging duration=9µs
ts=2023-05-09T09:37:15.303987Z level=info trace_id=6466516c9e1a556422df7a84c0ade6b0 msg="finished complete graph evaluation" duration=2.960333ms
ts=2023-05-09T09:37:15.304Z level=info msg="scheduling loaded components"
ts=2023-05-09T09:37:15.304109Z component=otelcol.receiver.otlp.default level=info msg="Starting GRPC server" endpoint=0.0.0.0:4317
ts=2023-05-09T09:37:15.304234Z component=otelcol.receiver.otlp.default level=info msg="Starting HTTP server" endpoint=0.0.0.0:4318

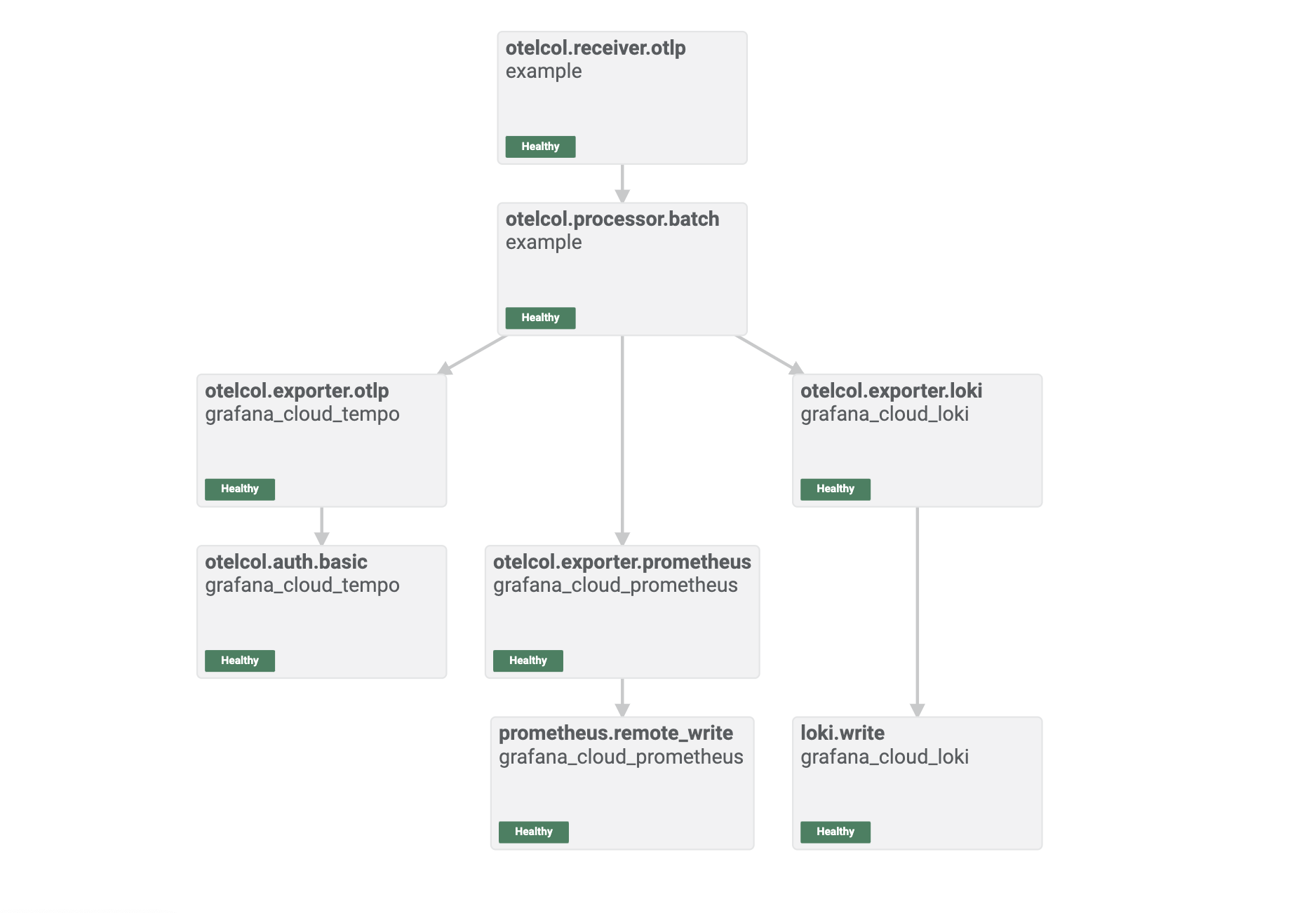

You can now check the pipeline graphically by visiting http://localhost:12345/graph
