Provisioning RBAC with Terraform

Note
Available in Grafana Enterprise and Grafana Cloud.

You can create, change or remove Custom roles and create or remove basic and custom role assignments, by using Terraform’s Grafana provider.

Before you begin

Ensure you have the grafana/grafana Terraform provider 1.29.0 or higher.
Ensure you are using Grafana 9.2 or higher.

Create a Service Account Token for provisioning

We recommend using service account tokens for provisioning. Service accounts support fine grained permissions, which allows you to easily authenticate and use the minimum set of permissions needed to provision your RBAC infrastructure.

To create a service account token for provisioning, complete the following steps.

Create a new service account for your CI pipeline.
Assign permissions to service account:
- You will need roles “Role reader”, “Role writer” and roles including any permissions that will be provisioned. For example, to create or assign a role that allows creating users, a service account needs permissions to create users.
- Alternatively, you can assign “Admin” basic role to the service account.
Create a new service account token for use in Terraform.

Alternatively, you can use basic authentication. To view all the supported authentication formats, see here.

Configure the Terraform provider

RBAC support is included as part of the Grafana Terraform provider.

The following is an example you can use to configure the Terraform provider.

terraform {
    required_providers {
        grafana = {
            source = "grafana/grafana"
            version = ">= 1.29.0"
        }
    }
}

provider "grafana" {
    url = <YOUR_GRAFANA_URL>
    auth = <YOUR_GRAFANA_SERVICE_ACCOUNT_TOKEN>
}

Provision basic roles

The following example shows how to assign basic roles to users, teams, and service accounts. Basic roles are predefined in Grafana and provide a set of permissions for common use cases.

Basic role	UID
`None`	`basic_none`
`Viewer`	`basic_viewer`
`Editor`	`basic_editor`
`Admin`	`basic_admin`
`Grafana Admin`	`basic_grafana_admin`

You can use any of the basic role UIDs from the table above in your role assignments. For example, to assign the “None” role, use basic_none as the role_uid.

resource "grafana_team" "viewer_team" {
  name = "terraform_viewer_team"
}

resource "grafana_user" "editor_user" {
  email    = "terraform_editor@example.com"
  login    = "terraform_editor_user"
  password = <TEST_PASSWORD>
}

resource "grafana_service_account" "admin_sa" {
  name = "terraform_admin_sa"
}

# Assign Viewer role to a team
resource "grafana_role_assignment" "viewer_role_assignment" {
  role_uid = "basic_viewer"
  teams    = [grafana_team.viewer_team.id]
}

# Assign Editor role to a user
resource "grafana_role_assignment" "editor_role_assignment" {
  role_uid = "basic_editor"
  users    = [grafana_user.editor_user.id]
}

# Assign Admin role to a service account
resource "grafana_role_assignment" "admin_role_assignment" {
  role_uid = "basic_admin"
  service_accounts = [grafana_service_account.admin_sa.id]
}

Provision basic role to multiple users

resource "grafana_user" "editor_user_2" {
  email    = "terraform_editor_2@example.com"
  login    = "terraform_editor_2_user"
  password = <TEST_PASSWORD>
}
resource "grafana_user" "editor_user_3" {
  email    = "terraform_editor_3@example.com"
  login    = "terraform_editor_3_user"
  password = <TEST_PASSWORD>
}

# Assign Editor role to multiply users
resource "grafana_role_assignment" "editor_role_assignment" {
  role_uid = "basic_editor"
  users    = [grafana_user.editor_user_2.id, grafana_user.editor_user_3.id]
}

Provision custom roles

The following example shows how to provision a custom role with some permissions.

Copy this code block into a .tf file on your local machine.

resource "grafana_role" "my_new_role" {
  name  = "my_new_role"
  description = "My test role"
  version = 1
  uid = "newroleuid"
  global = true

  permissions {
    action = "org.users:add"
    scope = "users:*"
  }
  permissions {
    action = "org.users:write"
    scope = "users:*"
  }
  permissions {
    action = "org.users:read"
    scope = "users:*"
  }
  permissions {
	  action = "teams:create"
  }
  permissions {
	  action = "teams:read"
	  scope = "teams:*"
  }
  permissions {
	  action = "teams:write"
	  scope = "teams:*"
  }
}

Run the command terraform apply.

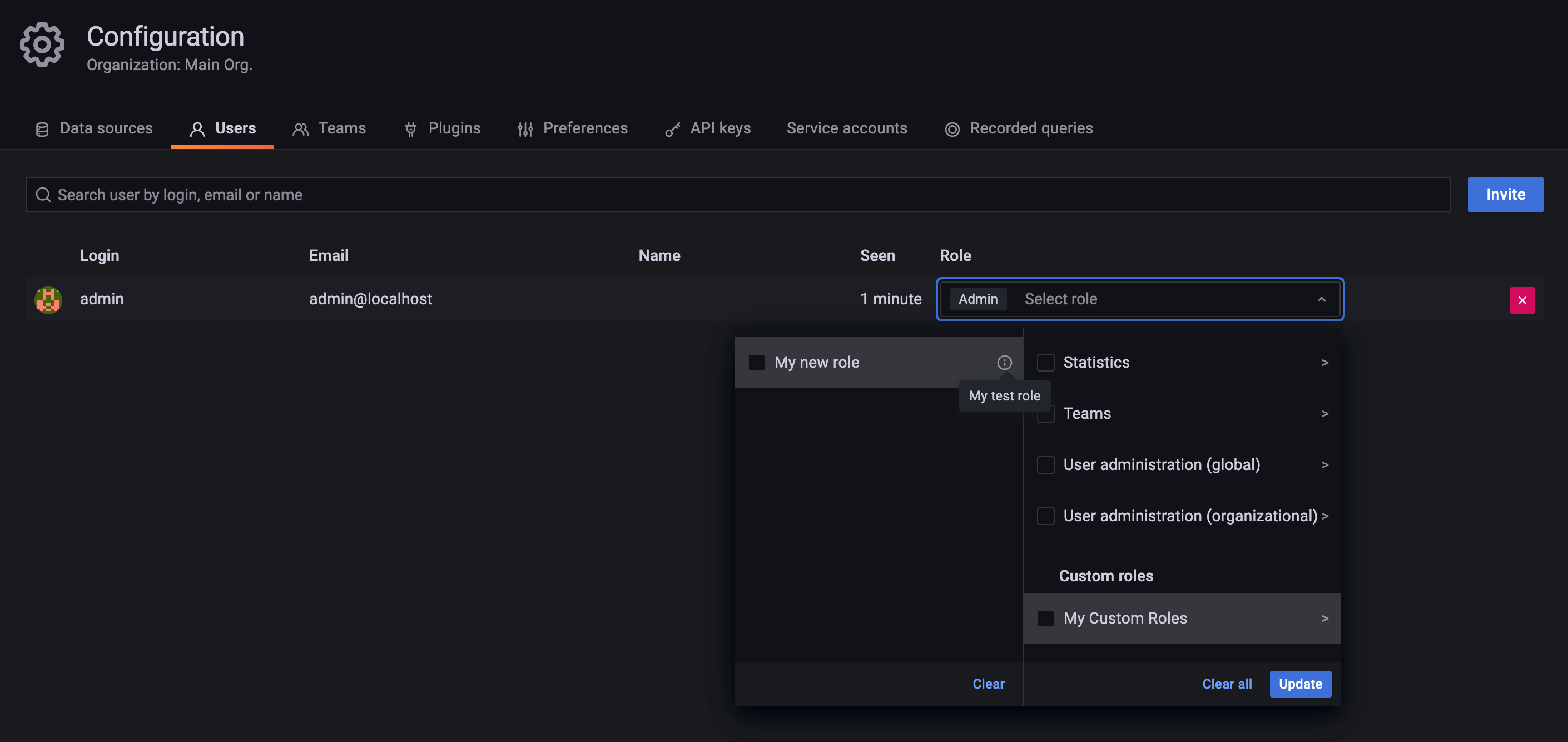

Go to Grafana’s UI and check that the new role appears in the role picker:

Provision role assignments

The following example shows how to provision role assignments. In this example a team, user and service account are provisioned, and the custom role from the previous example is assigned to them.

Extend the configuration file from the previous example with the following:

resource "grafana_team" "test_team" {
	name = "terraform_test_team"
}

resource "grafana_user" "test_user" {
	email = "terraform_user@test.com"
	login    = "terraform_test_user"
	password = <TEST_PASSWORD>
}

resource "grafana_service_account" "test_sa" {
  name = "terraform_test_sa"
  role = "Viewer"
}

resource "grafana_role_assignment" "my_new_role_assignment" {
  role_uid = grafana_role.my_new_role.uid
  users = [grafana_user.test_user.id]
  teams = [grafana_team.test_team.id]
  service_accounts = [grafana_service_account.test_sa.id]
}

Substitute <TEST_PASSWORD> with a test password for your test user.
Run the command terraform apply.

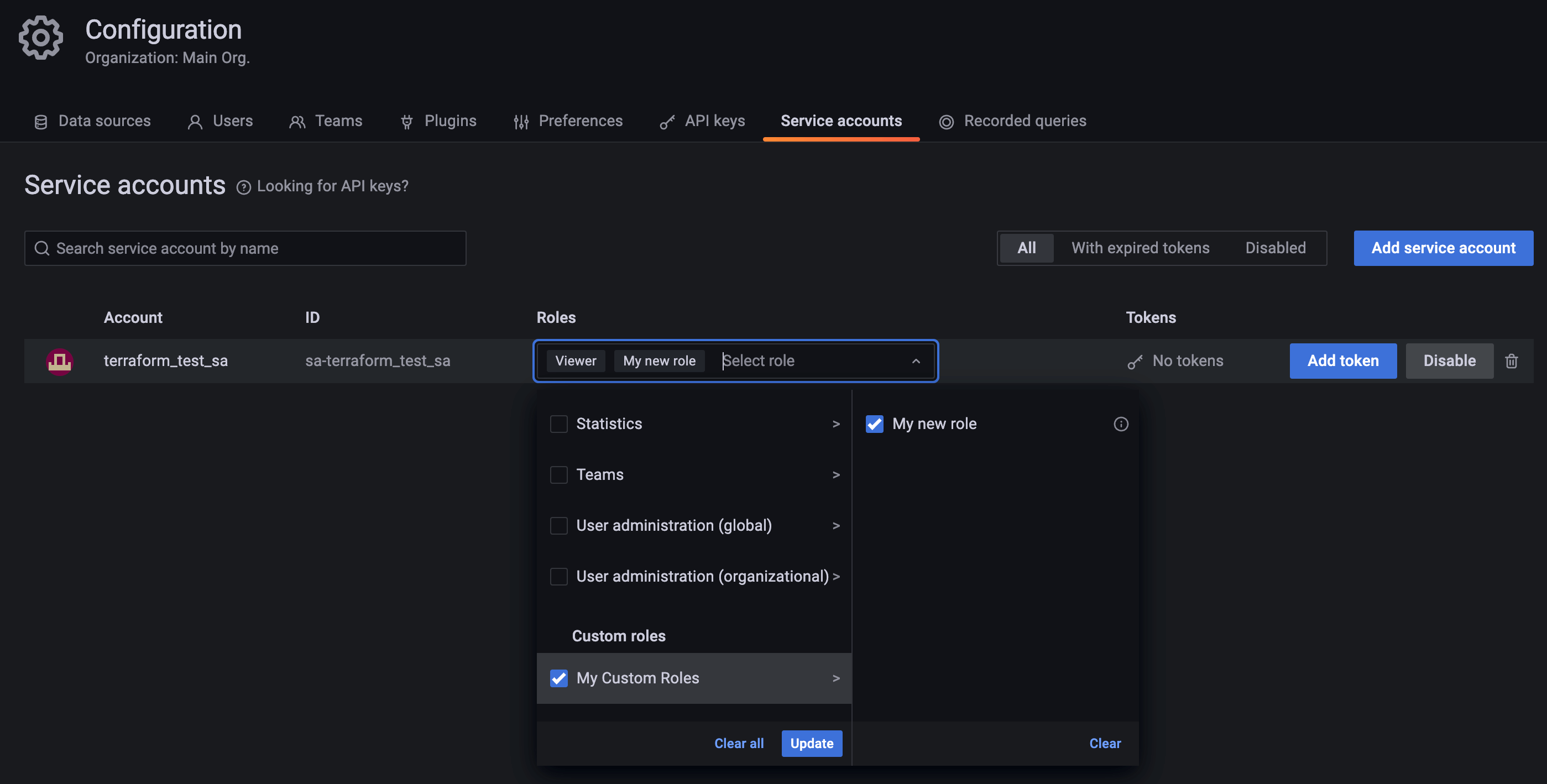

Go to Grafana’s UI and check that a user, team and service account have been created, and that the role has been assigned to them:

Note that instead of using a provisioned role, you can also look up the uid of an already existing fixed or custom role and use that instead. You can use the API endpoint for listing roles to look up role uids. Similarly, you can look up and use ids of users, teams and service accounts that have not been provisioned to assign roles to them.
