Treemap

Panel

Treemap panel for Grafana.
  • Treemap
    Treemap

Treemap for Grafana

License PRs welcome! Build Release

A panel plugin for Grafana to visualize treemaps.

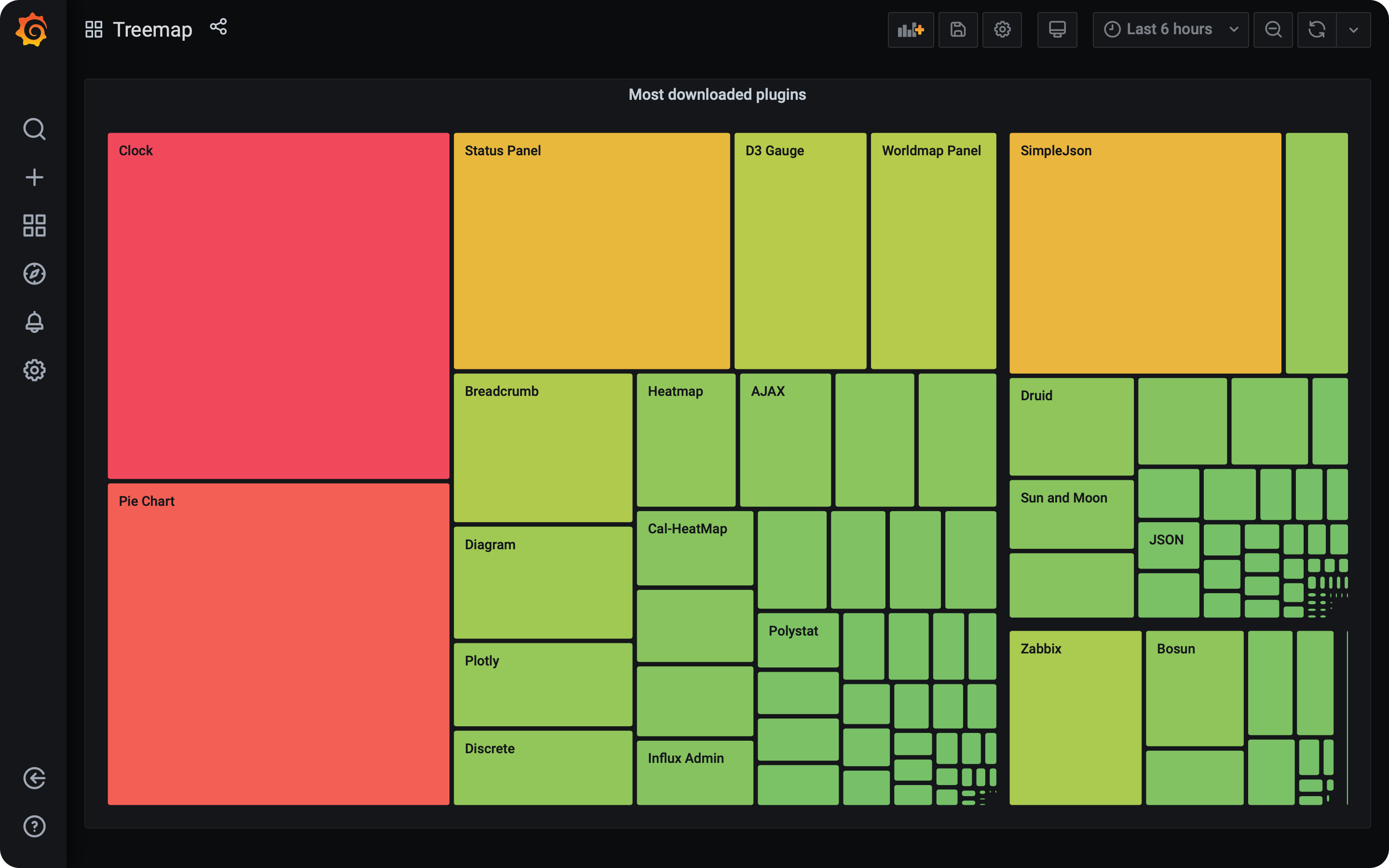

Screenshot

Configuration

Query

The Treemap panel expects a query that returns text field, and a number field.

Panel options

Display

  • Tiling algorithm determines where to make each split.

Dimensions

The dimension options determines what fields to use for each dimension of the visualization.

  • Text specifies the field to use for identifying each tile. Must be unique.
  • Size specifies the field to use for the size of each tile. Must be a numeric field.
  • Color specifies the field to use for the color of each tile.
    • If the field is numeric, each tile is linearly mapped to a color spectrum.
    • If the field is textual, that field is used to group tiles into colored categories.

Field options

Standard options

  • Decimals and Unit sets the textual format of each value.
Sign up Now

Version

Dependencies:
  • Grafana 7.3.x
