Instantly visualize Axiom data in Grafana

The Grafana data source plugin is the easiest way to query event data from Axiom directly in Grafana dashboards.

Requirements

This plugin has the following requirements:

• An Axiom account
• An Axiom advanced API token with read permission

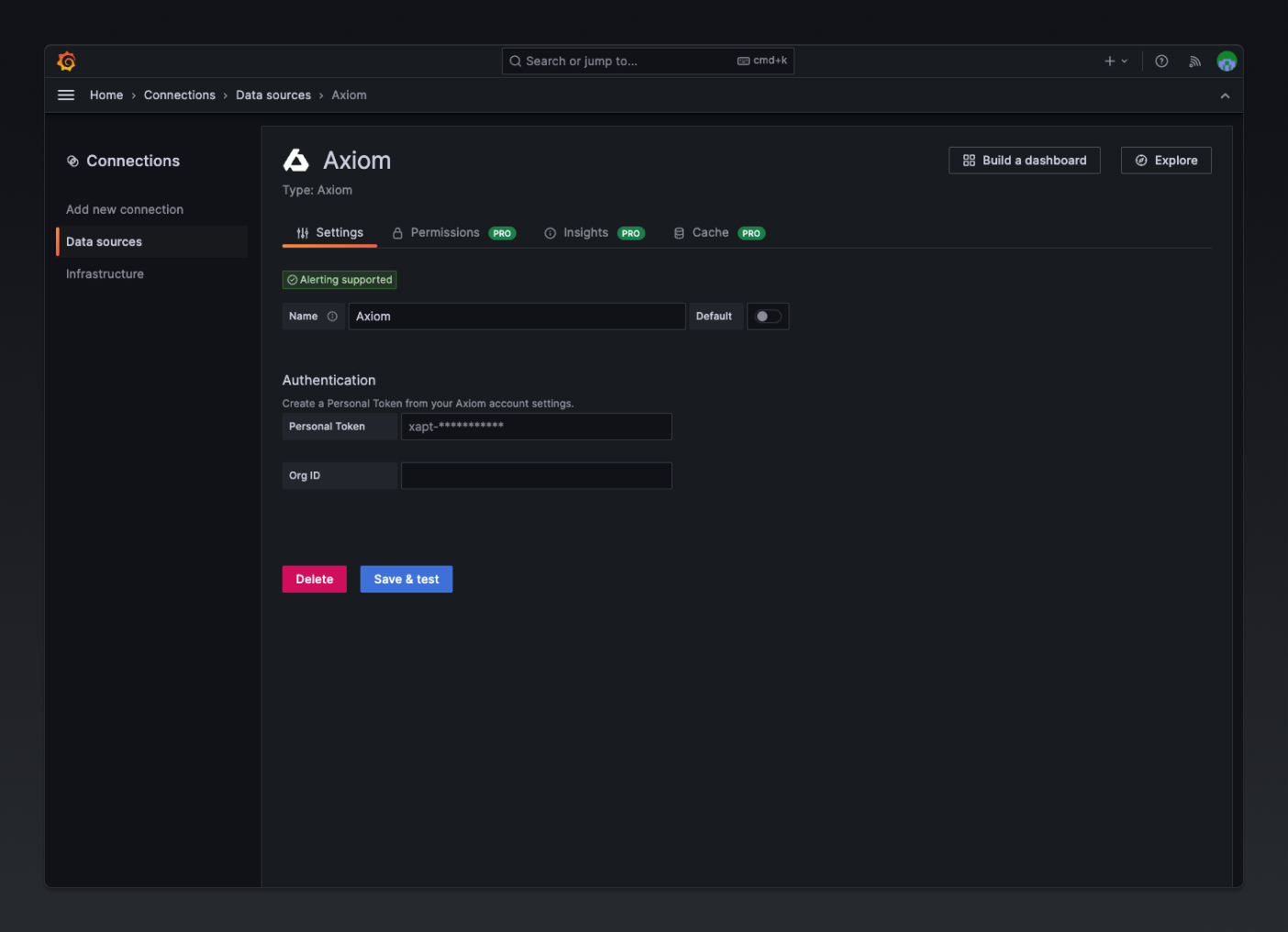

Configuration

1. Add a new data source in Grafana
2. Select the Axiom data source plugin
3. Enter your Axiom advanced API token
4. Confirm the Edge URL for your Axiom deployment. The default is https://us-east-1.aws.edge.axiom.co
5. Save and test the data source

Upgrading from v0.6.x to v0.7.0

v0.7.0 no longer supports Personal token plus Org ID authentication. If an existing data source still uses a Personal token and Org ID, update it to use an Axiom API token before upgrading so dashboards using that data source continue to authenticate.

v0.7.0 uses Edge URL for query operations. Existing v0.6.x data sources that only have an API URL and API token continue to work: when neither edge nor edgeURL is configured, the plugin defaults edgeURL to https://us-east-1.aws.edge.axiom.co at config load.

No manual migration is required for data sources that should use the default edge endpoint. If your Axiom deployment uses a different edge endpoint, update the data source:

1. In Grafana, open Connections > Data sources > Axiom
2. Set Edge URL to the edge endpoint for your Axiom deployment
3. Save and test the data source

If the data source is provisioned and should use a non-default edge endpoint, add edgeURL under jsonData:

jsonData:
  apiHost: https://api.axiom.co
  edgeURL: https://your-edge.example.com

Data sources that already used the legacy edge setting continue to be migrated automatically to edgeURL.

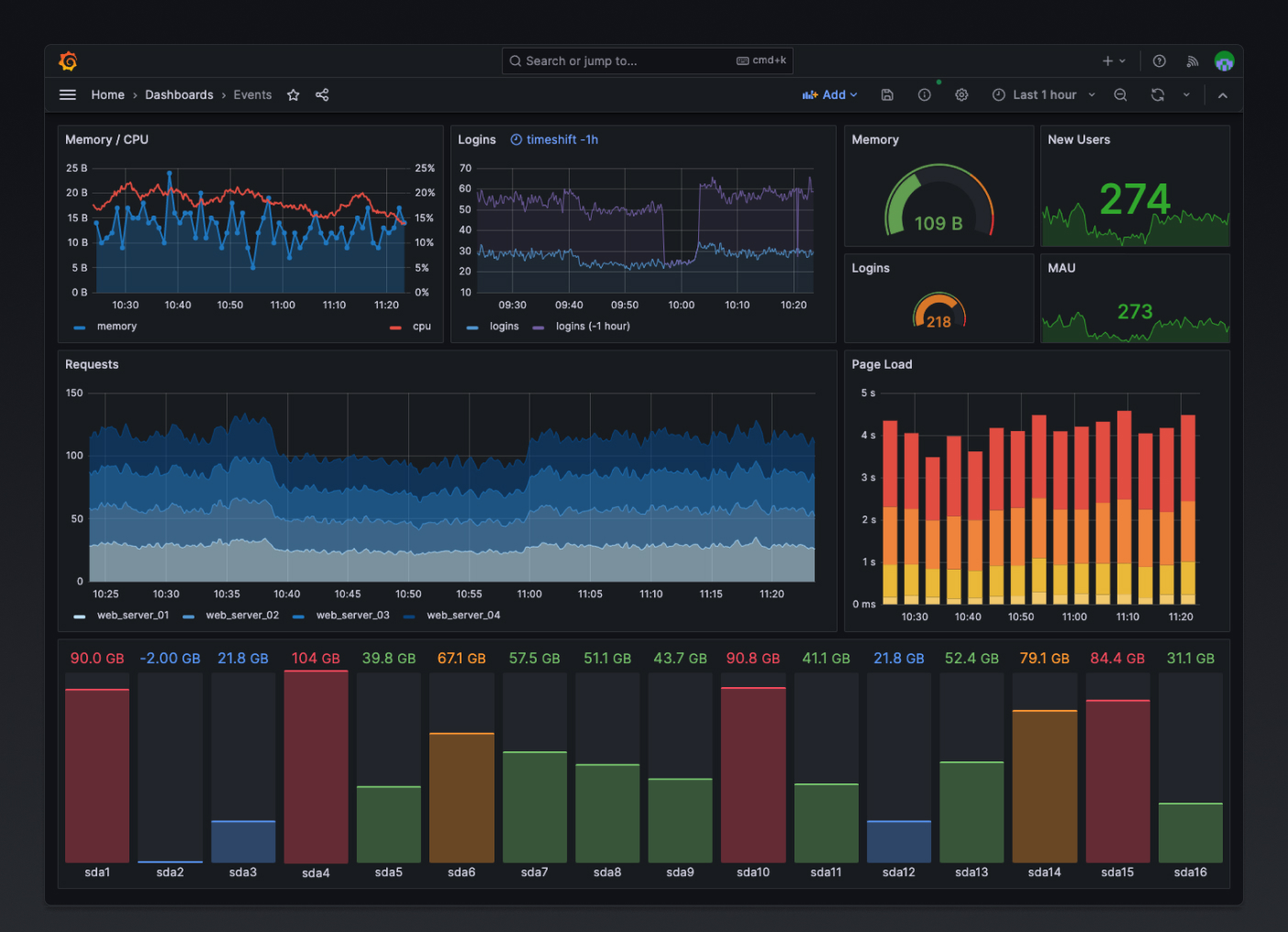

Visualizing data

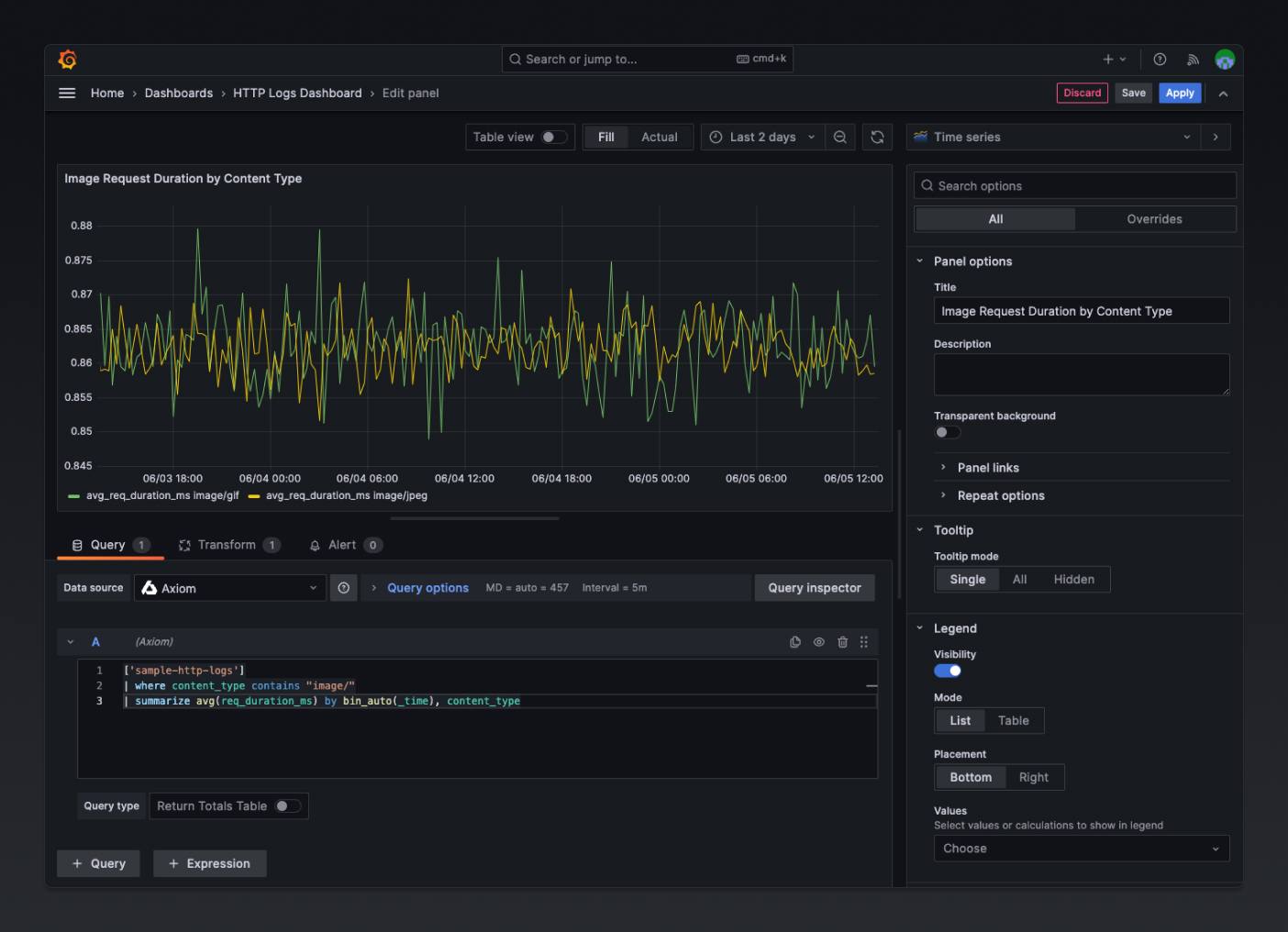

The Axiom data source plugin provides a custom editor to query and visualize event data from Axiom.

1. Create a new panel in Grafana
2. Select the Axiom data source
3. Use the query editor to filter, transform and analyze your data

Metric series labels

For MPL metric queries, Grafana legends use the metric name plus the tag set by default. To make legends easier to scan, the plugin uses tag values as the leading label when tags are present, for example 200 | POST | /checkout {status=200, method=POST, route=/checkout}.

You can control the full legend dynamically from your query by adding a __label tag. The plugin uses the __label value as the series label and hides the normal {tag=value} suffix from the legend, while still leaving those labels available in Grafana:

extend __label = "${`k8s.pod.name`}"

Installation

Installation on Grafana Cloud

For more information, visit the docs on plugin installation.

Installation with Grafana CLI

grafana-cli plugins install axiomhq-axiom-datasource

Installation with Docker

1. Add the plugin to your docker-compose.yml or Dockerfile
2. Set the environment variable GF_INSTALL_PLUGINS to include the plugin

GF_INSTALL_PLUGINS="axiomhq-axiom-datasource"
