Zabbix plugin for Grafana

Version Change Log Docs

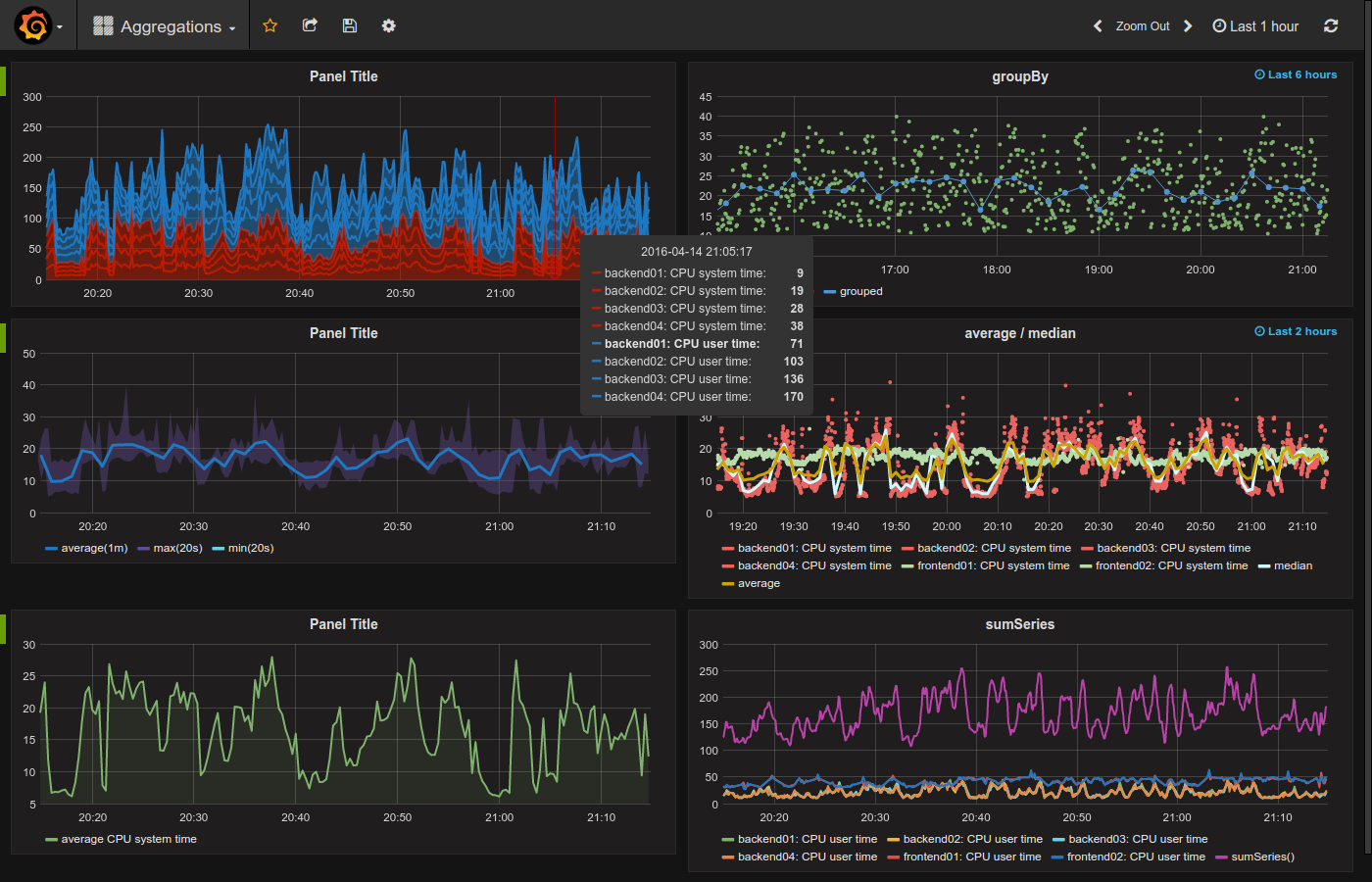

Dashboard

Features

  • Select multiple metrics by using Regex
  • Create interactive and reusable dashboards with template variables

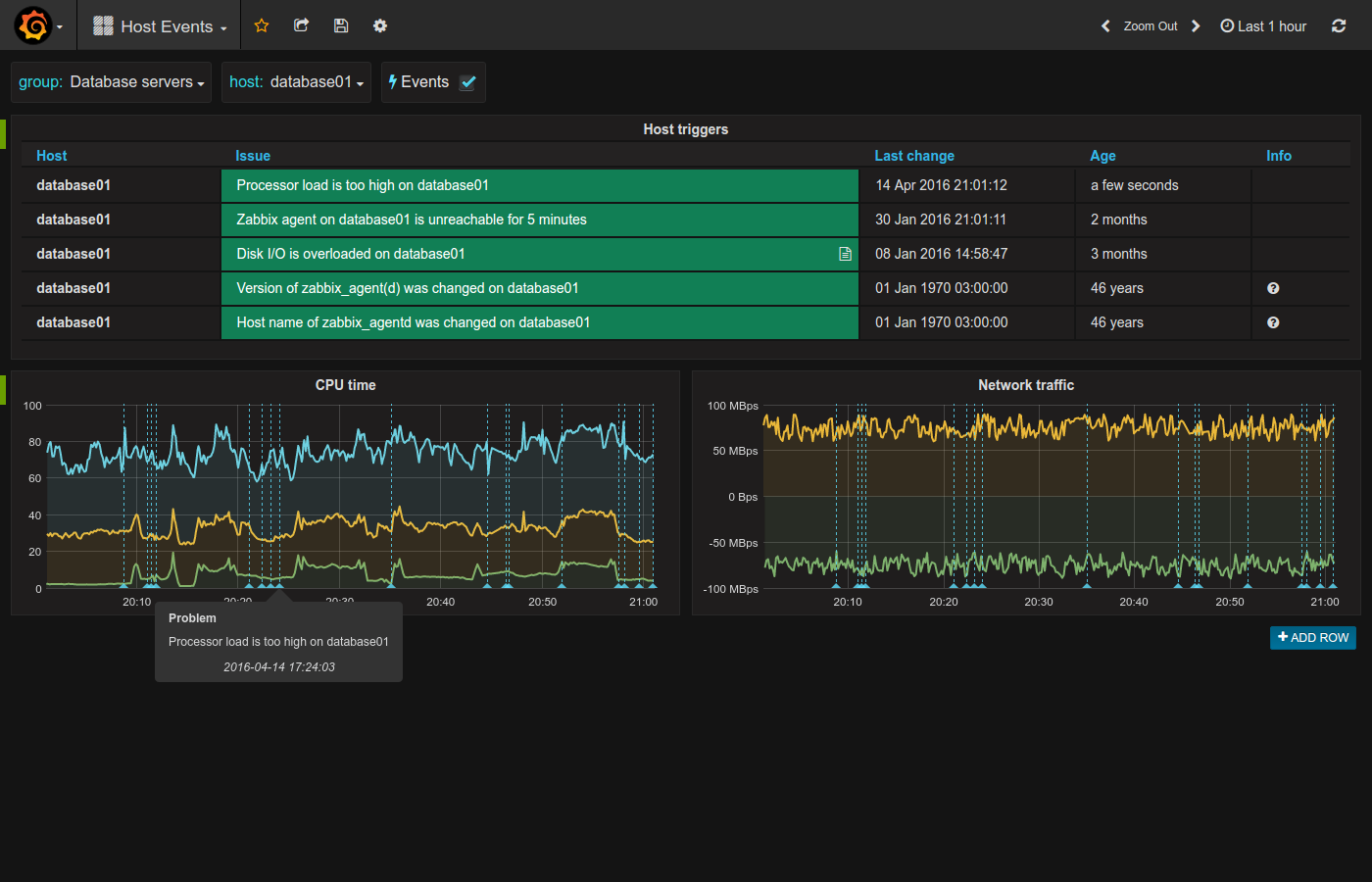

  • Show events on graphs with Annotations

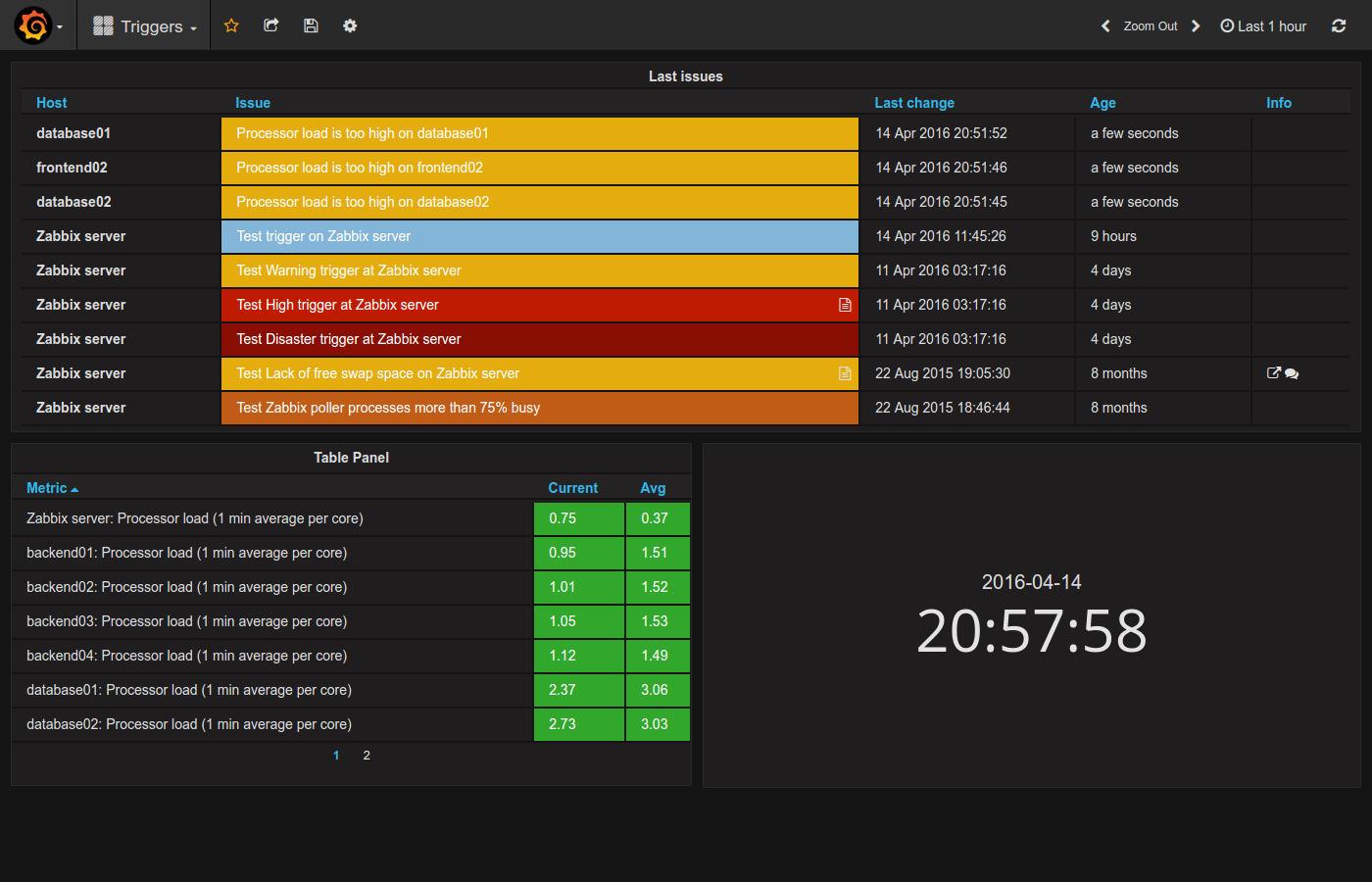

  • Display active problems with Triggers panel
  • Transform and shape your data with metric processing functions (Avg, Median, Min, Max, Multiply, Summarize, Time shift, Alias)
  • Find problems faster with Alerting feature
  • Mix metrics from multiple data sources in the same dashboard or even graph
  • Discover and share dashboards in the official library

See all features overview and dashboards examples at Grafana-Zabbix Live demo site. Visit plugins page at grafana.com and check out available Grafana data sources, panels and dashboards.

Installation

Install by using grafana-cli

grafana-cli plugins install alexanderzobnin-zabbix-app

Or see more installation options in docs.

Getting started

First, configure Zabbix data source. Then you can create your first dashboard with step-by-step Getting started guide.

Documentation

Community Resources, Feedback, and Support

  • Found a bug? Want a new feature? Feel free to open an issue.
  • Have a question? You also can open issue, but for questions, it would be better to use Grafana Community portal.

Installing Zabbix on Grafana Cloud:

For more information, visit the docs on plugin installation.

Change Log

[4.4.6] - 2024-03-07

  • Fix: API token reset not working (#1797)
  • Chore: Build with go 1.22

[4.4.5] - 2024-01-10

[4.4.4] - 2023-11-21

Feature

  • Update configuration page to follow best practices

Fix

  • Dashboards not showing up in configuration

Chore

  • Added lint github workflow
  • Update grafana-plugin-sdk-go to latest
  • Remove legacy form styling

[4.4.3] - 2023-10-10

Chore

  • Don't track requests on dashboard #1707

[4.4.2] - 2023-10-09

Chore

Docs

  • Fix broken link in query editor and doc #1701

[4.4.1] - 2023-08-30

Fixed

  • Plugin unavailable, #1604

[4.4.0] - 2023-08-17

Added

  • Support for secure socks proxy, #1653
  • Able to use API tokens for authentication, #1513
  • Problems: Able to select AND/OR tag evaluation rule, #1600

Fixed

  • Application filter does not work in some cases, #1597
  • Application filter in the triggers query, #1643
  • Problems: pagination on footer doesn't work #1649
  • Single host items contain the hostname in the legend, #1335
  • IT Services: displaying multiple SLA, #1603

[4.3.1] - 2023-03-23

Fixed

  • Cannot create or edit variables (unexpected error happened), #1590
  • Item tag filter not working properly, #1594
  • SLA dates differ in Grafana and Zabbix, #1595
  • Problems panel: invalid problem lastchange time for list layout, #1596
  • Problems panel: tags filter doesn't work in history mode, #1592

[4.3.0] - 2023-03-21

Added

  • SLA support in Zabbix 6.0, #1437
  • Build for FreeBSD, #1301
  • Problems panel: add operational data, #1260
  • Problems panel: allow HTML in problem description, #1557
  • Problems panel: show acknowledge author in message, #1281
  • Problems panel: query problems with particular severity, #572
  • Show non-suppressed problems from maintenance hosts when "Show Maintenance Hosts" is not selected, #830
  • Set data frame name in triggers query mode, #1441
  • Use trends by graph, #1442
  • Improved performance of item tags, #1315
  • Triggers query mode: add time range switcher, #918

Fixed

  • Zabbix authentication does not work in 6.4, #1544
  • Error json: invalid use of ,string struct tag, trying to unmarshal into float64, #1325
  • Triggers: acknowledged filter doesn't work, #985

[4.2.10] - 2022-09-01

Fixed

  • Perl regex syntax no longer accepted in any filter, #1264
  • InfluxDB direct DB connection error (this.influxDS._seriesQuery(...).then is not a function), #1255

[4.2.9] - 2022-07-12

Fixed

  • Plugin is not working with Zabbix 6.2.0, #1470

[4.2.8] - 2022-05-06

Fixed

  • setAlias() doesn't work in some cases, #1444
  • Trend data displayed incorrectly when direct DB connection enabled, #1445

[4.2.7] - 2022-05-04

Fixed

  • IT Services not working with Zabbix 6.0, #1408
  • Problems panel: Cannot read properties of undefined (reading 'trim') error when tag has only name, #1420
  • Dashboards not included into plugin, #1407
  • Missing labels in response, #1352
  • Query returns all application data when host not found, #1427
  • Basic Auth is not working (401 Unauthorized), #1327
  • Show disabled items option is not working, #1249

[4.2.6] - 2022-04-04

Fixed

  • Problems panel: incorrect problem name when PROBLEM event generation mode set to multiple, #1403

[4.2.5] - 2022-02-17

Fixed

  • Problems panel: error when attempting to click on info button, #1357
  • Error parsing regexp: invalid or unsupported Perl syntax, #1318
  • json: cannot unmarshal number into Go struct field TimeSeriesData.series.TS of type int64, #1320
  • json: cannot unmarshal number into Go struct field QueryModel.queryType of type string, #1342
  • Grafana does not get units from Zabbix in 4.2, #1321

[4.2.4] - 2021-09-27

Fixed

  • Time series is cut on certain conditions, #1309
  • groupBy/aggregateBy handles interval improperly, #1310
  • top() function returns incorrect set of series, #1313
  • Some data alignment/stacking issues

[4.2.3] - 2021-09-21

Fixed

  • Different collection intervals compatibility (stacked graph issue), #1211
  • Graph broken when trend data used, #1300
  • Zabbix API request error "EOF", #1295
  • Item tag does not accept variables, #1283
  • Failed to query data, rpc error, #1262
  • Error Cannot read property 'isZabbix54OrHigher' of undefined when creating a variable template query, #1282

[4.2.2] - 2021-08-25

Fixed

  • Different item intervals compatibility (stacked graph issue), #1211
  • Random "Failed to call resource" errors and plugin restarts, #1269
  • Top function does not work if number of series less than provided N, #1267
  • Host names are not displayed on multiple selection (regular expression), #1265
  • Cannot unmarshal number into Go struct field ZabbixDatasourceSettingsDTO.timeout of type string, #1254
  • sortSeries() does not sort by series name, #1274

[4.2.1] - 2021-08-10

Fixed

  • No data on queries with aggregation function
  • Wrong percentile aggregation

[4.2.0] - 2021-08-10

Added

  • Support functions on the backend (alerting with functions), #869
  • Support item tags instead of application in Zabbix 5.4, #1258

Fixed

  • Direct DB connection - No data in Grafana 8.0, #1221
  • Error when attempting to acknowledge problems in Grafana 8.0, #1239
  • Explore button in Problems view doesn't work (redirects to 404), #1240
  • Zabbix value mapping doesn't work in Grafana 8.0, #1222
  • Unable to see acknowledges if problem has tags, #1233
  • Ack button is not visible on narrow layouts, #1252

[4.1.5] - 2021-05-18

Fixed

  • Fix compatibility with Zabbix 5.4, #1188

[4.1.4] - 2021-03-09

Fixed

  • Field/Standard options/Display name stopped working in 4.1 release, #1130
  • Functions: trendsValue(sum) is not working, #935

[4.1.3] - 2021-03-05

Fixed

  • Explore: Error "Unexpected field length", #1150
  • Problems: item last value truncated text, #1145
  • Problems: minor UI bug, #1149
  • Option to disable zabbix value mapping translation in query, #1128

[4.1.2] - 2021-01-28

Fixed

  • Item ID query mode doesn't work, #1148
  • IT Services: a.round_interval is not a function, #1142
  • Problems: Text overlap between the tooltip and description boxes, #1138
  • Problems: expanded row overwritten on refresh, #1143

[4.1.1] - 2020-12-30

Fixed

  • Graphs with dependent items failed to render, #1123

[4.1.0] - 2020-12-28

Added

  • Data Frames support, #10820. This solves various issues below:
  • Use units configured in Zabbix if possible
  • Use value mappings from Zabbix
  • Align points in each series to prevent stacking graph issues
  • Fill missing points with null values, #1109
  • Problems: filter problems by time range, #1094
  • ARM build (ARM64 and ARM v6), #1028

Fixed

  • Grafana doesn't prevent from saving alerts with template variables, #1100
  • Query inspector is not working, #1097
  • Problems panel query editor issues, #988
  • Problems: unable to change severity to Not Classified, #1104
  • Problems: ack message limited to 64 characters, #1122

[4.0.2] - 2020-11-13

Fixed

  • Query mode Text returns no data for last value, #1062
  • Able to configure API request timeout, #1046
  • Support basic auth for backend requests, #1048
  • Problems: fix empty problems list when null value used as a filter
  • Problems: fix long item values displaying

[4.0.1] - 2020-09-02

Fixed

  • Plugin is not signed, #1038
  • Datasource: "Parse error Invalid JSON. An error occurred on the server while parsing the JSON text" , #1004
  • Datasource: Skip TLS Verify button does not work, #1029
  • Config: can't select Direct DB Connection in Grafana 7.1.5, #1027
  • Problems: trigger dependencies not resolved, #1024

[4.0.0] - 2020-08-25

4.0 Feature highlights

Grafana-Zabbix 4.0 comes with a bunch of changes under the hood. The most important thing introduced is a backend, which brings a number of benefits:

  • Alerting support (limited, data processing functions are not supported yet).
  • Fixed security issues related to exposing data source credentials to the Grafana frontend and storing password as a plain text in database.
  • Improved performance (plugin can cache queries and process data on the backend).
  • With improved security it makes easier to add actions (execute scripts, close problems, etc).

Installation

Prerequisites: plugin requires Grafana 7.0 to run.

Use the grafana-cli tool to install Zabbix from the command-line:

  1. grafana-cli plugins install alexanderzobnin-zabbix-app
  2. Unsigned plugins are not loading by default, so allow it in the Grafana config file:
    allow_loading_unsigned_plugins = alexanderzobnin-zabbix-datasource

  3. restart Grafana server

Refer to allow_loading_unsigned_plugins option description for more information.

Security

  • Zabbix credentials available for everyone who can see dashboard, #380
  • Store password encrypted, #800

Added

  • Alerting support (limited, data processing functions are not supported yet) , #801
  • Problems: execute scripts, #978
  • Problems: tooltip with problem description
  • Problems: use severity filter from panel options

Fixed

  • Problems: problems history
  • Problems: sorting by severity, #921
  • Datasource: reconnecting on request error
  • Problems: filtering by tags
  • Problems: sorting order
  • Problems: performance improvements (remove unnecessary queries)
  • Problems: empty problem list, #955
  • Problems: panel migrations when panel options is not opened (options not saved after reload)
  • Problems: item value tooltip placement

Removed

  • Old alerting feature (show heart icon on the panel), replaced by Grafana alerting

[4.0.0-alpha4] - 2020-07-21

Fixed

  • Problems: filtering by tags
  • Problems: sorting order
  • Problems: performance improvements (remove unnecessary queries)

[4.0.0-alpha3] - 2020-07-17

Fixed

  • Problems: empty problem list, #955

[4.0.0-alpha2] - 2020-06-18

Fixed

  • Problems: panel migrations when panel options is not opened (options not saved after reload)
  • Problems: item value tooltip placement

Added

  • Problems: use severity filter from panel options

Removed

  • Old alerting feature (show heart icon on the panel), replaced by Grafana alerting

[4.0.0-alpha1] - 2020-06-04

4.0 Feature highlights

Grafana-Zabbix 4.0 comes with a bunch of changes under the hood. The most important thing introduced is a backend, which brings a number of benefits:

  • Alerting support (limited, data processing functions are not supported yet).
  • Fixed security issues related to exposing data source credentials to the Grafana frontend and storing password as a plain text in database.
  • Improved performance (plugin can cache queries and process data on the backend).
  • With improved security it makes easier to add actions (execute scripts, close problems, etc).

Installation

Prerequisites: plugin requires Grafana 7.0 to run.

Version 4.0 is currently in alpha state and not published at grafana.com. In order to install it, follow these steps:

  1. Go to the GitHub releases and find latest 4.0.0 release.
  2. Download .zip package with plugin from release assets (asset name is grafana-zabbix-4.0.0-<alphaX|betaX>.zip).
  3. Unpack it and put into grafana plugins folder.
  4. Unsigned plugins are not loading by default, so allow it in config:
    allow_loading_unsigned_plugins = alexanderzobnin-zabbix-datasource

  5. restart Grafana server

Refer to allow_loading_unsigned_plugins option description for more information.

Security

  • Zabbix credentials available for everyone who can see dashboard, #380
  • Store password encrypted, #800

Added

  • Alerting support (limited, data processing functions are not supported yet) , #801
  • Problems: execute scripts, #978

[3.12.2] - 2020-05-28

Fixed

  • Annotations feature doesn't work, #964
  • Alias variables do not work with direct DB connection enabled, #965

[3.12.1] - 2020-05-25

Fixed

  • Problems: panel fails with error (cannot read property 'description' of undefined) , #954
  • Problems: problem name filter doesn't work, #962
  • Problems: acknowledged filter doesn't work, #961

[3.12.0] - 2020-05-21

Added

  • Variables: able to query item values, #417
  • Functions: expose host, item, app to the alias functions, #619
  • Problems: navigate to Explore and show graphs for the problem, #948
  • Problems: able to show Problems/Recent problems/History, #495
  • Problems: icon with acknowledges count, #946
  • IT Services: support SLA intervals, #885

Fixed

  • Explore doesn't work with Zabbix datasource, #888
  • SLA value is incorrect, #885
  • Graph panel randomly shows no data, #861
  • Variables: unable to edit variables in Grafana 7.0.0, #949
  • Variables: wrong variable scope inside repeated rows, #912
  • Problems: resolve macros in URLs, #190
  • Problems: unable to acknowledge resolved problem, #942
  • Problems: resolved problems color and severity set to Not classified, #909
  • Problems: can't acknowledge alert in panel with a single problem, #900
  • Annotations: ITEM.VALUE behaves like ITEM.LASTVALUE in annotations, #891
  • Alert state on the panel (heart icon) doesn't work in Grafana 6.7, #931
  • Consolidated average is not accurate with direct DB connection, #752

Changed

  • Problems panel uses new problem.get API which is not compatible with Zabbix 3.x, #495
  • Problems panel is metrics panel now, problems query editor moved to the data source.
  • Zabbix version is auto detected now, #727

[3.11.0] - 2020-03-23

Added

  • Improve variable query editor, #705
  • Transform/percentile function, #868

Fixed

  • Problems panel: stopped working in Grafana 6.7.0, #907
  • Problems panel: event severity change, #870
  • Problems panel: color is changed to acknowledged even if there is only message without acknowledgment, #857
  • Percentile function returns incorrect results, #862

[3.10.5] - 2019-12-26

Added

  • SLA over time graphs, #728
  • Additional time ranges in functions, #531

Fixed

  • Problems panel: query editor broken in Grafana 6.4, #817
  • Datasource: function editor is not working, #810
  • Datasource: cannot add a function to query from typeahead, #468
  • Datasource: annotations editor broken in Grafana 6.x, #813
  • React plugins issue, #823

[3.10.4] - 2019-08-08

Fixed

  • Problems panel: query editor broken in Grafana 6.3, #778
  • Problems panel: some heart icons are missing, #754

[3.10.3] - 2019-07-26

Fixed

  • Direct DB Connection: can't stay enabled, #731
  • Triggers query mode: count doesn't work with Singlestat, #726
  • Query editor: function editor looks odd in Grafana 6.x, #765
  • Alerting: heart icon on panels in Grafana 6.x, #715

[3.10.2] - 2019-04-23

Fixed

  • Direct DB Connection: provisioned datasource fails to load, #711
  • Functions: sumSeries doesn't work in couple with other aggregation functions, #530
  • Problems panel: performance and memory issues, #720 , #712
  • Problems panel: hide acknowledge button for read-only users, #722
  • Problems panel: "no data" overlaps table header when font size increased, #717
  • Problems panel: problem description does not resize problem bar, #704
  • Triggers query mode: problems not filtered by selected groups, #709

[3.10.1] - 2019-03-05

Fixed

  • Problems panel: unable to edit panel in Grafana 6.0, #685
  • Problems panel: datasource selector is empty, #692
  • Problems panel: "acknowledged" filter doesn't work correctly, #678 #691
  • Problems panel: acknowledged color isn't working, #676
  • Problems panel: highlight background doesn't work correctly for resolved events in List view, #681
  • Problems panel: duplicated page size entries, #696
  • Direct DB Connection: unable to get trends data from InfluxDB, #675
  • Annotations are not displayed when time set to a full day/week/month, #680
  • Datasource provisioning with direct DB connection enabled failed #688
  • Functions: offset function returns NaN in singlestat panel, #683
  • Functions: median() doesn't correspond to aggregateBy(median) , #690
  • Docs: add warnings about installation methods, #693

[3.10.0] - 2019-02-14

Added

  • Table-like layout for Problems (former Triggers) panel, #673
  • Problems panel: able to show last problems from dashboard time range, #550
  • Problems panel: filter problems by event tags, #487
  • Problems panel: option for displaying groups and proxy, #418
  • Support InfluxDB as Direct DB Connection datasource, #640, collaboration with Gleb Ivanovsky aka @i-ky
  • Support datasource provisioning with direct DB connection enabled, #614
  • Functions: offset function, #387, thanks to @drakosha
  • Functions: removeAboveValue, removeBelowValue, transformNull functions, #562, thanks to @gelonsoft

Fixed

  • t.replace is not a function error when adding new metric, #661
  • Problems panel: error when acknowledging problems in Zabbix 4.0, #629
  • Problems panel: direct link rendered image, #605
  • Direct DB Connection: Cannot read property 'name' of null error when no series returned, #571
  • Direct DB Connection: consolidateBy(sum) does not work correctly, #603
  • Direct DB Connection: consolidateBy() affects other metrics in a panel, #602

Changed

  • Disable auto-creation of Zabbix/Linux Server dashboards (still can be imported from datasource config page) , #422
  • Use Webpack for building plugin, #632
  • dist/ folder removed from repo, installation from github repo doesn't work anymore, #693

[3.9.1] - 2018-05-02

Fixed

  • Datasource fails when "Direct DB connection" enabled #564
  • Alerting and health icons on panels #556
  • Alerting threshold error #549

[3.9.0] - 2018-03-23

Added

  • Table format support for text data #492
  • Option to enable triggers background highlighting #532
  • Option to disable acknowledges for read-only users #481

Fixed

  • Triggers panel has broken styles in Grafana 5.0 #522
  • Undefined username in acknowledges #393

[3.8.1] - 2017-12-21

Fixed

  • Triggers panel multiple targets bug (typing in one target affects other)
  • Triggers panel event source icon

[3.8.0] - 2017-12-20

Added

  • Multiple data sources support for triggers panel, #431

Changed

  • Triggers Panel fully redesigned, closed a bunch of issues: #431, #488, #299, #485, #412, #157, #483, #487, #248
  • Tests migrated to Jest

Fixed

  • Triggers panel refreshing issues
  • aggregateBy() function bug, #498

[3.7.0] - 2017-10-24

Added

  • PostgreSQL support for Direct DB Connection.
  • Triggers query mode which allows to count active alerts by group, host and application, #141
  • sortSeries() function that allows to sort multiple timeseries by name, #447, thanks to @mdorenkamp
  • percentile() function, thanks to @pedrohrf
  • Zabbix System Status example dashboard.

Changed

  • Included dashboards moved to data source. Go to the data source config to import it.

Fixed

  • Direct DB connection doesn't work with ONLY_FULL_GROUP_BY option enabled, #445
  • Application selection doesn't work, #352
  • "data points outside time range" error when there is no datapoints and aggregation function is used
  • Missed Max data points option in Grafana 4.5+
  • Missed query editor help in Grafana 4.5+
  • Alert threshold detection with <= >= = operators, thanks to @akotynski.

[3.6.1] - 2017-07-26

Fixed

  • cannot read property 'enable' of undefined error after upgrade, #436

[3.6.0] - 2017-07-26

Added

  • Direct DB Connection, which allows to use existing SQL data source for querying history data directly from Zabbix database.
  • Docs: Direct DB Connection reference and configuration.
  • consolidateBy function, which allows to specify aggregation function for time series data.
  • movingAverage and exponentialMovingAverage functions.
  • Item ID editor mode for querying items by id.

Changed

  • IT Services query editor. Now user able to select multiple services by using regex, #415

Fixed

  • Template variables support in annotations and triggers panel (trigger name field) , #428
  • Parsing of template variable query with braces, #432
  • sumSeries() function bug, #286

[3.5.1] - 2017-07-10

Fixed

  • Bug with alerting when template queries are used, #424

[3.5.0] - 2017-07-05

Added

  • rate() function, which calculates per-second rate for growing counters.
  • Benchmarks for time series functions. Used Benchmark.js library.

Changed

  • Template query format. New format is {group}{host}{app}{item}. It allows to use names with dot. Updated templating docs, #254
  • Update included dashboards. Add templated zabbix datasource and use it for all metrics.
  • Improved performance of groupBy() functions (at 6-10x faster than old).
  • Fill empty intervals by null when aggregations are used, #388

Fixed

  • Item name expanding when key contains commas in quoted params, like my_key["a=1,b=2",c,d]
  • Incorrect points order when trends are used #202
  • Triggers panel styles for light theme
  • Bug with text metrics when singlestat or table shows NaN, #325

[3.4.0] - 2017-05-17

Added

  • Alerting: highlight panel contained metrics with fired triggers.
  • Alerting: add thresholds to panels from zabbix triggers.
  • Docs: add docs for setAliasByRegex() from @v-zhuravlev
  • Support millisecond resolution on graphs. Patch from Jay Dawes ajaxous@gmail.com.
  • Sum and count aggregations.
  • Expand user macros in items #212
  • replaceAlias() function #287
  • Additional Range config option for trends #364

Changed

  • Add template variables to dropdown metric list #310
  • Add all value regex /.*/ to host dropdown.
  • Replace native map() and forEach() methods by lodash.

Fixed

  • Templatig issue when no values returned #354
  • Add host name for multiple text metrics.
  • Timeshift issue (Datapoints outside time range) for multiple targets with timeshift() , #338

[3.3.0] - 2017-02-10

Added

  • Triggers panel: allow to hide hosts in maintenance #186
  • Triggers panel: allow to change font size #351.
  • Triggers panel: table pagination #229
  • Triggers panel: add 'enable scroll' control and page size input.

Changed

  • Triggers panel: rearrange options.

Fixed

  • Grunt: fix watch task.

[3.2.1] - 2017-02-02

Added

  • Docs: add building instructions.
  • setAliasByRegex() function

Changed

  • Docs: deprecate special repo with built plugins.
  • Triggers panel: remove 'default' from datasources list (cause error), iss #340
  • Add dist/ directory to repo to correspond development guide http://docs.grafana.org/plugins/development/

Fixed

  • Triggers panel: metrics suggestion.
  • Triggers panel: event acknowledge.
  • Triggers panel: panel styles.
  • Query editor: options styles.
  • Docs: fixed timeShift() docs
  • Error for new empty panel #337
  • Checking query for variables.

[3.2.0] - 2017-02-02 [YANKED]

Added

  • timeShift() function #307
