OpenDCIM Sensor Positions

OpenDCIM sensor positions and temperature data - MySQL Data source

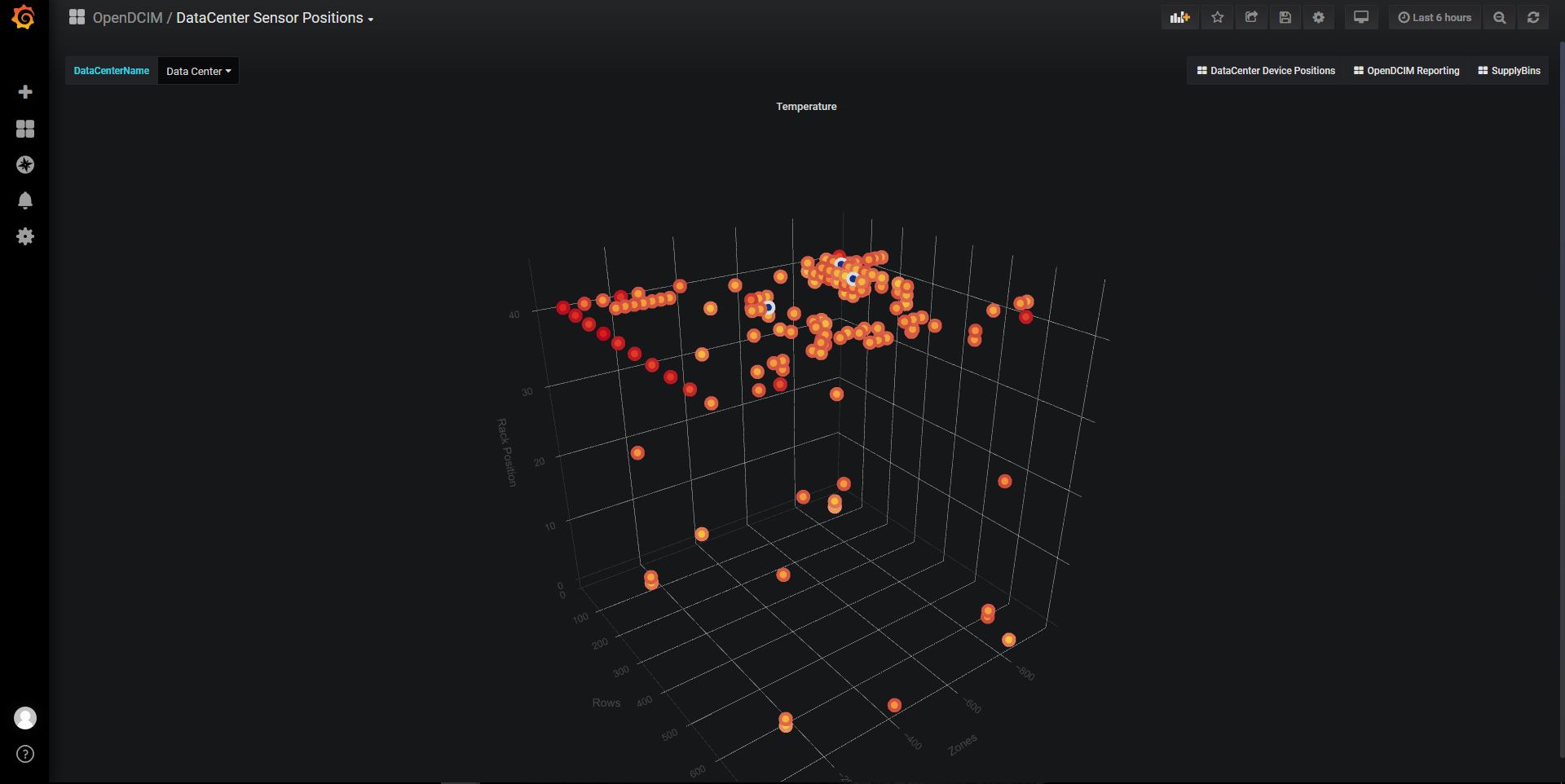

Dashboard for OpenDCIM sensors in Grafana. All sensors are displayed using cabinet x y coordinates and rack height positions. Temperature data is pulled from sensor table and highlighted. Must have working temperature sensor data in OpenDCIM Database.

The x-axis converted to a negative number in query to align with OpenDCIM data center layout.

OpenDCIM is a free web based Data Center Infrastructure Management application. https://opendcim.org/

Simply configure the MySQL data source per Grafana’s documentation against a OpenDCIM Database. It’s important to set new database user with read only permissions on OpenDCIM Database.

Details on MySQL data source can be found in Grafana documentation here: http://docs.grafana.org/features/datasources/mysql/

Dashboard revisions

RevisionDecscriptionCreated
