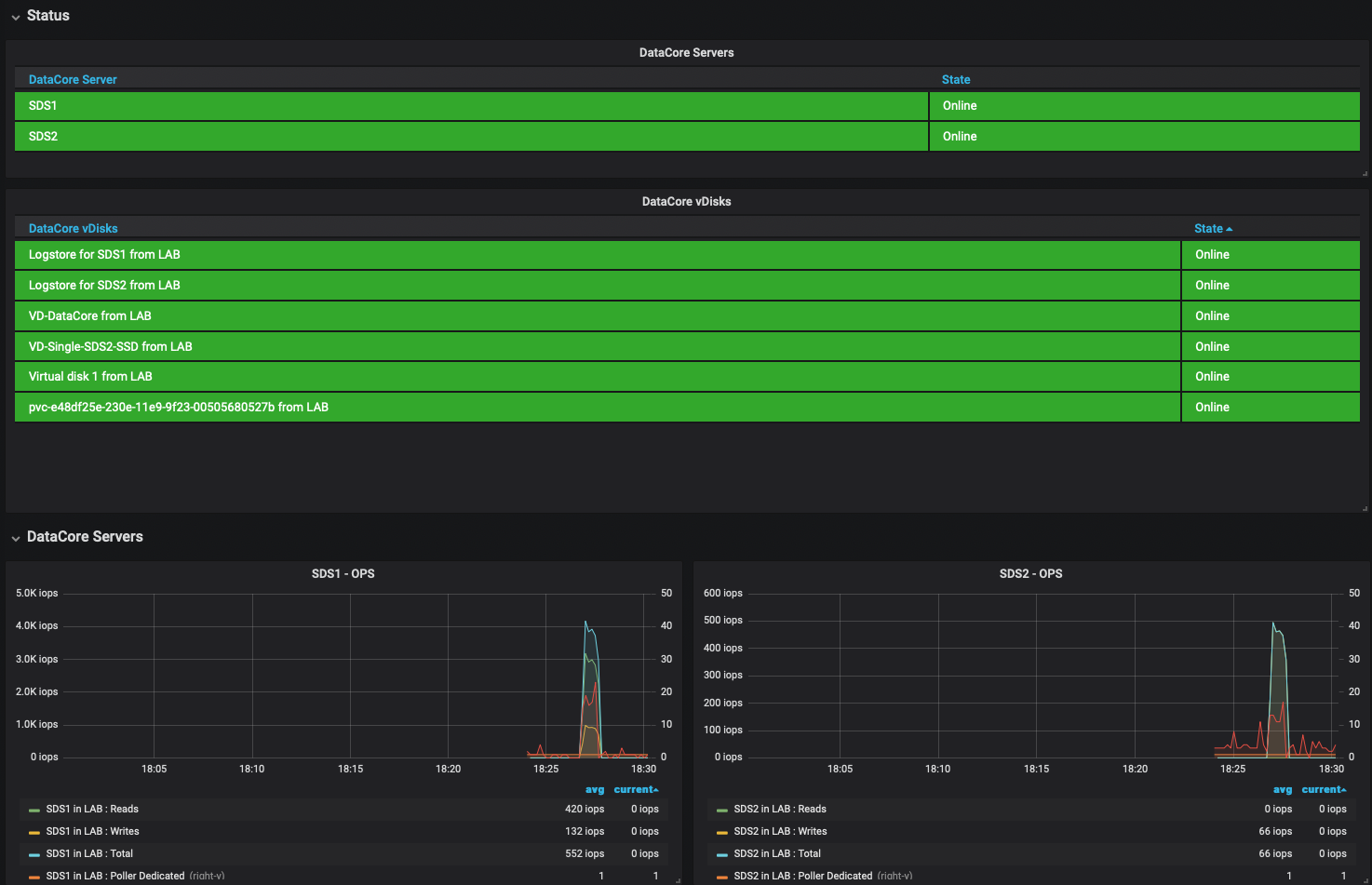

DataCore Monitor V1.2

You can find all details to run it on https://github.com/lblanc/grafana-integration

Docker Image with Telegraf, InfluxDB and Grafana with dashboard & REST script included for DataCore SANsymphony

You can find all details to run it on GitHub

License

Goal is to have grafana, influxdb and python script running to grab DataCore SANsymphony REST API performances

Quick Start

To start the container the first time launch this by replacing -e variables:

  • DCSSVR -> DataCore Server (IP or hostname)
  • DCSREST -> DataCore Rest API Server(IP or hostname)
  • DCSUNAME -> DataCore User name
  • DCSPWORD -> DataCore user password
sh
docker run --ulimit nofile=66000:66000 \
  -d \
  --name grafana-datacore \
  -p 3000:3000 \
  -p 8888:8888 \
  -p 8086:8086 \
  -p 22022:22 \
  -p 8125:8125/udp \
  -e "DCSSVR=X.X.X.X" \
  -e "DCSREST=X.X.X.X" \
  -e "DCSUNAME=administrator" \
  -e "DCSPWORD=password" \
  lblanc/grafana-integration:latest

If you have special characters in the password, do not forget the escapement ’’ before (ex: “password!” will be “password\!”)

If you want to monitor also vSphere you can add this variables:

  • VSPHERE_USER -> vSphere user
  • VSPHERE_PASS -> vSphere password
  • VSPHERE_VCENTER -> vSphere vCenter (IP or hostname)
  • VSPHERE_DOM -> vSphere domain
sh
docker run --ulimit nofile=66000:66000 \
  -d \
  --name grafana-datacore \
  -p 3000:3000 \
  -p 8888:8888 \
  -p 8086:8086 \
  -p 22022:22 \
  -p 8125:8125/udp \
  -e "DCSSVR=X.X.X.X" \
  -e "DCSREST=X.X.X.X" \
  -e "DCSUNAME=administrator" \
  -e "DCSPWORD=password" \
  -e "VSPHERE_USER=administrator@vsphere.local" \
  -e "VSPHERE_PASS=password" \
  -e "VSPHERE_VCENTER=X.X.X.X" \
  lblanc/grafana-integration:latest

To stop the container launch:

sh
docker stop grafana-datacore

To start the container again launch:

sh
docker start grafana-datacore

Persistent data

You can optionaly add volume option to store Grafana configuration and influxdb files Example:

sh
docker run --ulimit nofile=66000:66000 \
  -d \
  --name grafana-datacore \
  -p 3000:3000 \
  -p 8888:8888 \
  -p 8086:8086 \
  -p 22022:22 \
  -p 8125:8125/udp \
  -v my-volume:/data \
  -e "DCSSVR=X.X.X.X" \
  -e "DCSREST=X.X.X.X" \
  -e "DCSUNAME=administrator" \
  -e "DCSPWORD=password" \
  -e "VSPHERE_USER=administrator@vsphere.local" \
  -e "VSPHERE_PASS=password" \
  -e "VSPHERE_VCENTER=X.X.X.X" \
  lblanc/grafana-integration:latest

Mapped Ports

Host		Container		Service

3000		3000			grafana
8888		8888			chronograf
8086		8086			influxdb
8125		8125			statsd
22022		22        sshd

SSH

sh
ssh root@localhost -p 22022

Password: root

Grafana

Open http://localhost:3000

Username: grafana
Password: grafana
