Grafana Dashboard for Veeam Availability Console - SP Overview

Grafana Dashboard for Veeam Availability Console - SP Overview

Just download the latest Veeam Availability Console script version from GitHub https://github.com/jorgedlcruz/veeam-availability-console-grafana/blob/master/veeam-availability-console-script.sh and change the Configuration section within your details:

# Configurations
# Endpoint URL for InfluxDB
InfluxDBPort="8086" #Default Port
InfluxDB="telegraf" #Default Database

# Endpoint URL for login action
RestPort="1281" #Default Port

Once the changes are done, make the script executable with chmod:

chmod +x veeam_availability-console-grafana.sh

The output of the command should be something like the next, without errors:

HTTP/1.1 204 No Content
Content-Type: application/json
Request-Id: 3565d5b6-011d-11e9-81c7-000000000000
X-Influxdb-Build: OSS
X-Influxdb-Version: 1.6.3
X-Request-Id: 3565d5b6-011d-11e9-81c7-000000000000
Date: Sun, 16 Dec 2018 10:27:37 GM

If so, please now add this script to your crontab, like for example every 30 minutes:

*/30 * * * * * /home/oper/veeam_availability-console-grafana.sh >> /var/log/veeamvbo.log 2>&1

Check now that you can see all the new data on your Chronograf: alt tag

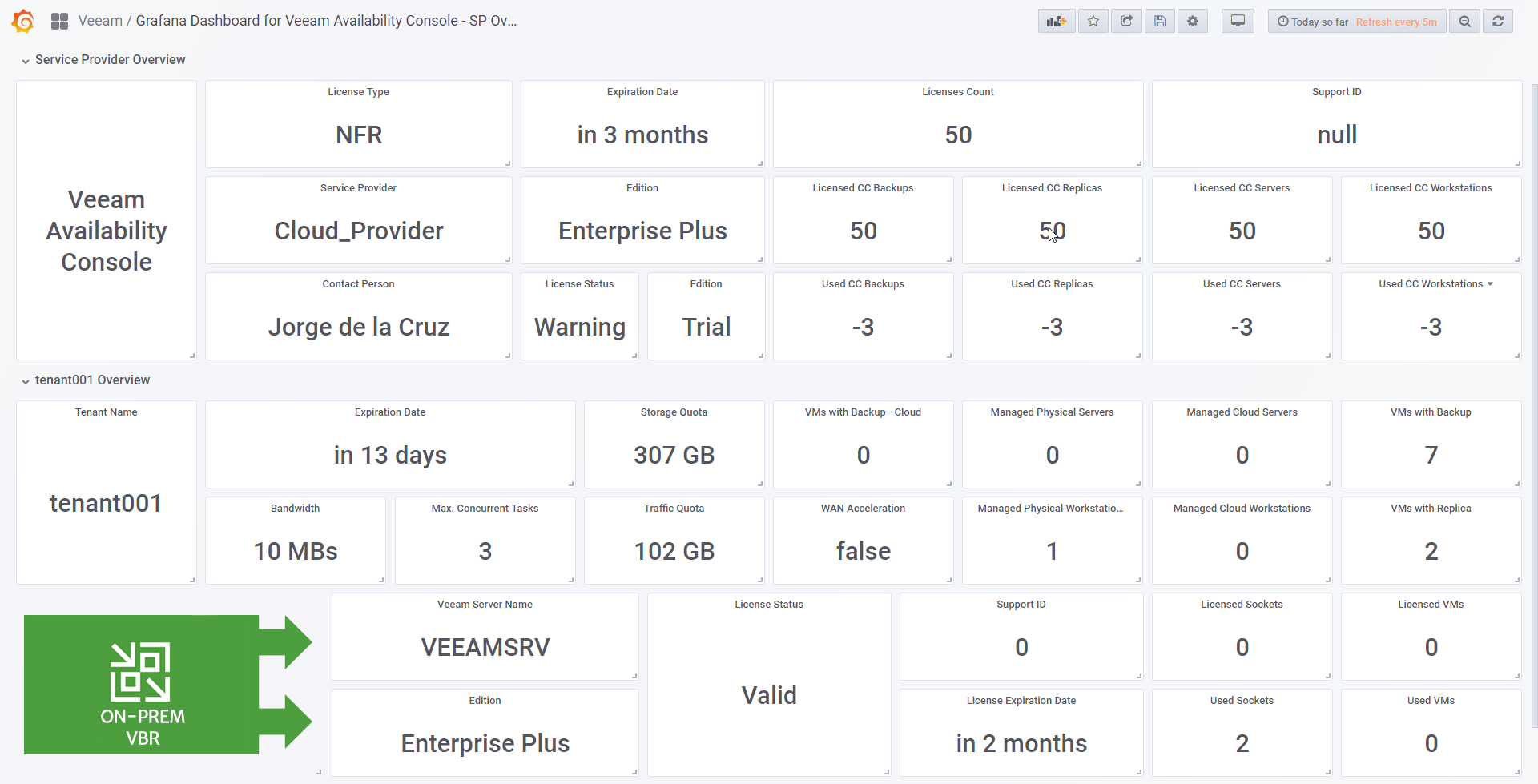

Then download or import this Dashboard to your Grafana, and you should see something similar to the next: alt tag
